Klutch 190932 Owner's Manual

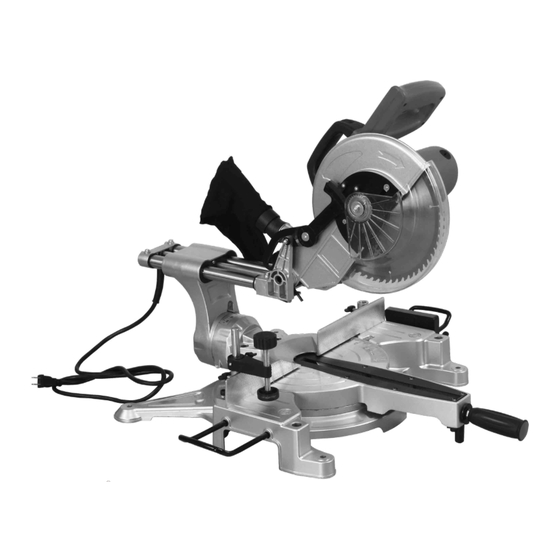

10in.LASER GUIDE COMPOUND MITER SAW
OWNER'S MANUAL
WARNING:
Read carefully and understand RULES FOR SAFE OPERATION and instructions
before operating. Failure to follow the safety rules and other basic safety
precautions may result in serious personal injury.
Item# 190932
Thank you very much for choosing a NORTHERN TOOL +
EQUIPMENT CO., INC., Product! For future reference, please
complete the owner's record below:
Model: _______________ Purchase Date: _______________
Save the receipt, warranty and these instructions. It is
important that you read the entire manual to become familiar
with this product before you begin using it.
This machine is designed for certain applications only.
Northern Tool + Equipment strongly recommends this machine
is not modified and/or used for any application other than that
for which it was designed. If you have any questions relative to
a particular application, DO NOT use the machine until you
have first contacted Northern Tool + Equipment to determine if
it can or should be performed on the product.
For technical questions and replacement parts, please call
1-800-222-5381.

TECHNICAL SPECIFICATIONS

ITEM DESCRIPTION
Motor No-Load Speed: 4600RPM
Power Supply 120V / 60Hz / 2.4HP /Single Phase / 15Amps
Power Cord 14 Gauge UL Approved
Laser Wavelength 650nm, 1mW Maximum Output, Class II
Arbor Diameter 1in.
Blade Diameter 10in.
0° x 0° 3in. x 11 7/8in.
0° x 45° 3in. x 8 1/4in.
Cutting Capacity
45° x 45° 1 1/2n. x 8 1/4in.
45° x 0° 1 1/2in. x 11 7/8in.
Overall
29 1/4in. x201/4in. x 22in.
Dimensions
10in.x 60Tc2 Carbide Tipped Blade
Workpiece-Holding Clamp Assembly
Workpiece -Supporting Brackets
Accessories Stopper for Repeating The Same Size Cuts.
Hex Sleeve Spanner
Dust Bag
Additional Block Brushes

PRODUCT FEATURES

• Powerful, precise compound saw that makes accurate and
repeatable angle cuts.
• The electric blade-brake stops the blade in seconds for
safety.
• External access Block Brushes makes maintenance and
replacement of the Motor Brushes convenient.
•A dust bag keeps the work area clean and improves viewing
of the workpiece during cutting.
• Precision machined-table with graduated scale and pin
presets.
• The Vise Assembly and Support Brackets improve cutting
accuracy.
• A transparent, retractable Blade Guard improves safety while
providing good visibility.
10in. LASER GUIDE COMPOUND
MITER SAW OWNER'S MANUAL

GENERAL SAFETY WARNINGS AND PRECAUTIONS

• Keep the work area clean and dry. Damp or wet work areas
will lead injuries.
• Keep children away from the work area. Do not allow
children to operate this product.
• Store idle equipment. When not in use, tools and
equipment should be stored in a dry location to inhibit rust.
Always lock up tools and equipment and keep them out of
the reach of children.
• Do not use this product if under the influence of alcohol or
drugs. Read warning labels on prescriptions to determine if
your judgment or reflexes are impaired while taking drugs. If
there is any doubt, do not attempt to use this product.
• Dress properly. Do not wear loose clothing or jewelry.
Contain long hair. Keep your hair, clothing, and gloves away
from moving parts. Loose clothes, jewelry or long hair can be
caught in moving parts.
• Avoid accidental starting. Be sure the switch is OFF before
plugging in the tool. Carrying tools with your finger on the
switch or plugging in tools that have the switch ON invites
accidents.
• Remove all adjusting keys and wrenches. Make a habit of
checking that the adjusting keys and wrenches are removed
from the tool before turning it on.
• Do not overreach. Keep proper footing and balance at all
times. Proper footing and balance allows for better control of
the tool in unexpected situations.
• Use safety equipment. Eye protection should be worn at all
times when operating this machine. Use NIOSH approved
safety glasses. Everyday eyeglasses only have impact
resistance lenses. They are NOT safety glasses. A dust mask,
respirator, non-skid safety shoes, a hard hat, or hearing
protection must be used in appropriate conditions.
• Industrial applications must follow OSHA requirements.
• Stay alert. Watch what you are doing at all times. Use
common sense. Do not use this product when you are tired
or distracted from the job at hand.
• Check for damaged parts. Before using this product,
carefully check to ensure that the saw will operate properly
and perform its intended function. Check for damaged parts
and any other conditions that may affect the operation of this
product. Replace or repair damaged or worn parts
immediately.
• Replacement parts and accessories. When servicing, use
only approved replacement parts. Only use accessories
intended for use with this product. Approved accessories are
available from northern tool.
• Maintain this product with care. Keep this product clean
and dry, and keep the Saw Blades clean and sharp for better
and safer performance.
• For your safety, service and maintenance should be
1 of 9
