  • Page 1 Item no. 2454 User's Manual...
  • Page 2 Power Dome EX Wagan Tech Thank you for purchasing the Power Dome EX Compact Generator by Wagan Tech. With minimal care and proper treatment it will provide years of reliable use. IMPORTANT INFORMATION BEFORE POWER DOME USE, READ AND UNDERSTAND ALL WARNINGS, CAUTIONS AND NOTES INCLUDED IN THIS MANUAL.

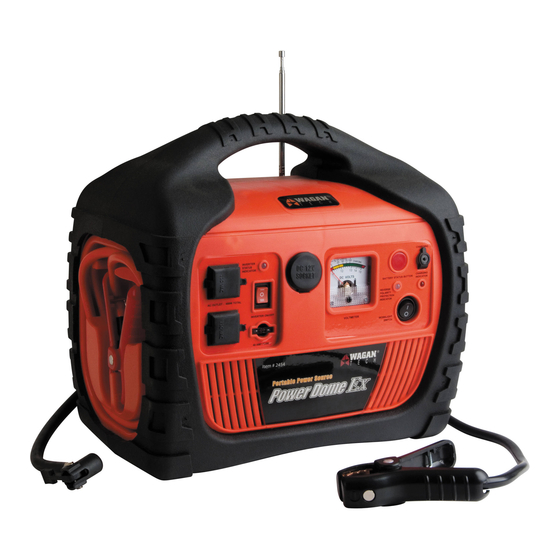

  • Page 3: Front View

    12.6 VDC and above - Battery is ready for use 12.0 VDC and below - battery needs some charging Below 10.5 VDC - battery is discharged - charge immediately © 2007 Wagan Corporation. All Rights Reserved. Wagan and Wagan.com are trademarks used Wagan Corporation.

  • Page 4: Charging The Power Dome

    Power Dome EX by Wagan Tech CHARGING THE POWER DOME AC Charging Make sure the supplied AC Charging Adapter is to be powered by the correct voltage. (i.e. 110 VAC or 220 VAC). Only use the AC charging adapter supplied with this unit.

  • Page 5: Dc To Ac Power Inverter

    Some motorized devices may operate at excessively elevated temperature when used with this inverter. During first use with this inverter, check for excessive motor temperature. © 2007 Wagan Corporation. All Rights Reserved. Wagan and Wagan.com are trademarks used by Wagan Corporation.

  • Page 6: Dc Power Port

    Power Dome EX by Wagan Tech Abnormally elevated temperature of the device is an indication that they should not be used with this inverter. DC POWER PORT DC POWER PORT (accessory socket) is located to the left of the Battery Status meter (voltmeter).

  • Page 7: Using The Am·fm Radio

    After use Tum OFF the Radio by rotating the ON/OFF Volume knob counterclockwise until the knob "clicks". Carefully retract the antenna and return it to the parked position. © 2007 Wagan Corporation. All Rights Reserved. Wagan and Wagan.com are trademarks used Wagan Corporation.
  • Page 8 Position the Power Dome so that you can see the Pressure Gage. Make sure the chuck lever is positioned UP (away from the chuck opening) Remove the valve cap from the valve stem. Attach the chuck to the tire's valve stem. ® www.wagan.com...

  • Page 9: Jumpstart Warnings

    • Connect negative (-) black clamp to vehicle battery·s negative terminal. • Connect positive (+) red clamp to vehicle chassis or a solid, non-moving, © 2007 Wagan Corporation. All Rights Reserved. Wagan and Wagan.com are trademarks used by Wagan Corporation.

  • Page 10: Jump Starting

    Power Dome EX by Wagan Tech metal vehicle component or body part. DO NOT clamp directly to positive battery terminal or moving part. JUMPSTARTING Review the Jumpstart Warnings Make sure all vehicle appliances, lights, radio, etc. are turned OFF. Make sure the vehicle's brake is set and the transmission is in "Park"...

  • Page 11: Work Light

    Tum off the Cable Switch and store the cables and clamps. • • Recharge the Power Dome and external battery as soon as possible. © 2007 Wagan Corporation. All Rights Reserved. Wagan and Wagan.com are trademarks used by Wagan Corporation.
  • Page 12 Power Dome EX by Wagan Tech TROUBLESHOOTING GUIDE· INVERTER Trouble Cause Remedy Lack of power Power Dome battery voltage below Recharge the Power Dome output 10 volts. immediately. Excessive current drawn by Reduce load to maximum of appliance being operated.

  • Page 13: Specifications

    Max AC Charging Time from 34 hours discharge Max DC Charging Time (engine 12 hours operating) JumpStart Cables and Clamps 6 Gage, heavy duty clamps. 24 in length. © 2007 Wagan Corporation. All Rights Reserved. Wagan and Wagan.com are trademarks used Wagan Corporation.
  • Page 14 Warranty Duration: This product is warrantied to the original purchaser for a period of one (1) year from the original purchase date, to be free of defects in material and workmanship. WAGAN Corporation disclaims any liability for consequential damages. In no event will WAGAN Corporation be responsible for any amount of damages beyond the amount paid for the product at retail.
