Solar e Power Case 800 by Wagan Tech ™ ® CONTENTS Introduction6 Warnings, Cautions and Notes 6 Warnings—General ......................6 Major features 7 Components 8 Digital LCD Voltmeter (Battery Status) ................... 9 26 Ah AGM Battery ......................10 External Battery Terminals ....................10... - Page 4 User’s Manual—Read before using this equipment Power Expansion Options 17 Adding Batteries to the System ...................17 External Battery Connection Procedure ................17 Maintenance 17 Cleaning ..........................17 Troubleshooting Guide 18 Recycling/Disposal 19 Specifications 19 Solar e Power Case Shipping Specifications ................19 12V DC Battery and Outlets ....................19 Inverter ..........................19 AC Charging Adapter ......................
-
Page 5: Warnings-General
Case 800 by Wagan Tech ™ ® INTRODUCTION Congratulations on your purchase of Wagan Tech’s Solar e Power Case 800. As supplied, the ™ Solar e Power Case is a balanced electrical system that can power AC appliances and operate and charge a variety of communication and entertainment devices. -
Page 6: Major Features 7
User’s Manual—Read before using this equipment MAJOR FEATURES • 800 watt Power Inverter (1600 watts peak) • 115/230 volt AC Outlet(s) depending on the model • One 12 volt Automotive Outlet for powering DC appliances (loads to 20 amps) • Three USB Power Ports for charging/operating cell phones, PDAs and MP3 players •... -
Page 7: Components 8

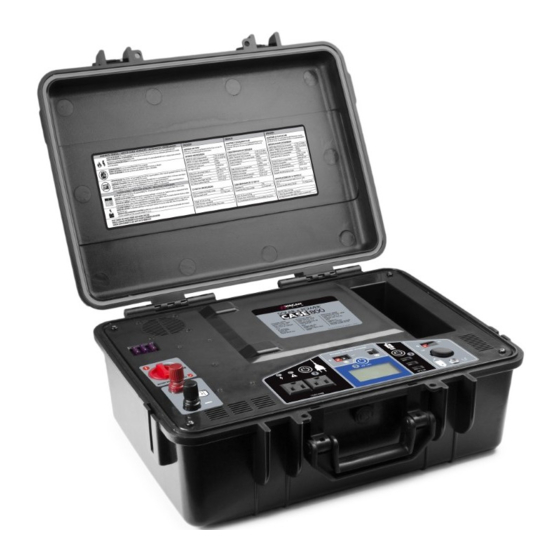

Solar e Power Case 800 by Wagan Tech ™ ® COMPONENTS BATTERY DISCONNECT SWITCH RECHARGE | RECARGAR | RECHARGER DC INPUT LCD | ACL 115V/60HZ 5V 2.1A 1. Internal Cooling Fan 8. Recharge Adapter Port 2. Replaceable Fuses 9. Anderson DC Output Ports 3. -
Page 8: Digital Lcd Voltmeter (Battery Status)
User’s Manual—Read before using this equipment USB output on 12V DC output on Inverter output on BATTERY OUTPUT FULL AC output: Total power as a % of 800W WATTS Battery status: When charging, Battery depleted: FUSE AC! the bars will flash Recharge immediately Solar panels... -
Page 9: 26 Ah Agm Battery
Solar e Power Case 800 by Wagan Tech ™ ® 26 Ah AGM Battery The Solar e Power Case is equipped with the latest in battery technology. Supplied batteries combine the charging characteristics and compatibility of AGM valve regulated, sealed lead-acid batteries. -
Page 10: Charging Methods
User’s Manual—Read before using this equipment CAUTION—Risk Of Damage To Battery: Do not attempt to charge Solar e Power Case battery if it is frozen. A frozen battery should be gradually warmed to 32 °F (0 °C) before charging. CHARGING METHODS Factory supplied equipment allows the Solar e Power Case to be charged using: AC Charging Adapter DC Charging Adapter Solar Panels... -
Page 11: Dc Charging Adapter
Solar e Power Case 800 by Wagan Tech ™ ® DC Charging Adapter Plug DC Charging Adapter into vehicle DC accessory socket To charge the Solar e Power Case using the DC Charging Adapter: Only use the DC Charging Adapter supplied with this unit. Do not continuously charge for more than 16 hours using the DC to DC method. -
Page 12: Charging With Solar Panels
User’s Manual—Read before using this equipment Charging With Solar Panels The Solar e Power Case is supplied with a 60W foldable solar panel and a connecting cable. Plug the the cable directly into the solar port on the Solar e Power Case. You will see the solar indication on the LCD screen when connected properly and charging. - Page 13 Solar e Power Case 800 by Wagan Tech ™ ® soft start function that protects the Inverter circuitry from a power surge commonly present when starting heavy loads. This function may take up to 3 seconds for the Inverter power light to turn on.
-
Page 14: 12V Dc Accessory Outlet
User’s Manual—Read before using this equipment 8. After appliance use, turn OFF the Inverter switch 9. Remove AC appliance plug(s) from the AC Outlet(s) on the Solar e Power Case 10. Recharge the Solar e Power Case as soon as convenient. Note: The external cooling fan operates only when needed. - Page 15 Solar e Power Case 800 by Wagan Tech ™ ® DC OPERATING TIME Below are typical DC accessories that may be operated by the Solar e Power Case. Operating time will vary depending on the battery charge level and the specific accessory being operated.
-
Page 16: Adding Batteries To The System
User’s Manual—Read before using this equipment POWER EXPANSION OPTIONS Adding Batteries to the System For extended operating time, additional batteries may be added in parallel using the Battery Terminals located above the wheels. It is recommended to connect 12V AGM batteries with the same capacity as the internal battery (26 Ah) into the system for long-term use. -
Page 17: Troubleshooting Guide
Solar e Power Case 800 by Wagan Tech ™ ® The solar panels should be periodically cleaned during extended use and before storing. Check your panels weekly or following a storm to make sure no damage has occurred. • Check for dirt buildup. -
Page 18: Recycling/Disposal
User’s Manual—Read before using this equipment RECYCLING/DISPOSAL The Solar e Power Case contains materials that are prohibited from being placed in landfills and require recycling. These include lead-acid batteries, solar panels and some components in the Inverter. Contact local authorities for disposal/recycling instructions. SPECIFICATIONS Specifications are subject to change without notice. -
Page 19: Ac Charging Adapter
Solar e Power Case 800 by Wagan Tech ™ ® AC Charging Adapter AC input voltage range 90–230V AC AC input frequency 47–63 Hz DC output voltage For 12 volt batteries DC output current charge current maximum 2.0 amps AC charging adapter indicator LED (red/green) Red—Charging...
