- Page 1 Portable Power Source Power Dome 400 Watt Compact Generator USER’S MANUAL KEEP THIS MANUAL FOR FUTURE REFERENCE...

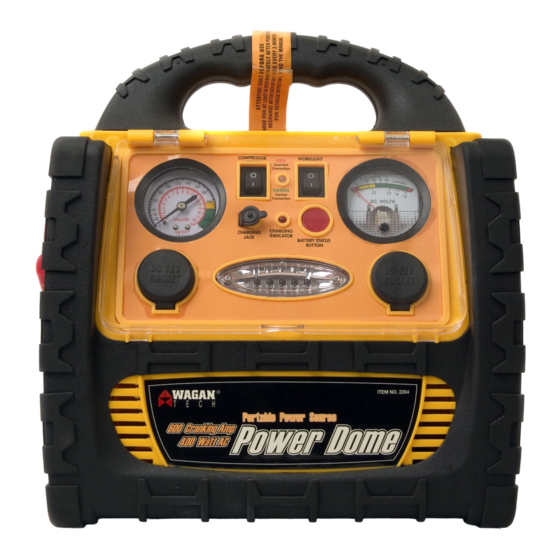

- Page 2 Power Dome 400W USER’S MANUAL - Please read before using this equipment. FRONT VIEW Thank you for purchasing the Power Dome 400W Compact Generator by Wagan Tech. With minimal care and proper treatment it will provide years of reliable use. Figure 1 shows the locations of the Compressor, DC Power Outlets, Battery Status/Charging and Work Light IMPORTANT INFORMATION BEFORE POWER DOME USE, READ AND UNDERSTAND ALL WARNINGS, CAUTIONS AND NOTES INCLUDED IN THIS MANUAL. FOLLOW ...
-
Page 3: Charging The Power Dome
USER’S MANUAL - Please read before using this equipment. CHARGING THE POWER DOME DC POWER PORT DC POWER PORTS (accessory sockets) are located under the Pressure Gauge and the AC Charging Battery Status Meter (voltmeter). The ports can power a DC load of up to 11 Amps. Make sure the supplied AC Charging Adapter is to be powered by the correct voltage. ... -
Page 4: Dc To Ac Power Inverter
Power Dome 400W USER’S MANUAL - Please read before using this equipment. 6. Move the nozzle lever Down to secure the nozzle to the valve stem. DC TO AC POWER INVERTER 7. Turn compressor switch on to ON position. The Power Dome’s inverter can operate most AC appliances or a combination of appliances 8. Monitor the pressure gauge while inflating the tire. up to 400 watts. Operating time is dependant on the AC load (watts) and the charge and 9. When recommended tire pressure has been reached, turn the Compressor OFF. condition of Power Dome’s internal battery. Reduced AC loads and full charge on the battery 10. Disconnect hose and replace valve cap. will result in longer operating time. Be sure to turn off or disconnect any AC appliance not 11. Store the hose in the Air hose Compartment in use. 12. Recharge the Power Dome as soon as convenient. There is a user replaceable 40 amp automotive type fuse to the left of the inverter ON/OFF Switch. This fuse protects the inverter from an unlikely excessive input current. Ordinary overloads will cause the inverter to automatically shut down. Reduce the load and restart Figure 2 POWER DOME Rear View the inverter. This figure shows the Fuse, Power Inverter’s ON/OFF Switch, two AC Outlets, Jumper Safety Switch and the Compressor Hose Compartment. USING THE POWER INVERTER 1. Open the AC outlet dust cover. -
Page 5: Jumpstart Warnings
USER’S MANUAL - Please read before using this equipment. JUMPSTART WARNINGS 8. If the LED is RED – DO NOT TURN ON THE CABLE JUMPER SWITCH • Cable Clamps need to be reversed. • Lead-acid batteries can release explosive gasses. Failure to follow instructions may • Disconnect the Black Clamp first and then the RED Cable Clamp. cause property damage, explosion hazard, and/or personal injury. • Reconnect and observe the LED. • Do not smoke while jump starting. • If the LED is green, turn ON the Jumper Safety Switch. • ... -
Page 6: Specifications
Television Interference Picture breaking up (snow). Place the Power Dome as far as possible from TV, the antenna and the coaxial cable. TV station may be out or range. - Page 7 Zip Code Item Purchased Store Name Date of Purchase Signature Date All WAGAN Corporation Products must be registered within (30) days of purchased to activate this warranty. Mail the complete registration form, along with a copy of the original receipt to:...
