Summary of Contents for Europlex SigNET 200

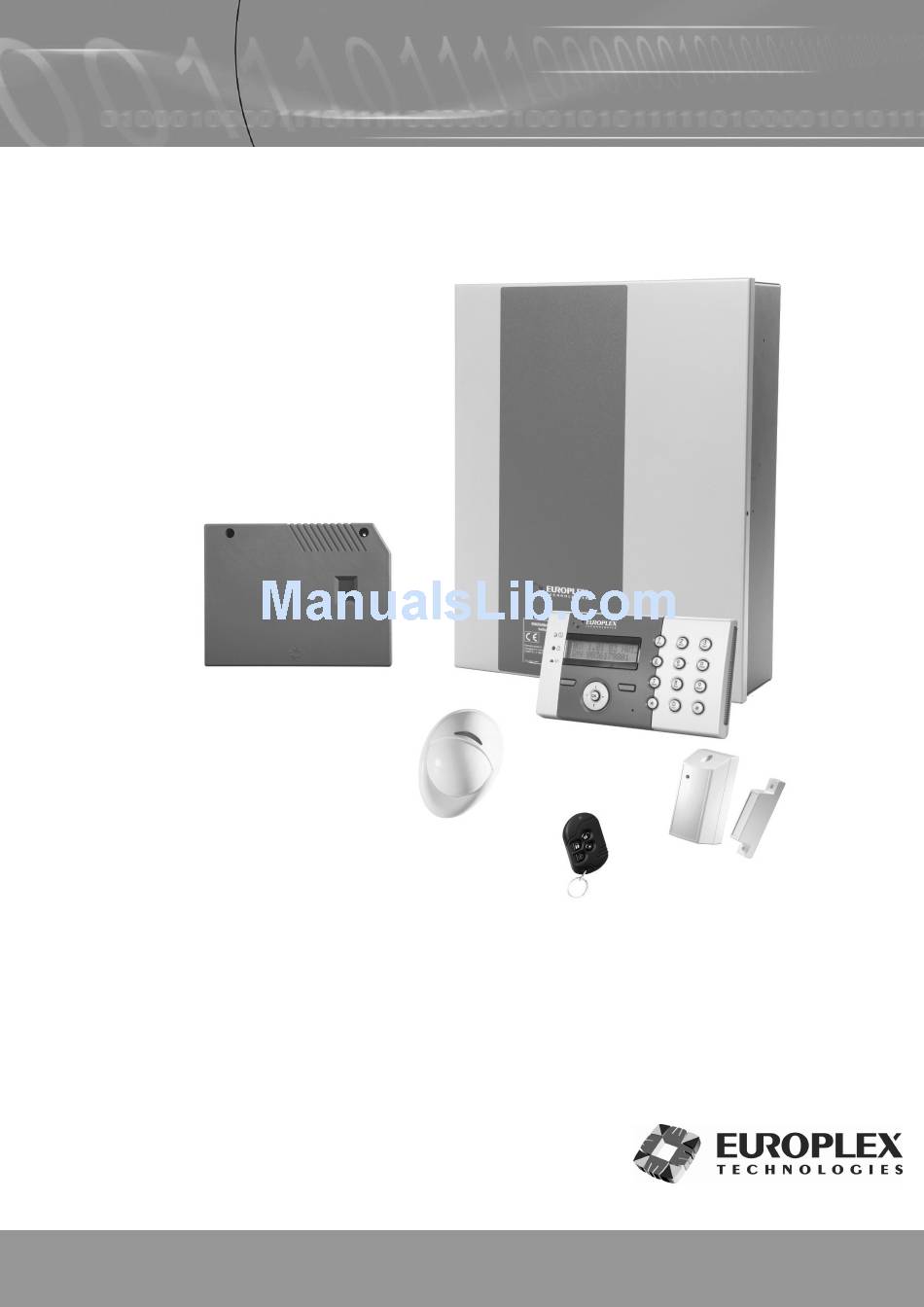

- Page 1 SigNET 200/300 User Guide...
- Page 2 Further Europlex reserve the right to revise this publication and to make changes from time to time in the contents hereof without the obligation of Europlex to notify any person of any such revision.
-
Page 3: Table Of Contents
Table of contents Introducing the SigNET 200/300 System ...........4 How to use your Keypad ................4 How to use the Keypad programming interface..................5 Data entry on the SigNET Keypad......................6 Intruder alarm Operation ................7 Entering User Programming ........................9 Setting the System -FULLSET........................9 Setting the System –... -
Page 4: Introducing The Signet 200/300 System
The SigNET 200/300 system must be installed by a qualified installation engineer. When the installation of the SigNET 200/300 has been completed, the engineer will provide you with a user password that will enable you to SET/UNSET and configure your system as required. -
Page 5: How To Use The Keypad Programming Interface
2.1 How to use the Keypad programming interface TOP LINE OF DISPLAY BOTTOM LINE OF DISPLAY During the IDLE state this line will show the current During the IDLE state this line will be blank. date and time. During Programming mode this line will show the 2 During Programming mode this line will show one of options available to the user/Engineer. -
Page 6: Data Entry On The Signet Keypad
2.2 Data entry on the SigNET Keypad Entering data and navigating the menus on the Signet Keypad is facilitated through the use of the programming interface. The use of the interface for each type of operation is detailed below. 2.2.1 Entering Numeric values In Numeric Input mode, you can only enter numeric digits (0 –... -
Page 7: Intruder Alarm Operation
Intruder alarm Operation The operational features of the SigNET 200/300 system are described below. Your installation engineer will inform you of the user rights that have been assigned to your user profile. The settings that relate to the operation of these features are accessible from engineer programming (Default code 1111). - Page 8 Isolating a zone will de-activate that zone until such time as the zone is De-isolated ISOLATE again. All zone types on the SigNET 200/300 can be isolated. Use of this feature to de-activate faulty or open zones should be considered carefully,...
-
Page 9: Entering User Programming
3.1 Entering User Programming **** To access user programming simply enter the user code given to QUIT you by the installation engineer on the keypad. As digits are being entered they will be displayed as asterixes on the LCD and the left function key will present the option QUIT. -
Page 10: Unsetting The System
3.5 Unsetting the System UNSET? To UNSET an armed system enter your user code on the keypad. EXIT SELECT The Keypad display will prompt the user to unset the system. To Unset the system press the SELECT key. The keypad display will indicate that the system is unset on the 01 SEP 06 17:00 bottom line of the display for approximately 5 seconds. -
Page 11: Inhibiting A Zone
Keypad ) and by activation of the buzzer. Text on the keypad display will indicate the location and nature of the alert condition. The ability of a user to restore alerts on the SigNET 200/300 system is programmed by your installation engineer. To restore an... -
Page 12: Isolating A Zone Or Fault
3.10 Isolating a Zone or fault MENUS The user has the option to manually isolate a zone or fault on the EXIT SELECT system from the keypad. Isolating a zone will remove that zone from the system until such time as the user de-isolates it. To isolate a zone: ISOLATE EXIT... -
Page 13: Performing Tests On The System
3.12 Performing Tests on the system The user has the option to perform simple tests on the system to MENUS determine if the bells, buzzers and other audible devices are operating correctly. EXIT SELECT To perform a test on the system: •... - Page 14 Page 14...
