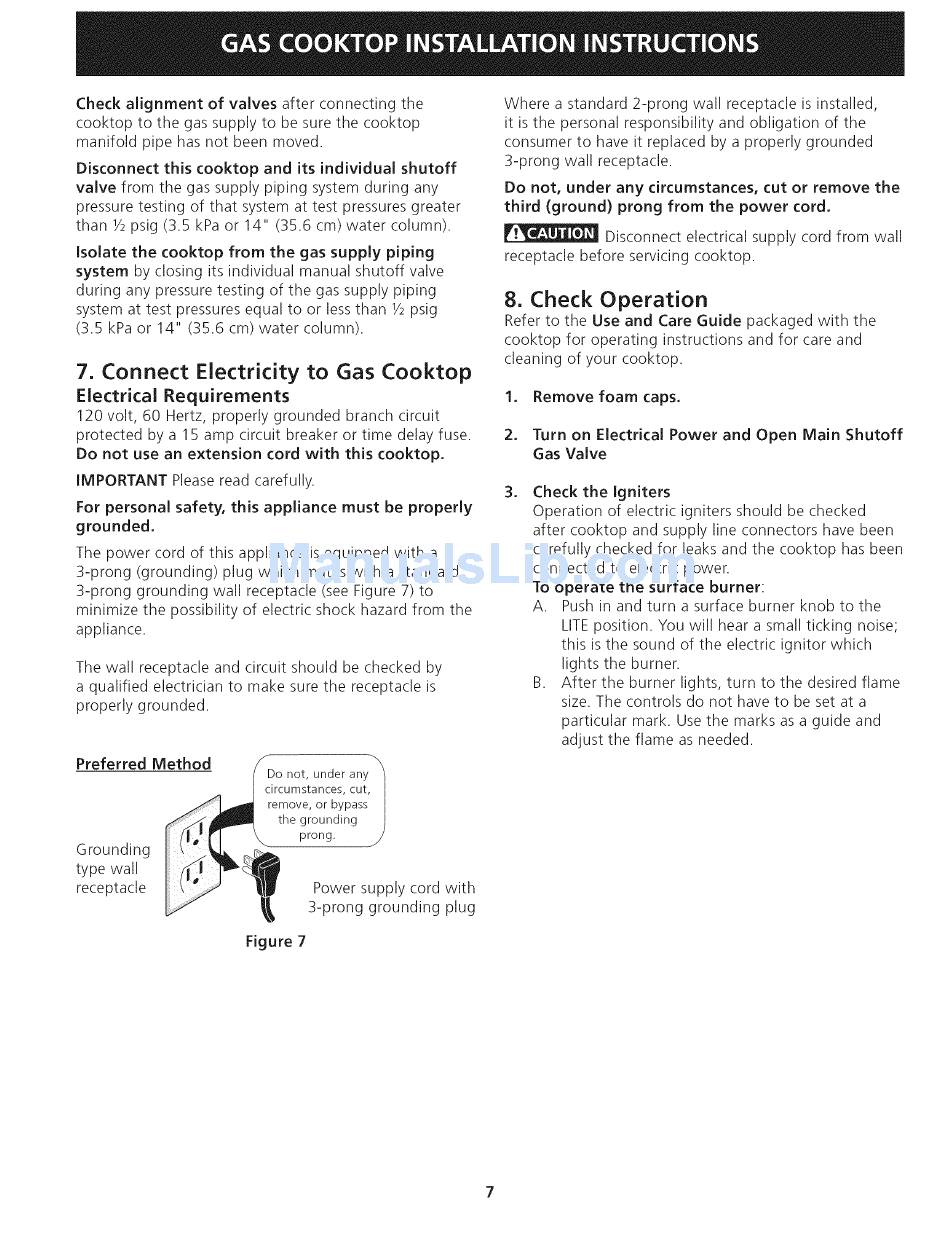

Check Operation - Frigidaire FFGC3015LWC Installation Instructions Manual

30"/36" gas cooktop
Hide thumbs

Advertisement

Table of Contents
Check alignmentof valvesafterconnecting t he
cooktop to thegassupply to besurethecooktop
manifold pipehasnotbeenmoved.
Disconnect t his cooktopand its individualshutoff
valvefromthe gassupply pipingsystem duringany
pressure t estingof thatsystem attestpressures greater
than1/2 psig(3.5kPaor 14" (35.6cm)watercolumn).
Isolatethe cooktopfrom the gassupply piping
systembyclosing itsindividual manual shutoffvalve
duringanypressure t estingof thegassupply piping
system attestpressures equal t o or less than1/2 psig
(3.5kPa or 14" (35.6cm)watercolumn).
7. Connect
Electricity
to Gas Cooktop
Electrical
Requirements
120 volt, 60 Hertz, properly grounded branch circuit
protected by a 15 amp circuit breaker or time delay fuse.
Do not use an extension
cord with this cooktop.
IMPORTANT Please read carefully.
For personal
safety, this appliance
must be properly
grounded.
The power cord of this appliance is equipped with a
3-prong (grounding) plug which mates with a standard
3-prong grounding wall receptacle (see Figure 7) to
minimize the possibility of electric shock hazard from the
appliance.
The wall receptacle and circuit should be checked by
a qualified electrician to make sure the receptacle is
properly grounded.
Preferred
Method
Grounding
type wall
receptacle
Do not, under any
circumstances, cut,
remove, or bypass
the grounding
prong.
Power supply cord with
3-prong grounding plug
Where a standard 2-prong wall receptacle is installed,
it is the personal responsibility and obligation of the
consumer to have it replaced by a properly grounded
3-prong wall receptacle.
Do not, under any circumstances,
cut or remove the
third (ground)
prong from the power
cord.
Disconnect electrical supply cord from wall
receptacle before servicing cooktop.
8. Check Operation
Refer to the Use and Care Guide packaged with the
cooktop for operating instructions and for care and
cleaning of your cooktop.
I.
Remove foam caps.
2.
Turn on Electrical
Power and Open Main Shutoff
Gas Valve
.
Check the Igniters
Operation of electric igniters should be checked
after cooktop and supply line connectors have been
carefully checked for leaks and the cooktop has been
connected to electric power.
To operate
the surface burner:
A.
Push in and turn a surface burner knob to the
LITE position. You will hear a small ticking noise;
this is the sound of the electric ignitor which
lights the burner.
B.
After the burner lights, turn to the desired flame
size. The controls do not have to be set at a
particular mark. Use the marks as a guide and
adjust the flame as needed.
Figure 7
7
