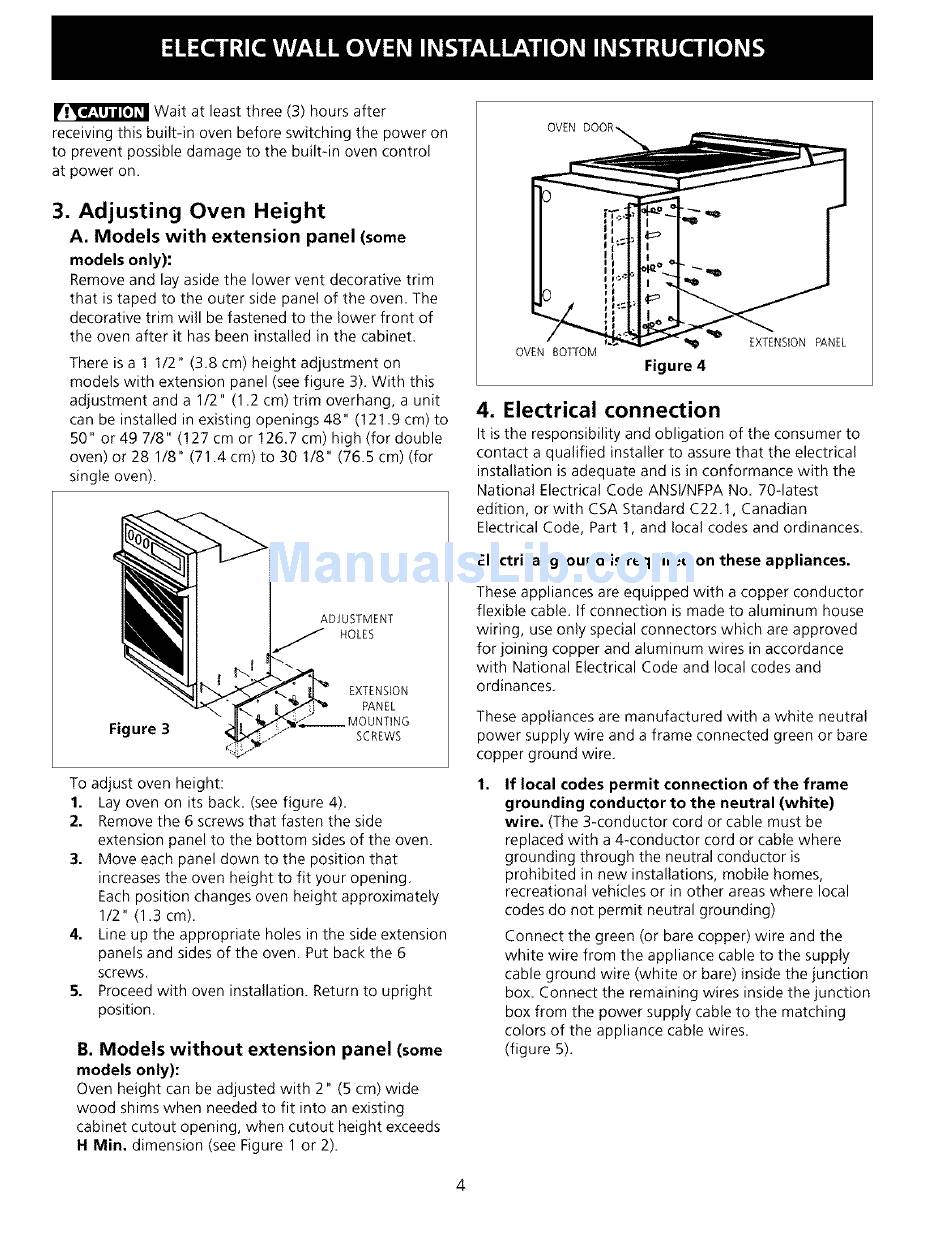

Adjusting Oven Height; Electrical Connection - Frigidaire FEB27T6CSA Installation Instructions Manual

Wait at least three (3) hours after
receiving this built-in oven before switching the power on
to prevent possible damage to the built-in oven control
at power on
3. Adjusting Oven Height
A. Models with extension panel (some
models only):
Remove and lay aside the lower vent decorative trim
that is taped to the outer side panel of the oven. The
decorative trim will be fastened to the lower front of
the oven after it has been installed in the cabinet.
There is a 1 1/2" (3.8 cm) height adjustment on
models with extension panel (see figure 3). With this
adjustment and a 1/2" (1.2 cm) trim overhang, a unit
can be installed in existing openings 48" (121.9 cm) to
50" or49 7/8" (127 cm or 126.7 cm) high (for double
oven) or 28 1/8" (71 4 cm) to 30 1/8" (76.5 cm) (for
single oven)
ADJUSTMENT
HOLES
Figure 3
EXTENSEON
PANEL
MOUNTING
SCREWS
To adjust oven height:
1. Lay oven on its back. (see figure 4).
2. Remove the 6 screws that fasten the side
extension panel to the bottom sides of the oven
3. Move each panel down to the position that
increases the oven height to fit your opening.
Each position changes oven height approximately
1/2 _' (1.3 cm).
4. Line up the appropriate holes in the side extension
panels and sides of the oven Put back the 6
screws.
5. Proceed with oven installation Return to upright
position
B. Models without extension panel (some
models only):
Oven height can be adjusted with 2" (5 cm) wide
wood shims when needed to fit into an existing
cabinet cutout opening, when cutout height exceeds
H Min. dimension (see Figure 1 or 2)
OVEN
OVEN BOTTOM
Figure 4
EXTENSION PANEL
4. Electrical connection
It is the responsibility and obligation of the consumer to
contact a qualified installer to assure that the electrical
installation is adequate and is in conformance with the
National Electrical Code ANSI/NFPA No. 70-latest
edition, or with CSA Standard C22.1, Canadian
Electrical Code, Part 1, and local codes and ordinances
Electrical ground is required on these appliances.
These appliances are equipped with a copper conductor
flexible cable. If connection is made to aluminum house
wiring, use only special connectors which are approved
for joining copper and aluminum wires in accordance
with National Electrical Code and local codes and
ordinances.
These appliances are manufactured with a white neutral
power supply wire and a frame connected green or bare
copper ground wire.
1.
If local codes permit connection of the frame
grounding conductor to the neutral (white)
wire. (The 3-conductor cord or cable must be
replaced with a 4-conductor cord or cable where
grounding through the neutral conductor is
prohibited in new installations, mobile homes,
recreational vehicles or in other areas where local
codes do not permit neutral grounding)
Connect the green (or bare copper) wire and the
white wire from the appliance cable to the supply
cable ground wire (white or bare) inside the junction
box. Connect the remaining wires inside the junction
box from the power supply cable to the matching
colors of the appliance cable wires
(figure 5).
4
