Installation Instructions

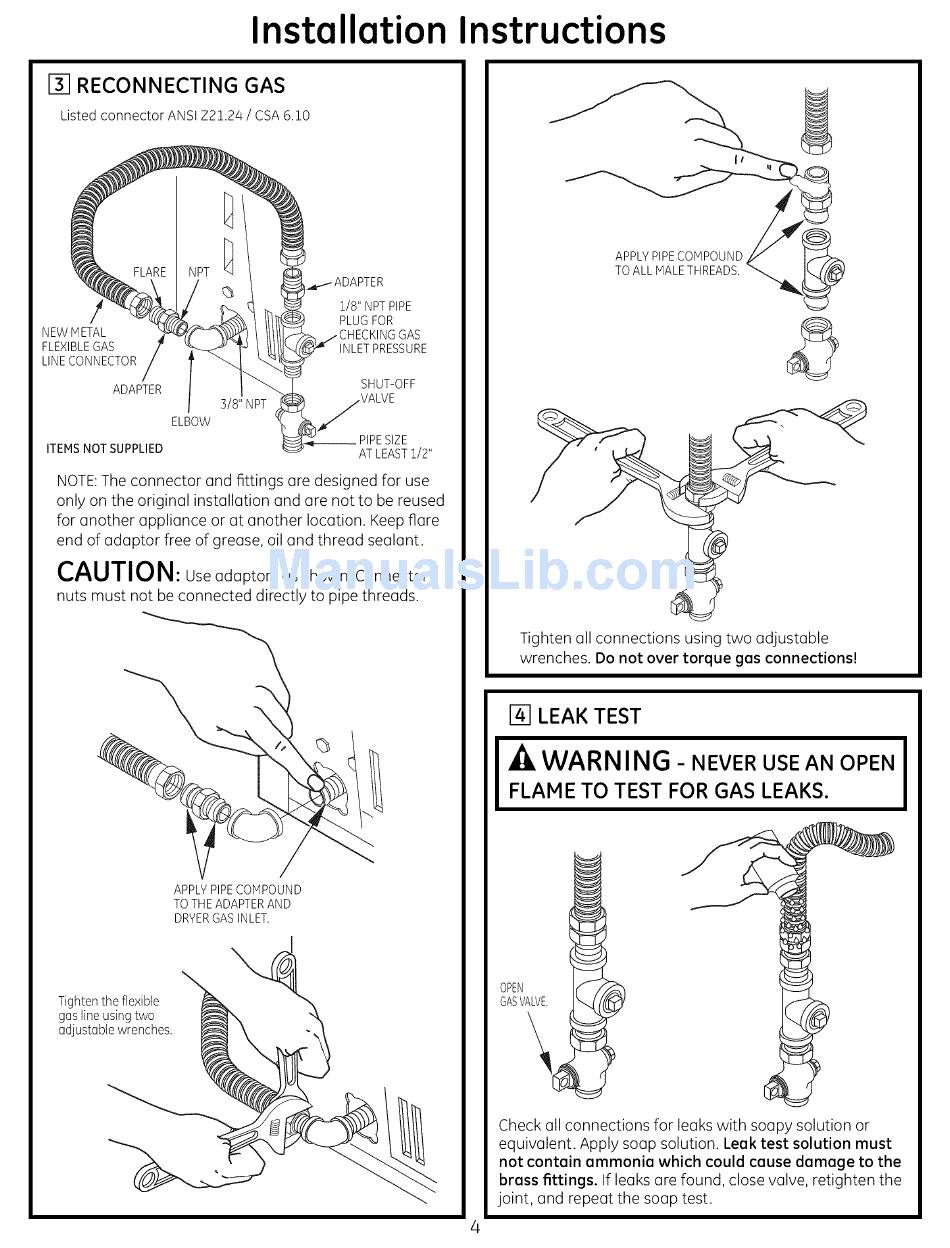

I_ RECONNECTING GAS
Listed connector ANSI Z2]_.24 / CSA 6.!0
1/8" NPT PIPE
PLUGFOR
NEWMETAL GAS
FLEXIBLE GAS INLETPRESSURE
LINECONNECTOR
ADAPTER SHUT-OFF
3/8" NPT VALVE
ELBOW
__ PIPESIZE
ITEMSNOT SUPPLIED AT LEAST1/2"
NOTE:The connector and fittings are designed for use
only on the original installation and are not to be reused
for another appliance or at another location. Keep flare
end of adaptor free of grease, oil and thread sealant.
CAUTION:
Use adaptors as shown. Connector
nuts must not be connected directly to pipe threads.
APPLYPIPECOMPOUND
TO THE ADAPTER AND
DRYER GASINLET.
Tightenthe flexible
gasline usingtwo
adjustablewrenches.
I
APPLYPIPECOMPOUND
TO ALL MALETHREADS.
Tighten all connections using two adjustable
wrenches. Do not over torque gas connections!
[] LEAK TEST
_ZlWARNING-
NEVER USE AN OPEN
FLAME TO TEST FOR GAS LEAKS.
OPEN
GAS VALVE.
Check all connections for leaks with soapy solution or
equivalent. Apply soap solution. Leak test solution must
not contain ammonia which could cause damage to the
brass fittings. If leaks are found, close valve, retighten the
joint, and repeat the soap test.
