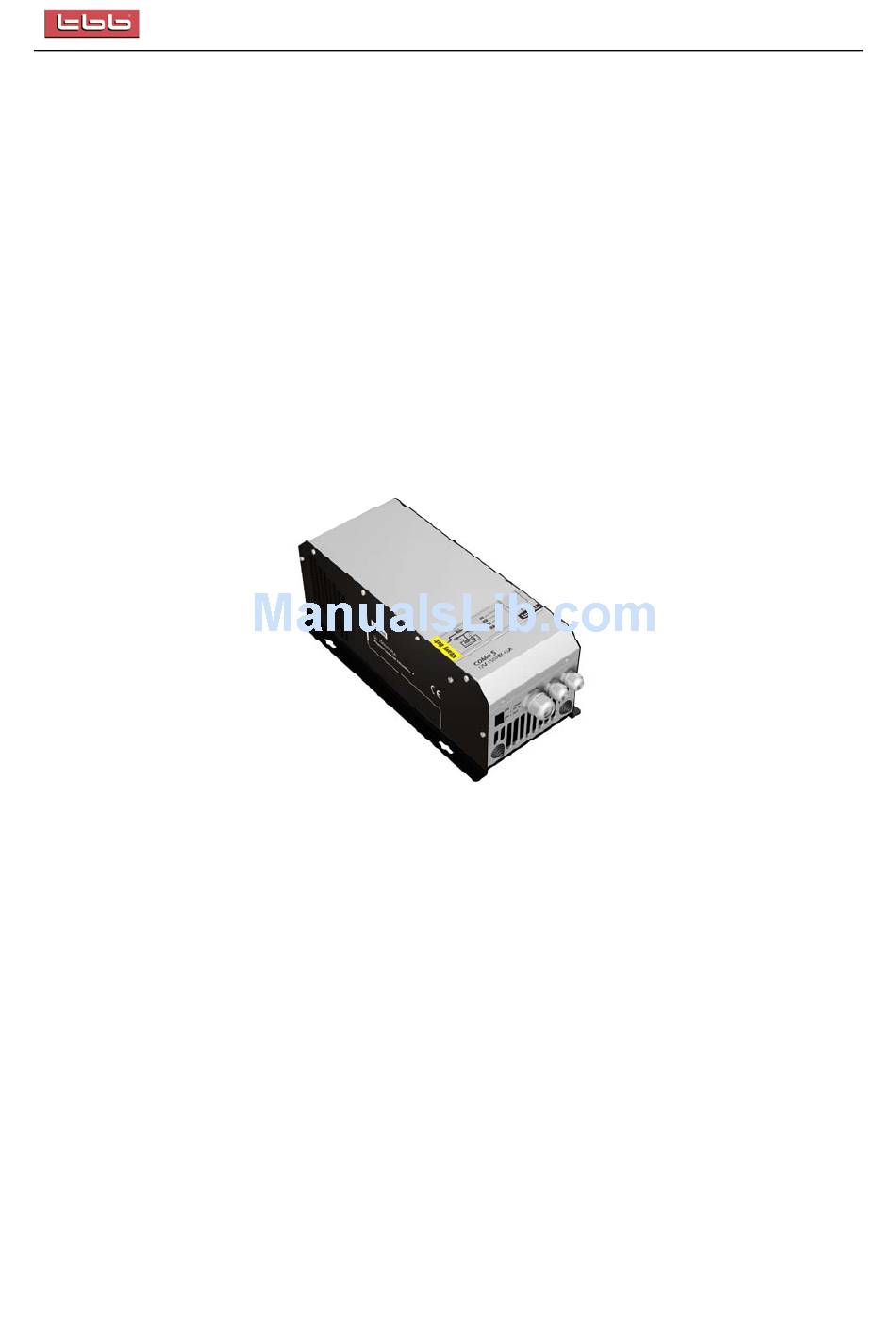

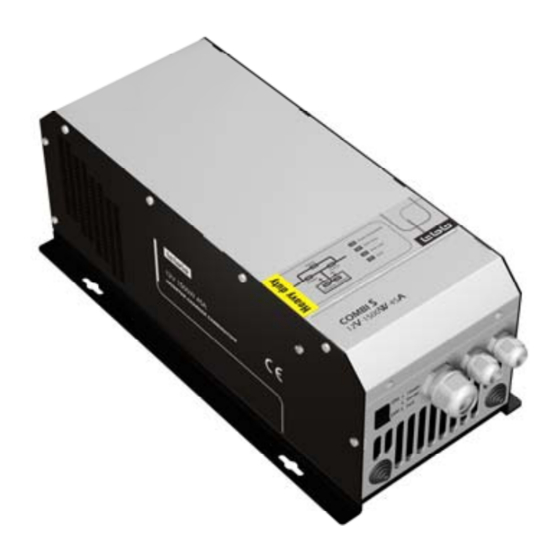

- Page 1 CS Combi User Manual CS series Inverter Charger Combination USER MANUAL Version 2.0 Date: Oct 2010 TBB Power Co.,Ltd 1 / 17...
- Page 2 Assumes no responsibility or liability for loss or damage, whether direct, indirect, consequential or incidental, which might arise out of the use of such information This manual describes our product features and provides procedure of installations. This manual is for anyone intending to install our equipment. TBB Power Co.,Ltd Web: www.tbbpower.com Tel: +86‐592‐5212299 Fax: +86‐592‐5796070 Email: service@tbbpower.com TBB Power Co.,Ltd 2 / 17...
- Page 3 5> While connecting, please secure the connection and avoid short cut between positive terminal and negative terminal of battery, which will cause damage of battery. 6> Inverter will have high voltage inside. Only authorized electrician can open the case. 7> The inverter WAS NOT designed to use in any life retaining equipment. TBB Power Co.,Ltd 3 / 17...
- Page 4 1.3.2. The battery may generate flammable gas during charging. NEVER smoke or allow a spark or flame in vicinity of a battery。 1.3.3. Do not put the metal tool on the battery, spark and short circuit might lead to explosion. 1.3.4. REMOVE all personal metal items such as rings, bracelets, necklaces, and watches while working with batteries. Batteries can cause short‐circuit current high enough to make metal melt, and could cause severe burns. TBB Power Co.,Ltd 4 / 17...
- Page 5 We offer remote controller and RS485 communication port make it convenient to use and apply to any system. The robust aluminum construction (for structure A and B only), featuring light weight and corrosion resistant TBB Power Co.,Ltd 5 / 17...
- Page 6 12VDC/24VDC/48VDC DC – ground : 2000Vrms Output current refer to separate list AC - ground : 2000Vrms De-sulphation 15.5V / 31V / 62V Standard Safety EN60950-1 Emmission EN55022 Immunity EN55022 TBB Power Co.,Ltd 6 / 17...
- Page 7 5000 6000 Nominal output voltage Output current (A) De-sulphation 62V for 4hrs Size 460x180x180 640x180x180 Weight (kgs) 18.5 22.5 34.5 TBB Power Co.,Ltd 7 / 17...
- Page 8 5000W 60 6000W 25 25A 35 35A Y Charger capacity 45 45A 65 65A 75 75A L 12VDC Z M Battery bank Voltage 24VDC S 48VDC Example: CS1500M: Pure Sine Wave Inverter 24V 1500W CS3000L: Pure Sine Wave Inverter 12V3000W CS1545L : Inverter Charger Combination 12V 1500W 45A TBB Power Co.,Ltd 8 / 17...
- Page 9 Size (LxWxH) Structure A 420x180x135 Strucuure B 460x180x180 Structure C 640x180x180 TBB Power Co.,Ltd 9 / 17...
- Page 10 Three LED indicating working mode and fault . CS inverter charger combination TBB Power Co.,Ltd 10 / 17...
- Page 11 Cable to front panel switch Remote Control connecter Battery Switch AC Input AC output Inverter output over current protection DC + DC - Charger input overcurrent protection TBB Power Co.,Ltd 11 / 17...
- Page 12 6mm² 12mm² 20mm² 1.5KW 4mm² 2mm² 8mm² 16mm² 32mm² 6mm² 2.5mm² 12mm² 25mm² 40mm² 8mm² 4mm² 16mm² 35mm² 10mm² 5mm² 21mm² 42mm² 12mm² 6mm² 26mm² 52mm² 14mm² 7mm² 32mm² TBB Power Co.,Ltd 12 / 17...
- Page 13 For the user operation safety, cut off the power before installation Use M6 to fix the unit securely on the surface e Loose the screw and remove the top panel (if necessary) There is cable connecting the LED/switch of front panel to equipment, please plug out the connector at front panel. Then, loose the screw and remove the front panel TBB Power Co.,Ltd 13 / 17...
- Page 14 Please cut the hole according to following size and screw the remote controller securely through four screw at corners. TBB Power Co.,Ltd 14 / 17...
- Page 15 Leave AC input switch off, switching on the unit, the leds will cycle through analysis then there should be AC available at inverter output. Then switch on the AC input, the combi S should go on bypass mode feeding the power into load and meantime battery charger will start work. In case there is no load, you could choose the equipment entering into power saving mode through press the switch either on main panel or remote controller. After entering into power saving mode, the equipment status power consumption will be dramatically reduced. TBB Power Co.,Ltd 15 / 17...
- Page 16 Equalization can damage your batteries if it is not performed properly. Never equalize a battery more than twice a month. Always check battery fluid before and after equalization. Fill batteries only with distilled water. Always check the equalization switch is set back to OFF after each time’s equalization. Battery manufactures’ recommendations on equalization vary. Always follow the battery manufacturer’s instructions so batteries are properly equalized. As a guide, a heavily used battery may require equalization once a month while a battery in light duty service, only needs equalizing once every 2 to 4 months. Battery type Only perform equalization to flooded lead‐acid batteries. Do not equalize Gel, AGM batteries. Performing an Equalization During equalization, the battery generates potentially flammable gases. Follow all the battery safety precautions listed in this guide. Ventilate the area around the battery thoroughly and ensure that there are no sources of flame or sparks in the vicinity When battery temperature reach above 50C, please stop charging. TBB Power Co.,Ltd 16 / 17...
- Page 17 Constant current charge Charger Constant voltage charge flash Float Inverter Inverter ON Battery low voltage Battery high volt Over load Fault Over temp (inverter mode) Over temp (charger mode) Over charge TBB Power Co.,Ltd 17 / 17...
