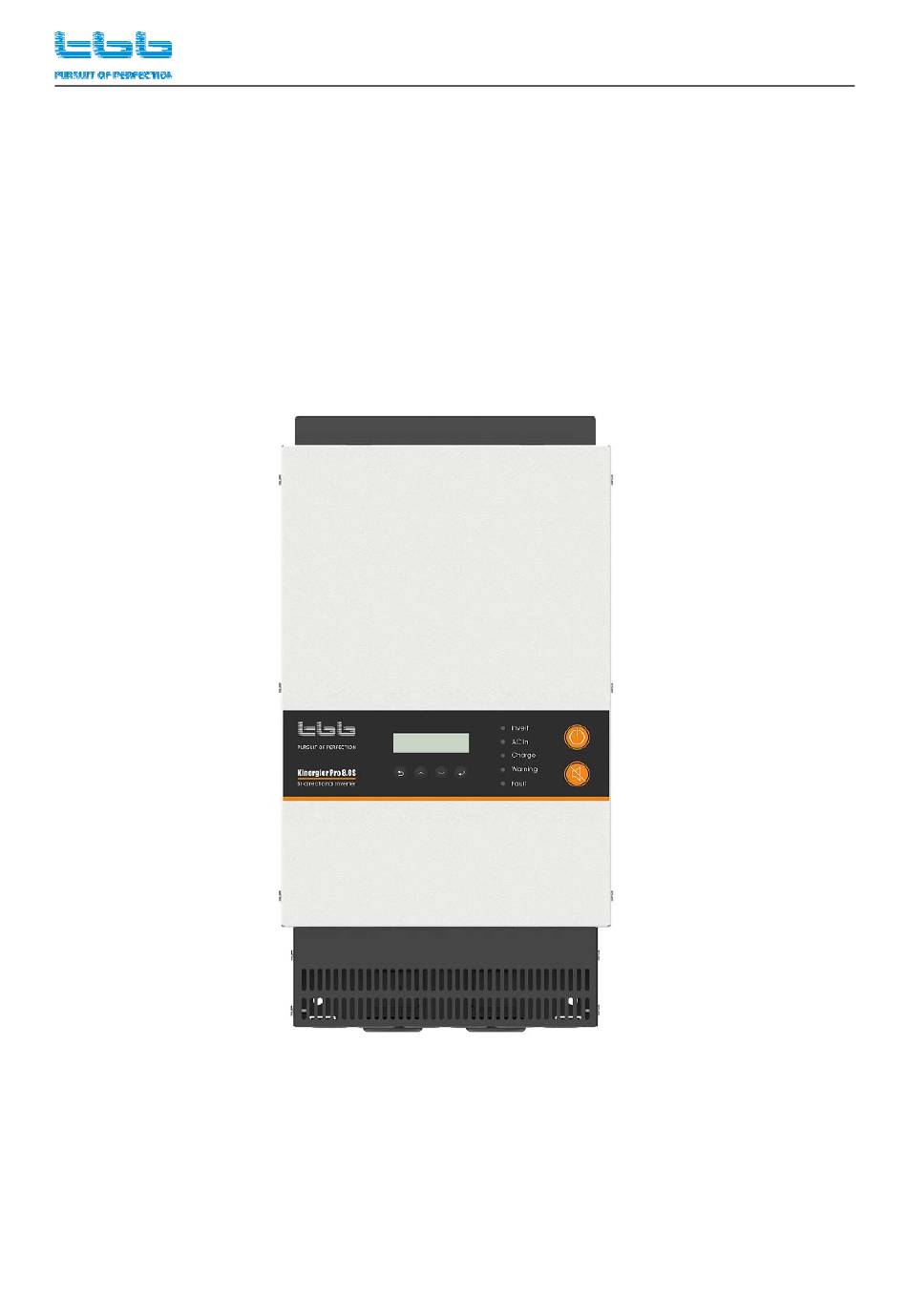

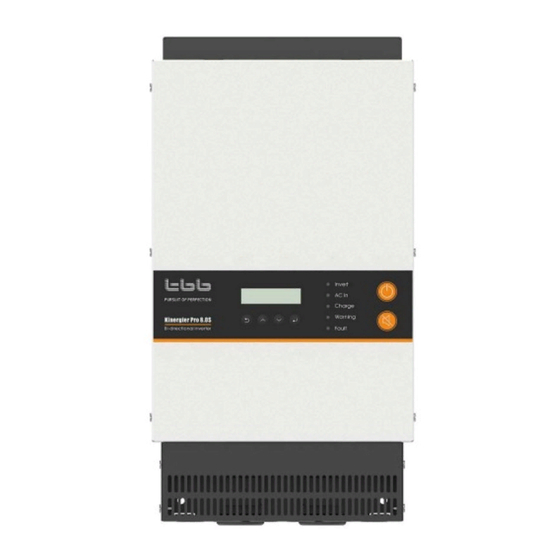

- Page 1 Kinergier pro bi-directional inverter User Manual Kinergier Pro series Bi-directional inverter Version：V1.0 Date: Mar.2019 TBB Power Co., Ltd...
- Page 2 Kinergier pro bi-directional inverter User Manual TBB Power Co., Ltd...
- Page 3 Kinergier pro bi-directional inverter User Manual WARNING : FIRE HAZARD SUITABLE FOR MOUNTING ON CONCRETE OR OTHER NON- COMBUS TIBLE SURFACE ONLY CAUTION : THE DC AND AC BREAKER MUST HAVE BEEN TURNED OFF BEFORE SERVICING MADE IN CHINA TBB Power Co., Ltd...
- Page 4 Assumes no responsibility or liability for loss or damage, whether direct, indirect, consequential or incidental, which might arise out of the use of such information. TBB offer standard warranty with its products, taking no responsibility for direct or indirect loss due to equipment failure.
-
Page 5: Table Of Contents
Unpacking and inspection ................... 10 Inspection of appearance ................10 4.1.1 Packing list ...................... 10 4.1.2 Wiring recommendation ..................10 Tools ........................11 Location ........................12 Installation interface ..................... 12 Installation And Connection ....................... 13 General advice ....................... 13 TBB Power Co., Ltd... - Page 6 Relay Control ....................34 6.7.3 ACout2 Control ....................34 6.7.4 Screen Set ......................35 6.7.5 Setup wizard ......................35 Error code ....................... 36 Warning code ......................37 6.10 Event code ......................38 6.11 Specification ..........................39 TBB Power Co., Ltd...
-
Page 7: General Safety Instruction
DO NOT put the metal tool on the battery, spark and short circuit might lead to explosion. REMOVE all personal metal items such as rings, bracelets, necklaces, and watches while working with batteries. Batteries can cause short-circuit current high enough to make metal melt, and could cause severe burns. TBB Power Co., Ltd... -
Page 8: Description Of Main Function
Provided with outstanding surge power capability and low frequency transformer, Kinergier pro bi-directional inverter is suitable for heavy inductive load like refrigerator, coffee maker, microwave, power tools, air conditioner etc. Battery low voltage protect Provide battery low voltage protection depend on Environment with LCD. TBB Power Co., Ltd... -
Page 9: Feed Energy To Grid And Power Assist
The inverter can charge the lithium battery through the LCD setting. Cycle charging When the battery is in the floating state for a long time, the cycle charging program will start every 10 days and can be set through the LCD. TBB Power Co., Ltd... -
Page 10: Transfer
LCD. In the power search mode, the no-load power consumption will be reduced by about 70%. The threshold of the power search mode can be adjusted from 0.25% to 1% of rated power. TBB Power Co., Ltd... -
Page 11: Protect Function
The equipment will automatically turn off the auxiliary power supply according to the low voltage protection point set by the user, and completely prevent the permanent damage caused by the discharge of the device when the battery voltage drops to the set value. TBB Power Co., Ltd... -
Page 12: Dry Contact
The other mode is to feed the grid side according to the set current for a specified period of time. TBB Power Co., Ltd... -
Page 13: Ac Coupling
3000W / 4000W(30min) Represent rate capacity 4500W / 6000W(30min) 6000W / 8000W(30min) Represent rate DC voltage Naming example: 1. CK 8.0S： Kinergier pro bi-directional inverter Rate capacity:6000W / 8000W(30min) Rate dc voltage:48V TBB Power Co., Ltd... -
Page 14: Structure
Kinergier pro bi-directional inverter User Manual Structure Structure Product draw Product draw 3.1.1 Kinergier bi-directional inverter 3.1.1 Kinergier bi-directional inverter 1) CK 4.0S/6.0S/8.0S TBB Power Co., Ltd... -
Page 15: Product Size
Kinergier pro bi-directional inverter User Manual Product size Product size 3.2.1 Kinergier bi-directional inverter 3.2.1 Kinergier bi-directional inverter 1） CK 4.0S/6.0S/8.0S TBB Power Co., Ltd... -
Page 16: Pre-Installation Configuration
System capacity AC wiring PE wiring DC wiring CK 4.0S 4mm²~10mm² 4mm²~10mm² 35mm²~90mm² φ8 aperture copper CK 6.0S 6mm²~10mm² 6mm²~10mm² terminal Length<2m CK 8.0S 8mm²~10mm² 8mm²~10mm² TBB Power Co., Ltd... -
Page 17: Tools
Please prepare tools and instruments following the Tab in advance. Classify Tools and instruments Diagonal pliers Percussion drill (φ8mm) Wire stripper Installing Wire cutters Hydraulic pliers Cross screwdrivers （25mm²~35mm²） （25mm²~35mm²） （M4、M6） Heat-shrinkable tubing Heat gun Universal meter（600V） Personal safety equipment Protective shoes Protective gloves TBB Power Co., Ltd... -
Page 18: Location
Installation interface Front panel Communication cable, dry contact cable threading hole Battery negative cable threading hole Battery positive cable threading hole AC input cable threading hole AC output cable threading hole Remove the top panel TBB Power Co., Ltd... -
Page 19: Installation And Connection
On the AC output side, we recommend connecting the output from Kinergier pro bi-directional inverter to a suitable Residual Current Circuit Breaker and Circuit Breaker. Please make sure Kinergier pro bi-directional inverter is turned off before connection. Otherwise, high voltage could be present. TBB Power Co., Ltd... -
Page 20: Fix The Bi-Directional Inverter
Step1：Punch the wall according to the mounting hole cardboard. step2：Fix the mount to the wall with 2*M6 screws. step3：Snap the bottom hook into the wall mount. step4：Fix the bottom plate to the wall with 2*M6 screws. Step 1 TBB Power Co., Ltd... - Page 21 Kinergier pro bi-directional inverter User Manual Step 2 Step3 Step 4 TBB Power Co., Ltd...
-
Page 22: Connect The Power Cable
After determining the positive and negative polarity, pass the DC input cable of the battery pack through the threading hole of the front panel and lock the nut with the wrench or sleeve. TBB Power Co., Ltd... - Page 23 PE cable: Refer to section 4.2 to select the appropriate wire. Connect the PE terminal on the lower right. Please double check the AC input and AC output were right after connection. Wrong connection will cause permanent damage of equipment and it is out of warranty. TBB Power Co., Ltd...
-
Page 24: Connect The Signal Cable
BTS - battery temperature sensor Remote ON/OFF Remote ON/OFF control DryInput Input Dry control ComSyncIn Parallel synchronous communication input（CAN） ComSyncOut Parallel synchronous communication output（CAN） ComSYS System communication（RS485） ComMON Monitor communication（RS485） Relay1 Output Dry control 1 Relay2 Output Dry control 2 TBB Power Co., Ltd... -
Page 25: Connect Bts - Battery Temperature Sensor
Connect the remote ON/OFF interface to the external switch button (normally open button) through the extension cable, and the line length can be adjusted according to the actual distance. For details on how to operate the remote ON/OFF switch, see Chapter 6. TBB Power Co., Ltd... -
Page 26: Connect Input Dry Contact
"ComSyncIn" interface of the first unit and "ComSyncOut" interface of the last unit, and remove the resistor matching crystal of other units, connect the adjacent units by a standard 8P8C network cable, the "ComSyncOut" interface of the previous units is connected to the "ComSyncIn" interface of the next machine. TBB Power Co., Ltd... -
Page 27: Connect The System Communication Cable
Connect contact 5.4.7 Connect contact Connect the externally controlled device and the output dry contact pair terminal by the suitable cable, and the inserted plugged terminal into the corresponding output dry contact interface "relay1" or "relay2". TBB Power Co., Ltd... -
Page 28: Operation Of Kinergier Pro
5s, the auxiliary power supply is powered off. Remote ON/OFF button operation principle is the same as above. Symbol Function Page up Page down Enter Cancel/Back TBB Power Co., Ltd... -
Page 29: Menu Introduction
Kinergier pro bi-directional inverter User Manual Menu introduction Menu introduction TBB Power Co., Ltd... -
Page 30: Initial Interface
The default polling display time is 5S, and the time can be set manually. When press to turn pages, the default will stop 30S on the current page, and the time can be set manually. TBB Power Co., Ltd... -
Page 31: Information Query Interface
Enter to see more Running information. Press to scroll through the pages. BAT Inverter: >Running Info MPPT Charger Enter to see more statistics information. Press to scroll through the pages. >Statistic-Info TBB Power Co., Ltd... - Page 32 Displayed when there is no fault: Enter to see history record information. Press to scroll through the pages. the secondary menu when the event occur. >History Records Press the to enter the third level menu to display detailed information. TBB Power Co., Ltd...
-
Page 33: Parameter Setting Interface
Parameter setting interface Parameter setting interface 6.6.1 Operating nstructions 6.6.1 Operating nstructions Note: Some parameter settings are only allowed to be set when the Equipment is not in the running state, including the following setting information: TBB Power Co., Ltd... -
Page 34: Parameter Set
1- Neutral grounding is >Para_Mode netural line enable grounding mode when GND_Connect_EN battery invert and AC in 0- Neutral grounding is disconnect disable 1- Charge is controlled by Charge control mode OutCtrl_CHG 0- Charge is controlled by (read only) TBB Power Co., Ltd... - Page 35 Detail Setting: >Para_Battery Display Setting range Description The average charging voltage single battery (battery size is 12V/section) U_Float_CHG ~ 14.5V U_AVE_CHG Note: This value （12V min） affected when changing the battery type and can reconfigured needed. TBB Power Co., Ltd...
- Page 36 Minimum Bulk time Maximum Absorption Max_ABS0RP_Time 1~240h time Auto_CHG_Cycle 24~2400h Equalization cycle time Charging temperature CHG_TEMP-Coef 0~20mv/℃/cell compensation coefficient enable charging CHG_TEMP_OMPE_EN 1-on; 0-off temperature compensation (BAT_LV_Protect + 0.3) ~ Undervoltage protection LV_PR0_Recover 14.5V recovery value TBB Power Co., Ltd...
- Page 37 Feedback_EN 1- Allow ACin (read only) Maximum current allowed to feed back to Feedback_MaxCur 0~50A grid Delay time into the grid after AC in is detected to AC-Connect Delay 20~300s be normal TBB Power Co., Ltd...
- Page 38 0- Buzzer silent mode Whether the MPPT's buzzer >Para_MPPT is enable sounds when MPPT Silent_Mode_EN 1- Buzzer silent mode alarms is disable DC_Input_Mode 0- Mode is disable MPPT input connected to DC 1- Mode is enable source mode TBB Power Co., Ltd...
-
Page 39: User Config
Kinergier pro bi-directional inverter User Manual User config User config 6.7.1 Solar Config 6.7.1 Solar Config TBB Power Co., Ltd... -
Page 40: Acin Config
ACout2 relay is turned on and output when AC in powered or grid 0-Default connection. 1-Manual Control the ACout2 relay manually. 2-Time Timing control ACout2 relay. 3-INV Load Control ACout2 relay according to inverter load rate. 4-BAT Volt Control ACout2 relay according to battery voltage. TBB Power Co., Ltd... -
Page 41: Screen Set
If there is no operation for a long time, return time of the real-time Menu_Exit_Auto information display interface, 30~180s. Setup Setup wizard wizard The first time turn on or after restoring the factory settings, need to enter the setup wizard. TBB Power Co., Ltd... -
Page 42: Error Code
EEPROM is abnormal Output_SC Output short circuit Output_OL Output over load CoolSys_Err Cooling system is abnormal VbatLow_Deep Battery is severe under voltage Vinv_LV Inverter is under voltage Instant_OC_Soft Instantaneous over current Emergency stop Rly_Err Relay is abnormal TBB Power Co., Ltd... -
Page 43: Warning Code
Internal communication is abnormal Reserved Reserved Reserved V_AcIn_OV AC input is over voltage V_AcIn_LV AC input is under voltage F_AcIn_OF AC input is over frequency F_AcIn_LF AC input is under frequency Phase_Err Phase sequence is abnormal TBB Power Co., Ltd... -
Page 44: Event Code
The Inverter is in bypass mode Inverter fault The Inverter is in fault mode MPPT Off The MPPT charger is off MPPT Charge The MPPT charger is in charging mode MPPT Fault The MPPT charger is in fault mode TBB Power Co., Ltd... -
Page 45: Specification
Cont. output power at 40°C 2400W 3600W 4800W Maximum efficiency Zero load power Charger Charge voltage 'absorption' 57.6Vdc Charge voltage 'float' 55.2Vdc Battery types AGM / GEL / OPZV / Li-ion Charge current 100A house battery Temperature compensation TBB Power Co., Ltd... - Page 46 -20 to +60˚C Storage temperature range -40 to +70˚C Relative humidity in operation 95% without condensation Mechanical Data 530mm 530mm 530mm Dimension *285mm *285mm *285mm *185mm *185mm *185mm Net Weight 40KG Cooling Forced fan Protection index IP20 TBB Power Co., Ltd...
- Page 47 Kinergier pro bi-directional inverter User Manual TBB Power Co., Ltd...
- Page 48 Kinergier pro bi-directional inverter User Manual TBB Power Co., Ltd Web: www.tbbpower.com Tel: +86-592-5212299 Fax: +86-592-5796070 Email: service@tbbpower.com TBB Power Co., Ltd...
