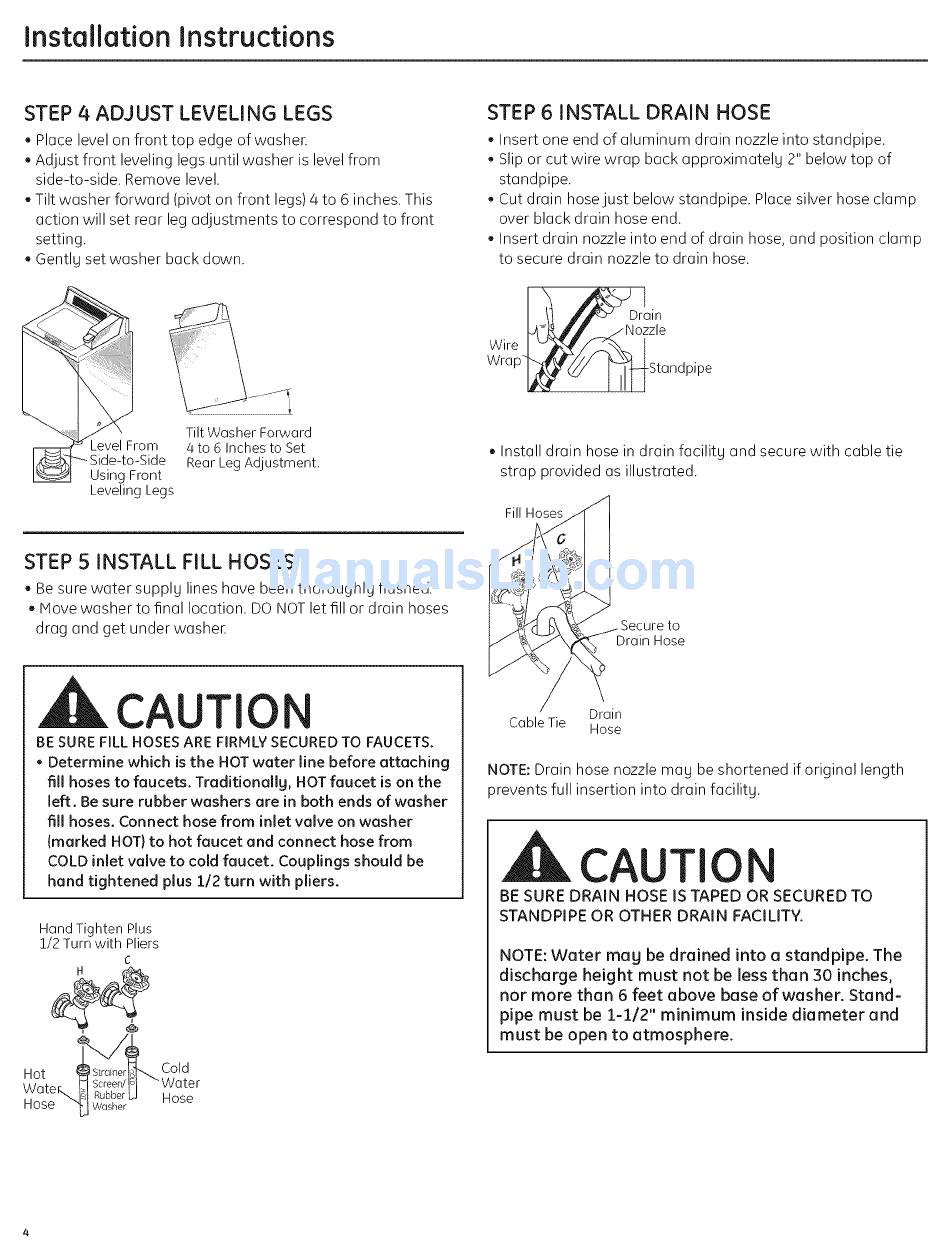

Installation Instructions
STEP 4 ADJUST LEVELING LEGS
, Place level on front top edge of washer.
Adjust front leveling legs until washer is level from
side-to-side. Remove level.
Tilt washer forward (pivot on front legs) 4 to 6 inches. This
action will set rear leg adjustments to correspond to front
setting.
Gentlg set washer back down.
.evel From
Using Front
Leveling Legs
Tilt Washer Forward
4 to 6 Inches to Set
Rear Leg Adjustment.
STEP 6 INSTALL DRAIN HOSE
Insert one end of aluminum drain nozzle into standpipe.
Slip or cut wire wrap back approximatelg 2" below top of
standpipe.
Cut drain hosejust below standpipe. Place silver hose clamp
over black drain hose end.
, Insert drain nozzle into end of drain hose, and position clamp
to secure drain nozzle to drain hose.
Dro,n
Wrapwu [i'll-Standpipe
Install drain hose in drain facilitg and secure with cable tie
strap provided as illustrated.
Fill Hoses
STEP 5 INSTALL FILL HOSES
, Be sure water supplg lines have been thoroughlg flushed.
, Move washer to final location. DO NOT let fill or drain hoses
drag and get under washeE
Drain Hose
CAUTIO
BE SUREFILL HOSESARE FIRMLYSECUREDTO FAUCETS.
• Determine which is the HOT water line before attaching
fill hoses to faucets. Traditionallg, HOT faucet is on the
left. Be sure rubber washers are in both ends of washer
fill hoses. Connect hose from inlet valve on washer
{marked HOT)to hot faucet and connect hose from
COLD inlet valve to cold faucet. Couplings should be
hand tightened plus 112 turn with pliers.
Hand Tighten Plus
1/2 Turn with Pliers
g
Hot _ Strainer tsP'_
Screen/ Water
,W,ateF',..HRubber'U "Hose
Hose _j Washer
Drain
Cable Tie Hose
NOTE: Drain hose nozzle mag be shortened if original length
prevents full insertion into drain facilitg.
CAUTIO
BE SURE DRAIN HOSE IS TAPED OR SECURED TO
STANDPIPE OR OTHER DRAIN FACILITY.
NOTE: Water mag be drained into a standpipe. The
discharge height must not be less than 30 inches,
nor more than 6 feet above base of washer. Stand-
pipe must be 1-1/2" minimum inside diameter and
must be open to atmosphere.
