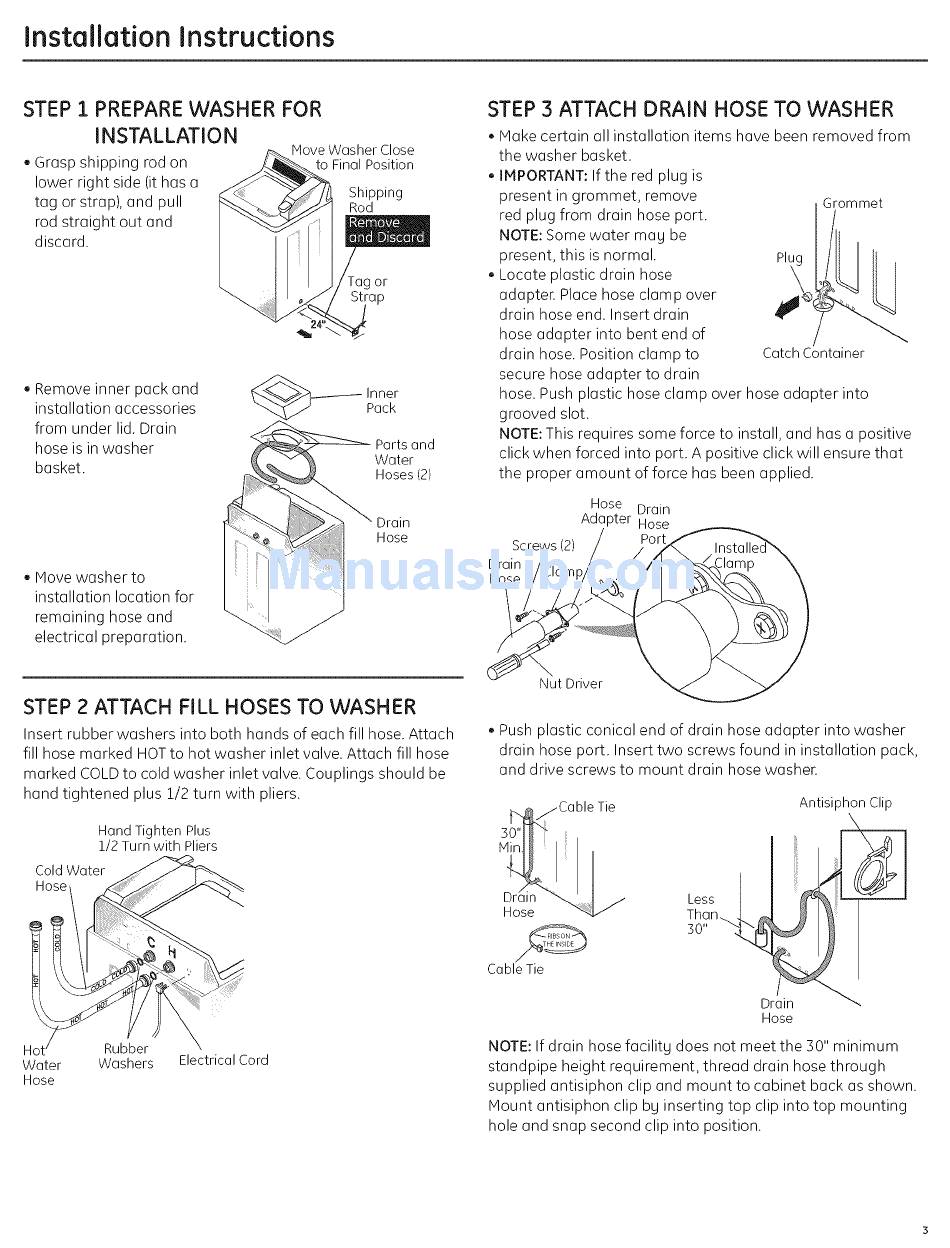

Installation Instructions
STEP 1 PREPARE WASHER FOR
INSTALLATION
Hove Washer Close
" Grasp shipping rod on __ FinalPosition
lower right side (it has a d'__/l Shipping
tag or strap), and pull I_'_. (:_7// Rod
rod straight out and .....
discard. IV _TTs_rgOr
o P
d
o Remove inner pack and
installation accessories
from under lid. Drain
hose is in washer
basket.
Move washer to
installation location for
remaining hose and
electrical preparation.
i
STEP 3 ATTACH DRAIN HOSE TO WASHER
, Hake certain all installation items have been removed from
the washer basket.
IMPORTANT:If the red plug is
present in grommet, remove
red plug from drain hose port.
NOTE:Some water may be
present, this is normal.
Locate plastic drain hose
adapter. Place hose clamp over
drain hose end. Insert drain
hose adapter into bent end of
drain hose. Position clamp to
secure hose adapter to drain
Grommet
CatchContainer
hose. Push plastic hose clamp over hose adapter into
grooved slot.
NOTE:This requires some force to install, and has a positive
click when forced into port. A positive click will ensure that
the proper amount of force has been applied.
Hose Drain
Adapter Hose
Screws (2) Port
Drain
Hose
STEP 2 ATTACH FILL HOSES TO WASHER
Insert rubber washers into both hands of each fill hose. Attach
fill hose marked HOT to hot washer inlet valve. Attach fill hose
marked COLD to cold washer inlet valve. Couplings should be
hand tightened plus 1/2 turn with pliers.
Hand Tighten Plus
1/2 Turn with Pliers
Cold Water
Hose
Hot
Water
Hose
Rubber
Washers Electrical Cord
Nut Driver
Push plastic conical end of drain hose adapter into washer
drain hose port. Insert two screws found in installation pack,
and drive screws to mount drain hose washer.
3_/Cable Tie
rca'n
Cable Tie
Drain
Hose
AntisiphonClip
NOTE: If drain hose facilitg does not meet the 30" minimum
standpipe height requirement, thread drain hose through
supplied antisiphon clip and mount to cabinet back as shown.
Mount antisiphon clip bg inserting top clip into top mounting
hole and snap second clip into position.
