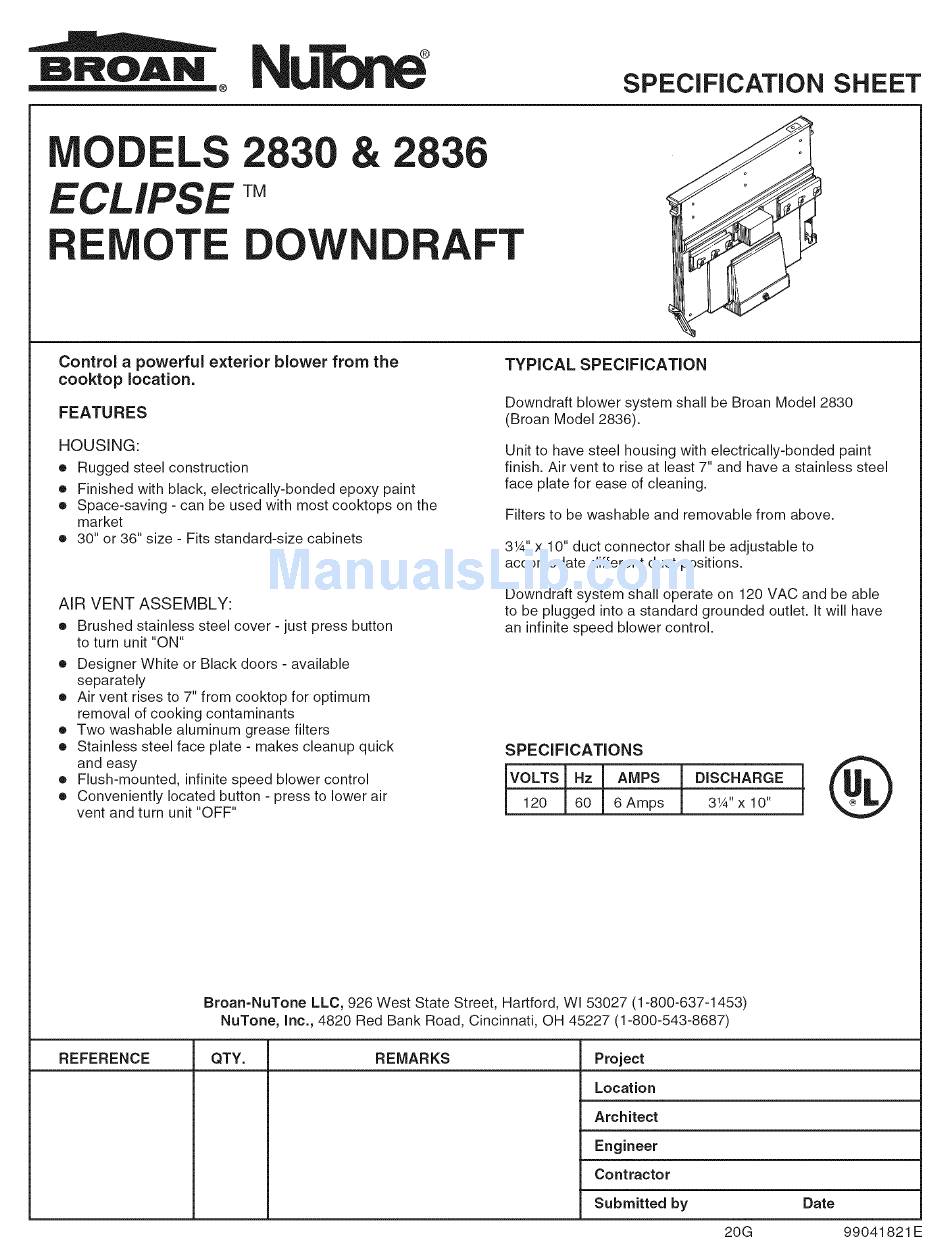

SPECiFiCATiON SHEET
MODELS 2830 & 2836
ECLIPSE
REMOTE DOWNDRAFT
Control a powerful exterior blower from the
cooktop location.
FEATURES
HOUSING:
• Rugged steel construction
• Finished with black, electrically-bonded epoxy paint
• Space-saving - can be used with most cooktops on the
market
• 30" or 36" size - Fits standard-size cabinets
AIR VENT ASSEMBLY:
® Brushed stainless steel cover - just press button
to turn unit "ON"
• Designer White or Black doors - available
separately
• Air vent rises to 7" from cooktop for optimum
removal of cooking contaminants
• Two washable aluminum grease filters
• Stainless steel face plate - makes cleanup quick
and easy
• Flush-mounted, infinite speed blower control
• Conveniently located button - press to lower air
vent and turn unit "OFF"
TYPICAL SPECiFiCATiON
Downdraft blower system shall be Broan Model 2830
(Broan Model 2836).
Unit to have steel housing with electrically-bonded paint
finish. Air vent to rise at least 7" and have a stainless steel
face plate for ease of cleaning.
Filters to be washable and removable from above.
31_'' x 10" duct connector shall be adjustable to
accomodate different duct positions.
Downdraft system shall operate on 120 VAC and be able
to be plugged into a standard grounded outlet. It will have
an infinite speed blower control.
SPECIFICATIONS
VOLTS Hz AMPS
120 60 6 Amps
DISCHARGE
31_" x 10"
REFERENCE
