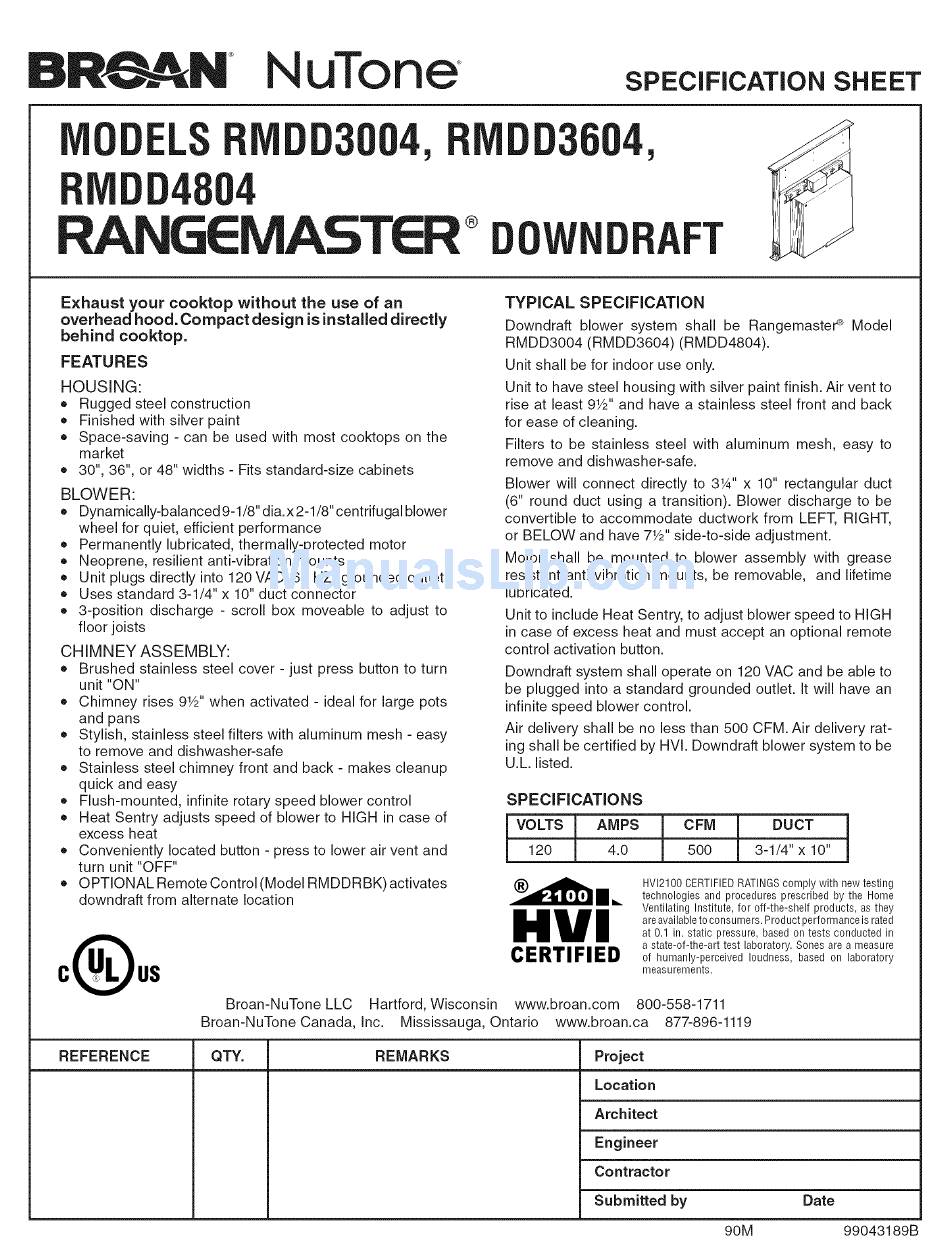

Broan NuTone RANGEMASTER SRIVIDD3O04 Specification Sheet

BR N
NuTone
SPECiFiCATiON SHEET
MODELS RIVIDD3O04, RIVIDD3604,
RIVIDD4804
RANGEMAS FER® DOWNDRAFT
Exhaust your cooktop without the use of an
overhead hood. Compact design is installed directly
behind cooktop.
FEATURES
HOUSING:
• Rugged steel construction
• Finished with silver paint
• Space-saving - can be used with most cooktops on the
market
• 30", 36", or 48" widths - Fits standard-size cabinets
BLOWER:
• Dynamically-balanced 9-1/8" dia. x 2-1/8" centrifugal blower
wheel for quiet, efficient performance
• Permanently lubricated, thermally-protected motor
• Neoprene, resilient anti-vibration mounts
• Unit plugs directly into 120 VAC, 60 HZ, grounded outlet
• Uses standard 3-1/4" x 10" duct connector
• 3-position discharge - scroll box moveable to adjust to
floor joists
CHIMNEY ASSEMBLY:
• Brushed stainless steel cover - just press button to turn
unit "ON"
• Chimney rises 91/2 '` when activated - ideal for large pots
and pans
• Stylish, stainless steel filters with aluminum mesh - easy
to remove and dishwasher-safe
• Stainless steel chimney front and back - makes cleanup
quick and easy
• Flush-mounted, infinite rotary speed blower control
• Heat Sentry adjusts speed of blower to HIGH in case of
excess heat
• Conveniently located button - press to lower air vent and
turn unit "OFF"
• OPTIONAL Remote Control (Model RMDDRBK) activates
downdraft from alternate location
TYPICAL SPECIFICATION
Downdraft blower system shall be Rangemaster _ Model
RMDD3004 (RMDD3604) (RMDD4804).
Unit shall be for indoor use only.
Unit to have steel housing with silver paint finish. Air vent to
rise at least 9W' and have a stainless steel front and back
for ease of cleaning.
Filters to be stainless steel with aluminum mesh, easy to
remove and dishwasher-safe.
Blower will connect directly to 3W' x 10" rectangular duct
(6" round duct using a transition). Blower discharge to be
convertible to accommodate ductwork from LEFT, RIGHT,
or BELOW and have 7W' side-to-side adjustment.
Motor shall be mounted to blower assembly with grease
resistant anti-vibration mounts, be removable, and lifetime
lubricated.
Unit to include Heat Sentry, to adjust blower speed to HIGH
in case of excess heat and must accept an optional remote
control activation button.
Downdraft system shall operate on 120 VAC and be able to
be plugged into a standard grounded outlet. It will have an
infinite speed blower control.
Air delivery shall be no less than 500 CFM. Air delivery rat-
ing shall be certified by HVl. Downdraft blower system to be
U.L listed.
SPECIFICATIONS
VOLTS AMPS
120 4.0
CFM DUCT
500 3-1/4" x 10"
CERTIFIED
HV12100 CERTIFIEDRATINGScomply with new testing
technologies and procedures prescribed by the Home
Ventilating Institute, for off-the-shelf products, as they
areavailable to consumers. Product performance is rated
at 0.1 in. static pressure, based on tests conducted in
a state-of-the-art test laboratory. Sones are a measure
of humanly-perceived loudness, based on laboratory
measurements.
Broan-NuTone LLC Hartford, Wisconsin www.broan.com 800-558-1711
Broan-NuTone Canada, Inc. Mississauga, Ontario www.broan.ca 877-896-1119
REFERENCE QTY. REMARKS
Project
Location
Architect
Engineer
Contractor
Submitted by
Date
90M 99043189B
