Summary of Contents for SMK-Link VP4750

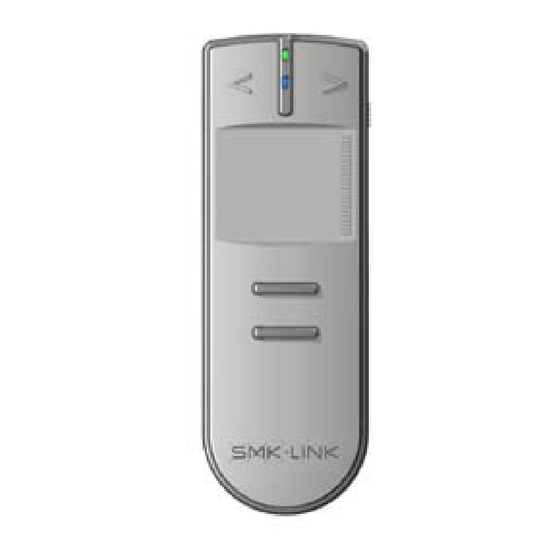

- Page 1 VP4750 User’s Guide Bluetooth Touchpad Remote for presentations and desktop control...
-
Page 2: Table Of Contents
Table of Contents Getting Started ...............2 Buttons and Controls ..............3 Windows Pairing for Windows ..........5 Using the remote in Windows .........8 Pairing on the Mac ..........9 Using the remote in OS X ........11 Advanced Topics ..............12 Agency Certifications ............13 Product Specifications ............15 System Requirements ............15 Trouble Shooting ..............16 Technical Support ..........Back Cover... -
Page 3: Getting Started
SMK-Link. It’s the perfect tool for giving better pre- sentations or controlling your computer from across the room. The VP4750 uses Bluetooth to provide up to 33 feet of range and a touchpad for the most accurate mouse pointing. Before... -
Page 4: Buttons And Controls

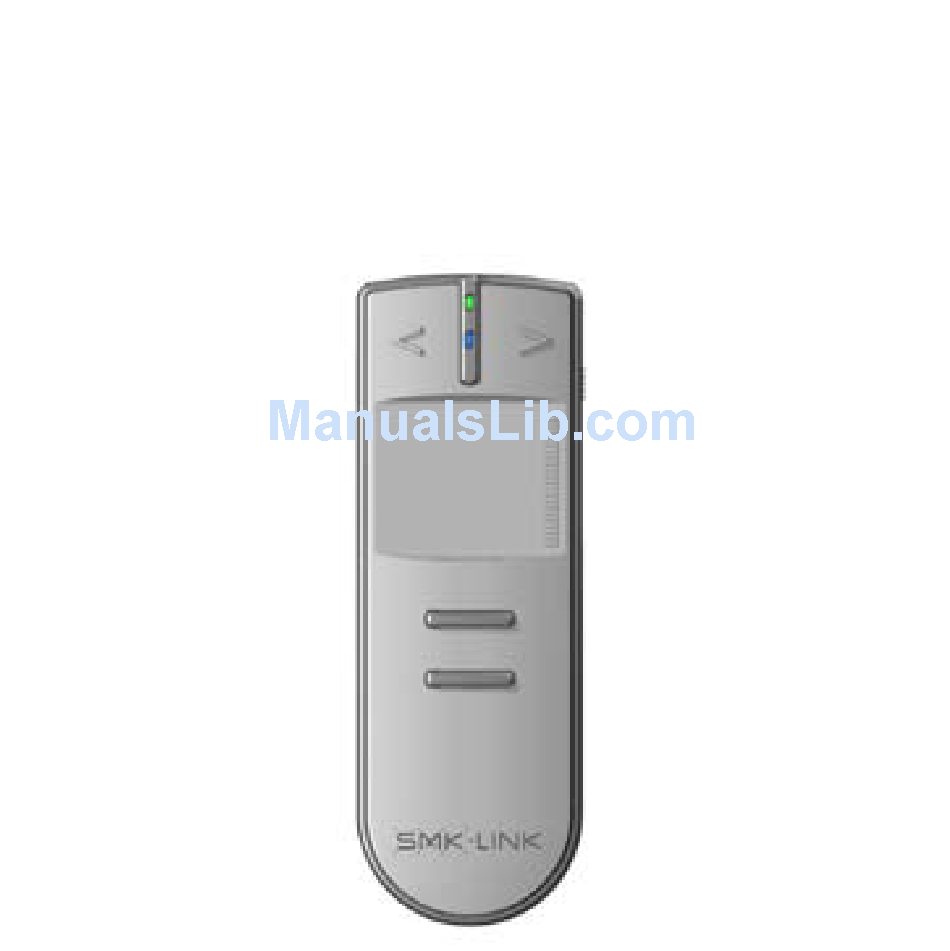

Buttons and controls Bluetooth LED Activity LED Prev Slide / Next Slide / Left Arrow Right Arrow Connect Button Power Switch Touchpad Scroll Strip Right Mouse Button Blank Screen (Presentation) Left Mouse Button Page 3... - Page 5 Bluetooth LED: Shows the status of the Bluetooth connection. Fast Blinking: In Connect Mode. Off: Not connected Slow Blinking: Connected. Activity LED: As you press controls this LED should blink. Next Slide / Right Arrow: Pressing this button is the same as pressing the right arrow key on your keyboard.
-
Page 6: Pairing For Windows
Bluetooth icon in the system tray or by selecting Start | Control Panel and double clicking on the Bluetooth icon. Step 2: Add New Device Click on Add or New Connection to start the process of pair- ing the VP4750 to your computer. Page 5... - Page 7 Step 3: Put VP4750 in to Connect Mode Turn the remote On by sliding the power switch on the right side of the remote. Put the remote into connect mode by pressing the Connect button on the left side of the remote. The blue LED should immediately begin blinking rapidly.
- Page 8 Step 5: Final Details Select the VP4750 from the list of recognized items and click next. For drivers which need a device type, select Mouse. If asked for a passkey, select “Do not use passkey” or “Empty passkey.” Follow the dialog boxes until done.
-
Page 9: Using The Remote In Windows
Windows Desktop Use the VP4750 as a mouse to control the windows desktop from further away. Now you can use your laptop like a home theatre system to play DVDs or to stream TV shows. Use it with your desktop to select and play music. -
Page 10: Mac
Step 2: Open the Bluetooth Preference Pane Click on the Bluetooth icon in System Preferences to begin the process of pairing your VP4750 to your Mac. Step 3: Put VP4750 in to Connect Mode Turn the remote On by sliding the power switch on the right side of the remote. - Page 11 When asked for the new device type, select “Mouse” from the list of choices and click continue. Your Mac should then find the VP4750. If it doesn’t, please go back to step 3 and make sure you are in connect mode. Once found, click continue to finish pairing your VP4750.
-
Page 12: Using The Remote In Os X
Using the remote in OS X Presentation Software The VP4750 works with both Apple Keynote and Microsoft PowerPoint. Control your slideshows from up to 33 feet away. Use the touchpad as a mouse to load and start your presenta- tions. The Next Slide (>), Previous Slide (<) and Blank buttons will help your presentations look more professional. -
Page 13: Advanced Topics
If you do not want to wait for sleep mode to turn the remote Off, you can also turn off the remote by sliding the power switch and holding it for 5 seconds. Advanced Setup There are various setup options to configure your VP4750. For a complete list, please visit “www.smklink.com/vp4750”. Page 12... -
Page 14: Agency Certifications
Agency Certifications USA - FCC CFR 47 Part 15, Subpart B and C This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. - Page 15 Europe - Declaration of Conformity We, SMK-Link Electronics declare under our sole responsibility that the product, VP4750 Bluetooth Touchpad Remote, to which this declaration relates is in conformity with the following standards or other normative documents: Art.3.1(a): EN 60950-1:2001 Art.3.1(b): EN 301 489-17 v1.3.2, EN 301 489-1 v1.8.1...
-
Page 16: Product Specifications
Specifications Communication Method Bluetooth Standard V2.0 +EDR Frequency Band RF 2.4 GHz (Bluetooth) Transmission Distance Up to 33 feet Power Requirement 3V DC (two AAA sized batteries) Battery Usage Up to 14 hours (continuous us- age) Touchpad Capacitive Touchpad with Scroll Strip System Requirements Operating System... -
Page 17: Troubleshooting
Troubleshooting The controller doesn’t work when I turn the power on. • If it’s never worked, you may need to insert batteries (p. 2) or pair the remote with your computer (PC p. 5, Mac p. 9). • If it worked 20 minutes ago, it may have gone into Sleep Mode to save power. - Page 18 When the computer goes into sleep mode, the remote does not operate or operates erratically. • Deactive the Bluetooth connection, wait a few seconds and then re-establish the connection. The mouse moves too fast / too slow. • The speed of the mouse can be set in your Windows control panel or the Mouse preference pane of System Preferences.
-
Page 19: Thank You
Thank You Thank you for purchasing a VP4750 Bluetooth® Touchpad Remote. We know you had other choices and we appreciate that you chose SMK-Link for your wireless needs. So that we may better serve you in the future, please register online at “www.smklink.com/register”.
