Illus.
Part
No.
No.
DESCRIPTION
1
Literature Parts
W10017610 Owners Manual
9758065 Tech Sheet
9756848 Installation
Instructions
Template, Anti−Tip
9757143 English/French
9757142 English/Spanish
4−06 Litho In U.S.A. (lwp)

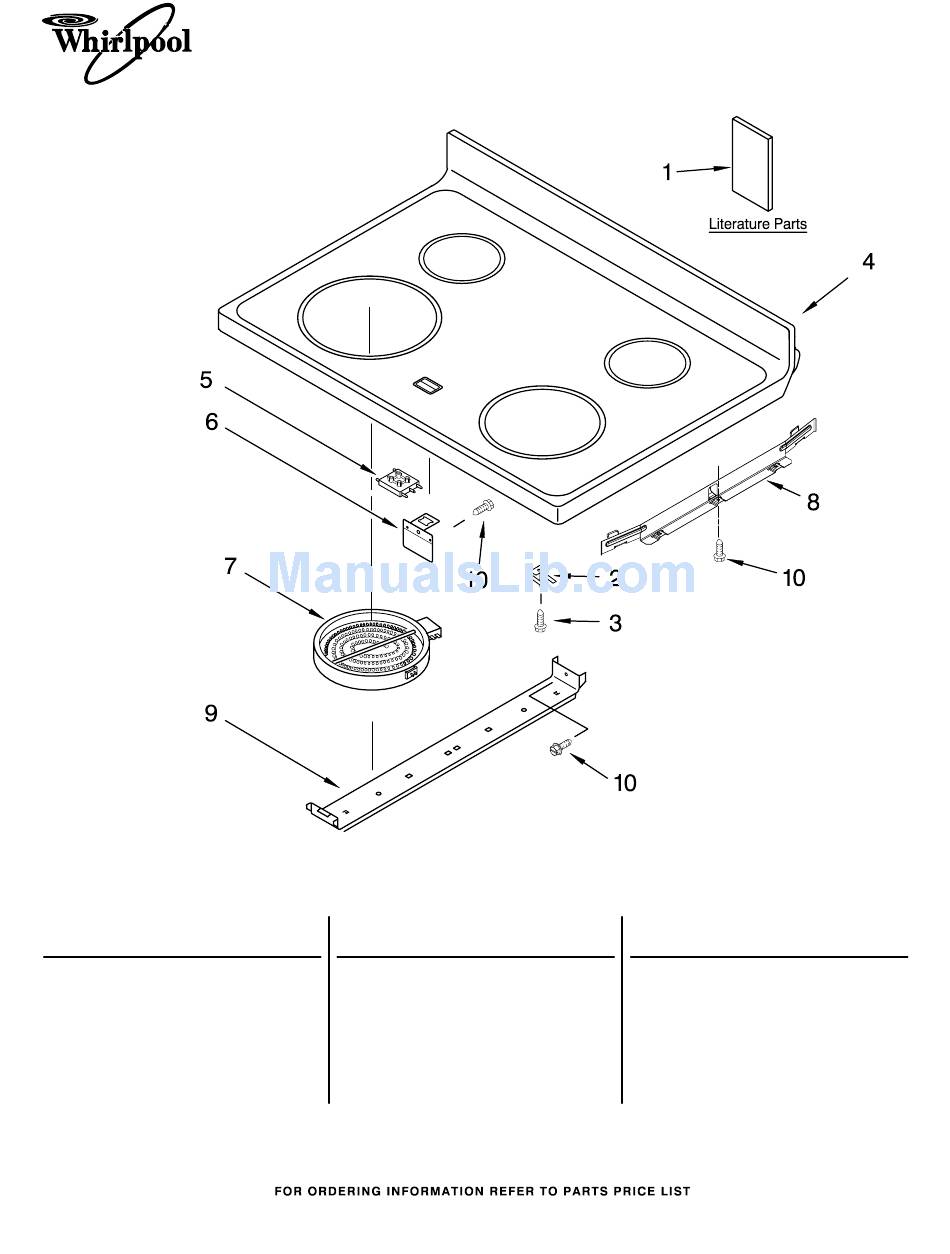

COOKTOP PARTS
For Model: WERE4200PQ3
(White)
Illus.
Part
No.
No.
DESCRIPTION
2
3149191 Spring, Locator
3
3196170 Screw
4
9758725 Cooktop
5
8523739 Light, Indicator
(Hot Surface)
6
8523741 Bracket, Ind Light
1
30" ELECTRIC CERAN
FREESTANDING RANGE
STANDARD CLEAN OVEN
Illus.
Part
No.
No.
DESCRIPTION
7
Element, Surface
8273992 2500 W − LF
8273994 1200 W − LR
8273994 1200 W − RR
8273992 2500 W − RF
8
8524132 Shield, Wiring
9
8272791 Bracket, Element
10
3196169 Screw
Part No. 8188422
