30" (76 cm) freestanding gas range

Advertisement

Quick Links

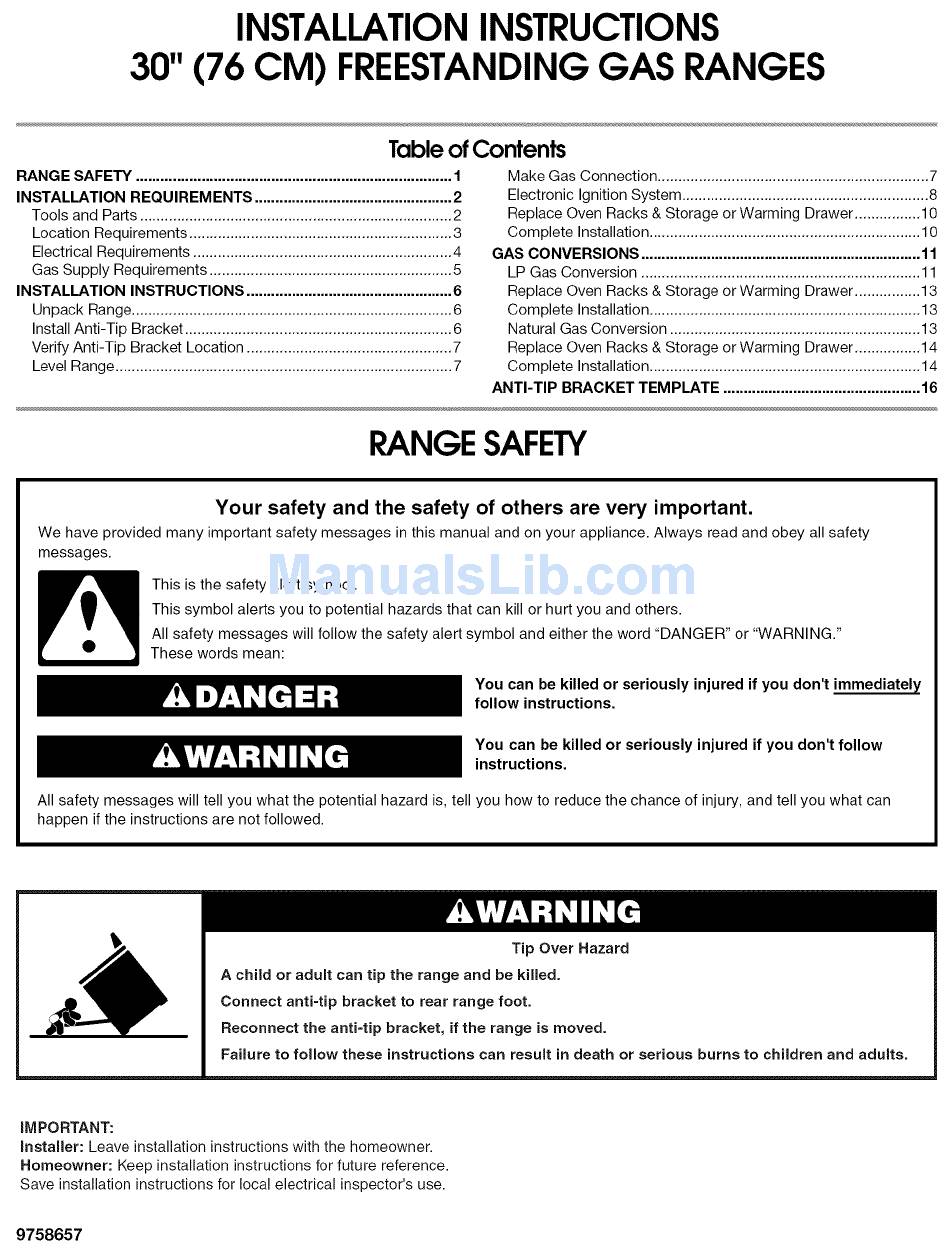

INSTALLATIONINSTRUCTIONS
30" (76 CM) FREESTANDING GAS RANGES
Table of Contents
RANGE SAFETY .............................................................................
1
INSTALLATION REQUIREMENTS
................................................
2
Tools and Parts ............................................................................
2
Location Requirements ................................................................
3
Electrical Requirements ...............................................................
4
Gas Supply Requirements ...........................................................
5
INSTALLATION
INSTRUCTIONS ..................................................
6
Unpack Range ..............................................................................
6
Install Anti-Tip Bracket .................................................................
6
Verify Anti-Tip Bracket Location ..................................................
7
Level Range ..................................................................................
7
Make Gas Connection ..................................................................
7
Electronic Ignition System ............................................................
8
Replace Oven Racks & Storage or Warming Drawer ................ 10
Complete Installation ..................................................................
10
GAS CONVERSIONS ....................................................................
11
LP Gas Conversion ....................................................................
11
Replace Oven Racks & Storage or Warming Drawer ................ 13
Complete Installation ..................................................................
13
Natural Gas Conversion .............................................................
13
Replace Oven Racks & Storage or Warming Drawer ................ 14
Complete Installation ..................................................................
14
ANTI-TIP BRACKET TEMPLATE ................................................
16
RANGE SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."
These words mean:
You can be killed or seriously injured if you don't immediately
follow
instructions.
You can be killed or seriously injured if you don't follow
instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
l___
1
Tip Over Hazard
A child or adult can tip the range and be killed.
Connect anti-tip
bracket to rear range foot.
Reconnect the anti-tip
bracket, if the range is moved.
Failure to follow
these instructions can result in death or serious burns to children
and adults.
IM PORTANT:
installer: Leave installation instructions with the homeowner.
Homeowner:
Keep installation instructions for future reference.
Save installation instructions for local electrical inspector's use.
9758657

Advertisement

loading
Need help?

Need help?

Do you have a question about the IGS326RD2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Inglis IGS326RD2

  • Page 1 INSTALLATIONINSTRUCTIONS 30" (76 CM) FREESTANDING GAS RANGES Table of Contents RANGE SAFETY ................Make Gas Connection ..............Electronic Ignition System ............INSTALLATION REQUIREMENTS ..........Tools and Parts ................Replace Oven Racks & Storage or Warming Drawer ....10 Complete Installation ..............Location Requirements ..............
  • Page 2 I WARNING: For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, or to prevent property damage, personal injury, or death. - Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
  • Page 3 4 'I>+..,i ..III..,ii I%,11 IMPORTANT: Observe all governing codes and ordinances. Product Dimensions not obstruct flow of combustion and ventilation air. • It is the installer's responsibility to comply with installation clearances specified on the model/serial rating plate. The model/serial rating plate is located on the oven frame behind the storage drawer panel.
  • Page 4 Installation Clearances Cabinet opening dimensions shown are for 25" (64 cm) countertop depth, 24" (61 cm), base cabinet depth and 36" (91.4 cm) countertop height. If the cabinet depth is greater than 24" (61 cm) oven frame must extend beyond cabinet fronts by 1/2"(13 mm) minimum. Electrical Shock Hazard Plug into a grounded...
  • Page 5 Flexible metal appliance connector: If local codes permit, a new C.S.A. design-certified, 4 - 5 ft (122 - 152.4 cm) long, 1/2"(1.3 cm) or 3A" (1.9 cm) I.D., flexible metal appliance connector may be used for connecting range to the gas supply line. •...
  • Page 6 Burner Input Requirements Gas Supply Pressure Testing Input ratings shown on the model/serial rating plate are for Line pressure testing above V2psi gauge (14" WCP) elevations up to 2,000 ft (609.6 m). The range and its individual manual shutoff valve must be For elevations above 2,000 ft (609.6 m), ratings are reduced at a disconnected from the gas supply piping system during any...
  • Page 7 7. Align anti-tip b racket holes withholes infloor. F asten a nti-tip • Slide range back so rear range foot is under anti-tip bracket withscrews p rovided. bracket. If installing the range in a mobile home, you must secure the range to the floor.
  • Page 8 Typical flexible connection 1. Apply pipe-joint compound made for use with LP gas to the smaller thread ends of the flexible connector adapters (see B and G in following illustration), 2. Attach one adapter to the gas pressure regulator and the other adapter to the gas shutoff valve, Tighten both adapters.
  • Page 9 You can check the burner flame by removing the flame Adjust Flame Height spreader or by using a mirror. Remove flame spreader: Adjust the height of top burner flames. The cooktop "low" burner Remove 2 screws from the front tabs of the flame spreader. flame should be a steady blue flame approximately W' (0.64 cm) Lift front of the flame spreader and pull forward to remove...
  • Page 10 Check Operation of Oven Broil Burner 1. Close the oven door. Replace oven racks in oven cavity. Insert storage drawer or 2. Press the BROIL pad. warming drawer into slide rails on sides of drawer opening. Lift 3. Press the START pad, front of drawer slightly and push firmly to close drawer.
  • Page 11 GAS CONVERSIONS Remove storage drawer or warming drawer. Locate gas pressure regulator at rear of storage or warming drawer compartment. NOTE: On models with a warming drawer, an access cover must be removed from the gas pressure regulator. Explosion Hazard Use a new CSA International approved gas supply line.
  • Page 12 Apply masking tape to the end of a 5/16"nut driver to help hold To Convert Oven Bake Burner the gas orifice spud in the nut driver while changing it. Press nut driver down onto the gas orifice spud and remove by 1.
  • Page 13 Remove storage drawer or warming drawer. Locate gas pressure regulator at rear of storage or warming drawer compartment. NOTE: On models with a warming drawer, an access cover Replace oven racks in oven cavity. Insert storage drawer or must be removed from the gas pressure regulator. warming drawer into slide rails on sides of drawer opening.
  • Page 14 Apply masking tape to the end of a 5/16"nut driver to help hold the gas orifice spud in the nut driver while changing it. Press nut driver down onto the gas orifice spud and remove by turning it counterclockwise and lifting out. Set gas orifice spud aside.
  • Page 16 ANTI-TIPBRACKET TEMPLATE Cut on dotted lines and place the left edge against the left side cabinet and the top edge against the rear wall. Top edge Use this template to anchor the left rear leg of range. 9758657 © 2005. 3/05 All rights reserved.
