Use and Care Manual
BUILT-INMICROWAVE OVEN
INSTALLATION INSTRUCTIONS
24" (61.0 cm)
This product is suitable for use below electric or gas built-in ovens. This product is not suitable for use below cooktops.
These installation instructions
cover different models. The appearance of your particular model may differ slightly from the illustrations
in these Installation Instructions.
FOURA MICRO-ONDES ENCASTRE
INSTRUCTIONS D'INSTALLATION
24" (61,0 cm)
Ce produit convient & une utilisation au-dessous de fours encastres electriques ou & gaz. Ce produit ne convient pas a une utilisation
au-dessous de tables de cuisson.
Ces instructions
d'installation sont valables pour plusieurs modeles. II se peut que I'apparence de votre propre modele soit legerement
differente de celle illustree dans ces Instructions d'installation.
Table of Contents / Table des mati@res
BUILT-IN MICROWAVE OVEN SAFETY .................................
1
INSTALLATION
REQUIREMENTS
...........................................
2
Tools and Parts ......................................................................
2
Location Requirements ..........................................................
2
Minimum Dimensions .............................................................
2
Product Dimensions ...............................................................
3
Electrical Requirements
.........................................................
4
INSTALLATION
INSTRUCTIONS
.............................................
4
Install the Anti-Tip Block ........................................................
4
Install the Microwave Oven ....................................................
5
Complete Installation .............................................................
5
ASSISTANCE .............................................................................
5
SECURITE
DU FOUR .&. MICRO-ONDES
ENCASTRE ..................... 6
EXIGENCES D'INSTALLATION
..........................................................
6
Outillage et pieces ............................................................................
6
Exigences d'emplacement
...............................................................
6
Dimensions minimales .....................................................................
7
Dimensions du produit .....................................................................
8
Specifications
electriques ................................................................
8
INSTRUCTIONS
D'INSTALLATION
...................................................
9
Installation de la cale de bride antibasculement .............................. 9
Installation du four & micro-ondes
...................................................
9
Achever I'installation .......................................................................
10
ASSISTANCE .....................................................................................
10
BUILT-INMICROWAVE OVEN SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."
These words mean:
You can be killed or seriously injured if you don't immediately
follow
instructions.
You can be killed or seriously injured if you don't follow
instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
W10244169A
Advertisement
Related Manuals for Jenn-Air JMD2124WS0
Summary of Contents for Jenn-Air JMD2124WS0

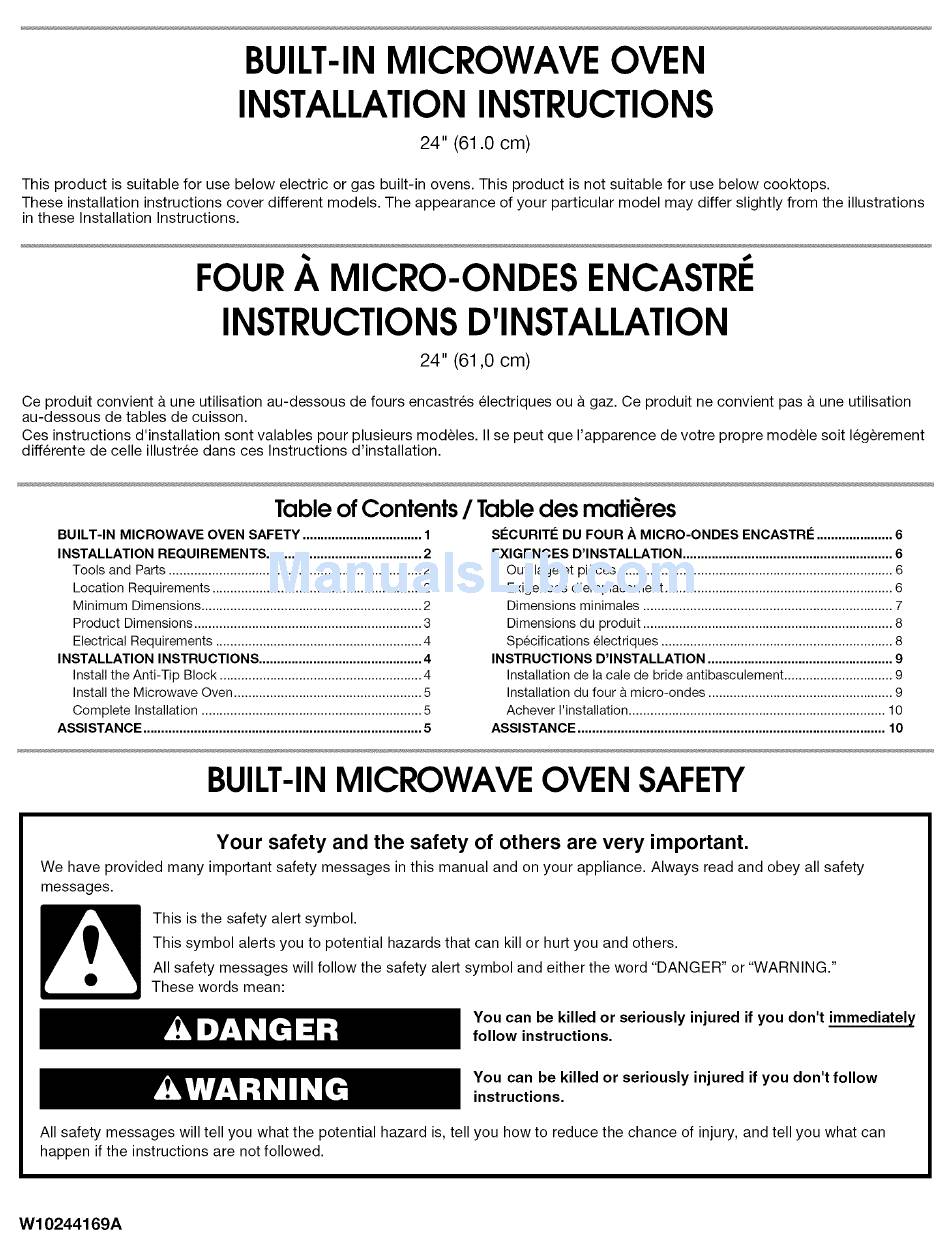

- Page 1 BUILT-INMICROWAVE OVEN INSTALLATION INSTRUCTIONS 24" (61.0 cm) This product is suitable for use below electric or gas built-in ovens. This product is not suitable for use below cooktops. These installation instructions cover different models. The appearance of your particular model may differ slightly from the illustrations in these Installation Instructions.
- Page 2 INSTALLATIONREQUIREMENTS occ_t on _®q ,__®mcwsls t'O0_S 3_J The microwave oven may be located in a cabinet or below the Tools Needed counter, and/or below a built-in oven. Check the opening where the microwave oven will be installed. The location must provide: Gather the required tools and parts before starting installation.
- Page 3 123/32"(4.4 1 513/32" 141%2" (39.1 crn) (37.1 cm) (62.4 cm)* 2325/32" (60.4 cm)* *With flush receptacle. **With non-flush receptacle. *Measurements include front facing of microwave oven drawer. Width 22V8" (59.7 cm) The drawer opens 15" (38.1 cm). Height 14_3/16 '' (37.6 cm)for all installations Depth 23W' (59.7 cm) with flush receptacle;...
- Page 4 INSTALLATIONINSTRUCTIONS {ecff "emen,ts NOTE: The anti-tip block is to be provided by the installer. 6" (15.2 cm) Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death, fire, or electrical shock.
- Page 5 Reinsert microwave oven into the opening, open the drawer, ffeMc and align holes in mounting flange with pilot holes in the cabinet. Excessive Weight Hazard Use two or more people to move and install microwave oven. Failure to do so can result in back or other injury. 1.
- Page 6 SECURITE DU FOURA MICRO-ONDES ENCASTRE Votre securite et celle des autres est tres importante. Nous donnons de nombreux messages de s_curit_ importants dans ce manuel et sur votre appareil m_nager. Assurez-vous toujours lire tousles messages de s_curit_ et de vous y conformer. Ce symbole d'alerte de s_curit_ vous signale les dangers potentiels de d_c_s et de blessures graves &...
- Page 7 _ _Ji_*__¸ @ ° _ ..Distances de d_gagement minimales d'inst_llation Pour une installation oorreate, les distances de d@gagementminimales suivantes doivent @tre respeat@esau-dessus et en dessous de I'ouverture a d@aouper. 2" (5,1 cm) 2" (5,1 cm) 36" (91,4 cm) --IT 2"...
- Page 8 1 513/32" (39,1 cm) Risque de choc _lectrique Brancher sur une prise a 3 aJv_oles reli_e a Jaterre. Ne pas enJever la broche de liaison a la terre. Ne pas utiliser un adaptateur. (62,4 cm)* Ne pas utiliser un c_ble de railonge. Le non=respect de ces instructions peut causer un d_c_s, un incendie ou un choc _lectrique.
- Page 9 INSTRUCTIONSD'INSTALLATION n@cici on REMARQUE : La caNede bride antibascunement dolt _tre fournie par I'installateur. 6" (15,2 cm) Risque de choc _lectrique Brancher sur une prise a 3 aN_oies reli_e a la terre. Ne pas enlever la broche de liaison a la terre. Ne pas utiliser un adaptateur.
- Page 10 ASSISTANCE 1. Contr61er le fonctionnement du four & micro-ondes : placer dans le four & micro-ondes 1 recipient contenant 1 tasse Appeler le marchand local autorise ou le centre de service agre6. (250 mL) d'eau et programmer une periode de chauffage de Lors de I'appel, vous aurez besoin des numeros de modele et de 1 minute &...
- Page 12 W10244169A TINSKB125MRR0 © 2009. All rights reserved. Tous droits reserves. 5/09...
