FieldPro DVR

Digital Video Recorder

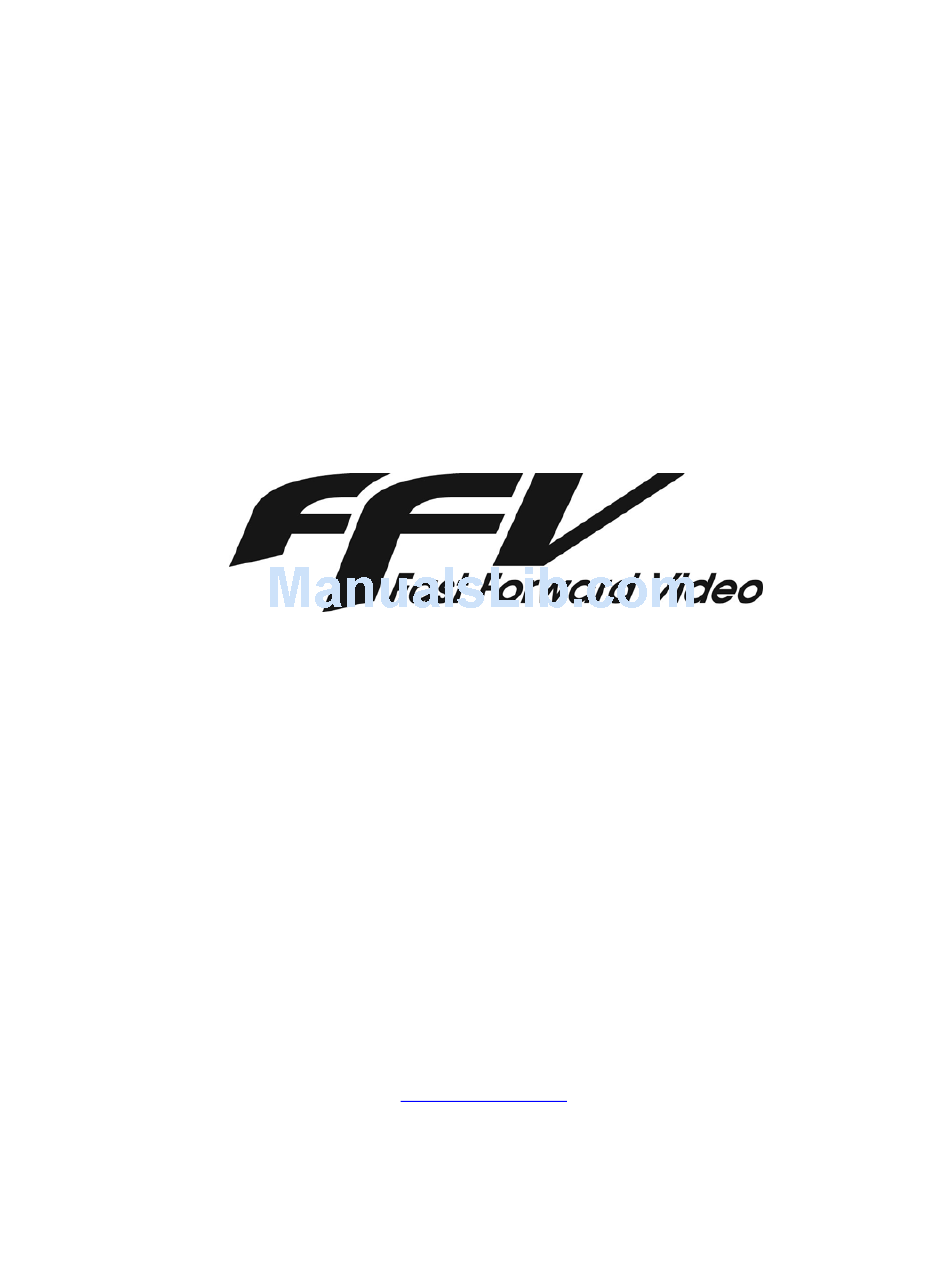

P/N 301-TA045-1
User's Manual
Revision 1.6
February 7, 2007
18200 West McDurmott, Suite B, Irvine, CA 92614, USA
Phone: (949)852-8404 FAX: (949)852-1226
http://www.ffv.com
The design of the FieldPro DVR is proprietary.
No part of the FieldPro DVR manual may be copied or modified without the written consent of Fast Forward Video, Inc.
Printed in the U.S.A.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FieldPro DVR and is the answer not in the manual?

Questions and answers

Related Manuals for Fast Forward Video FieldPro DVR

Summary of Contents for Fast Forward Video FieldPro DVR

  • Page 1: Digital Video Recorder

    18200 West McDurmott, Suite B, Irvine, CA 92614, USA Phone: (949)852-8404 FAX: (949)852-1226 http://www.ffv.com The design of the FieldPro DVR is proprietary. No part of the FieldPro DVR manual may be copied or modified without the written consent of Fast Forward Video, Inc. Printed in the U.S.A.

  • Page 2: Table Of Contents

    Rear Panel Illustration ..............................6 USB Operation ................................7 NATIVE MODE ................................8 BVW-75 MODE ................................8 Firmware Updating Procedure ........................... 9 Specifications ................................10 MAINTENANCE ................................11 Limited Warranty ............................... 12 FieldPro DVR ™ Manual, Fast Forward Video, Inc.

  • Page 3: Overview

    Motion-JPEG compression and an outstanding 720 x 486 pixel image resolution. The FieldPro DVR records up to approximately 24 hours at a 20:1 compression with readily available 80 gig IDE hard drives. The recorder is equipped for downloadable files via an on-board USB 2.0 port. It is designed to develop and evolve as the industry changes.

  • Page 4: Front Bezel Buttons And Functions

    Press REC and Clear Disk Any but Record hold for ~5 seconds, Red LED should flash while formatting, then Green LEDs should flash for two seconds and return unit to Pass-Thru. FieldPro DVR ™ Manual, Fast Forward Video, Inc.

  • Page 5: Led Operation

    Red & Red LED blinks until two seconds before Delete completes, Green then Green blinks for last two seconds. MOE Disk format takes about 2.5 seconds. FAT32 Disk format takes approximately 30 seconds. FieldPro DVR ™ Manual, Fast Forward Video, Inc.

  • Page 6: Rear Panel Illustration

    Pin. 2 RS232 White Pin. 3 Ground Black Pin. 5 C V-In C V-Out Left-In with W hite ID Right-In with Red ID Left-Out with W hite ID Right-Out with Red ID FieldPro DVR ™ Manual, Fast Forward Video, Inc.

  • Page 7: Usb Operation

    Movie tab to play all frames. This slows the video to the speed of the computer, but shows all of the frames recorded. Audio in QuickTime files will be Mono from the Left Channel Input. FieldPro DVR ™ Manual, Fast Forward Video, Inc.

  • Page 8: Native Mode

    The main feature of this mode is the ability to insert edit material over previously recorded material. The FieldPro DVR, in BVW-75 mode assumes that it has a 24 hour tape of “black” attached to itself which has time code assigned from 00:00:00:00.

  • Page 9: Firmware Updating Procedure

    Firmware Updating Procedure New features for the FieldPro DVR are posted to our website as they become available. Our customers have access to these features via firmware updates for the lifetime of the product. Please check this site regularly to implement the newest changes.

  • Page 10: Specifications

    5.00” L x 3.21” W x 1.85” H VIDEO COMPRESSION Power Consumption: 10 watts Codec: Zoran Input Voltage – 12V DC Method: JPEG (Joint Photographic Experts Group) Compression Ratio: Variable down to 4:1 FieldPro DVR ™ Manual, Fast Forward Video, Inc.

  • Page 11: Maintenance

    Operation and Storage Environment Precautions The FieldPro DVR has been built to meet the demands of a professional environment, however, the hardware is subject to the same dangers from static as any other electronic device. Use care when connecting or disconnecting cables.

  • Page 12: Limited Warranty

    CONSEQUENTIAL OR INCIDENTAL DAMAGES RESULTING FROM THE BREACH OF ANY IMPLIED OR EXPRESS WARRANTIES. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS OR EXCLUSION OF CONSEQUENTIAL OR INCIDENTAL DAMAGES, SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU. FieldPro DVR ™ Manual, Fast Forward Video, Inc.
