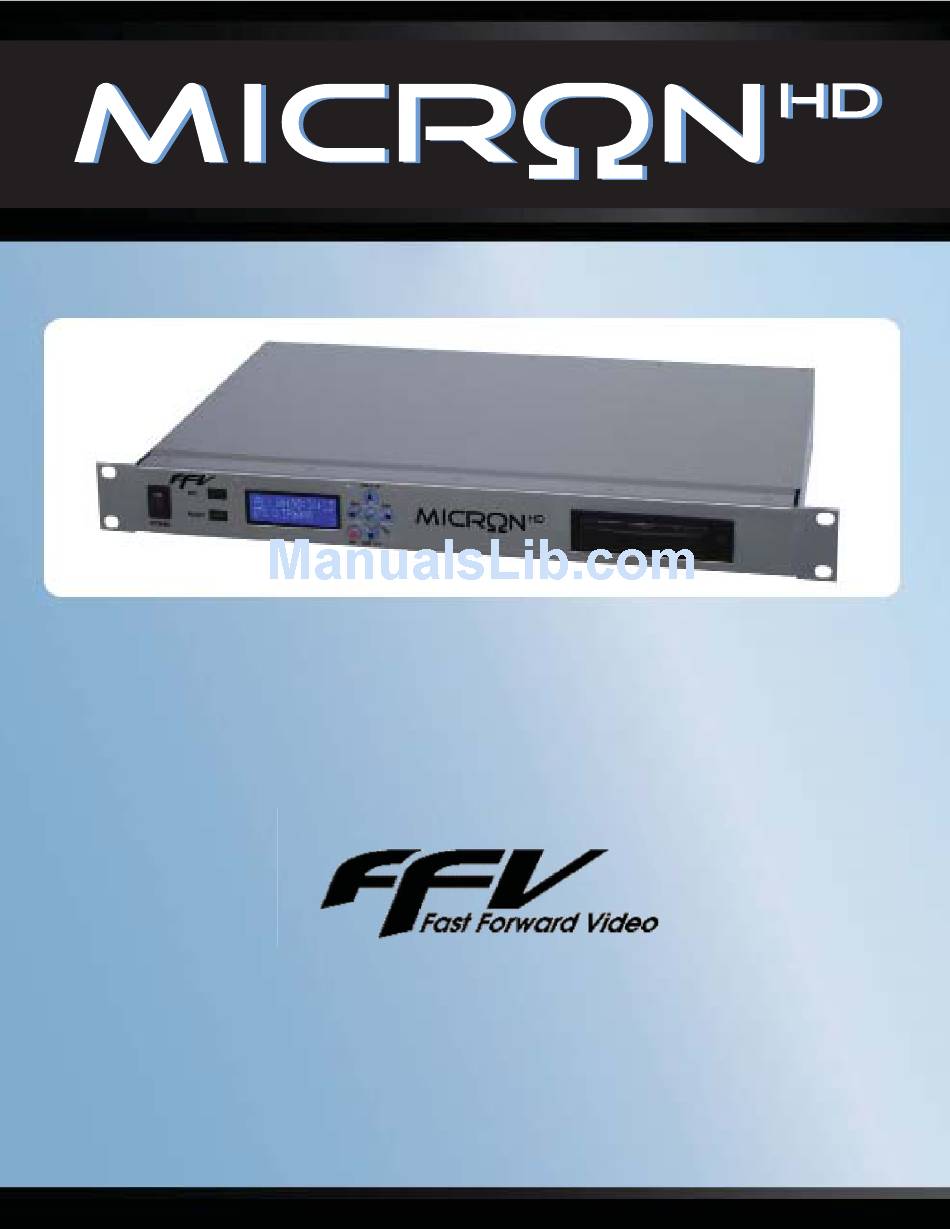

User's Manual
1151 Duryea Avenue Irvine, CA 92614, USA
Phone (949) 852-8404 Fax (949) 852-1226
www.FFV.com
The design of the Micron HD and the Micron HD manual is proprietary.
No part of the Micron Manual may be copied or modifi ed without the written consent of Fast Forward Video, Inc.
Printed in the U.S.A.
June 2010
Advertisement
Table of Contents
Related Manuals for Fast Forward Video Micron HD
Summary of Contents for Fast Forward Video Micron HD
- Page 1 The design of the Micron HD and the Micron HD manual is proprietary. No part of the Micron Manual may be copied or modifi ed without the written consent of Fast Forward Video, Inc. Printed in the U.S.A. June 2010...
- Page 2 Blank...
-
Page 3: Table Of Contents
Loop Record / Loop Play Menu ................... 19 Lock Keypad Next / Unlock Keypad Menu ..............20 Post Production ......................21 DVR Master Setting Clock ................... 23 Default Settings ......................23 Limited Warranty ..........................Micron HD Manual, Fast Forward Video, Inc... -
Page 4: Maintenance
Maintenance The Micron HD has been built to meet the demands of a studio environment; however, the hard- ware is subject to the same dangers from static as any other electronic device. Use care when connecting or disconnecting cables. Important: Take care not to introduce any moisture into the unit. Electronic assemblies are sensi- tive to static electricity, due to the electrostatically sensitive devices used within the circuitry. -
Page 5: Overview
With a high defi nition broadcast quality Digital Video Recorder like the Micron HD you won’t have to compromise on image quality or rack space. The Micron HD offers the highest quality images available by utilizing the JPEG 2000 codec in a powerful, compact unit that takes up only 1RU. -
Page 6: Installing Hard Disk Drive
Video. However, you may install the drives by following the procedure below. We ONLY recommend specifi c hard drives - see http://www.ffv.com/page/support.htm for part num- bers. These specifi c drives have been tested with the Micron HD, and proven to have the best performance and reliability. -
Page 7: Connections
DB-9 Pin # RS-422 Cont. Signal Name Ground 5 4 3 2 1 TX Out- RX In + Transmit Common Spare Receive Common 9 8 7 6 TX Out + RX In - Ground Micron HD Manual, Fast Forward Video, Inc... -
Page 8: Front Panel Controls
• Play Button - plays the selected clip • REC Button - press REC and PLAY at the same time to start recording • NEXT CLIP Button - scrolls through clips in order Micron HD Manual, Fast Forward Video, Inc... -
Page 9: Main Menu
(With disk inserted) (Without disk inserted) The Micron HD offers a menu of options and a variety of parameters used to operate the unit’s functions. In order to access this menu the unit must fi rst be in LIVE Mode. When the screen dis- plays , press the STOP() button and the Main Menu will appear. -
Page 10: Delete All Clips / Delete Clips Menu
Please note the time code will stay the same as if the clip was still there. 7. Once completed press the REC ( X ) button to exit the Main Menu. Micron HD Manual, Fast Forward Video, Inc... -
Page 11: Set Video Format Menu
7. Press the STOP () button to select the format desired. - The LCD will display 8. Press the REC ( X ) button to exit the Time Code Format menu. 9. Press the REC ( X ) button to exit the Main Menu. Micron HD Manual, Fast Forward Video, Inc... -
Page 12: Time Code Output Menu
Update Firmware Menu Allows you to update and verify fi rmware version New features for the Micron HD are posted to our website as they become available. Our customers have access to these features via fi rmware updates for the lifetime of the product. - Page 13 This will display the COM port that the unit is currently connected to, which may vary - if no COM port is listed check connections and make sure Serial to USB drivers have been downloaded) – click OK. Figure 2 Micron HD Manual, Fast Forward Video, Inc...
- Page 14 10. The “Xmodem fi le send for FFV” menu will show the up- date progression 11. Update complete close program. 12. Cycle Micron HD power OFF then ON for update to take effect Micron HD Manual, Fast Forward Video, Inc...
- Page 15 8. Browse and select the unzipped fud fi le – open 9. Xmodem Send menu will show the update progression 10. Update complete close program. 11. Cycle Micron HD power OFF then ON for update to take effect Micron HD Manual, Fast Forward Video, Inc...
-
Page 16: Horiz Pos Sync Menu
7. The progression line will show fi rmware update %. 8. Update complete close program. 9. Cycle Micron HD power OFF then ON for update to take effect. Horiz Sync Pos Menu Allows you to adjust horizontal position of the video on your monitor. -
Page 17: Application Confi Guration Menu
Native or Quicktime Native or FAT 32 The Micron HD can be controlled with the BVW-75 protocol which emulates a tape deck (VTR) or with ffv's NATIVE mode which takes full advantage of all features of this digital disk recorder (DDR). - Page 18 24 hour tape of “black” which has time code as- signed from 00:00:00:00. If you were to tell the Micron HD to record a 10 second clip at 00:01:00:00 for 10 seconds, it would record this and...
-
Page 19: Loop Record / Loop Play Menu
7. Press the STOP () button to select the format desired. - The LCD will display 8. Press the REC ( X ) button to exit the Loop Play menu. 9. Press the REC ( X ) button to exit the Main Menu. Micron HD Manual, Fast Forward Video, Inc... -
Page 20: Lock Keypad Next / Unlock Keypad Menu
1. Press and hold the STOP() button then press the REC( X ) button to unlock the keypad buttons. 2. Press the STOP() button again to stop recording and return to mode or to stop playback and display on the LCD. Micron HD Manual, Fast Forward Video, Inc... -
Page 21: Post Production
Post Production Please note the Micron HD produces a MOV fi le that is compatible with a MAC or PC used in conjunction with QuickTime supported programs. Please note that this fi le format is not available in BVW-75 mode, which needs to be set up when an external device is used to control the unit. - Page 22 4. Place clips within NLE system and edit accordingly. Please Note: NLE systems do not support native rendering using JPEG2000; until they do, rendering must be done using one of the native codecs. Micron HD Manual, Fast Forward Video, Inc...
-
Page 23: Dvr Master Setting Clock
Personality: BVW-75 Disk Format: Native (.ffv) File Format: Native (.ffv) Video Format: 1080i/59.94 or 50 Time Code Format: Drop (for 59.94 formats) Time Code Output: Source Application: Controller Loop Record: Off Loop Play: Off Micron HD Manual, Fast Forward Video, Inc... -
Page 24: Limited Warranty
Warranty 12 – MONTH LIMITED WARRANTY Fast Forward Video, Inc. warrants to the original purchaser that the product (Hardware and components) shall be free from defects in material and workmanship for a period of 1 year from the date of purchase, If a defect covered by this warranty occurs during this 1 year period, Fast Forward Video, Inc.
