2105/2105Ci
Interface Module
Installation and Operation Guide
Part #69-2003-635 of Assembly #60-2004-635
Copyright © 2011. All rights reserved, Teledyne Isco
Revision B, October 15, 2012

Advertisement

Table of Contents
loading

Related Manuals for Teledyne 2105

Summary of Contents for Teledyne 2105

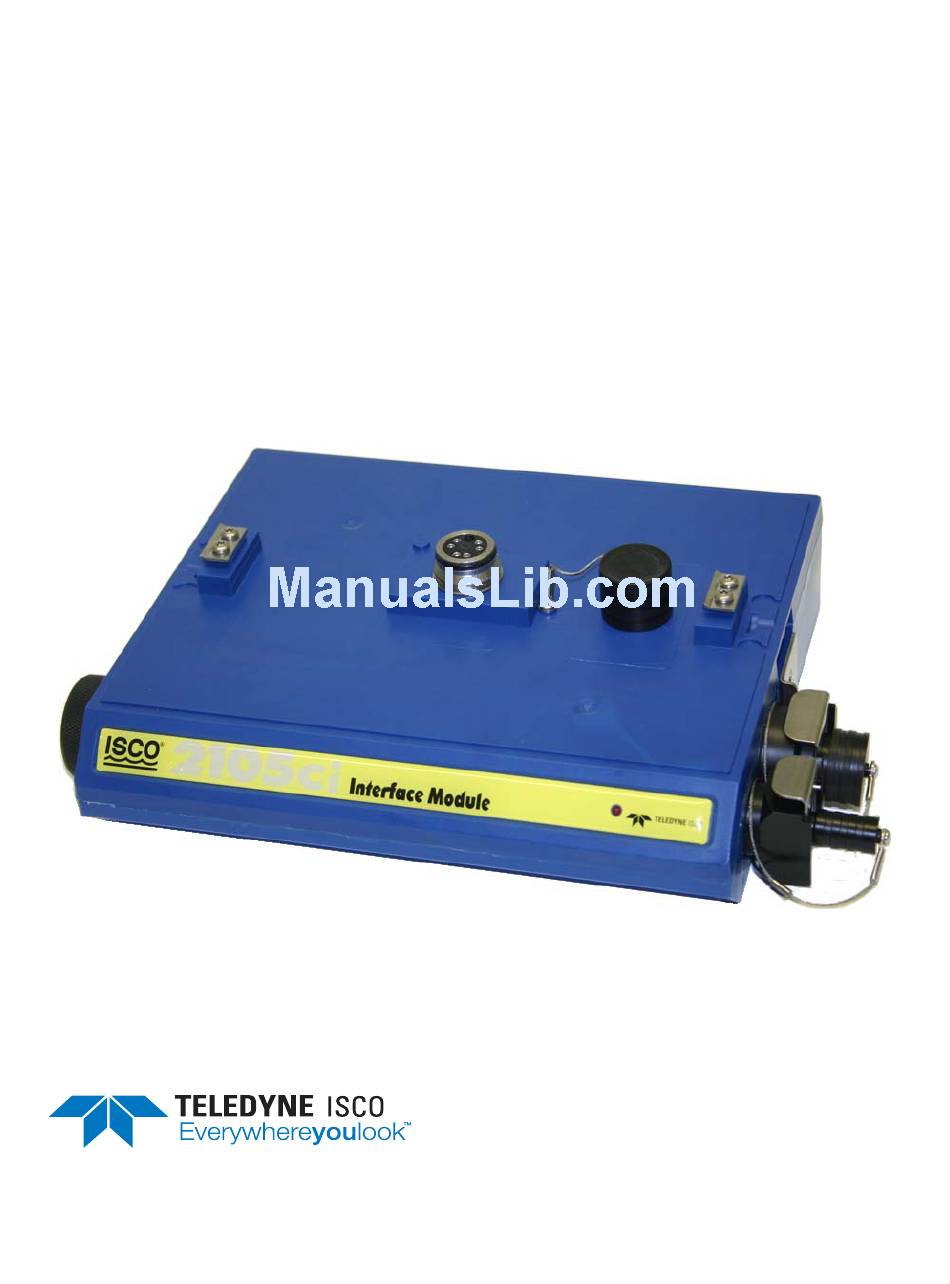

  • Page 1 2105/2105Ci Interface Module Installation and Operation Guide Part #69-2003-635 of Assembly #60-2004-635 Copyright © 2011. All rights reserved, Teledyne Isco Revision B, October 15, 2012...
  • Page 3 Teledyne Isco recommends that you read this manual completely before placing the equipment in service. Although Teledyne Isco designs reliability into all equipment, there is always the possi- bility of a malfunction. This manual may help in diagnosing and repairing the malfunc- tion.
  • Page 5 2105 Interface Module Safety 2105 Interface Module Safety General Warnings Before installing, operating, or maintaining this equipment, it is imperative that all hazards and preventive measures are fully understood. While specific hazards may vary according to location and application, take heed of the following general...
  • Page 6 2105 Interface Module Safety The equipment and this manual use symbols used to warn of Hazard Symbols hazards. The symbols are explained below. Hazard Symbols Warnings and Cautions The exclamation point within the triangle is a warning sign alerting you of important instructions in the instrument’s technical reference manual.

  • Page 7: Table Of Contents

    2.16 2105 Universal Cable 60-2004-580........
  • Page 8 A.1.1 2105 Interface Module ........
  • Page 9 2-34 Device parameters (measured data) ........2-30 2-35 2105 cables and associated equipment ....... . 2-37 2-36 2105 Interface connector .
  • Page 10 2105 Interface Module Table of Contents viii...

  • Page 11: Product Description

    (part #69-2004-581). The 2105 can be located anywhere within a stack of up to three other 2100 Series networked modules, using the same locking mechanism that connects the 2100 Series modules to each other.

  • Page 12: 2105 Module Components

    Name Description Communication Connector This port is used to connect the 2105 to other modules in a stack, or to a computer using an RS232 cable. Connector Cap Install on the communication connector when it is not in use to protect the connector from moisture damage.

  • Page 13: Interface Module Components - Bottom View

    Item No. Name Description Communication and Power This connects the 2105 to other 2100 Series modules in the stack and is Connector used to transfer data and/or receive power. Connector Plug Insert into the communication connector when not in use to protect the connector from moisture damage.

  • Page 14: Battery Module Components

    2105 Interface Module Section 1 Introduction 1.3 Battery Module Figures 1-3 and 1-4 identify key components of the Battery Module. Components Figure 1-3 Battery Module Components, Top View Table 1-3 Battery Module Components - Top View Item No. Name Description Communication Connector Connects the modules in the stack, transfers power and data.

  • Page 15: Battery Module Components, Bottom View

    2105 Interface Module Section 1 Introduction Figure 1-4 Battery Module Components, Bottom View Table 1-4 Battery Module Components - Bottom View Item No. Name Description Communication Connector Connects the modules in the stack, transfers power and data. Connector Plug Insert into the communication connector when not in use to protect the con- nector from moisture damage.

  • Page 16: Technical Specifications

    Actual battery life will vary depending upon configuration. The figure given assumes interrogation with Flowlink once a week, with a site configuration of a 2105, 2150, and 2191 (using Energizer 529 batteries) and a connection speed of 38400 bps. The 2150 was configured to record level, velocity,...

  • Page 17: Safety Symbols And Hazard Alerts

    2105 Interface Module Section 1 Introduction Table 1-6 Technical Specifications: 2191 Battery Module Dimensions Width = 9.6 inches (24.4 cm) Height = 6.0 inches (15.2 cm) Depth = 7.6 inches (19.3 cm) Weight (without batteries) 3.2 lbs. 1.4 kg Materials...

  • Page 18: Technical Service

    2105 Interface Module Section 1 Introduction 1.6 Technical Service Although Teledyne Isco designs reliability into all of its equipment, there is always the possibility of a malfunction occurring. You can use this manual to help in diagnosing and repairing any malfunctions. If the malfunction persists, call or...

  • Page 19: Section 2 Installation And Operation

    Figure 2-1 2105Ci serial label 2.1.2 System Power 2105 modules can be powered by 7 to 26 volts. Some other 2100 system components are limited to a maximum of 16.6 volts (12 volts typical). The voltage specification is printed on the...

  • Page 20: Identifying The 2150 Voltage Specification

    2105 Interface Module Section 2 Installation and Operation serial tag located on the back of the module (refer to Figure 2-2). Table 2-1 lists the maximum voltages for all Isco 2100 instru- mentation. Regardless of the capabilities of other components, never attempt to connect a voltage module or cable to a system using a power supply that exceeds its stated operating range.

  • Page 21: Installation Preparation

    2105 Interface Module Section 2 Installation and Operation Lower Voltage Higher Voltage DB9 Cable DB9 Cable Figure 2-3 Identifying the voltage specification on the DB9 cable WARNING Injury and/or equipment damage can result from connecting modules or cables to a power source exceeding the specified operating voltage range.

  • Page 22: Latches - Locking And Unlocking

    2105 Interface Module Section 2 Installation and Operation Follow the instructions below to install your 2105 module. Most of these instructions are similar for the 2105 i. Where there are specific differences between the modules, they are identified. 2.2.1 Latches - Locking and...

  • Page 23: Communication Connectors

    2105 Interface Module Section 2 Installation and Operation Figure 2-5 shows how to lock the latch. Latches will “click” when they are fully locked and unlocked. Figure 2-5 Locking the Latch 2.2.2 Communication When a communication connector is not in use, the con- Connectors nector should always be capped.

  • Page 24: Installing The Batteries

    The 2191 battery module requires two lantern batteries. The figures below show a 6 VDC alkaline battery. Rechargeable 6 VDC lead-acid batteries are also available from Teledyne Isco. To install the batteries, follow the instructions below. 1. Load the lantern battery into the carrier.

  • Page 25: Stacking Modules

    Section 2 Installation and Operation 2.3 Stacking Modules The 2105 can be located anywhere within a stack of up to four 2100 Series networked modules. It will draw its power from the same source as the rest of the stack.

  • Page 26: Antenna (2105Ci Only)

    2105 Interface Module Section 2 Installation and Operation 2.4 Antenna (2105Ci Only) The 2105Ci uses a magnetic mount antenna and Serial Over Internet Protocol (SOIP) communication to connect with other units. (The module is also capable of CSD communication, but this service is being phased out.

  • Page 27: Connecting To Flowlink

    Isco’s Flowlink software. Flowlink Note The 2105 and 2105Ci Modules require Flowlink 5.10.412a or later. The first time you connect to the site, you must connect your computer directly to the stack using Isco’s RS232 connect cable...

  • Page 28: Site Resolution Screen

    2105 Interface Module Section 2 Installation and Operation Figure 2-11 Site resolution screen To add the new module to an existing site, select the appropriate site and click OK. To create a new site, select Create a New Site. Click in the name field, enter the name for the site, and click OK.

  • Page 29: Site Information Screen

    2105 Interface Module Section 2 Installation and Operation Figure 2-12 Site Information screen 2-11...

  • Page 30: Modem Site Connection

    2105 Interface Module Section 2 Installation and Operation When the module has been added to the system, you will see the Devices screen (Figure 2-13). Figure 2-13 Devices screen - connected to site This window displays all of the modules connected to the site.

  • Page 31: Modem Screen - Configuring The Cellular Modem

    2105 Interface Module Section 2 Installation and Operation The APN settings are for GSM modems only, and do not apply to this equipment. Select IP (recommended) or CSD TCP port number (default = 1700) Figure 2-14 Modem screen - configuring the cellular modem...

  • Page 32: Devices Screen - Configuring The Modem For Serial-Over-Ip Communication

    2105 Interface Module Section 2 Installation and Operation Connection Information for the site is set up on the Devices screen. Click the Disconnect button to activate the fields. Serial over IP connection To set up a serial-over-IP connection, select the “TCP” radio button on the Devices tab.

  • Page 33: Devices Screen - Configuring The Modem For Csd Communication

    2105 Interface Module Section 2 Installation and Operation CSD connection To set up a CSD connection, select the “Modem” radio button. The default modem will appear in the Modem field. To select a different modem for this site only, click the arrow to view a pull-down list containing all modems recognized by your Windows operating system.

  • Page 34: Setting Up Text Messaging (2105Ci)

    2105 Interface Module Section 2 Installation and Operation If your cellular service is set up and ready for use through your service provider, you can now connect to your interface module via cellular connection. Note For systems using the cellular modem, a Power Control method is highly recommended to conserve battery power.

  • Page 35: Power Conservation (2105Ci)

    Wireless Power Control tab (Figure 2-18). Then click on Set Equation. (The Set Wireless Schedule button is not selectable for any 2105 modules.) Note Power Control applies only to the internal modem, not the module itself.

  • Page 36: Wireless Power Control Window

    2105 Interface Module Section 2 Installation and Operation Figure 2-18 Wireless power control window 2-18...

  • Page 37: Equation

    2105 Interface Module Section 2 Installation and Operation 2.7.1 Equation The Equation Builder screen lets you control the modem’s On/Off time through the use of equations (Figure 2-19). When equation conditions are true, the site will turn the modem on. When condi- tions are false, the modem is turned off, conserving power.

  • Page 38: Pushed Data Capability

    2105 Interface Module Section 2 Installation and Operation 2.8 Pushed Data The 2105 can automatically send data to a designated server r u n n i n g I s c o F l o w l i n k P r o s o f t w a r e , u s i n g 1 x R T T Capability packet-switched data transmission.

  • Page 39: Sdi-12 Input

    2105 Interface Module Section 2 Installation and Operation 2.9 SDI-12 Input The 2105 connects to up to two SDI-12 sondes for measurement of parameters such as conductivity, dissolved oxygen, etc., depending on how your system is configured. An interface cable is available for connection to YSI sondes.

  • Page 40: Rain Gauge Interface

    2105 Interface Module Section 2 Installation and Operation 2.10 Rain Gauge Interface The 2105 will log rainfall data, and can enable a connected Teledyne Isco water sampler based on a rain event (see 2.11 Sampler Interface). For more information about sampler enabling and rain events, refer to your Flowlink Help menu.

  • Page 41: Sampler Interface

    For more information about sampler enabling and rain events, refer to your Flowlink Help menu. The 2105 can pace the sampler based on total flow volume. Be sure that the sampler’s programmed sampling interval, com- bined with the 2105’s Flow Pulse interval, produce the desired volume interval.

  • Page 42: Sampler "Pass Thru" Mode

    (Figure 2-25), select the check box next to Enable Logging. Figure 2-25 Data Storage Setup window 2.12 Sampler “Pass Thru” The 2105 module offers a “Pass Thru” mode which, when acti- vated, allows you to remotely access a 6712 or Avalanche Mode sampler’s configuration settings.

  • Page 43: Cable Connections For Sampler Pass Thru Mode

    Section 2 Installation and Operation To use this feature, two cables are required (Figure 2-26). You will need the 68-2004-584 2105 to sampler connect cable, which connects to the flow meter port of the sampler, and the 60-5314-855 SPA cable that connects the “Y” connect of the 68-2004-584 to the computer connect port of the sampler.

  • Page 44: Specifying The Connection Number

    2105 Interface Module Section 2 Installation and Operation Click “Modify” and enter phone number of the site you want to access and select the “Settings” tab (Figure 2-28). Figure 2-28 Specifying the connection number From the Settings tab (Figure 2-29), select ANSI for emulation mode and click “OK”.

  • Page 45: Hyperterminal Dial Window

    Figure 2-30 HyperTerminal Dial window To begin communication to your sampler, Click “Dial”. The PC will call and connect to the 2105. Once connected, follow the steps in the Table 2-2 below. Note that <CR> (carriage return) means to press the Enter key.

  • Page 46: Pulse Doppler Devices

    2105 Interface Module Section 2 Installation and Operation 2.13 Pulse Doppler Devices The 2105 can receive flow data (QMain, Velocity, and Depth) from a connected Pulse Doppler device, including the standard depth ADFM, the H-ADFM (large channels), the accQmin (shallow water measurement), and the Hot Tap (closed and pres- surized pipes).

  • Page 47: Modbus Input

    2105 Interface Module Section 2 Installation and Operation 2.14 Modbus Input The 2105 module is capable of receiving data from devices using Modbus ASCII or Modbus RTU protocol. The 2105 Modbus input function supports ASCII and RTU pro- tocols, but the RS-232 can only interface directly with one input.

  • Page 48: Modbus Configuration Window

    2105 Interface Module Section 2 Installation and Operation The information entered in the configuration window will be determined by the characteristics of your particular system. Select the device’s Modbus address, between 1 and 247. Enter a connection retry interval in milliseconds (Request Timeout), and the number of connection attempts before a connection failure is determined.

  • Page 49: 4200 And 6700 Series Measured Data

    Series samplers. For overall Modbus input instructions, begin by reading Section 2.14 Modbus Input. The 2105 module can capture, log, and push data from a 4200 Series flow meter or 6700 Series sampler. The 2105 interfaces with the instrument through a simulated Modbus connection.
  • Page 50 4200/6700 1. Connect the 2105 to the instrument’s interrogator port. (Contact the factory to order the appropriate cable.) 2. Connect to the 2105 with Flowlink and select the Modbus tab. 3. In the Protocol Setup box: a. The Protocol Type field is not used.

  • Page 51: Series Supported Data Types

    2105 Interface Module Section 2 Installation and Operation Note The Data Command Field column in Table 2-3 refers to serial data identifiers used in remote operation. For consistency, you may wish to use the identifier for the Parameter Name. Table 2-3 4200/6700 Series Supported Data Types...
  • Page 52 2105 Interface Module Section 2 Installation and Operation Table 2-3 4200/6700 Series Supported Data Types (Continued) Data Register Parameter Units of measure Command Number (Flowlink Data Type) Field YSI flow rate Cubic meters per second YSI flow volume Cubic meters...
  • Page 53 2105 Interface Module Section 2 Installation and Operation Table 2-3 4200/6700 Series Supported Data Types (Continued) Data Register Parameter Units of measure Command Number (Flowlink Data Type) Field Level Meters Ammonium-nitrogen Milligrams nitrogen per liter Ammonia-nitrogen Milligrams nitrogen per liter...
  • Page 54 2105 Interface Module Section 2 Installation and Operation Table 2-3 4200/6700 Series Supported Data Types (Continued) Data Register Parameter Units of measure Command Number (Flowlink Data Type) Field (N *34)+81 Total Dissolved Solids Grams per liter (N *34)+83 Temperature Degrees Celsius...

  • Page 55: Cables

    Section 2 Installation and Operation 2.15 Cables A variety of interfacing cables are available for use with the 2105 module. Figure 2-35 briefly describes the purpose of each cable. Depending on your configuration, a system may combine up to 8 instruments.

  • Page 56: 2105 Universal Cable 60-2004-580

    Section 2 Installation and Operation 2.16 2105 Universal Cable This multipurpose cable connects to the 12-pin female connector on the side of the 2105 module. The non-terminated end can be 60-2004-580 wired to compatible circuits for interfacing. These instructions explain how to prepare the cable for use, and the function of each wire.

  • Page 57: Port Connector Functions

    2105 Interface Module Section 2 Installation and Operation Table 2-4 2105 Port Connector Functions Wire Default Functionality Additional Information Color Configuration A - SDI-12A Brown SDI-12 Data SDI-12 Data Master Transmits/Receives 0 to 5 VDC, 1200bps B - XMT-IO1B I/O + Serial Out TTL Serial Transmit Transmits 0 to 5 VDC,...
  • Page 58 2105 Interface Module Section 2 Installation and Operation 2-40...

  • Page 59: Section 3 Modbus Protocol And 2100 Output

    For Modbus technical specifications, turn to Section 3.6. Note The 2105 Interface Module is capable of receiving Modbus input using ASCII or RTU protocol. For 2105 Modbus input configuration, see Section 2.14 Modbus Input. 3.1 Introduction Modbus is a simple command/response mechanism to read from and write to specific memory locations called registers.

  • Page 60: Establishing Communication

    2105 Interface Module Section 3 Modbus Protocol and 2100 Output register locations. A list of the 2100 register addresses, and what parameters are held where, is available in Section 3.6. By accessing these registers you can obtain the current value of whatever parameter you desire.

  • Page 61: Configurations

    2105 Interface Module Section 3 Modbus Protocol and 2100 Output Each module capable of Modbus Protocol communication will automatically create its own specific ASCII address within the site, using: • The model numbers of the modules • The user-defined module names 3.3 Configurations...

  • Page 62: Glossary Of Terms

    A reg- ister is a holding place for a piece of digital information within the equipment. The definition of what is contained and where (the registry number, or address) is decided by the manufacturer (in this case Teledyne Isco).

  • Page 63: Common Acronyms

    2105 Interface Module Section 3 Modbus Protocol and 2100 Output SCADA – SCADA (Supervisory Control And Data Acquisition) is a computer system for gathering and analyzing real-time data. SCADA systems are used to monitor and control plant operation, or equipment in industries such as telecommunications, water and waste control, energy, oil and gas refining, and transpor- tation.
  • Page 64 2105 Interface Module Section 3 Modbus Protocol and 2100 Output The Modbus registers are assigned within 30 seconds after the 2100 module is powered up. To conserve power for the users who do not use Modbus communications, no Modbus registers will be updated with sensor readings until a Modbus master communi- cates with the 2100 module.
  • Page 65 2105 Interface Module Section 3 Modbus Protocol and 2100 Output Table 3-2 Modbus ASCII Address 2 +(N - 1) Register Definitions (Continued) Register Number(s) Name Data Type Units Read/Write 100,101 Volume 4-byte float Cubic Meters Read Volume status code 16-bit integer...
  • Page 66 Read 283-288 Analog channel 8 time record Time Read Note The following 21 parameters and register numbers pertain to the 2105 only, representing all possible sonde measurements depending on the type of sonde(s) connected. 415,416 Concentration 4-byte float Read Concentration status code...
  • Page 67 2105 Interface Module Section 3 Modbus Protocol and 2100 Output Table 3-2 Modbus ASCII Address 2 +(N - 1) Register Definitions (Continued) Register Number(s) Name Data Type Units Read/Write 955,956 Dissolved Solids 4-byte float mg/l Read Dissolved Solids status code...
  • Page 68 2105 Interface Module Section 3 Modbus Protocol and 2100 Output Table 3-2 Modbus ASCII Address 2 +(N - 1) Register Definitions (Continued) Register Number(s) Name Data Type Units Read/Write 1618 Rainfall Intensity status code 16-bit integer Read 1619-1622 Rainfall Intensity time record...
  • Page 69 2105 Interface Module Section 3 Modbus Protocol and 2100 Output Table 3-3 Measurement Parameters by Model Number* 2103, 2103c/g, 2105, 2105c/g 2108 2110 2150, 2151, 2151P Voltage Analog channel 1 Level Level Analog channel 2 Flow Velocity Analog channel 3 Volume...
  • Page 70 2105 Interface Module Section 3 Modbus Protocol and 2100 Output 3-12...

  • Page 71: Overview

    2105 Interface Module Section 4 Maintenance 4.1 Overview The 2105 is designed to perform reliably in adverse conditions with a minimal amount of routine service requirements. To keep your system working properly, you should check the desiccant and channel conditions at regular intervals.

  • Page 72: Replacing The Desiccant

    The desiccant is contained in a cartridge located on the side of Desiccant the 2105. To remove the cartridge, unscrew the collar and slide the cartridge out of the 2105. The clear tube reveals the silica gel desiccant inside. To replace the silica gel desiccant: Collar 1.

  • Page 73: Hydrophobic Filter

    Section 4 Maintenance 4.3 Hydrophobic Filter If the 2105 is in a humid location or submerged, a hydrophobic filter prevents water from entering the desiccant cartridge. Any amount of water will plug the filter and it must be rinsed with clean water and allowed to dry, or replaced to prevent internal damage to the module.
  • Page 74 2105 Interface Module Section 4 Maintenance...

  • Page 75: Appendix A Replacement Parts List

    2105 Interface Module Appendix A Replacement Parts List A.1 Replacement Parts Replacement parts are called out in illustrations in this section. Reference the call-outs in the accompanying tables to determine Diagrams and Listings the part number for the item. Replacement parts can be purchased by contacting Teledyne Isco’s Customer Service Department.

  • Page 76: A.1.1 2105 Interface Module

    2105 Interface Module Appendix A Replacement Parts List A.1.1 2105 Interface Module Drawing 602002586...
  • Page 77 2105 Interface Module Appendix A Replacement Parts List Drawing 602002586...
  • Page 78 2105 Interface Module Appendix A Replacement Parts List Drawing 602002586...
  • Page 79 2105 Interface Module Appendix A Replacement Parts List...
  • Page 80 2105 Interface Module Appendix A Replacement Parts List...

  • Page 81: 2191 Battery Module

    2105 Interface Module Appendix A Replacement Parts List A.1.2 2191 Battery Module Drawing 602003113...
  • Page 82 2105 Interface Module Appendix A Replacement Parts List...

  • Page 83: 2105Ci Antenna

    2105 Interface Module Appendix A Replacement Parts List A.1.3 2105Ci Antenna Drawing 602002583...
  • Page 84 2105 Interface Module Appendix A Replacement Parts List A-10...

  • Page 85: Appendix B Accessories

    B.2 General Accessories 2105/2015Ci Instruction Manual ....69-2003-635 Alkaline Lantern Battery ..... . 340-2006-02 Rechargeable 6V Lead-acid Lantern Battery .

  • Page 86: Cables

    Y Cable: 2105/Isco Sampler ..... 69-2004-584 Y Cable: 2105 Connectors ..... . 69-2004-585 Y Cable: 2105/4700 Sampler .

  • Page 87: Appendix C Material Safety Data Sheets

    Appendix C Material Safety Data Sheets This appendix to the manual provides Material Safety Data Sheets for the desiccant used by the 2105 Module. Teledyne Isco cannot guarantee the accuracy of the data. Specific questions regarding the use and handling of the products should...
  • Page 88 2105 Interface Module Appendix C Material Safety Data Sheets Indicating Silica Gel Material Safety Data Sheet Identity (Trade Name as Used on Label) Manufacturer MSDS Number* : MULTISORB TECHNOLOGIES, INC. (formerly Multiform Desiccants, Inc.) Address: CAS Number* : 325 Harlem Road...
  • Page 89 2105 Interface Module Appendix C Material Safety Data Sheets Page 2 Section 5 - Health Hazard Data PRIMARY ROUTES Inhalation Ingestion CARCINOGEN OSHA OF ENTRY Skin Absorption Not Hazardous LISTED IN IARC Monograph Not Listed HEALTH HAZARDS Acute May cause eye, skin and mucous membrane irritation.
  • Page 90 2105 Interface Module Appendix C Material Safety Data Sheets Multisorb Technologies, Inc. Drican® (Indicating Silica Gel – Al Case ) July 21, 2008 Page 1 of 4 MATERIAL SAFETY DATA SHEET July 21, 2008 Effective Date M119 MSDS Number Section 1 – Product and Company Information Product Name: Drican®...
  • Page 91 2105 Interface Module Appendix C Material Safety Data Sheets Multisorb Technologies, Inc. Drican® (Indicating Silica Gel – Al Case ) July 21, 2008 Page 2 of 4 Section 5 – Fire Fighting Measures Not flammable Flammable Properties: Not applicable Not applicable...
  • Page 92 2105 Interface Module Appendix C Material Safety Data Sheets Multisorb Technologies, Inc. Drican® (Indicating Silica Gel – Al Case ) July 21, 2008 Page 3 of 4 Section 9 – Physical and Chemical Properties Silver metal canister Not applicable Appearance:...
  • Page 93 2105 Interface Module Appendix C Material Safety Data Sheets Multisorb Technologies, Inc. Drican® (Indicating Silica Gel – Al Case ) July 21, 2008 Page 4 of 4 Section 14 – Transportation Information Not classified as a hazardous material. Not regulated.
  • Page 94 2105 Interface Module Appendix C Material Safety Data Sheets...
  • Page 95 2105 Interface Module Index Numerics 2105 universal cable, 2-38 installation, 2-3 2105Ci antenna, 2-8 batteries, 2-6 4200/6700 data input, 2-31 connectors, 2-5 latches, 2-4 accessories, B-1 ADFM flow meters, 2-28 latches, 2-4 antenna, 2-8 stacking modules, 2-7 battery module maintenance, 4-1...
  • Page 96 2105 Interface Module Index service, 4-3 sondes, 2-21 modbus registers, 3-8 specifications, 1-6 stacking, 2-7 TCP connection, 2-14 technical specifications, 1-6 text messaging, 2-16 Index-2...
  • Page 97 * This warranty applies to the USA and countries where Teledyne Isco does not have an authorized dealer. Customers in countries outside the USA, where Teledyne Isco has an authorized dealer, should contact their Teledyne Isco dealer for warranty service.
