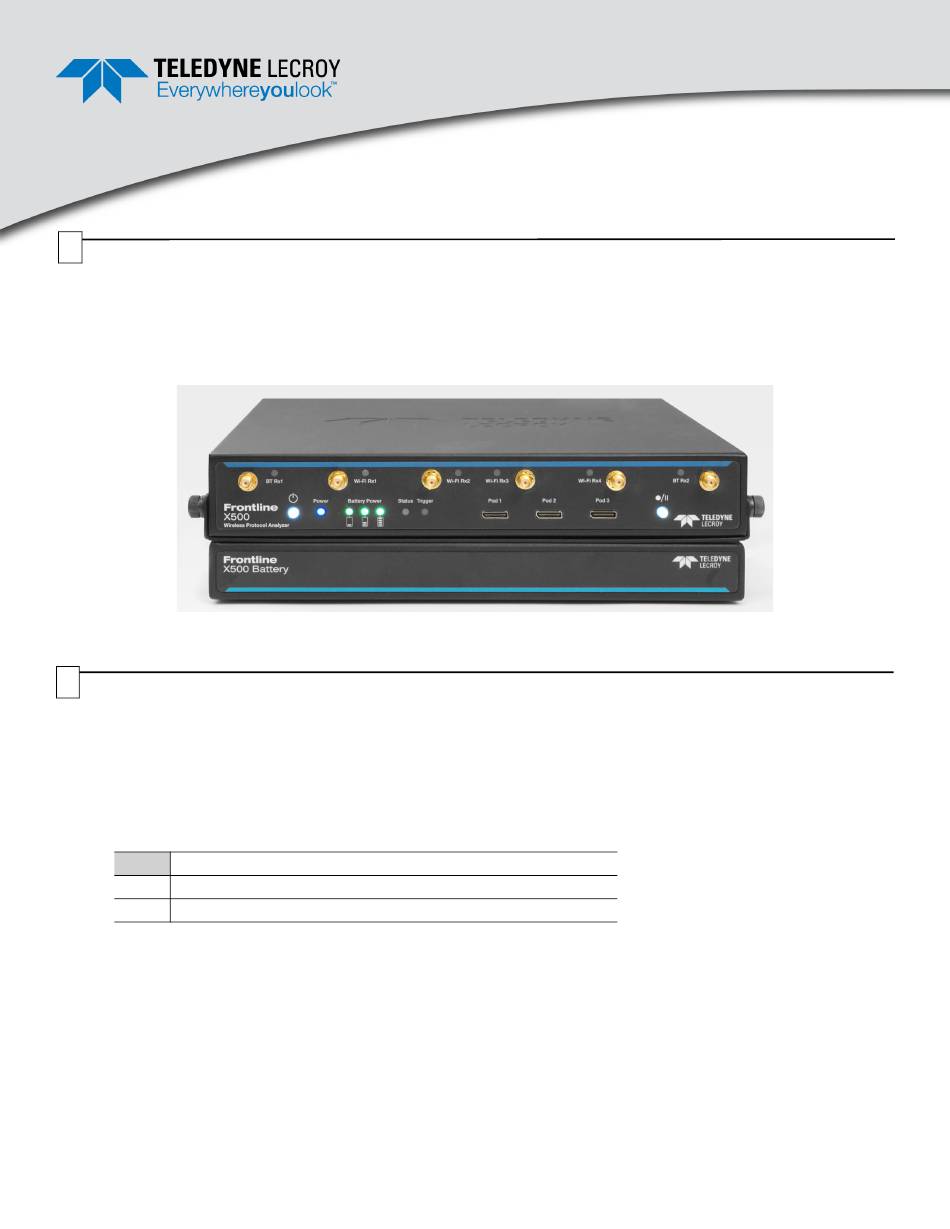

Teledyne Frontline X500 Installation Manual

1
Introduction
Use this document for installing a Frontline X500 Battery Pack as a power source for the Frontline X500 protocol analyzer.
Once installed, refer to the X500 Quick Start Guide on how to use the X500 protocol analyzer. Detailed hardware and
software information is contained in the Wireless Protocol Suite Hardware and Software User Manual. The manual is also
available on FTE.com.
2
Components
Inspect the received shipping container for any damage. Unpack the container and account for each of the system
components listed on the accompanying packing list. Visually inspect each component for any damage. In the event of
damage, notify Teledyne LeCroy. Retain all shipping materials for shipper's inspection. The X500 battery does not contain
any user-serviceable items. Any repairs and maintenance must be performed by a service technician that has been trained
and approved by Teledyne LeCroy.
The analyzer package includes the following components in addition to the X500 battery pack:
Qty Description
1 15V 8A power supply
1 Battery charging adapter for standalone charging
Before installing the battery pack on the X500, it is highly recommended to fully charge it. To do so, connect the power cord
to the battery charging adapter. The LED turns blue indicating the adapter is powered correctly. Connect the battery
charging adapter to the battery pack. Make sure the switch on the back of the X500 battery module is turned on. It must be
turned on in order to charge. The LED indicator on the charging adapter starts blinking green. When the battery is fully
charged (in about two hours), the LED turns solid green. See Table 1 below for details on LED states. Proceed to the
installation section below.
Frontline X500
TM
Installation Guide
Battery
