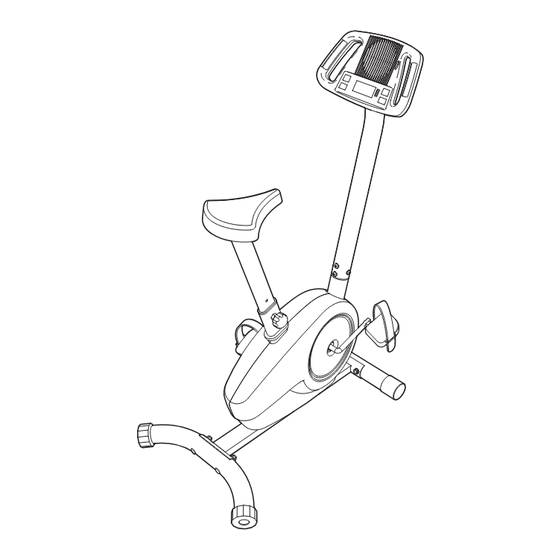

Model No. WLEX71007.0
Serial No.
Write the serial number in the
space above for reference.
Serial Number
QUESTIONS?
As a manufacturer, we are commit-
ted to providing complete customer
satisfaction. If you have questions,
or if parts are missing, PLEASE DO
NOT CONTACT THE STORE;
please contact Customer Care.
IMPORTANT: You must note the
product model number and
serial number (see the drawing
above) before contacting us:
CALL TOLL-FREE:
1-866-699-3756
Mon.–Fri. 6 a.m.–6 p.m. MST
Sat. 8 a.m.–4 p.m. MST
ON THE WEB:
www.wesloservice.com
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.
Decal
USER'S MANUAL
Visit our website at
www.weslo.com
new products, prizes,
fitness tips, and much more!
Advertisement
Table of Contents
Related Manuals for Weslo Pursuit 4.8 Bike
Summary of Contents for Weslo Pursuit 4.8 Bike
- Page 1 Sat. 8 a.m.–4 p.m. MST ON THE WEB: www.wesloservice.com CAUTION Visit our website at Read all precautions and instruc- tions in this manual before using www.weslo.com this equipment. Keep this manual new products, prizes, for future reference. fitness tips, and much more!
-
Page 2: Table Of Contents
Apply the decal in the location shown. Note: The decal may not be shown at actual size. WESLO is a registered trademark of ICON IP, Inc. -
Page 3: Important Precautions
IMPORTANT PRECAUTIONS WARNING: To reduce the risk of serious injury, read all important precautions and instructions in this manual and all warnings on your exercise cycle before using your exercise cycle. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product. -
Page 4: Before You Begin
BEFORE YOU BEGIN Congratulations on selecting the new WESLO ® model number and serial number before contacting PURSUIT 4.8 exercise cycle. Cycling is one of the us. The model number and the location of the serial most effective exercises for increasing cardiovascular number decal are shown on the front cover of this fitness, building endurance, and toning the body. -
Page 5: Assembly
ASSEMBLY To hire an authorized service technician to assemble the exercise cycle, call 1-800-445-2480. Assembly requires two persons. Place all parts of the exercise cycle in a cleared area and remove the pack- ing materials. Do not dispose of the packing materials until assembly is completed. In addition to the included tools, assembly requires your own Phillips screwdriver and adjustable wrench... -
Page 6: And Two M10 Nylon Locknuts (44). Next, Press Two Acorn Covers (35) Onto The Nylon Locknuts
2. While another person lifts the front of the Frame (1), attach the Front Stabilizer (6) with two M10 x 70mm Carriage Bolts (16), two M10 Curved Washers (54), and two M10 Nylon Locknuts (44). Next, press two Acorn Covers (35) onto the Nylon Locknuts. 3. - Page 7 4. While another person holds the Upright (2) in the position shown, connect the Upper Wire Harness (56) to the Reed Switch Wire (57). Be careful to Gently pull the excess Upper Wire Harness (56) avoid pinching upward from the top of the Upright (2), and then the wires slide the Upright onto the Frame (1).
- Page 8 6. While another person holds the Console (5) near the Upright (2), connect the console wire harness to the Upper Wire Harness (56). Push the excess wire downward into the Upright (2). Attach the Console (5) to the Upright with four M5 x 16mm Self-tapping Screws (52).
-
Page 9: How To Operate The Exercise Cycle
HOW TO OPERATE THE EXERCISE CYCLE HOW TO ADJUST THE SEAT POST HOW TO ADJUST THE PEDAL STRAPS For effective exer- To adjust the pedal cise, the seat should straps, first pull the be at the proper ends of the straps off height. - Page 10 CONSOLE DIAGRAM Program Profiles Program Pace Indicator Guide FEATURES OF THE CONSOLE The console also offers eight preset programs that automatically change the resistance of the pedals and This advanced console offers a selection of features prompt you to vary your pedaling pace while guiding designed to make your workouts more effective.
- Page 11 HOW TO USE THE MANUAL MODE 4. Follow your progress with the display. Note: If there is a sheet of clear plastic on the face of The upper half of the the console, remove the plastic. display will show the elapsed time, the 1.
- Page 12 5. Measure your heart rate if desired. 6. Turn on the fan if desired. If there are sheets The fan has high and low speed settings. Press of clear plastic on the Fan button repeatedly to select a fan speed or the metal contacts to turn off the fan.
- Page 13 HOW TO USE A PRESET PROGRAM If the resistance level for the current segment is too high or too low, you can manually override the 1. Turn on the console. setting by pressing the decrease and increase but- tons. However, when the current segment ends, See step 1 on page 11.
-
Page 14: Maintenance And Troubleshooting
MAINTENANCE AND TROUBLESHOOTING Inspect and tighten all parts of the exercise cycle reg- PULSE SENSOR TROUBLESHOOTING ularly. Replace any worn parts immediately. Avoid moving your hands or squeezing the metal con- To clean the exercise cycle, use a damp cloth and a tacts too tightly while using the pulse sensor;... -
Page 15: Exercise Guidelines
EXERCISE GUIDELINES Burning Fat—To burn fat effectively, you must exer- WARNING: cise at a low intensity level for a sustained period of Before beginning time. During the first few minutes of exercise, your this or any exercise program, consult your body uses carbohydrate calories for energy. - Page 16 SUGGESTED STRETCHES The correct form for several basic stretches is shown at the right. Move slowly as you stretch—never bounce. 1. Toe Touch Stretch Stand with your knees bent slightly and slowly bend forward from your hips. Allow your back and shoulders to relax as you reach down toward your toes as far as possible.
- Page 17 NOTES...
-
Page 18: Part List
PART LIST—Model No. WLEX71007.0 R0707A Key No. Qty. Description Key No. Qty. Description Frame Magnet Upright M5 x 16mm Screw Resistance Motor Seat Post Seat Acorn Cover Console Eye Bolt Front Stabilizer “U”-bracket Rear Stabilizer M6 Nylon Locknut Front Endcap 3/8"... -
Page 19: Exploded Drawing
EXPLODED DRAWING—Model No. WLEX71007.0 R0707A 40 41... -
Page 20: Ordering Replacement Parts
ORDERING REPLACEMENT PARTS To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to provide the following information when contacting us: • the model number and serial number of the product (see the front cover of this manual) •...
