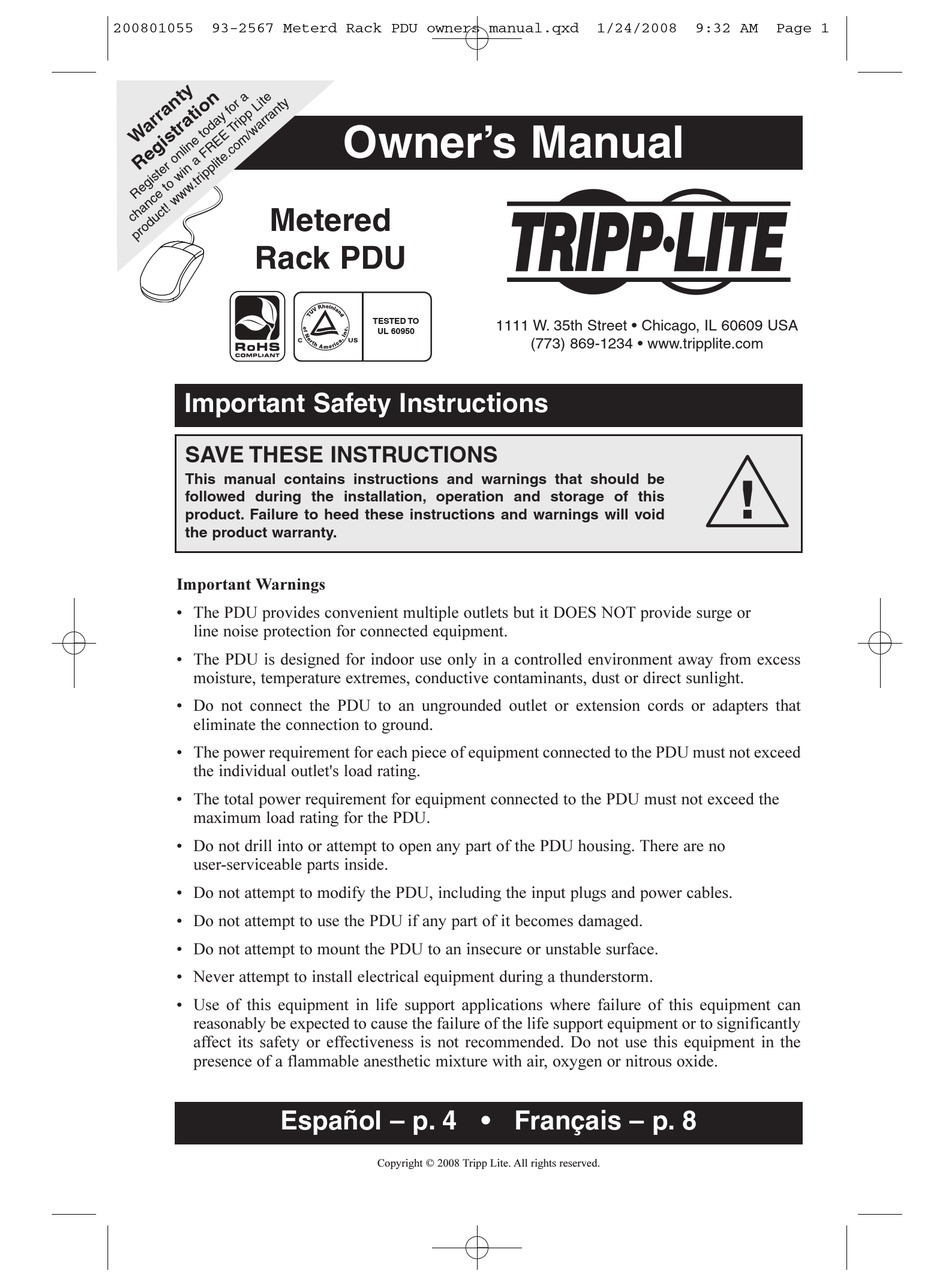

200801055
93-2567 Meterd Rack PDU owners manual.qxd
Metered
Rack PDU

Important Safety Instructions

SAVE THESE INSTRUCTIONS
This manual contains instructions and warnings that should be
followed during the installation, operation and storage of this
product. Failure to heed these instructions and warnings will void
the product warranty.
Important Warnings
• The PDU provides convenient multiple outlets but it DOES NOT provide surge or
line noise protection for connected equipment.
• The PDU is designed for indoor use only in a controlled environment away from excess
moisture, temperature extremes, conductive contaminants, dust or direct sunlight.
• Do not connect the PDU to an ungrounded outlet or extension cords or adapters that
eliminate the connection to ground.
• The power requirement for each piece of equipment connected to the PDU must not exceed
the individual outlet's load rating.
• The total power requirement for equipment connected to the PDU must not exceed the
maximum load rating for the PDU.
• Do not drill into or attempt to open any part of the PDU housing. There are no
user-serviceable parts inside.
• Do not attempt to modify the PDU, including the input plugs and power cables.
• Do not attempt to use the PDU if any part of it becomes damaged.
• Do not attempt to mount the PDU to an insecure or unstable surface.
• Never attempt to install electrical equipment during a thunderstorm.
• Use of this equipment in life support applications where failure of this equipment can
reasonably be expected to cause the failure of the life support equipment or to significantly
affect its safety or effectiveness is not recommended. Do not use this equipment in the
presence of a flammable anesthetic mixture with air, oxygen or nitrous oxide.
Español – p. 4 • Français – p. 8
Owner's Manual
TESTED TO
TESTED TO
1111 W. 35th Street • Chicago, IL 60609 USA
UL 1778
UL 60950
CSA 22.2 No. 107.3
Copyright © 2008 Tripp Lite. All rights reserved.
1/24/2008
9:32 AM
(773) 869-1234 • www.tripplite.com
Page 1
