Neato XV-11™ Vacuum
User's Guide

Advertisement

Table of Contents
loading

Related Manuals for Neato Robotics XV-11

Summary of Contents for Neato Robotics XV-11

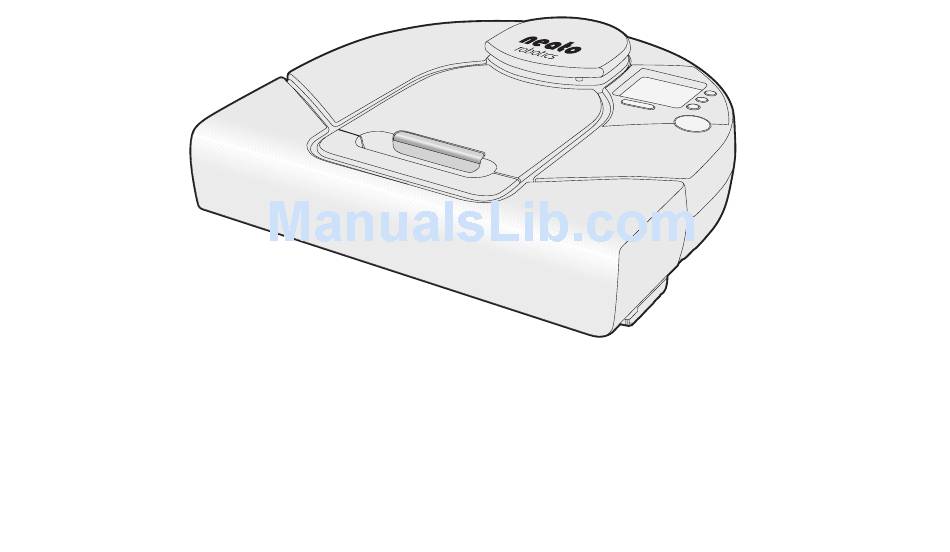

  • Page 1 Neato XV-11™ Vacuum User’s Guide...
  • Page 2 PLEASE REFER TO PAGE 10 FOR ADDITIONAL SAFETY INSTRUCTIONS. 1916 Old Middlefield Way Suite A Mountain View, CA 94043 Copyright © 2009 Neato Robotics, Inc. All rights reserved. Neato Robotics, Neato XV-11, and Your Future is Neat are trademarks of Neato Robotics, Inc.

  • Page 3: Table Of Contents

    Table of Contents Welcome!.................................5 Anatomy of Your Neato XV-11 Vacuum ..............6 Important Safety Instructions ................. 10 Likes and Dislikes ..................11 Using the Neato XV-11 Vacuum........................15 Using the Charging Base................16 Charging without the Charging Base ..............19 Charging Status ..................21 Optimal Charging...................
  • Page 4 Turning off Your Vacuum ................35 Emptying the Dirt Bin................... 36 Boundary Markers ..................38 Using boundary markers................38 Communicating with Your Neato XV-11 Vacuum ........... 39 LCD Feedback Messages ................40 Filters ..................... 42 Customer Support ............................ 43 One Year Warranty (Domestic Use) ..............44 Compliance Information ................

  • Page 5: Welcome

    We want to keep in touch. To ensure that we keep you up to date on your new Neato XV-11 vacuum, please register at http://www.neatorobotics.com/register. Neato is developing robotic home maintenance products that promise to free everyone from the drudgery of household cleaning.

  • Page 6: Anatomy Of Your Neato Xv-11 Vacuum

    Anatomy of Your Neato XV-11 Vacuum Room Positioning System (RPS) —the robot’s “eye” Control panel (see next page) Start dirt bin button handle (grasp in direction dirt bin eject of arrow) bumper Top view Neato XV-11 User’s Guide...
  • Page 7 LCD screen Buttons: Down Back softkey Start button status light Control panel Neato XV-11 User’s Guide...
  • Page 8 (2) this device must accept any interference brush guard received, including interference that may cause undesired operation. wheel release wheel battery doors information label Bottom view charging power port contact points Back View Neato XV-11 User’s Guide...
  • Page 9 Charging base (external view) cable wrap pegs power cable Charging base (internal view) Neato XV-11 User’s Guide...

  • Page 10: Important Safety Instructions

    Important Safety Instructions Please read all instructions before using this appliance. Save these instructions for future reference. Refer all non-routine servicing to Neato Robotics. The robotic vacuum cleaner shall only be charged using the included power adaptor or charging base.

  • Page 11: Likes And Dislikes

    Likes and Dislikes There are just a few things to remember that will keep your Neato XV-11 vacuum happy and successful in your home: Likes Dislikes POWER. Charge it when you aren't using WATER, CHEMICALS, or OTHER MOLD it to ensure that every time you need it, PRODUCING FLUIDS.
  • Page 12 GROOMING. Because it's down in the dirt COLD. Exposing your Neato Robotics all day long, your Neato XV-11 vacuum vacuum to freezing temperatures may can get a little grungy. After a while, cause permanent damage, and possibly give it a once over to ensure wheels and hurt its feelings.
  • Page 13 Neato XV-11 vacuum cleaning smarts 1- Rectangular front design allows vacuuming close to walls and into corners. 2- Low profile allows cleaning under furniture. 3- Always vacuums in straight lines. 4 & 5- Cleans closely around obstacles. 6- Automatic doorway recognition ensures complete cleaning of room before moving on to the next.
  • Page 14 Neato XV-11 User’s Guide...

  • Page 15: Using The Neato Xv-11 Vacuum

    Using the Neato XV-11 Vacuum The Neato XV-11 vacuum is ready to start cleaning as soon as you charge up its battery. •To charge the battery, see Using the Charging Base on page 16 or Charging without the Charging Base on page 19.

  • Page 16: Using The Charging Base

    Using the Charging Base Using the Charging Base The Neato XV-11 vacuum has a preinstalled Nickel Metal Hydride (NiMH) rechargeable battery that has to be fully charged before you can use it for the first time. You can use the charging base to charge it as described in the steps below, or plug the charging cable into the vacuum’s power port as described in Charging without the...
  • Page 17 Using the Charging Base Giving the vacuum a clear path to its charger Neato XV-11 User’s Guide...
  • Page 18 Using the Charging Base 2 Place the Neato XV-11 vacuum’s curved edge up against the charging base so that the charging base's contact points make contact with the vacuum’s charging contact points. The status light turns on to show you it is charging.

  • Page 19: Charging Without The Charging Base

    1 Press the release button to open the back of the charging base and remove the power adapter and cables. Connect the round connector into the power port on the Neato XV-11 and the other end into a three-prong wall outlet as shown below.
  • Page 20 Then extend the cable out of the side of the charging base and plug it into a three-prong wall outlet. cable wrap pegs power cable Charging base (internal view) Neato XV-11 User’s Guide...

  • Page 21: Charging Status

    Communicating with Your Neato XV-11 Vacuum on page 39) Optimal Charging For optimal performance, we recommend that you charge your Neato XV-11 on the charging base whenever it is not cleaning. Not only will this make sure the vacuum will be ready for upcoming cleaning tasks, but it also ensures longer battery life.

  • Page 22: Cleaning Mode

    Cleaning Mode Cleaning Mode Your Neato XV-11 vacuum cleans using its powerful vacuum. Just press the START button and it will vacuum your floors, cleaning them one room at a time and then moving on to clean the next room. It will clean as many rooms as it can on one battery charge. If...

  • Page 23: Quick-Start Your Robotic Vacuum

    Quick-Start Your Robotic Vacuum Quick-Start Your Robotic Vacuum The Neato XV-11 works best when it performs regularly scheduled cleanings (see Scheduling a Cleaning on page 28), but you can quick-start the vacuum for immediate cleaning any time. To start the Neato XV-11: 1 Charge the vacuum (see Using the Charging Base on page 16).

  • Page 24: Using The Control Center Lcd Screen

    Using the Control Center LCD screen Using the Control Center LCD screen The Neato XV-11’s LCD Control Center screen is your interface to communicate with the vacuum. This is where you give the vacuum its cleaning schedule or pause its cleaning cycle, and it’s also where the vacuum will give you information.
  • Page 25 Using this screen, you can: •Set the clock of the Neato XV-11 (see page 26) •Program the Neato XV-11 to clean on a scheduled basis (see page 28) •Get feedback from the vacuum on how it is doing and where it might need some help (see page 39) •Pause the vacuum (see page 34)

  • Page 26: Setting The Clock

    Set Clock and then press SELECT. Use the arrow Use up and down buttons to select arrows to select either 12-Hour the current day Clock or 24-Hour of the week and Clock and then press ENTER. press SELECT. Neato XV-11 User’s Guide...
  • Page 27 ENTER. minute and press Cycle through the ENTER. hours to select AM or PM. The current day and time are shown. Press the Back button make corrections; otherwise press SAVE. Neato XV-11 User’s Guide...

  • Page 28: Scheduling A Cleaning

    Schedule and then press SELECT. Use the arrow Use the arrow buttons to select buttons to select Set or Change the day you want and then press your vacuum to SELECT. clean and press SELECT. Neato XV-11 User’s Guide...
  • Page 29 Future cleanings will occur at the times and dates you selected. At each scheduled time, the Neato XV-11 will come off of the charging base and start its scheduled cleaning. When finished cleaning, the vacuum returns to the charging base to recharge. If the battery runs low during the scheduled cleaning, the vacuum returns to its base, recharges, then returns one more time to clean where it left off.

  • Page 30: To Get The Most Of Scheduled Cleanings

    To Get the Most of Scheduled Cleanings If you are not using the charging base, you will need to put the Neato XV-11 out and it will start its scheduled cleaning when that is the actual time and day of the week. When you return, you will need to manually place the vacuum on its charging base or plug the charger directly into the vacuum.

  • Page 31: Ideas For Scheduled Cleanings

    Another way to use scheduled cleanings is to keep an everyday schedule. Then, place the Neato XV-11 in different rooms of the house on different days to clean those room at the specified time. You would need to manually put the vacuum back on its base when you get home.

  • Page 32: Removing A Scheduled Cleaning

    Removing a Scheduled Cleaning Removing a Scheduled Cleaning If you need to remove a previously-scheduled cleaning, follow these steps. Press MENU. Press the arrow buttons to select Schedule and then press SELECT. Neato XV-11 User’s Guide...
  • Page 33 SELECT. remove and then press SELECT. Press DELETE to A confirmation confirm deletion. message verifies Use the Back the scheduled cleaning that you button if you removed. made a mistake. Neato XV-11 User’s Guide...

  • Page 34: Pausing A Cleaning

    Pausing a Cleaning Pausing a Cleaning If at any time you want to pause a cleaning, press any button on the Neato XV-11 and the vacuum will offer you a PAUSE menu. From the PAUSE menu, press the down arrows to make the vacuum: •Pause its current cleaning...

  • Page 35: Turning Off Your Vacuum

    Turning off Your Vacuum Turning off Your Vacuum If you choose to, you can turn off all power to your Neato XV-11. Note that this will delete your clock settings. To turn off your vacuum: 1 Select MENU from the LCD screen.

  • Page 36: Emptying The Dirt Bin

    Emptying the Dirt Bin Emptying the Dirt Bin For optimal performance, empty the Neato XV-11’s dirt bin after every use. Remove the dirt bin. Remove the cover and filter. Neato XV-11 User’s Guide...
  • Page 37 Tap the filter door and cover against the garbage can to get rid of any excess dirt. Replace the filter and dirt bin cover, then replace the dirt bin into the top of the Neato XV-11. Neato XV-11 User’s Guide...

  • Page 38: Boundary Markers

    To use the markers, simply lay the boundary marker across the floor from one wall to the opposite wall to block off an area. The Neato XV-11 will clean the floor on the side of the boundary marker that it is started on. Place the vacuum within the bounded area and press START.

  • Page 39: Communicating With Your Neato Xv-11 Vacuum

    Communicating with Your Neato XV-11 Vacuum Communication is a two-way street, so be sure to listen when your Neato XV-11 is talking to you! When it’s charging, the status light around the START button will be GREEN to indicate your Neato XV-11 is ready for work.

  • Page 40: Lcd Feedback Messages

    Bumper Stuck Jiggle the bumper to loosen. Brush Slip Make sure all blades on the brush are in place and not worn down. Make sure the belt is on the end of the brush gear. Neato XV-11 User’s Guide...
  • Page 41 When vacuum is initially connected to the base, the status light will light up to let you know the power is on. Battery at Minimum Place vacuum on charging base to charge. Neato XV-11 User’s Guide...

  • Page 42: Filters

    We also recommend changing your filter in your vacuum every 3 months (based on typical usage; if you use your vacuum more frequently, you may need to change your filter more often.) Your package includes extra filters. You can also purchase additional filters online at http://www.neatorobotics.com. Neato XV-11 User’s Guide...

  • Page 43: Customer Support

    Customer Support If you have any questions or comments, contact Neato Robotics, Inc. •Email customercare@neatorobotics.com •Visit www.NeatoRobotics.com for additional support, accessories, and frequently asked questions. •Call 1-877-29-NEATO to talk to a customer care specialist. Neato XV-11 User’s Guide...

  • Page 44: One Year Warranty (Domestic Use)

    One Year Warranty (Domestic Use) Your Neato XV-11 vacuum is intended to be used in normal household cleaning, in accordance with the Neato XV-11 Vacuum User’s Guide. Limited Warranty Neato Robotics, Inc. warrants to the original purchaser that your Neato Robotics hardware product shall be free from defects in material and workmanship for the length of time, identified on your product package and/or contained in your user documentation, from the date of purchase.

  • Page 45: Compliance Information

    1916 Old Middlefield Way Suite A Mountain View, CA 94043 No service is allowed by the user. If there are any problems with the RPS laser distance sensor, the robot should be returned to the factory for any service or repair. Neato XV-11 User’s Guide...

  • Page 46: Declaration Of Conformity

    The products covered by this declaration: • XV-11 Robotic Vacuum Appliance (all variations manufactured after January 1, 2010) The basis on which conformity is being declared: The manufacturer hereby declares under his sole responsibility that the products identified above comply...
  • Page 47 Low Voltage Equipment directive has been compiled and is available for inspection by the relevant enforcement authorities. Details of these special measures and limitations to use are available on request. The mark was first applied in 2009. Ken Peters January 30, 2010 Neato XV-11 User’s Guide...
  • Page 48 Class B digital device that complies with 47 CFR Parts 2 and 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. January 30, 2010 Neato XV-11 User’s Guide...

  • Page 49: Parts

    900-0001 Neato XV-11 Robot 945-0007 Neato XV-11 Charging Base w/power adaptor 285-0001 Neato XV-11 Power Adaptor 945-0005 Neato XV-11 Battery Set (package of 2) 945-0009 Neato XV-11 Boundary Markers 500-0001 Neato XV-11 User Guide 515-0001 Neato XV-11 Quick Start Card...

  • Page 50: Disposal Notices

    Disposal Notices If you ever dispose of your Neato XV-11, follow these steps: 1 Unplug the Neato XV-11 from any power source, including removing it from its charging base and removing the power adaptor plug from the Neato XV-11 power connector.
