ACR30 - User Manual
Advanced Card Systems Ltd.
Room 302, 3/F., Shun Fat Industrial building,
17 Wang Hoi Road, Kowloon Bay,Kowloon, Hong Kong.
 Advanced Card Systems Ltd.

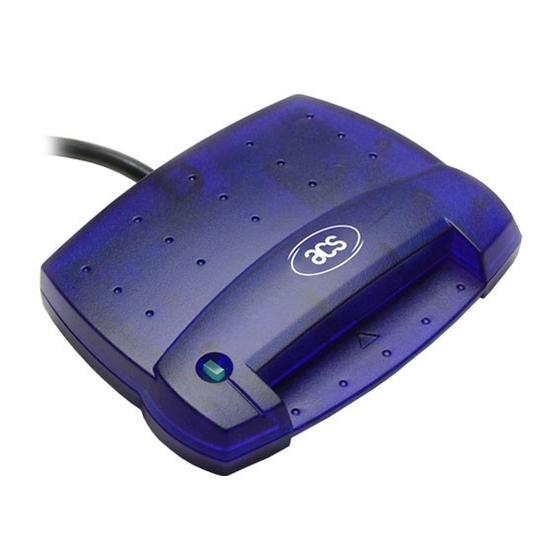

ACR30
User Manual
ACR30 smart card reader/writer
Tel: 852-2796 7873 Fax: 852-2796 1286
Website: www.acs.com.hk
V 1.08, July 2002
E-mail : info@acs.com.hk
Page 1 of 13

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ACR30 and is the answer not in the manual?

Questions and answers

Related Manuals for ACS ACR30

Summary of Contents for ACS ACR30

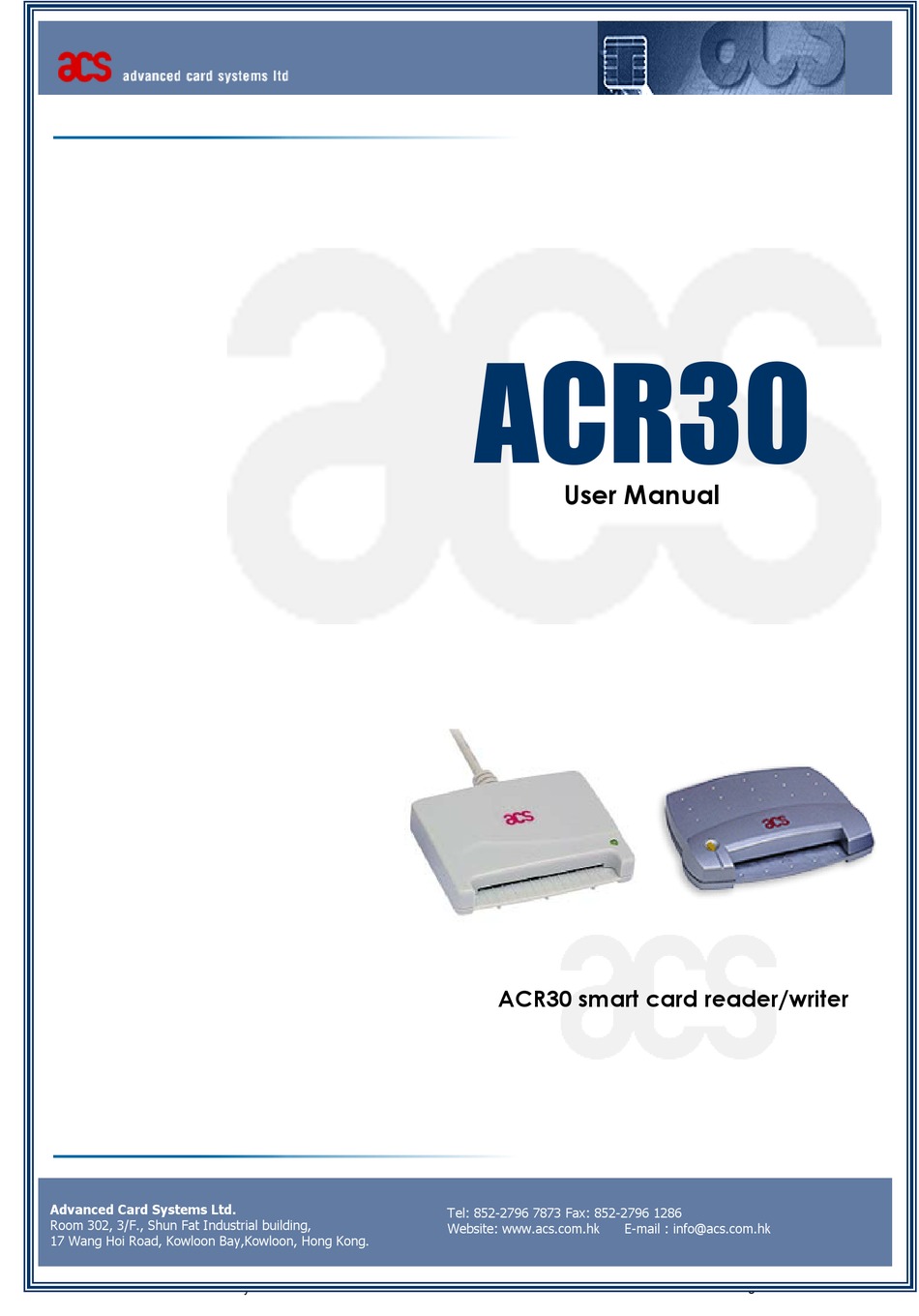

  • Page 1 ACR30 - User Manual V 1.08, July 2002 ACR30 User Manual ACR30 smart card reader/writer Advanced Card Systems Ltd. Tel: 852-2796 7873 Fax: 852-2796 1286 Room 302, 3/F., Shun Fat Industrial building, Website: www.acs.com.hk E-mail : info@acs.com.hk 17 Wang Hoi Road, Kowloon Bay,Kowloon, Hong Kong.

  • Page 2: Table Of Contents

    ACR30 - User Manual V 1.08, July 2002 Table of content Introduction …………………………………………………………………………… 3 Technical specifications and system requirement ………………………….…. 4 Smart card reader installation/uninstallation by using installer……………… 5 3.1 Installation (Example : ACR30U, PCSC, Win2K)……………………………………. 5 3.2. Connection Diagrams ………………………………………………………………….. 7 3.3.

  • Page 3: Introduction

    Piano casing and the new CyberFrog casing. Like the ACR20, the ACR30 is also supplied in module form (ACM30). This is an ideal solution for easily integrating smart card access into any application. The module retains the ...

  • Page 4: Technical Specifications And System Requirement

    STMicroelectronics: ST1305, ST14C02C, ST14C04C Note: Card manufacturers using the above-mentioned chips may have different names for their cards. These cards are likewise supported by ACR30. Examples are: - Gemplus: GPM103, GFM2K, GFM4K, GPM2K, GPM8K - Schlumberger: Primeflex Store 2K/8K, Open 2K/4 •...

  • Page 5: Smart Card Reader Installation/Uninstallation By Using Installer

    “AC-Kit driver directory”. This page will be shown. Click “Next” button Note: 1) Please do NOT connect the ACR30 reader with PC until the instruction by installer. The user should select the appropriate smart card reader from the list.
  • Page 6 ACR30 - User Manual V 1.08, July 2002 Click “Next” button Note: 1) Please do NOT connect the ACR30 reader with PC until the instruction by installer. 2) For the ACS30S (PCSC), the user will be asked to select their COM port.

  • Page 7: Connection Diagrams

    ACR30 - User Manual V 1.08, July 2002 Click “Finish” button Note 1) The user may be asked for reboot the system under Win 98, Win Me platforms. 2) To ensure the PCSC driver is installed properly, the LED will be turn on when the card is inserted.

  • Page 8: Un-Installation (Example : Acr30U, Pcsc, Win2K)

    ACR30 - User Manual V 1.08, July 2002 3.3. Un-installation (Example : ACR30U, PCSC, Win2K) For the un-installation, the user just need to run the installer again. After the user run “setup.exe” which is located in the “AC-Kit driver directory”. This page will be shown.

  • Page 9: Sample Applications

    V 1.08, July 2002 4. Sample Applications (available from www.acs.com.hk) All the sample applications are developed for ACOS1 MCU card only. Note: You will need to install the ACS Proprietary drivers for these applications. ATM Demo 4.1.1 Program Description This application demonstrates the use of ACOS card as a combo ID and stored-value card with a built-in PIN-protected security access layer.
  • Page 10 The demonstration program is provided herein as an executable file. The user needs to install the ACS smart card reader using the ACS Proprietary driver before running the program. The user is also required to copy the file, Des.dll, into either the System directory or the directory where the demonstration program resides.
  • Page 11 ACR30 - User Manual V 1.08, July 2002 Go To ATM – Enables the simulated Online Bank module as shown below The smart card reader is on Wait status at this point. When a smart card is inserted, Online Bank menus will be enabled and the user can interact with the module using the function keys available.

  • Page 12: Screen Saver

    This application installs and registers a Screensaver module into the Windows operating system. This module operates using both the ACOS smart card and the ACS smart card reader. When the application is active, the system only refreshes from the Screensaver mode if the correct smart card is inserted into the reader.

  • Page 13: Simmate 2000

    SIMmate 2000. Copyright Copyright by Advanced Card Systems Ltd. (ACS) No part of this reference manual may be reproduced or transmitted in any from without the expressed, written permission of ACS. Notice Due to rapid change in technology, some of specifications mentioned in this publication are subject to change without notice. Information furnished is believed to be accurate and reliable.
