Description
With a 7P Signal + 15P Power SATA interface, high
speed and low power consumption, SATA Flash
Modules is perfect replacement storage device for
PCs, Laptops, gaming systems, and handheld
devices.
Placement
Transcend Information Inc.
S
D
O
M
2
2
V
S
D
O
M
2
2
V
S
D
O
M
2
2
V
Features
•
RoHS compliant
•
Fully compatible with devices and OS that support the
SATA 1.0a 1.5Gbps standard
•
Non-volatile Flash Memory for outstanding data
retention
•
Supports up to Ultra DMA Mode 4
•
Built-in ECC (Error Correction Code) functionality and
wear-leveling algorithm ensures highly reliable of data
transfer
•
7P Signal + 15P Power male SATA connector
•
Lower Power Consumption
•
Shock resistance

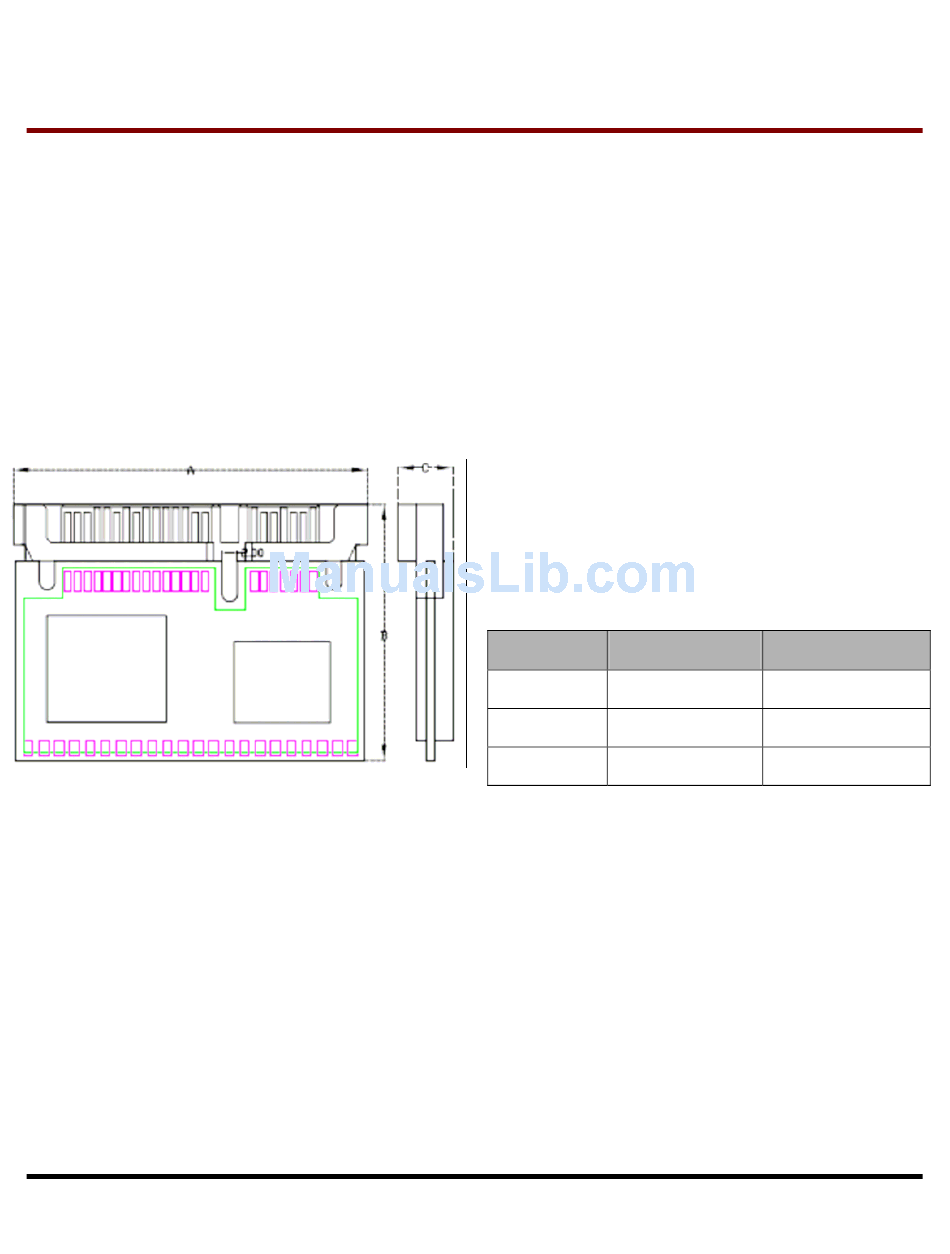

Dimensions
Side
Millimeters
45.80 ± 0.40
A
33.00 ± 0.50
B
7.08 ± 0.20
C
1
22P Vertical Type
SATA Flash Modules
Inches
1.803 ± 0.016
1.299 ± 0.020
0.279 ± 0.008
V1.2
Advertisement
Table of Contents
Related Manuals for Transcend TS128MSDOM22V
Summary of Contents for Transcend TS128MSDOM22V
- Page 1 With a 7P Signal + 15P Power SATA interface, high speed and low power consumption, SATA Flash Modules is perfect replacement storage device for PCs, Laptops, gaming systems, and handheld devices. Placement Transcend Information Inc. Features • RoHS compliant • Fully compatible with devices and OS that support the SATA 1.0a 1.5Gbps standard...
-
Page 2: Specifications
Storage Temperature Power Requirements Input Voltage 2GB SATA Flash Modules Power Consumption ℃ (DC 5V Transcend Information Inc. SATA Flash Modules Vertical Type 128M~8GB 45.80 ± 0.40 33.00 ± 0.50 7.08 ± 0.20 5V ± 10% / 3.3V ± 5% SATA 7+15 pins combo connector ℃... - Page 3 TS512MSDOM22V TS1GSDOM22V TS2GSDOM22V TS4GSDOM22V TS8GSDOM22V * Note: FAT format for <4GB, FAT32 format for 4~8GB Regulations Compliance CE, FCC and BSMI Transcend Information Inc. Built-in 4 symbol/page correction ECC 10 years 500 times Read (KB/s) Write (KB/s) 49636 17519 Capacity...
-
Page 4: Mechanical Drawing
Mechanical Drawing Transcend Information Inc. Top View Lateral View 22P Vertical Type SATA Flash Modules V1.2... -
Page 5: Pin Layout
Pin No. Pin Layout 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 Transcend Information Inc. Pin Assignments Pin Name Pin out 22P Vertical Type SATA Flash Modules Pin No. -
Page 6: Block Diagram
DC Characteristics Parameter Supply Voltage High level output voltage Low level output voltage High level input voltage Low level input voltage Pull up resistance Pull down resistance Transcend Information Inc. Data bus Control SATA Signal Bridge Flash Disk Power Controller Symbol Min. -
Page 7: Command Set
Read Multiple Read Sector(s) Read Verify Sector(s) Recalibrate Request Sense Security Disable Password Security Erase Prepare Security Erase Unit Security Freeze Lock Security Set Password Transcend Information Inc. Code E5 or 98h – – – – – – – –... - Page 8 CY = Cylinder Low/High register DH = Head No. (0 to 15) of Drive/Head register LBA = Logic Block Address Mode Support – = Not used for the command Y = Used for the command Transcend Information Inc. – – – –...
-
Page 9: Smart Command Set
F / V 2-361 364-365 368-369 375-385 386-395 397+(n*6) 398+(n*6) Transcend Information Inc. SMART Feature Register Values Revision code Vendor specific Off line data collection status Self-test execution status byte Total time in seconds to complete off-line data collection activity Vendor specific... - Page 10 X=the content of the byte is vendor specific and may be fixed or variable. R=the content of the byte is reserved and shall be zero. * 4 Byte value : [MSB] [2] [1] [LSB] Transcend Information Inc. MU spare block Init. Bad block...
-
Page 11: Ordering Information
