Model Number: PV1000FC

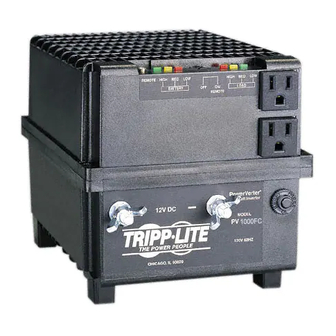

PowerVerter Plus Inverter - Industrial-Strength Power for Heavy-Duty Applications

Description

Harness your vehicle's battery to efficiently power office equipment on the road or power tools at a work site. Continuously supplies up to 1000 watts
of 120V AC power to 2 AC outlets from any 12V battery or automotive DC source. Frequency control locks AC output at 60Hz for operating stability
of motor loads. Includes a set of high current DC input terminals for simple, permanent installation. Highly reliable large transformer design
specializes in powering motors and other inductive loads with high-current startup needs.

Applications

Ideal for power tools, pumps, fans, desktop computer systems, laptops, portable electronics, battery chargers for cell phones, pagers,
notepads and games, full size TV-VCR & stereo systems, camcorders, lighting and other AC applications under 1000 watts continuous/2000
watts peak.

Package Includes

PV1000FC inverter
Instruction manual

Features

Allows users to run large, motorized AC appliances from any 12V battery or automotive DC system
Converts 12V DC battery power to 120V AC power
1,000 watts continuous output power
2,000 watts peak output power to startup heavy motorized/inductive loads
2 outlets; DC input terminals for 12V battery connection
Frequency control for operating stability
High-efficiency operation conserves batteries to prolong run time
Diagnostic LEDs indicate load level (high, medium, and low) and battery charge (high, medium, and low)
DC fusing protects inverter against overload
3.5mm port for connecting remote switch (User supplies cable and switch)

Specifications

OUTPUT

Frequency
compatibility
60 Hz

Highlights

12V DC input; 120V AC output; 2 outlet
1000 watts continuous output
2000 watts peak surge output
High efficiency power conversion
Automatic overload protection
Tripp Lite
1111 West 35th Street
Chicago, IL 60609 USA
Telephone: +(773) 869 1234
E-mail:
saleshelp@tripplite.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PV1000FC and is the answer not in the manual?

Questions and answers

Summary of Contents for Tripp Lite PV1000FC

  • Page 1 1111 West 35th Street Chicago, IL 60609 USA Telephone: +(773) 869 1234 E-mail: saleshelp@tripplite.com Model Number: PV1000FC PowerVerter Plus Inverter - Industrial-Strength Power for Heavy-Duty Applications Highlights 12V DC input; 120V AC output; 2 outlet 1000 watts continuous output 2000 watts peak surge output...
  • Page 2 Output watts Continuous - 1000 watts, Overpower (up to 1 hour) - 1500 watts, Double-Boost wattage (up to 10 seconds) - 2000 watts Output nominal 120V nominal voltage Output voltage Maintains PWM sine wave output voltage of 120 V AC (+/-5%) regulation Output frequency 60 Hz (+/- 0.3 Hz)
  • Page 3 Copyright © 2014 Tripp Lite. All rights reserved. All trademarks are the sole property of their respective owners. Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice. Photos may differ slightly from final products.
