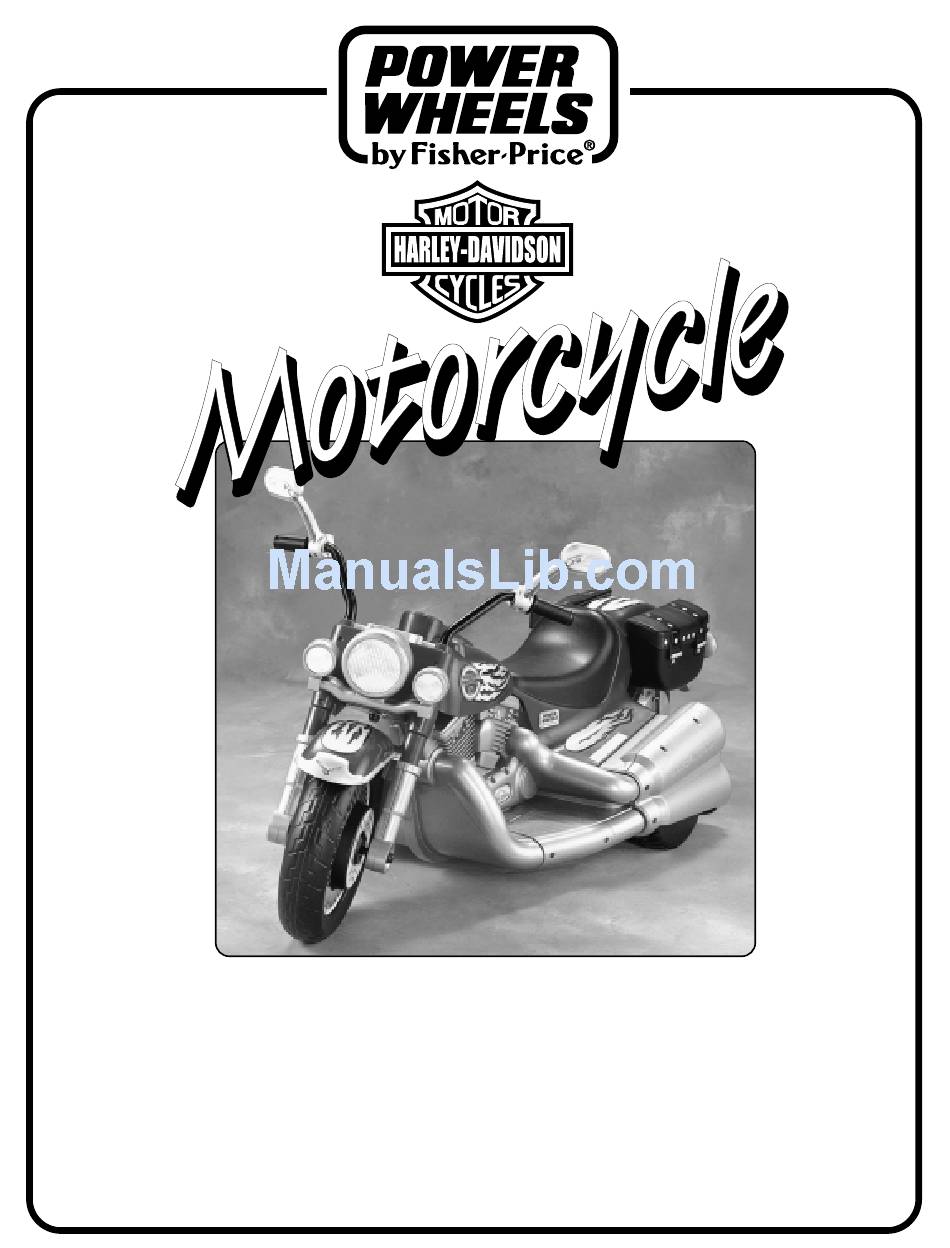

Owner's Manual
with Assembly Instructions
Please read this manual and save it with your original sales receipt.
For Model 73210
Tools needed for assembly: Phillips Screwdriver, Hammer and Safety Scissors (not included).
Use only with two Power Wheels
®
6 Volt Rechargeable Batteries with A-Style Connectors and Built-in Thermal Fuses,
and a Power Wheels
®
12 Volt Charger (all included).
Requires three "AA" (LR6) alkaline batteries (not included) in Sound Box.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 73210 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Power Wheels 73210

Summary of Contents for Power Wheels 73210

  • Page 1 Please read this manual and save it with your original sales receipt. For Model 73210 Tools needed for assembly: Phillips Screwdriver, Hammer and Safety Scissors (not included). Use only with two Power Wheels ® 6 Volt Rechargeable Batteries with A-Style Connectors and Built-in Thermal Fuses, and a Power Wheels ®...

  • Page 2: Table Of Contents

    65 lb (30 kg). that you start charging your batteries before beginning assembly. Please see Battery Charging beginning on • If you have any questions about your Power Wheels ® page 9 for detailed instructions. vehicle, please call our toll-free service lines at 1-800-348-0751 from 8 AM to 6 PM (EST) Monday •...

  • Page 3: Warnings And Cautions

    - Use of the wrong type battery or charger could cause a fire or explosion resulting in serious injury. - Use of Power Wheels ® components in products other than Power Wheels ® vehicles could cause overheating, fire or explosion.

  • Page 4: Parts

    Parts • If you experience a problem with this product, or are missing a part, please call us at 1-800-348-0751, rather than return this product to the store. • Please identify all parts before assembly and save all packaging material until assembly is complete to ensure that no parts are discarded.
  • Page 5 Parts Exhaust Pipe Set Left - Inner Half Right - Inner Half Right - Outer Half Left - Outer Half Front Fork Headlight - Rear Half Headlight - Front Half Seat Saddlebag - 2 Gas Tank Soundbox Fork Cover Battery Clamp...
  • Page 6 Parts (Outer Half) (Inner Half) Right Left Shock Set - 2 Handlebar Set Fender Tip Handgrips - 2 Left Mirror Housing Tail Light Cover Mirror Lens - 2 Right Mirror Housing Mirror Clamp - 2 Tail Light...
  • Page 7 Parts Hex Bushing - 4 Axle Bushing - 2 12 Volt Charger 6 Volt Battery - 2 Round Bushing - 2 Not Shown: Label Sheet #8 x " Plastite Screw – 63 .437 (Large Diameter) Cap Nut - 6* .354 (Small Diameter) Cap Nut - 3* #8 x "...

  • Page 8: Parts Diagram

    Parts Diagram Note: Some parts shown are assembled on both sides of the vehicle. Vehicle Frame Headlight - Front Half 12 Volt Charger Vehicle Body Headlight - Rear Half .354 Cap Nut - 2 Seat Handlebar - 2 .437 Cap Nut - 4 Wheel - 2 Sound Box Battery Clamp...

  • Page 9: Battery Charging

    • Never lift or carry the battery by the wires About Thermal Fuses or connector. This can damage the battery Your Power Wheels 6 volt batteries are equipped with and possibly cause a fire resulting in built-in thermal fuses. The thermal fuses are self-resetting serious injury.

  • Page 10: Battery Charging

    Battery Charging Battery Connector Slots Ribs Battery Connector • Align the ribs on the top of one of the battery connectors with the slots on the bottom of the other • Plug the charger into a standard 120 volt wall outlet. battery connector.

  • Page 11: Assembly

    Assembly • Fit the tail light on the outside of the rear fender as WARNING shown. Make sure the holes in the rear fender and tail light are aligned. • Insert one #8 x " screw through the hole near the end Children can be harmed by small parts, of the fender in the vehicle body and into the tail light.
  • Page 12 Assembly Vehicle Frame Vehicle Body Left Footboard Slots • Insert four #8 x " screws through the vehicle body and into the vehicle frame. Make sure the holes in the vehicle body and frame are aligned. • Tighten the screws using a Phillips screwdriver. Do not over-tighten.
  • Page 13 Assembly IMPORTANT! The screw marked with an asterisk * in step 9 illustration must go through the hole in the inner half of the right exhaust pipe, the vehicle body and into Right Exhaust the vehicle frame. Make sure all the holes are properly Pipe - Inner Half aligned and the screw goes through all three parts.
  • Page 14 Assembly Flat Side Wheel Guide Guide Wheel Guide Axle Axle Bushing Guide • Slide an axle bushing (flat side first) on the wheel axle. Wheel • Before applying labels to the wheels, wipe each wheel with a clean, dry cloth to make sure it is free of dirt and oils.
  • Page 15 Assembly • Tighten the screws using a Phillips screwdriver. Do not over-tighten. Tube • Repeat this step to assemble the other saddle bag to Side the other side of the rear fender. .437 (Large Diameter) Cap Nut Steering Bushing Neck Wheel Axle Axle...
  • Page 16 Assembly • Insert four #8 x " screws through the front fork and into the headlight assembly. • Tighten the screws with a Phillips screwdriver. Do not over-tighten. Headlight Assembly - Rear Half DO NOT DO NOT INSERT INSERT SCREW SCREW HERE HERE...
  • Page 17 Assembly .354 (Small Diameter) Cap Nut Front Fork Right Handlebar Left Handlebar Front Fork Fork Axle • Slide the fork axle up into the bottom of the front fork, through the neck and steering stop, and out the top of the front fork.
  • Page 18 Assembly • Push firmly to slide the shock onto the handlebar Arrow making sure that the tab on the inner shock half fits into Front the groove in the fender. Fender • Repeat this procedure to slide the remaining shock on the other handlebar.
  • Page 19 Assembly Round Battery Bushing Wheel Compartment Axle Door Battery Compartment .437 (Large Diameter) Cap Nut Ring Side Sound Box Shock 1.5V x 3 Round Bushing “AA” (LR6) • Fit a round bushing, ring side first, between the wheel and the shock. SHOWN ACTUAL SIZE Hint: You may need to push the shock outward slightly to fit the round bushing.
  • Page 20 • Lower the gas tank on the vehicle frame, making sure that the two small square openings in the gas tank fit over the buttons on the sound box. Note: You may want to install the Power Wheels 6 volt ®...
  • Page 21 Assembly Mirror Lens Front Fender Vehicle Frame Mirror Housing • Fit a mirror lens to a mirror housing. • Insert a #8 x " screw through the back of the mirror housing into the mirror lens. • Tighten the screw with a Phillips screwdriver. Do not over-tighten.

  • Page 22: Label Decoration

    Label Decoration Proper label application will help to keep the labels looking their best! When applying labels, keep the following guidelines in mind: • Wash your hands before applying the labels. • Before applying the labels, wipe the surface of the vehicle with a clean, dry cloth to remove any dust or oils. •...
  • Page 23 Label Decoration Right Side Left Side...

  • Page 24: Battery Installation

    Use of any other batteries or fuses will damage your vehicle. Make sure that you charge the batteries for at Screw least 18 hours using the enclosed Power Wheels ® 12 volt charger before operating your vehicle for the first time.

  • Page 25: Battery Care And Disposal

    Never give emetics or induce vomiting. Call a physician. • Return exhausted batteries to a federal or state approved lead-acid battery recycler, such as a Power Wheels ® • Charge new batteries for at least 18 hours before first authorized service center or a local seller of automotive use.

  • Page 26: Rules For Safe Driving

    Rules for Safe Driving RIDING HAZARD 7. Do not allow your child to drive on sloped or inclined WARNING surfaces. Restrict your child’s driving to generally level ground ONLY! 8. Do not allow your child to drive down or across a Prevent Injuries and Deaths steep slope.

  • Page 27: How To Operate Your Vehicle

    How to Operate Your Vehicle As assembled, your vehicle is ready to roll in low To Back Up speed (2 mph, maximum). When your child is ready to drive the vehicle in high speed (5 mph, maximum), IMPORTANT! To prevent damaging the motors and gears, follow the instructions to on page 28 connect the high teach your child to stop the vehicle before switching speed hook-up.

  • Page 28: M Statement Of Limited Warranty

    ) against defects in materials and workmanship. The six month limited warranty applies only • Plug the two high speed hook-up connectors together. to the 12 volt battery included by Power Wheels with the ® Make sure the two connectors are completely joined.

  • Page 29: Problems And Solutions Guide

    Problems and Solutions Guide IMPORTANT! If you experience a problem with your vehicle, first check the Problems and Solutions Guide below. If you still experience a problem, please contact Power Wheels ® Consumer Relations, toll-free at 1-800-348-0751 between 8 AM and 6 PM (EST) Monday through Friday. Or, contact your local Power Wheels authorized service center.

  • Page 30: Problem Possible Cause

    Do not drive up hills or run into fixed objects, which can cause the wheels to stop spinning while power is still being supplied to the motors. If a thermal fuse continually trips, contact your local Power Wheels ® authorized service center.
  • Page 31 If, after reviewing the Problems and Solutions Guide, the vehicle still fails to operate, please contact your nearest authorized service center (see page 32) or contact Power Wheels ® Consumer Relations toll-free at 1-800-348-0751.

  • Page 32: Authorized Service Centers

    Authorized Service Centers We are continually expanding our Authorized Service Center Network. Please check this listing for the Authorized Service Center nearest you. If there is not one in your area, please call Power Wheels ® Consumer Relations at 1-800-348-0751.
  • Page 33 Authorized Service Centers IOWA SPRINGFIELD - Utility Electric Service, Inc., 810 Main NORTH PLATTE - Sperry TV, Westfield Shopping Center, Street, 01101, (413) 781-1635 69010, (308) 532-5200 BETTENDORF - K & K True Value Hardware, 1818 Grant MICHIGAN OMAHA - Myers Electric Co., Inc., 1458 South 16th Street, Street, 52722, (319) 359-4473 68108, (402) 342-7710 ALMONT - Almont Do It Center #421, 4545 Van Dyke,...
  • Page 34 Authorized Service Centers JACKSONVILLE - Discount Sales & Service, 468-B READING - Electric Repair Co., 502-504 North 9th Street, LUFKIN - STS Audio and Video, 1505 South First Street, Western Blvd., 28546, (910) 455-6700 19604, (610) 376-5444, (800) 422-8171 75901, (409) 639-4529 NORTH WILKESBORO - Appalachian Serv Center, SCRANTON - Vac-Way Appliance and Service Co., MC ALLEN - All-In-One Repair Shop, 2313 Lark Avenue,...
  • Page 35 For the location nearest you, refer to the Authorized Service Center list in this manual. Fisher-Price and Power Wheels by Fisher-Price are U.S. trademarks of Mattel, Inc. Fisher-Price, Inc., a subsidiary of Mattel, Inc., East Aurora, New York 14052 U.S.A.
