Summary of Contents for Electro-Voice EVID FM4.2

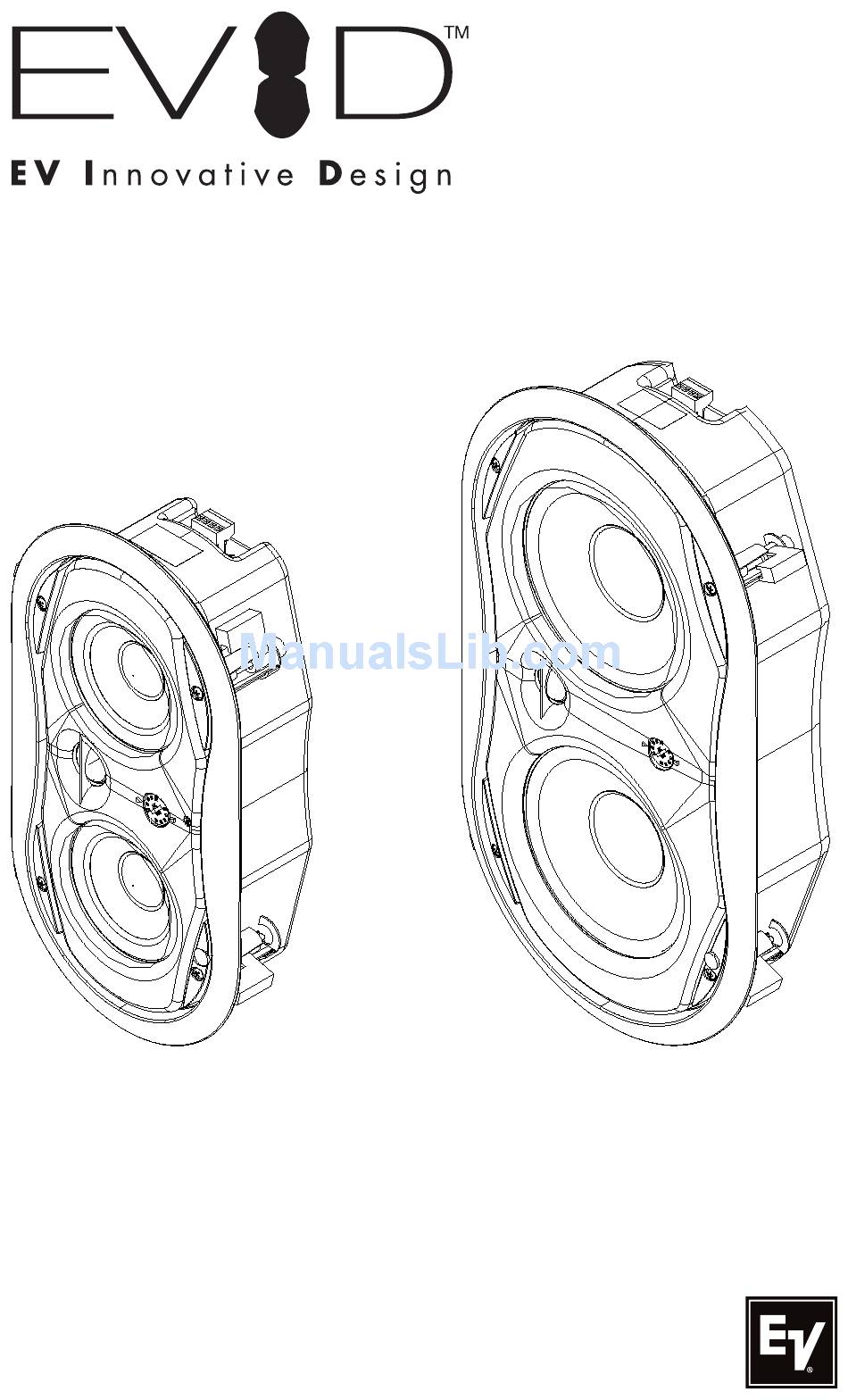

- Page 1 EVID FM-Series Loudspeaker User Manual...
-
Page 2: Table Of Contents
Step 4 — Adjust Tap Selector ..............8 Step 5 — Insert the Grille ..............9 Appendix A — Painting the Speaker............10 Appendix B — Troubleshooting Table ............ 11 Appendix C — Warranty .................12 Appendix D — Product Specifications ............13 EVID™ FM Series Installation and Operation Manual... -
Page 3: Welcome
Two models comprise the EVID FM Series: the FM4.2 with a 4-inch LF driver, a 4-inch LF passive radia- tor, and a 1-inch, titanium-coated tweeter; the FM6.2 with a 6.5-inch LF driver, 6.5-inch LF passive radiator, and a 1-inch titanium-coated tweeter. -
Page 4: Model Summary
FM4.2 features a comprehensive protection circuit to shield the woofer and tweeter drivers from excessive power levels. The EVID FM4.2 utilizes a transformer that offers a selection of 1.75, 3.75, 7.5, 15 or 30 watts delivered to the loudspeaker system using ei- ther 70-V or 100-V lines. - Page 5 Model Summary EVID™ FM6.2 The Electro-Voice ® EVID FM6.2 loudspeaker system is a complete two-way in-wall loudspeaker package. The package consists of a bezel assembly, grille, rear enclosure, 6.5” two-way loudspeaker coupled with a 6.5” passive radiator and an internal line-matching transformer. The loudspeaker features 6.5”...
-
Page 6: Packing List
Packing List EVID FM Series Packing List Figure Quantity Part Speaker System Grille Owner’s Manual Terminal Connector (Factory Installed) Service Center Card Cutout Template Paint Shield (x2) (x2) (x2) (x2) Figure 1: Packing List EVID™ FM Series Installation and Operation Manual... -
Page 7: Product Feature Identification
Input Terminal Grille Safety Connector Tether Hole Steel Enclosure Mounting Screws Tap Selector Grille Safety Tether Hole Figure 2: Front of Speaker Grille Rotatable Mounting Tabs Grille Safety Tether Figure 3: Rear of Speaker EVID™ FM Series Installation and Operation Manual... -
Page 8: Installation And Wiring
Installation and Wiring INSTALLATION NOTE: CONTROLLING VIBRATION Because of their high performance, EVID FM Series loudspeakers can generate substantial vibration, which can cause buzzing in loose sections of the wall, depending on the character of the wall and related compo- nents. - Page 9 When all wiring has been completed to the connector, plug the connector into the socket in the speaker’s terminal cup. See Figure 8. Tighten all screws to eliminate vibration. Input Connector Terminal Block Figure 8: Plug Connector Into Socket EVID™ FM Series Installation and Operation Manual...
-
Page 10: Step 3: Mount The Speaker Into The Wall
After the levels are adjusted the grilles can then be installed. Figure 11: Adjust Tap Selector (Left: FM4.2, Right: FM6.2) EVID™ FM Series Installation and Operation Manual... -
Page 11: Step 5 - Insert The Grille
Step 5: Attach the Grille INSTALLATION NOTE: GRILLE SAFETY FEATURE EVID grilles features a unique safety tether to prevent the grille from fall- ing if the grille is removed or comes loose after installation. First, install the grille’s safety tether by pushing the grille fastener into the hole in the front of the baffle (see Figure 12). -
Page 12: Appendix A - Painting The Speaker
180° 45° 45° Baffle 180° (do not paint) Figure 13: Spray-Painting Angles EVID™ FM Series Installation and Operation Manual... -
Page 13: Appendix B - Troubleshooting Table
Whichever condition results in greater low- frequency output is the in-polarity condition. If none of the suggestions above solves your problem, contact your nearest EV© service center or EV distributor. EVID™ FM Series Installation and Operation Manual... -
Page 14: Appendix C - Warranty
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Maintenance No maintenance is required when installed in accordance with installation and wiring guidelines described in this manual. EVID™ FM Series Installation and Operation Manual... -
Page 15: Appendix D - Product Specifications
Net Weight (Each): Shipping Weight (Pair): 6.8 kg (15.0 lb) Shipping Weight (Pair): 12.9 kg (28.4 lb) All Specifications based on Half-Space All Specifications based on Half-Space Environment as flush-mounted. Environment as flush-mounted. EVID™ FM Series Installation and Operation Manual... - Page 16 Electro-Voice ® U.S.A. and Canada only. For customer orders, contact Customer Service at: 800/392-3497 Fax: 800/955-6831 Europe, Africa, and Middle East only. For customer orders, 12000 Portland Avenue South, Burnsville, MN 55337 contact Customer Service at: Phone: 952/884-4051, Fax: 952/884-0043 + 49 9421-706 0 Fax: + 49 9421-706 265 Other Internatonal locations.
