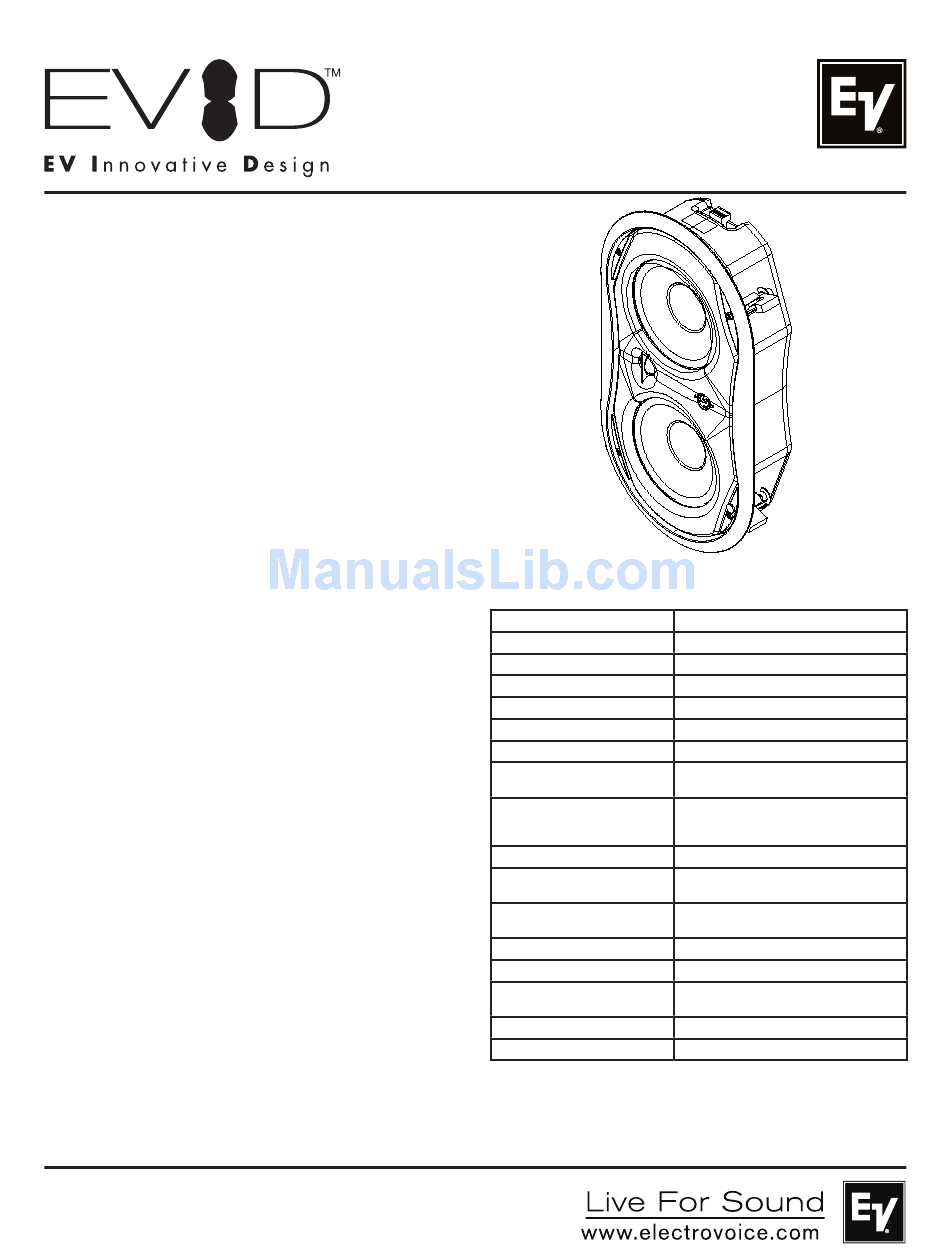

Electro-Voice EVID FM6.2 Technical Specifications

Key Features:

• 6.5" two-way system with polypropylene diaphragm for reli-
able long-term operation.
• 6.5" passive radiator coupled to the woofer dramatically
extends and smoothes the low frequency response.
• Extremely compact depth fits into tight spaces including
walls and tight ceiling spaces.
• Titanium coated tweeter gives even uniform high frequency
coverage
• Full bandwidth overload protection
• Front baffle wattage tap adjustment allows for easy level
matching after installation.
• Easy 4 pin phoenix style terminals for quick installation
• Integrated low loss matching transformer allows for either
70v/100v or 8 ohm operation.
General Description:
The Electro-Voice ® EVID FM6.2 loudspeaker system is a complete
two-way in-wall loudspeaker package. The package consists of a bezel
assembly, grille, rear enclosure, 6.5" two-way loudspeaker coupled with
a 6.5" passive radiator and an internal line-matching transformer. The
loudspeaker features 6.5" low-frequency cone and high-temperature
voice-coil assembly along with a 6.5" long excursion passive radiator
and titanium coated dome tweeter. The EVID FM6.2 loudspeaker uti-
lizes a crossover network, centered at 3,300 Hz, that provides 16-dB-
per-octave tweeter protection outside of its operating range. In addition
the FM6.2 features a comprehensive protection circuit to shield the
woofer and tweeter drivers from excessive power levels.
The FM6.2 utilizes a transformer that offers a selection of 7.5, 15, 30,
or 60 watts delivered to the loudspeaker system using either 70-V or
100-V lines. The wattage is selected via a convenient switch on the
front baffle. The unit can also be operated as an 8-ohm speaker via the
same front panel selector switch.
The perforated grille is finished in semi-gloss white powder-coated
enamel. The baffle and bezel is constructed from heat resistant ABS.
The rear enclosure is constructed from zinc-plated, steel. The rear
enclosure provides an optimum internal volume, ensuring extended low-
frequency performance. It is constructed from heavy-gauge, rugged
steel. The steel rear enclosure was optimized using FEA to virtually
eliminate panel resonance. The entire enclosure is less than 4" deep
providing an easy installation into nearly any tight wall or ceiling space.
A rear cover, with provisions for a junction box fitting, provides access
to a 4-pin terminal block that allows direct connection to the speaker
and provides pass through to additional speakers. FM6.2 loudspeakers
provide wide dispersion, high-efficiency, high-maximum output, ease of
installation, and wide-range reproduction of music or voice.
EVID FM6.2
Dual 6.5" Two-Way
Flush-Mounted
Loudspeaker System
Technical Specifications:
Freq. Response (-3 dB):
Freq. Range (-10 dB):
Axial Sensitivity:
Impedance:
Crossover Frequency:
Rec. Highpass Frequency:
HF Transducer:
LF Transducer:
Passive Radiator:
Transformer Taps:
Connectors:
Enclosure Material:
Grille:
Mounting System:
Support Hardware:
Dimensions:
Net Weight (Each):
Shipping Weight (Pair):
All Specifications based on Half-Space Environment as flush-mounted.
60 Hz - 20 kHz
52 Hz - 20 kHz
90 dB (SPL 1W/1m)
8 ohms nominal (transformer bypass)
3.3 kHz
60 Hz
1 in. (25.4 mm)
6.5 in. (165.1 mm)
6.5 in. (165.1 mm)
70V: 7.5, 15, 30, or 60W
100V: 15, 30, or 60W
Bypass: 8 ohms nominal
4 pin phoenix style terminals
Baffle: UL 94V-O rated ABS
Backcan: Zinc plated steel
Perforated powdercoated steel with safety
tether
Integrated toggle anchors
Cutout template, Paint shield
465.4mm x 256.4mm x 100.3mm
(18.32" x 10.09" x 3.95")
5.8 kg (12.7 lb)
12.9 kg (28.4 lb)
