Exploded Drawing for Assembly
Parts List
Tub (1)
Right Rear Brace (1)
Lock (1)
Handle (1)
Front Frame (1)
Coupling (1)
Rear Frame (1)
Wheel (4)
Front Bracket Assembly(1)
Bolt M8x20 (4)
Rear Bracket (1)
Round Head Bolt M8x30 (4)
Left Rear Brace (1)
Round Head Bolt M8x20 (4)
Round Head Bolt M8x60 (1)
Lock Nut M8 (13)
Lock Nut M12 (4)
Wide Wing Washer ID 8mm (16)
Washer (5)
Washer ID 12mm (4)
Spacer (4)

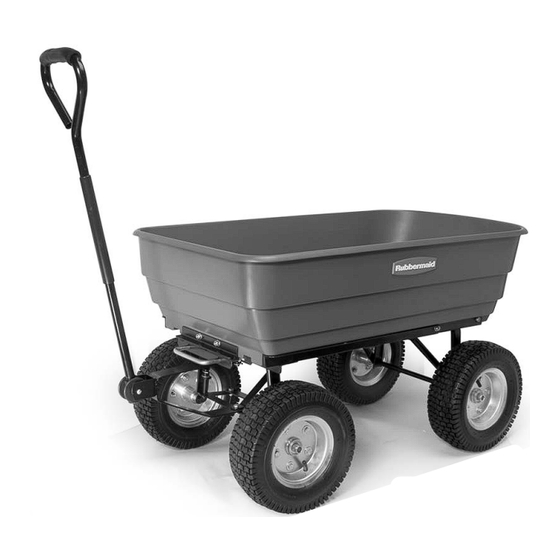

Garden
Dump
Cart
Owners Manual
10
Model RMD
8
• Important Safety Instructions
• Assembly Instructions
• Parts and Hardware Identification
CAUTION:
Read, understand and follow ALL instructions before using this product.
For product inquiries:
Tricam Industries Asia Ltd.
7677 Equitable Drive
Eden Prairie, MN 55344
800-867-6763
U.S. Patent No. 6,851,756
Other Patents Pending
12/05
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Rubbermaid RMD108
Summary of Contents for Rubbermaid RMD108
- Page 1 Exploded Drawing for Assembly Garden Dump Cart U.S. Patent No. 6,851,756 Other Patents Pending Owners Manual Model RMD • Important Safety Instructions • Assembly Instructions Parts List • Parts and Hardware Identification Tub (1) Right Rear Brace (1) Round Head Bolt M8x60 (1) Lock (1) Handle (1) Lock Nut M8 (13)
-
Page 2: Important Safety Instructions
Step 5 Step 6 Important Safety Instructions Assemble the wheels using the M12 lock nuts (4pcs.), Assemble the handle to the yoke using M8X60 bolt (1pc.), spacers (4pcs.), and washers (4pcs.). M8 lock nut (1pc.), and washer (1pc.). 1. READ ALL INSTRUCTIONS CAREFULLY BEFORE USE. If you do not understand these instructions, need clarification or further explanation, please call our toll free answer line for assistance at 1-800-867-6763.
