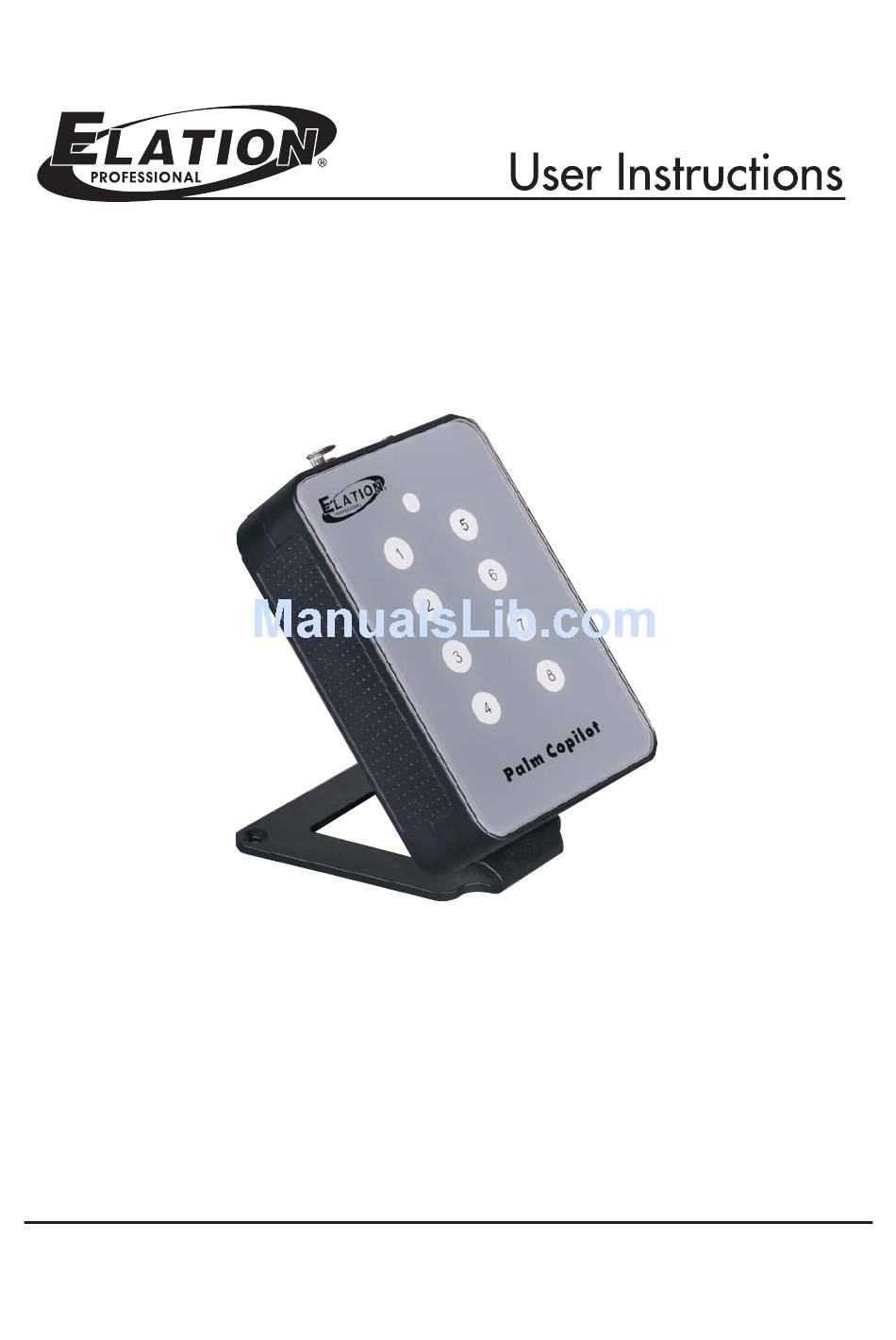

- Page 1 Palm Copilot P/N:24-004-2295-00 Rev 1.2...
-
Page 2: Specifications
Introduction Congratulations and thank you for purchasing the Elation Palm Copilot. The Palm Copilot is a simple 8 channels DMX controller and may be used to link with LC-8P series relay pack for control.It is available in DMX output and Analog output mode. -
Page 3: Operation Guide
=201 While a DMX initializing address is set as 21, on the Palm Copilot interface, the button 1 is corresponding with 21, the button 2 is corresponding with 22, the rest may be deduced like this. Meanwhile, all the 8 buttons back light are lit and the device output the DMX value with 255, the user may press the touch button to select the desired channel to send DMX signal or not. - Page 4 Housing---- DC 12 V, Grounded DMX Cable Requirements The Palm Copilot requires a standard 3-pin XLR connector for data output. Connect the Palm Copilot and your fixtures together using standard 3 pin DMX cables. If you are constructing your own data cables, be sure to use standard two conductor shielded cable (This cable may be purchased at almost all professional sound and lighting stores).
