Summary of Contents for EarthQuake Nova FF12

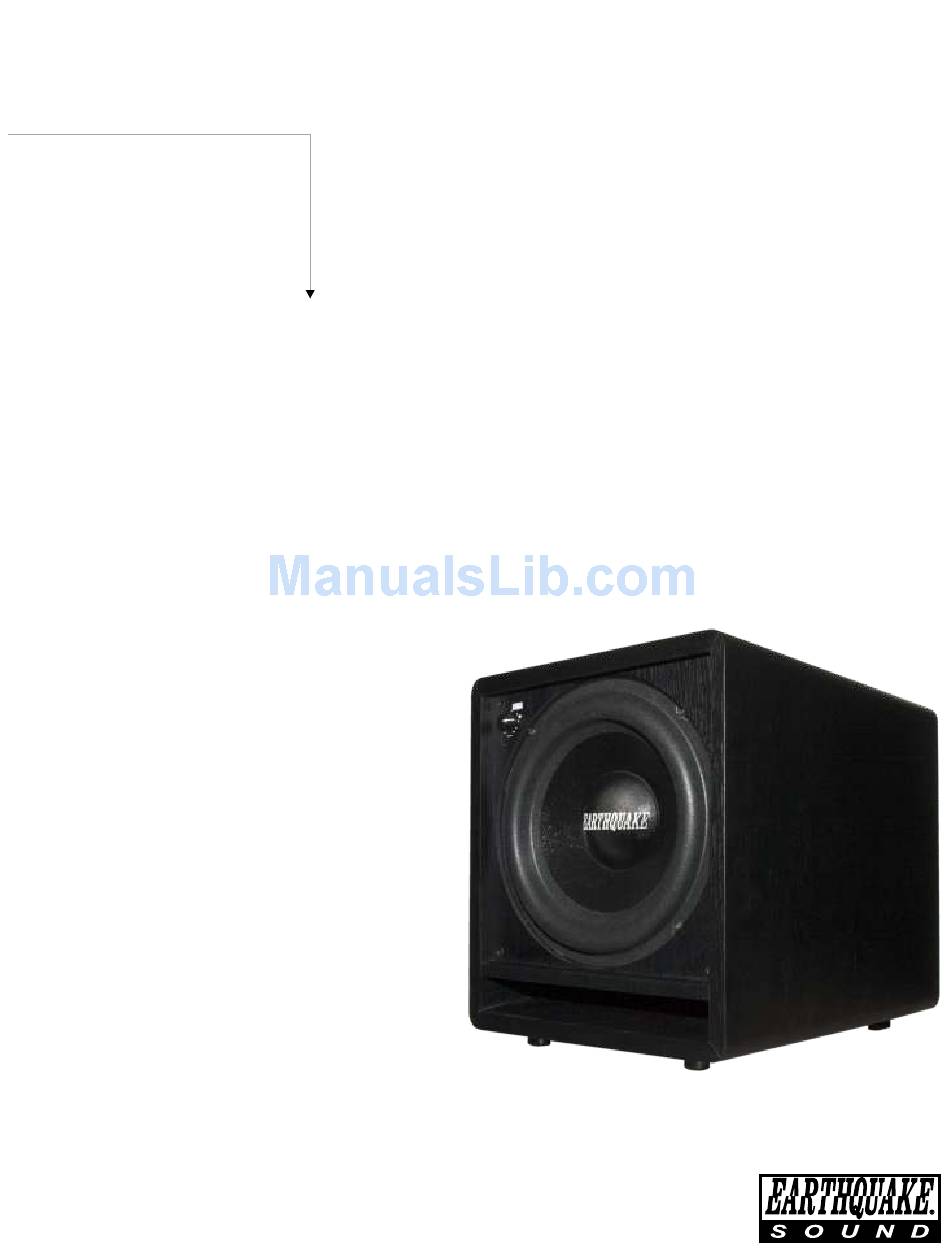

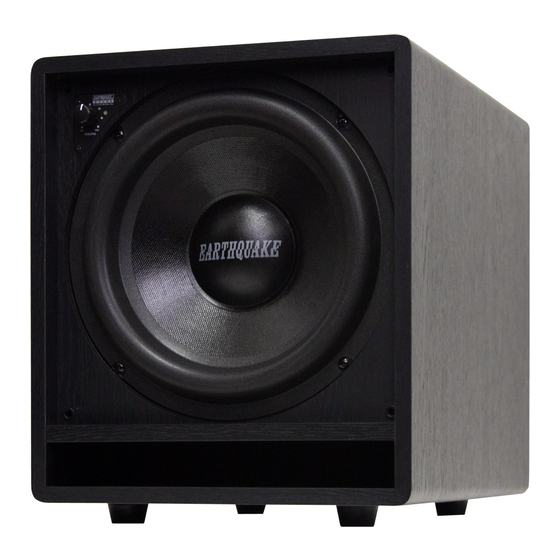

- Page 1 Nova Power From The Heavens Nova FF12 Front Firing Powered Subwoofer Operation Manual & Technical Guide www.earthquakesound.com Sound That Will Move You...
-
Page 2: Table Of Contents
This owners manual is designed to better acquaint you with the Nova FF12 subwoofer system, and to guide you through the phases of system design and application. It is imperative that you read this manual in its entirety. Simply call 1- 800-576-7944 for EARTHQUAKE technicians and staff to answer any questions you might have in regards to the FF12 subwoofer. -
Page 3: Warranty Guideline
Product/part damaged due to poor packaging or abusive shipping conditions. Subsequent damage to other products. warranty claim will not be valid if the warranty registration card is not properly filled & returned to Earthquake with a copy of the sales receipt. -
Page 4: Specifications & Performance
Specifications & Performance Specifications Power: 400 watts Frequency Response: 25-125Hz Dimensions Height: 16-15/16" (430mm) - including 5/8” (15mm) legs Width: 14-3/16” (360mm) Depth: 15-3/4" (400mm) - including amplifier controls Weight: 37 lbs / 16.8 kgs Power Line Voltage: 115-230~AC / 50/60Hz Output Levels: Greater than 130dB peak SPL (includes room gain) from 25Hz to 125Hz. -
Page 5: Product Overview
Product Overview Class "A/B" Amp RED: Stand by GREEN: ON Volume Control to 400 Watts Class "A/B" high efficiency power amplifier balance the subwoofer output to the system’s 12 dB/Octave variable filter from 40 Hz to 180 Hz Volume main speaker/amplifier. Automatic signal detection circuitry. -
Page 6: Control Panel Overview
Positioning Your Subwoofer Subwoofer Placement FF12 Subwoofer There is no argument among audio professionals that the loudest bass output from a subwoofer comes from corner placement. The sound flaring outward from a room corner focuses low frequencies giving them no place to go but toward you. -
Page 7: Connecting Your Subwoofer
Connecting Your Subwoofer Low Level (RCA) Input Connection FF12 Amplifier 1. Locate the LINE IN RCA on the FF12 AUTO Plate amplifier. 2. Connect the FF12 to the signal source, i.e. AV receiver. There is no need to have both RCAs to the signal source since the subwoofer is often operated in mono signal. - Page 8 Sound That Will Move You. 2727 McCone Avenue. Hayward, CA 94545. USA US Toll Free: 1-800-576-7944 | Tel: 1-510-732-1000 | Fax: 1-510-732-1095 www.earthquakesound.com...
