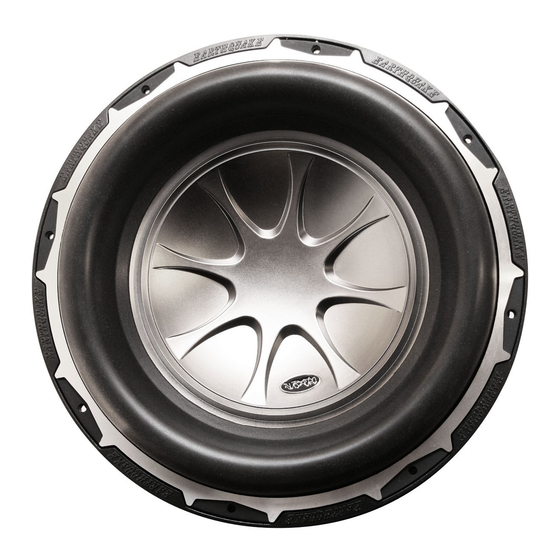

SUBZERO-12
2000 WATTS
Winner of the 2004
Design & Engineering Award
INNOVATIONS
INTERNATIONAL CES
Sealed design for SPL
#1
15"
15"
SUBZERO-12"
Outer dimension shown using 3/4" thick MDF.
Total outer box volume = 1.953 cubic feet.
Bass head design for competition
#4
20.5"
16"
SUBZERO-12"
Outer dimension shown using 3/4" thick MDF.
Total outer box volume = 3.03 cubic feet.
Specifications are subject to change without notice
1" = 2.54 cm
1 cubic foot = 1728 cubic inches
Grille Clearance: 2"
Displacement: .2 Cube Feet
Sealed design for low frequency extension
#2
16.5"
16.5"
SUBZERO-12"
Outer dimension shown using 3/4" thick MDF.
Total outer box volume = 2.2 cubic feet.
Bandpass design
#5
2"
2"
18"
Outer dimension shown using 3/4" thick MDF.
Total outer box volume = 4.31 cubic feet
18.5"
18"
5"
18"
4"
HANDCRAFTED IN USA.
Sealed wedge design for hatch backs or other
#3
tight places.
16"
16"
SUBZERO-12"
Outer dimension shown using 3/4" thick MDF
Total outer box volume = 2.4 cubic feet.
Cut out hole 292mm / 11 1/2"
127mm
5"
13"
Mounting
depth
185mm
7 1/4"
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for EarthQuake SUBZERO-12
Summary of Contents for EarthQuake SUBZERO-12
- Page 1 SUBZERO-12 1” = 2.54 cm 1 cubic foot = 1728 cubic inches 2000 WATTS Grille Clearance: 2” Displacement: .2 Cube Feet Winner of the 2004 Design & Engineering Award INNOVATIONS INTERNATIONAL CES Sealed design for SPL Sealed design for low frequency extension Sealed wedge design for hatch backs or other tight places.
- Page 2 SUBZERO-12 1” = 2.54 cm 1 cubic foot = 1728 cubic inches 2000 WATTS Grille Clearance: 2” Displacement: .2 Cube Feet Winner of the 2004 Design & Engineering Award INNOVATIONS INTERNATIONAL CES Sealed design for tight bass Passive tuned design for deep bass small volume Sealed down firing design 18”...
-
Page 3: To Wire / Fuse Subzero To Amplifier
HOW TO WIRE / FUSE YOUR PSP (Parallel Series Parallel) Terminal SUBZERO TO AN AMPLIFIER 2-channel 2-channel 1-channel The Subzero subwoofer 2-ohm load 2 x 4-ohm load 8-ohm load comes equipped with 2 (voice coils in parallel) (voice coils separated) (voice coils in series) voice coils (dual 2x4 (using 2 fuses) - Page 4 Electro Mechanical Parameters Name = EARTHQUAKE Subzero 12 (broken in) Xmax = 31.7500E-3 M Note = VI MEASURMENTS Krm = 35.5980E-3 Ohm Model = TSL Erm = 805.0000E-3 Domain = FreeAir Kxm = 237.3670E-3 H Shape = Round Exm = 672.0000E-3 Profile = Cone Rms = 3.7712 N·S/M...
