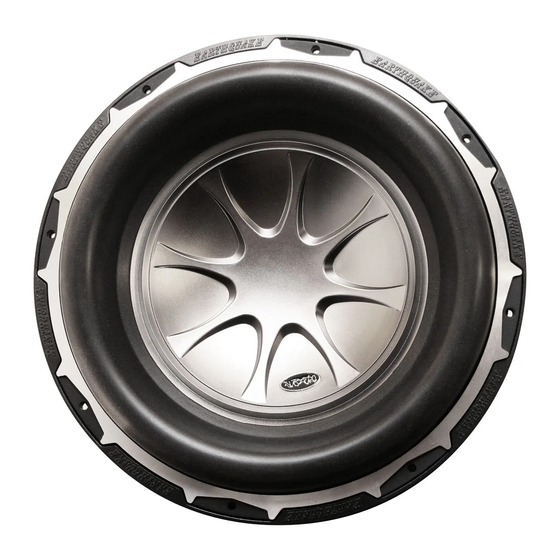

EarthQuake SUBZERO-10 Installation Manual

SUBZERO-10
1500 WATTS
Winner of the 2004
Design & Engineering Award
INNOVATIONS
INTERNATIONAL CES

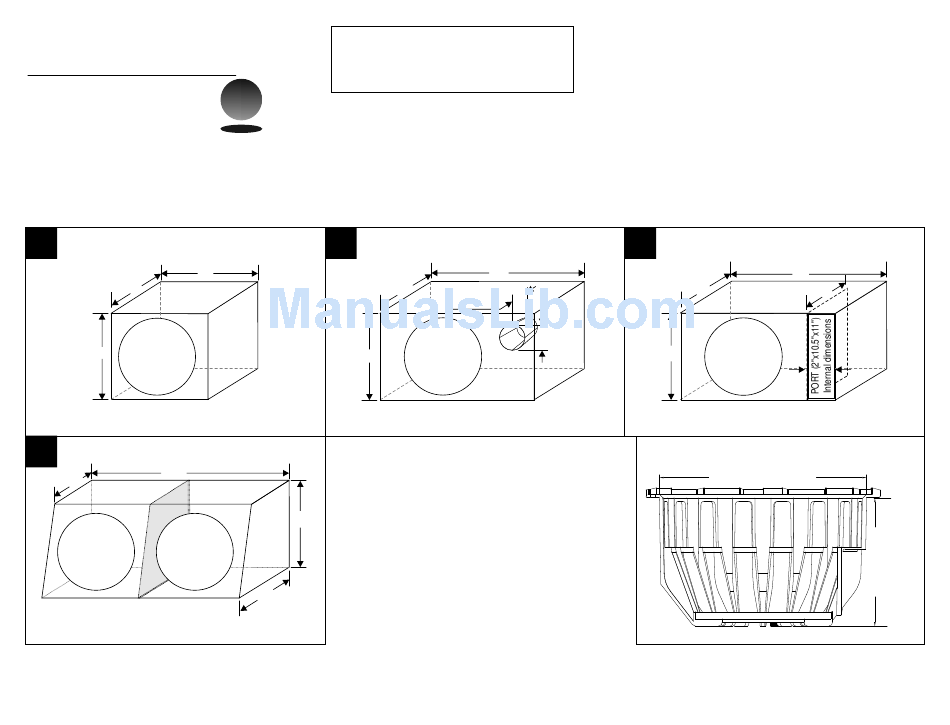

Sealed design for tight bass
#1
12"
11"
12"
SUBZERO-10"
Outer dimension shown using 3/4" thick MDF
Total outer box volume = 0.91 cubic foot .
Sealed design for tight bass
#1
23 1/2"
15"
SUBZERO-10" SUBZERO-10"
Outer dimension shown using 3/4" thick MDF
Total outer box volume = 2.73 / 1.36 per sub
Specifications are subject to change without notice
1" = 2.54 cm
1 cubic foot = 1728 cubic inches
Grille Clearance: 2"
Displacement:
Port tuned design for deep bass
#2
11"
12"
SUBZERO-10"
Outer dimension shown using 3/4" thick MDF.
Total outer box volume = 1.22 cubic feet.
12"
18 1/2"
16"
#2
8 1/2" long
4"
diameter
Port
HANDCRAFTED IN USA.
Ported design
#3
15"
15 1/2"
12"
SUBZERO-10"
Outer dimension shown using 3/4" thick MDF
Total outer box volume = 1.61 cubic feet.
SUBZERO-10
Cut out hole 235mm / 9 1/4"
11"
Mounting
depth
220mm
6 1/2"
