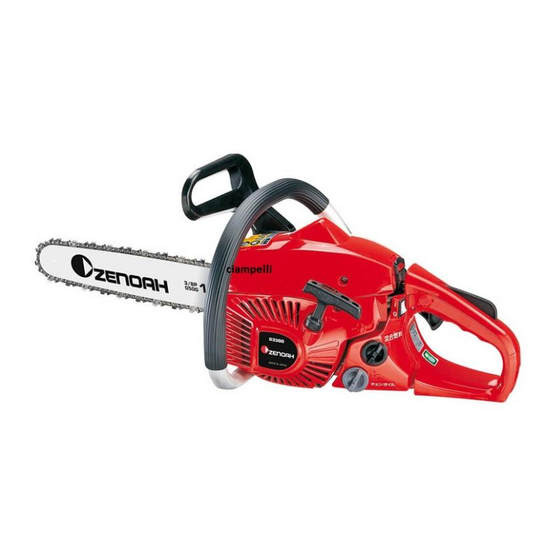

  • Page 1 G3300 / G3300EZ / G3300E 848C3593A3 (905) OWNER’S MANUAL CHAIN SAWS G3300 G3300EZ G3300E GB-1...
  • Page 2 G3300 / G3300EZ / G3300E EXPLANATION OF SYMBOLS AND SAFETY WARNINGS Read operator's instruction Wear head, eye and ear book before operating this protection. machine. Use the chain saw Warning! Danger of with two hands. kickback. Read, understand and Never touch hot surface.
  • Page 3: Table Of Contents

    THAT IT HAS BEEN ISSUED WITH A “CE”CERTIFICATE, NO. M.0303.04.3211 THAT IT HAS BEEN ISSUED WITH A “CE”CERTIFICATE, NO. U3 2692468 01BY (G3300), M.0303.04.3212 (G3300EZ) BY THE ISTITUTO CERTIFICAZIONE TÜV Rheinland Group - TÜV Rheinland InterCert kft. Product Certification - H - EUROPEA PALAZZO DEL VESCOVO - V.
  • Page 4: For Safe Operation

    G3300 / G3300EZ / G3300E 1. For safe operation 1. Never operate a chain saw when you 10. Keep all parts of your body away from are fatigued, ill, or upset, or under the the saw chain when the engine is run- influence of medication that may ning.
  • Page 5 G3300 / G3300EZ / G3300E (3) Make certain that the area in which 22. Guard against kickback. Kickback is you are cutting is free from obstruc- the upward motion of the guide bar tions. Do not let the nose of the guide...
  • Page 6: Explanation Of Symbols On The Machine

    G3300 / G3300EZ / G3300E 2. Explanation of Symbols on the Machine For safe operation and maintenance, symbols are carved in relief on the machine. According to these indications, please be careful not to make any mistake. The port to refuel “MIX GASOLINE”...
  • Page 7 G3300 / G3300EZ / G3300E 5. While holding the chain cover, temporary tighten the nut assembly and fix the bar and chain cover. (You can fix them even by tightening the lever.) Check if the saw chain fits on the bar rail. If not, readjust by loosen the nut assembly.
  • Page 8: Fuel And Chain Oil

    • The Zenoah engines are lubricated by oil specially formulated for air-cooled 2-cycle gasoline engine use. If Zenoah oil is not available, use an anti-oxidant added 1. Select bare ground for fueling. quality oil expressly labeled for air-cooled 2-cycle 2.
  • Page 9: Operating The Engine

    G3300 / G3300EZ / G3300E 5. Operating the Engine It is very dangerous to run a chainsaw that mounts broken parts or lacks any parts. Before starting engine, make sure that all the parts including bar and chain are installed properly.
  • Page 10 G3300 / G3300EZ / G3300E The carburetor on your unit has been factory adjusted, but may require fine tuning due to a change in operat- ing conditions. Before adjusting the carburetor, make sure that the pro- vided air/fuel filters are clean and fresh and the fuel prop- erly mixed.
  • Page 11: Sawing

    G3300 / G3300EZ / G3300E 6. Sawing gine at full speed. If the chain is slow • Before proceeding to your job, to stop or does not stop, replace the read the section “For Safe brake band and clutch drum before Operation”.
  • Page 12: Maintenance

    G3300 / G3300EZ / G3300E A log lying on the ground First check to which side the limb is bent. Then make the initial cut from the bent side and finish by sawing from the opposite side. Be alert to the springing back of a cut limb.
  • Page 13 G3300 / G3300EZ / G3300E PERIODICAL SERVICE POINTS 2. Fuel filter (Every 25 hours use) Using a wire hook, take out the filter from the filler port. Clean away the dirt attached to the filter. Replace with a 1. Air cleaner new one if needed.
  • Page 14: Maintenance Of Saw Chain And Guide Bar

    G3300 / G3300EZ / G3300E 8. Maintenance of Saw Chain and Guide Bar Saw Chain Be sure to round off the front edge to reduce the chance of kickback or tie-strap breakage. It is very important for smooth and safe op- eration to always keep the cutters sharp.
  • Page 15: Troubleshooting Guide

    G3300 / G3300EZ / G3300E 9. Troubleshooting Guide Case 1. Starting failure Case 3. Oil does not come out Check oil for sub- Make sure the icing prevention system is not Replace. standard quality. working. Check fuel for water Replace with proper...
  • Page 16: Specifications

    WHICH HAVE BEEN DAMAGED BY NEGLIGENCE OF THE PURCHASER SHALL BEAR COSTS OF TRANS- INSTRUCTION LISTED IN THE OWNER/OPERATOR PORTING THE UNIT TO AND FROM THE ZENOAH MANUAL FOR PROPER USE AND MAINTENANCE OF DEALER. THE UNITS ACCIDENT MISHANDLING, ALTERATION,...
