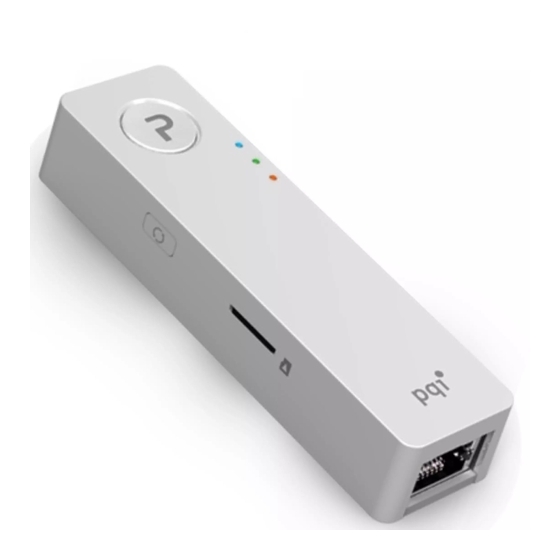

PQI Air Pen User Manual

Wireless portable usb drive
Hide thumbs Also See for Air Pen:
Table of Contents

Advertisement

Quick Links

PQI Air Pen
Wireless Portable USB Drive
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Air Pen and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PQI Air Pen

Summary of Contents for PQI Air Pen

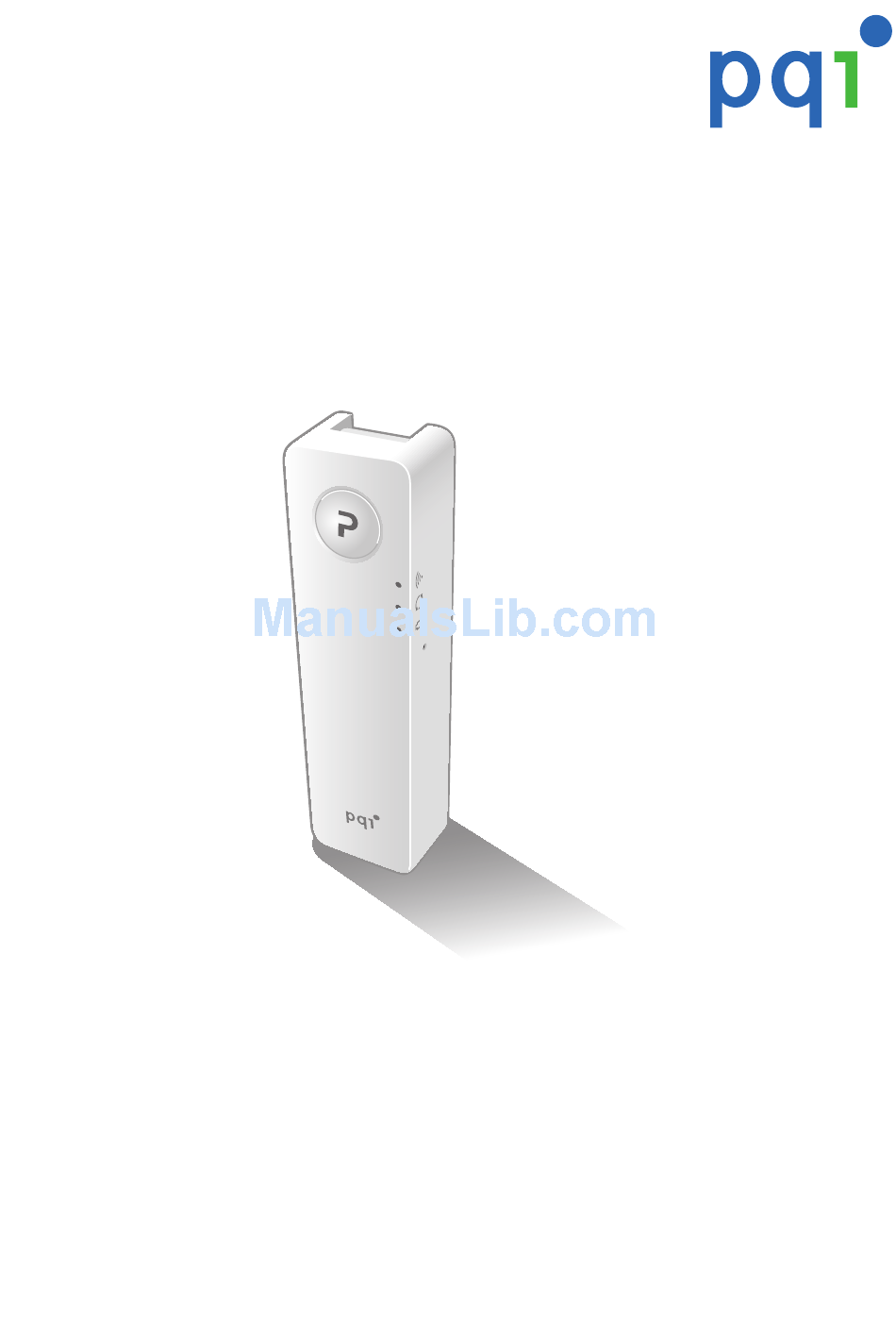

  • Page 1 PQI Air Pen Wireless Portable USB Drive User’s Manual...

  • Page 2: Regulatory And Safety Information

    Air Pen User’s Manual REGULATORY AND SAFETY INFORMATION FCC Compliance and Advisory Statement This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 3: Ncc/Dgt Advisory Statement

    Air Pen User’s Manual NCC/DGT Advisory Statement Article 12 Any changes or modifications to the frequency, amplifier power, or original specifications and functionality of this certified low-power radio without express approval is prohibited. Article 14 Operation of the low power radio shall not interfere with aviation safety and legitimate communication;...

  • Page 4: Table Of Contents

    Powering the Device On/Off ..................7 Transferring Data from a PC ..................7 Using the microSD Slot ....................8 Resetting the Device ....................8 USING THE PQI AIR PEN+ APPLICATION............11 Main Screen ......................... 11 Viewing Photos ......................12 Playing Music ......................13 Viewing Videos ......................14 Viewing My Folder ....................

  • Page 5: Introduction

    5 wireless devices to the Internet simultaneously • Secure wireless setup • Free downloadable PQI Air Pen+ application for data playback and management on iOS and Android devices • High-capacity storage, supporting microSD/SDHC card up to 32 GB •...

  • Page 6: Product Overview

    Air Pen User’s Manual Product Overview 1. Power button 4. Battery indicator LED 7. USB connector 2. Wi-Fi indicator LED 5. Sync button 8. Reset pinhole 3. Sync indicator LED 6. microSD slot 9. Ethernet (RJ-45) port LED Indicators The LED indicators light up or blink when a particular function of the device is active.

  • Page 7: Getting Started

    Air Pen User’s Manual GETTING STARTED Charging the Device Before using this device for the first time, you need to charge the device. Simply insert the USB connector on the device to an available USB port on your computer. The battery indicator LED turns off when charging is complete.

  • Page 8: Using The Microsd Slot

    Air Pen User’s Manual Connecting to a PC 1. Plug the USB connector into an available USB port on your computer. Your computer automatically detects the device. 2. Copy the desired files to a folder on your computer, or select files from your computer and drag them into respective folders in the device.
  • Page 9 New iPad, iPad Mini. (iOS4.0 or above is recommended) Installing the PQI Air Pen+ Application You need to install the PQI Air Pen+ application on your smartphone or tablet PC to enable wireless access to files stored in the Air Pen.
  • Page 10 Air Pen User’s Manual Connecting to the Air Pen via Wi-Fi a. Android Devices 1. Go to Settings. 2. In WIRELESS & NETWORKS, tap Wi-Fi and set it to ON. Available networks are listed. 3. Tap PQI Air Pen to connect to the device.

  • Page 11: Using The Pqi Air Pen+ Application

    Air Pen User’s Manual USING THE PQI AIR PEN+ APPLICATION Main Screen Launch the PQI Air Pen+ application. The main screen is displayed on the screen. Android Devices iOS Devices           ...

  • Page 12: Viewing Photos

    Air Pen User’s Manual Viewing Photos 1. Tap Image to view photos. 2. Tap a thumbnail to view it in full screen, and then swipe across the screen to view other photos. Android Devices iOS Devices Save Photos Android Devices To save the desired photo(s): a.

  • Page 13: Playing Music

    Air Pen User’s Manual Sharing Photos (iOS devices only) > Share. 1. Tap 2. Select the photo(s) that you want to share via a sharing application. A “ “ icon appears on the selected photo(s). 3. Tap > Email or Facebook.

  • Page 14: Viewing Videos

    Air Pen User’s Manual Viewing Videos Android Devices iOS Devices 1. Tap Videos to play back videos. 2. Select the video you want to play. The video opens in full screen. 3. During playback, tap the on-screen controls to play, pause, or stop the video, or adjust the volume.

  • Page 15: Viewing My Folder

    Tap More > My Folder to view the folders and files stored in your iOS device. Android Devices iOS Devices Uploading Files from Your Smartphone/Tablet PC to Air Pen a. Android Devices Android Devices 1. Press Menu, and then tap Upload.

  • Page 16: Deleting Files

    Air Pen User’s Manual Deleting Files a. Android Devices 1. Select the file(s). A “ “ icon appears on the selected item. Menu > Delete. 2. Press 3. Tap OK to confirm. b. iOS Devices > Delete. 1. Tap 2. Select the file and tap the icon.

  • Page 17: Configuring Settings

    Tap Firmware Upgrade to upgrade to the latest firmware. 2NOTES: • For the availability on the latest firmware update, visit the company website. • Be sure to copy first the latest firmware into the Air Pen via PC connection. EN-17...

  • Page 18: Web Management

    • To configure the network connection, click the Configuration tab on the left panel. Change the necessary settings. To view the file directory on the Air Pen, tap File List tab on the left panel. • 2NOTES: • If you forget the login ID or password, reset the device to the factory default settings.

  • Page 19: Air Pen Configuration

    • To specify the IP address on the Air Pen, set the WAN mode setting to STATIC. • The minimum password length is 8. However, you can set the password up to 63 alphanumerical characters (case sensitive).

  • Page 20: Connecting To A Hotspot

    To sync files between the two devices, do the following: 1. Press the Sync button on the PQI Air Bank. 2. Press the Sync button on the PQI Air Pen. The files in the Air Pen will be copied to the Air Bank.

  • Page 21: Specifications

    Embedded Lithium-ion battery Dimensions 16.5 x 91.5 x 25 mm (0.64” x 3.57” x 0.98”) Weight 40 g ± 2 g (1.4 oz) Environment 0°C to 40°C Other Information 1 year warranty Applications Dedicated Mobile App: PQI Air Pen+ EN-21...
