PQI Cool Drive U310 Product Manual

Bb17 series
Hide thumbs


Advertisement

USB Flash Drive

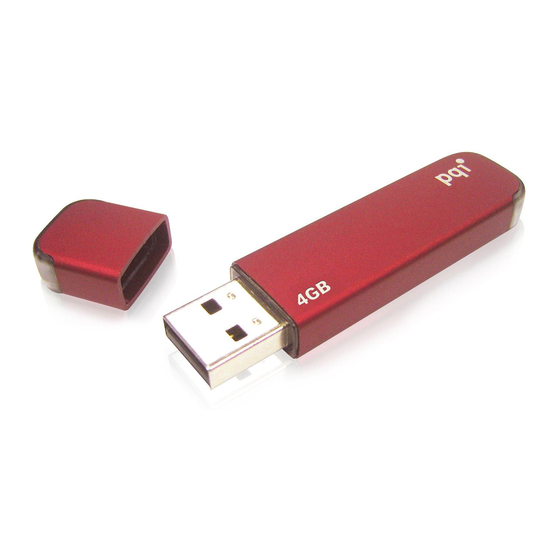

Cool Drive U310
BB17 Series
Rev. A.0
Sep 2006

Advertisement

Table of Contents
loading

  Related Manuals for PQI Cool Drive U310

  Summary of Contents for PQI Cool Drive U310

  • Page 1 USB Flash Drive Cool Drive U310 BB17 Series Rev. A.0 Sep 2006...
  • Page 2: Table Of Contents

    USB Flash Drive Table of Contents 1. Introduction to Cool Drive ……...……... 1 2. Main Features Overview …………..………...……...……………………………..…… 1 3. Hardware Specification ………………………………………..….………….……………………… 1 ………………………………………………….…...……………………………… 1 3.1 USB Interface ………………………………….………………...………………………. 1 3.2 NAND Flash Interface ……………………………………………………………...………………………… 1 3.3 OS Support ………………………………………………………..…...……………………….
  • Page 3: Usb Flash Drive

    “PQI reserves the right to make changes without notification when fit, form, function, quality and reliability are not affected. The data sheets do not constitute contract documents and should not be considered part of the specification for purposes of any warranty.”...
  • Page 4: Introduction To Cool Drive

    USB Flash Drive 1. Introduction to U310 The U310 gives you portability and security to offer you a peace of mind. Compatible with USB 2.0 / 1.1 specifications with low power consumption and data protection. 2. Main Features Overview ♦ Compact metallic casing with futuristic design ♦...
  • Page 5: Block Diagram

    USB Flash Drive 4. Block Diagram 8051 Micro Controller Data / Address USB2.0 USB 2.0 USB1.1 USB2.0 or Interface 1.1 Port Host PLL, REG 5. Absolute Maximum Ratings Symbol Parameter Tstorage Storage Temperature Ambient Operating Temperature Vcc3 3.3V Supply Voltage Vcc18 1.8V Supply Voltage Vin3.3...
  • Page 6: Dc Characteristics

    USB Flash Drive 6. DC Characteristics Symbol Parameter Supply voltage for VCC3 or VCC3A Regulator output voltage for VCC or DD18 VCCA Input Low Voltage Input High Voltage Output Low Voltage (IOL=4mA) Output High Voltage (IOH=4mA) Input pin capacitance Supply current Suspend current (D+1.5KΩ) 7.
  • Page 7: Physical Specifications

    USB Flash Drive 9. Physical Specifications 9.1 Dimensions: 9.1.1 Height: 66.5mm 9.1.2 Width: 16.6mm 9.1.3 Depth: 8.0mm 9.1.4 Weight: 11.9g ± 1g 9.2 Outline of top view Rev. A.0 Sep 2006...
