- Page 1 Intelligent Stick™ Intelligent Stick Pro170 BD09 Series Rev. A.0 Sep 2006...
-
Page 2: Table Of Contents
Intelligent Stick™ Table of Contents 1. Introduction to Intelligent Stick 2. Main Features Overview ………..………...……...…...……………………………...… 1 3. Hardware Specification ………………………………………….………….……………………..… 1 ………………………..………………………..…...…….………...……………… 1 3.1 USB Interface ……………………………………………...….…...………………. 1 3.2 NAND Flash Interface ………………………………………………………...…...……..…...…………… 1 3.3 OS Support ……………………………………………………..……...………...………... 1 3.4 Product Capacity 4. -
Page 3: Revision History
“PQI reserves the right to make changes without notification when fit, form, function, quality and reliability are not affected. The data sheets do not constitute contract documents and should not be considered part of the specification for purposes of any warranty.”... -
Page 4: Main Features Overview

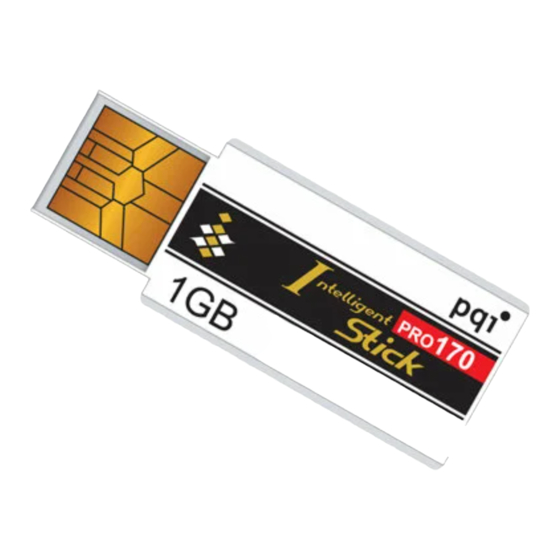

Introduction to Intelligent Stick The Intelligent Stick Pro 170 is a PQI patented technology. It combines characteristics of a flash card and a USB flash drive. It does not need a card reader to read from or write to thus making it the perfect storage medium for all types of digital devices. -
Page 5: Block Diagram
Intelligent Stick™ 4. Block Diagram 8051 Micro Controller Data / Address USB2.0 USB 2.0 USB1.1 USB2.0 or 1.1 Port Interface Host PLL, REG 5. Absolute Maximum Ratings Symbol Tstorage Storage Temperature Ambient Operating Temperature Vcc3 3.3V Supply Voltage Vcc18 1.8V Supply Voltage Vin3.3 3.3V Buffer Input Voltage Vin3/5... -
Page 6: Dc Characteristics
Intelligent Stick™ 6. DC Characteristics Symbol TTL Input High Voltage IH_TTL TTL Input Low Voltage IL_TTL TTL Output High Voltage OH_TTL TTL Output Low Voltage OL_TTL TTL Output High Current OH_TTL TTL Output Low Current OL_TTL USB Input High Voltage for Low-/full-speed IH_USB USB Input Low Voltage for Low-/full-speed IL_USB... -
Page 7: Recommended Operating Conditions
Intelligent Stick™ 7. Recommended Operating Conditions Symbol Parameter Power Supply Voltage Input Voltage Internal Power Support 8. Pin Assignments Pin No. Pin Name USB D- USB D+ Rev. A.0 Min. 2.25 USB power input USB differential signal The pairs are used to transmit Data/Address/Command Ground Typical Max. -
Page 8: Physical Specifications
Intelligent Stick™ 9. Physical Specifications 9.1 Dimensions: 9.1.1 Height: 43mm 9.1.2 Width: 18mm 9.1.3 Depth: 2.8mm 9.1.4 Weight: 2.7g ± 0.5g 9.2 Outline of top view Rev. A.0 Sep 2006...
