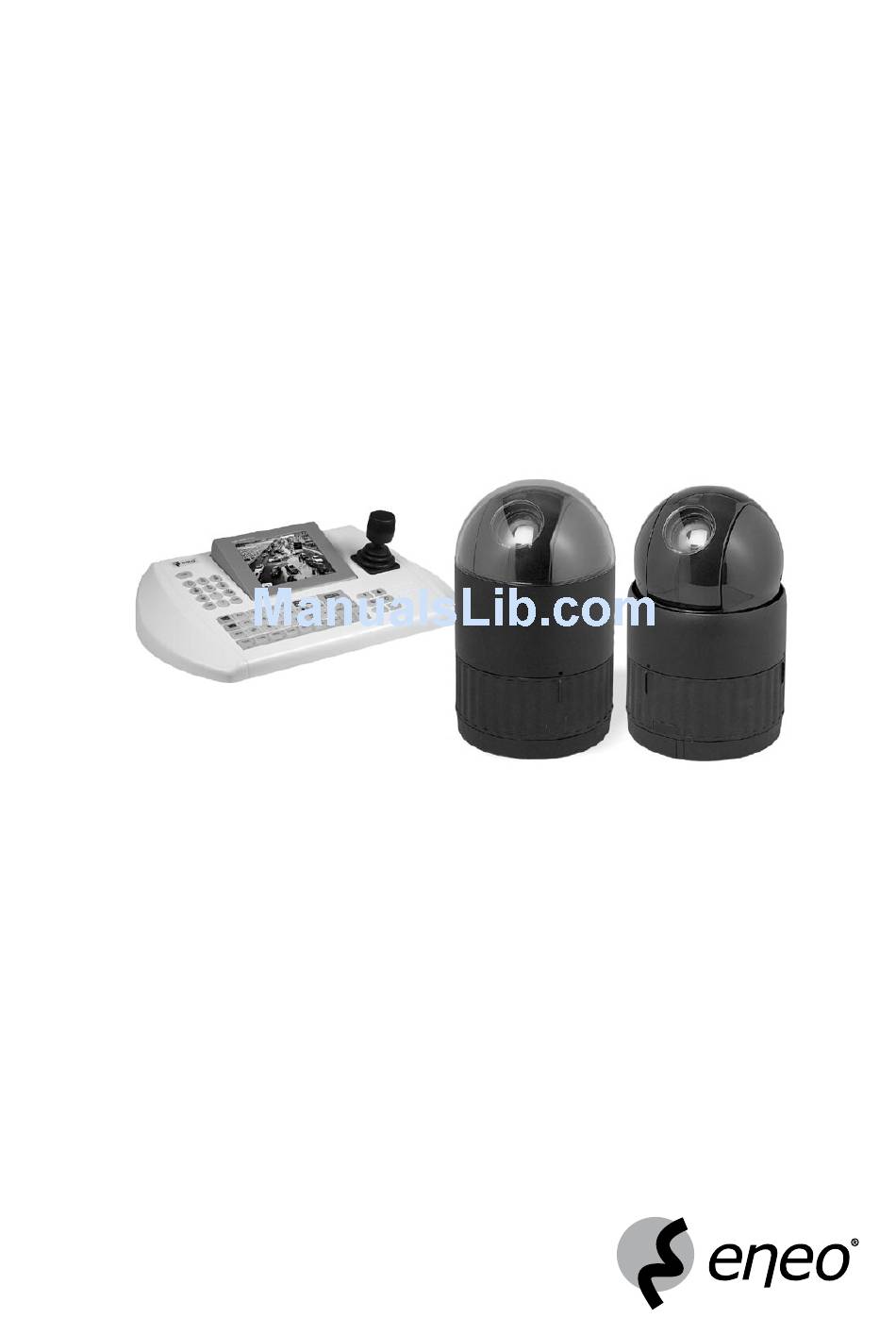

- Page 1 Installation and Operating Manual Fastrax Dome Video Camera for Ceiling and Wall Mounting EDC-141E, EDC-143E, EDC-144E, EDC-142E2...
-
Page 2: Table Of Contents
Contents Introduction ..........................................3 Features ........................................... 3 Installation and Configuration ....................................5 Package Contents ........................................5 Basic Configuration of Fastrax II Dome Camera System ............................6 .. Single Multiplexer ........................................7 .. Single User with Two Multiplexer ....................................8 ..3 Two Multiplexer with Slave Keyboard Controller ................................ -
Page 3: Introduction
1.1 Features The Fastrax II Keyboard Controller and the Fastrax II dome cameras make up the building blocks for any surveillance/security system. Using multiple Keyboard Controllers and multiple dome cameras, no place is too large for monitoring. Extensible and flexible architecture facilitates remote control functions for a variety of external switching devices such as multiplexers and DVRs. - Page 4 up to 55 multiplexer Alarm Input (up to 8) <Sensor> up to 99 DVR Alarm <Siren> Output (up to 4) <Flashing light> up to 3 cameras J-box Master keyboard up to 3 Slave keyboards Figure - Typical System Configuration push bubble ring ass’y remove...
-
Page 5: Installation And Configuration
The package contains the following: x Fastrax II E (Dome Camera) x Bubble Ring x Instruction Manual (This Document) 3x Assembly Screws for Attaching Fastrax II E 3x Plastic Anchor x 0Pin Connector x Pin Connector CAUTION: Be sure to have caution labels (E version only) on both body and base of the camera. -
Page 6: Basic Configuration Of Fastrax Ii Dome Camera System
2.2 Basic Configuration of Fastrax II Dome Camera System Power 4VAC STP AWG #4 Alarm output Alarm input ~ ~ 4 Power 4VAC Sensor Alarm input up to 8 Dome+ Siren Dome– Light Alarm output Monitor Alarm output... -
Page 7: Single Multiplexer
2.2.1 Single Multiplexer Power Power Power 4VAC 4VAC 4VAC AWG #4 Spot Monitor Main Monitor Multiplexer RS-485 (–) Pin No. 4 RS-485 (+) Pin No. 6 J-Box (Back) J-Box (Front) Rear Keyboard controller Figure 5 - Single Multiplexer... -
Page 8: Single User With Two Multiplexer
2.2.2 Single User with Two Multiplexer Power Power Power 4VAC 4VAC 4VAC AWG #4 st Main Monitor Spot Monitor nd Main Monitor st Multiplexer nd Multiplexer RS-485 (–) Pin No. 4 RS-485 (+) Pin No. 6 J-Box (Back) J-Box (Front) Spot output of the first multiplexer to be connected to 6 input of the second multiplexer. -
Page 9: Two Multiplexer With Slave Keyboard Controller
2.2.3 Two Multiplexer with Slave Keyboard Controller Power Power Power 4VAC 4VAC 4VAC AWG #4 Spot Monitor Spot Monitor for Slave K/B for Master K/B st Main Monitor nd Main Monitor st Multiplexer nd Multiplexer RS-485 (–) Pin No. 4 RS-485 (+) Pin No. -
Page 10: Two Multiplexer With Slave Keyboard Controller (Method )
2.2.4 Two Multiplexer with Slave Keyboard Controller (method 2) Power Power Power 4VAC 4VAC 4VAC AWG #4 Spot Monitor Spot Monitor st Main Monitor nd Main Monitor for Slave K/B for Master K/B st Multiplexer nd Multiplexer RS-485 (–) Pin No. 4 RS-485 (+) Pin No. - Page 11 Termination switches Addresses (ID) and protocol selection switches Figure 9 - Layout of Switches 2.3 Setting Unit for Termination The device which is connected at end of line, whether it is a dome camera or keyboard controller, must have the cable for communication terminated by setting the appropriate DIP switch.
-
Page 12: Setting Address (Id) Of Dome Camera
Figure - Termination Diagram 2.4 Setting Address (ID) of Dome Camera To prevent damage, each dome camera must have a unique address (ID). When installing multiple dome cameras using a multiplexer, it is suggested that the dome camera address matches the multiplexer port number. If you wan to set the address more than 999, you should connect the service provider. -
Page 13: Setting Protocol Of Dome Camera
2.5 Setting Protocol of Dome Camera If a dome camera is to be installed with a Fastrax keyboard controller, select F protocol. Consult service personnel if a dome camera is installed with device other than a keyboard controller. Function S4-... -
Page 14: Connection
LCD. RAM TEST CHECK NO. : OK! CHECK AAAA : OK! CHECK 5555 : OK! FASTRAX II E Vx.xxx CAMERA TYPE xxxx WAIT DOME SETTING. INIT TILT ORGIN SET OK INIT PAN ORGIN SET OK INIT CAMERA SET OK PRESET No. -
Page 15: Program And Operation
3. Program and Operation 3.1 Selecting Dome Camera Before you program or operate a dome camera, you must select the dome camera by pressing the dome camera No. + CAM successively. Example: Pressing 1, 0 and CAM key sequentially will select dome camera 0. The selected dome camera ID will be displayed on the LCD monitor of the keyboard controller. -
Page 16: Auto Scan
3.4 Auto Scan (First Item of the Main menu / Shortcut: Scan) The Auto scan supports up to 8 programmed angles at user-programmable speeds. Follow these steps to program Auto Scan: AUTO SCAN SETUP SCAN 0 : AUTOSCAN0 SPEED(MODE) : FAST VECTOR START ANGLE : 7., 07.7 X7 END ANGLE... -
Page 17: Preset
3.5 Preset (Second Item of the Main menu / Shortcut: Prst) If you need to view specific locations routinely, you should program presets. A preset is a programmed video scene with automatic pan, tilt, zoom, focus and iris settings. Once programmed, entering the number and pressing a Preset button on your controller automatically calls up the preset. In addition, presets may be assigned to alarm actions or as the „home”... -
Page 18: Shortcut Of Preset Program
3.6 Shortcut of Preset Program Select a view to be stored (direction of the camera, zoom and focus), then press No. (1 to 240), and then press Pgm, Prst subsequently. The current view will be stored to the selected preset number if position is empty. If selected preset number is not empty, „PRESET EXISTING” message will be displayed on the monitor and ask to overwrite. -
Page 19: Pattern
4. To add a stored preset as a Tour, twist the Zoom handle or press Zoom Key (Programmed preset will scroll). To remove a stored preset from the Tour, press the Home key, blank position mark (===) will be displayed. You can overwrite the programmed position. 5. -
Page 20: Alarm
3.9 Alarm (This menu shows on only specific model, Fifth Item of Main menu) ALARM SETUP PRI PRS HLD LATCH 00 OFF 00 OFF OUT OUT OUT4 00 OFF 00 OFF OUT OUT OUT4 SAVE AND EXIT (ESC TO CANCEL) NO : Alarm input number PRI :... -
Page 21: Privacy Zone
Pages can be scrolled through by pushing the Joystick to the left or right on the first or last column of the menu. Pushing the Joystick to left on the „NO” column (0 ~ 08) of the menu to scroll to the previous page. Push the Joystick to right on the „END” column to go to the next page. . -
Page 22: Focus Control
AF SENSITIVITY : HIGH EXIT(ESC TO EXIT) EXIT(ESC TO EXIT) MODE: AUTO / MANUAL Use manual mode in normal use. HIGH / LOW (only EDC-141E, Art. No. 74086; EDC-144E, Art. No. 74100) AF SENSITVITY: HIGH: Use this option when shooting fast motion. LOW: Offers better focus stability. - Page 23 • WB (white balance) CONTROL EDC-141E EDC-144E WB SETUP MODE : AUTO R GAIN : 0 B GAIN : 55 EXIT (ESC TO EXIT) MODE : MANUAL / AUTO / INDOOR / OUTDOOR / ONE PUSH / ATW RGAIN :...
- Page 24 • AE CONTROL EDC-141E EDC-144E AE SETUP MODE : FULL AUTO SLOW SHUTTER : MANUAL IRIS : F.4 GAIN : 0 DB BRIGHT : 4 SHUTTER : /60 EXIT (ESC TO EXIT) MODE FULL AUTO / MANUAL / IRIS PRIO / SHUTTER PRIO / BRIGHT SLOW SHUTTER AUTO / MANUAL –...
-
Page 25: Night Shot Menu
EDC-142E2 AE SETUP MODE : FULL AUTO SLOW SHUTTER : AUTO IRIS : F.6 GAIN : DB BRIGHT : 30 SHUTTER : AUTO WDR MODE : ON DNR MODE : OFF EXIT (ESC TO EXIT) MODE : FULL AUTO / SHUTTER PRIO / IRIS PRIO / AGC / MANUAL SLOW SHUTTER : AUTO / OFF, ON (MANUAL, SHUTTER PRIO Mode) IRIS :... -
Page 26: Dome Setup
3.13 Dome Setup (Ninth Item of Main menu) CONFIGURATION MENU LANGUAGE SETUP HOME FUNCTION SETUP OSD DISPLAY VIEW ANGLE SETUP INITIALIZE DATA ORIGIN OFFSET DOME RESET SYSTEM INFORMATION EXIT (ESC TO EXIT) • LANGUAGE SETUP LANGUAGE SETUP LANGUAGE : ENGLISH SAVE AND EXIT (ESC TO EXIT) LANGUAGE : Select the language you want. -
Page 27: Osd Display Setup
• OSD DISPLAY OSD DISPLAY SETUP CAMERA TITLE : DOMEID VIEW DIRECTION : OFF DOME OSD DISPLAY : ON AREA DISPLAY : OFF SAVE AND EXIT (ESC TO CANCEL) CAMERA TITLE : 8 CHARACTER CAN BE SET VIEW DIRECTION : ON / OFF DOME OSD DISPLAY : ON / OFF... -
Page 28: Initialize Data
• PANNING RANGE When the dome camera is installed near wall, panning range could be programmed by user. PANNING RANGE SETUP RIGHT LIMIT : 000.0 LEFT LIMIT : 000.0 ENABLE SWAP : RIGHT/LEFT SAVE AND EXIT (ESC TO CANCEL) • FLIP Allows the dome camera to automatically turn 80 degrees when the camera tilts to its lower position. -
Page 29: Origin Offset
• ORIGIN OFFSET OFFSET SETUP PAN OFFSET : 000.0 TILT OFFSET : 00.0 ENABLE : ON SAVE AND EXIT (ESC TO CANCEL) This feature is useful to align a replaced dome camera to the exactly same position as the previously installed dome camera. Dome camera’s origin set and all data initialize option do not override offset values. -
Page 30: Glossary
5. Glossary Alarm Actions The assigned responses for the dome camera when inputs change from normal to abnormal states. The dome may run a Preset, Pattern, or have no assigned action for each of the four dome inputs. The dome may also send alarm states to the host controller for processing. -
Page 31: Short-Cut Key
6. Short Cut Key Short Cut Key Function PRST Pop up preset setup menu TOUR Pop up guard Tour setup menu PTRN Pop up Pattern setup menu SCAN Pop up Auto Scan setup menu NO.+ PGM + PRST Store the current view at the selected number NO.+ PGM + TOUR Pop up tour setup menu at the selected number NO.+ PGM + SCAN... -
Page 32: Specifications
7. Specifications Model EDC-141E EDC-143E EDC-144E EDC-142E2 Art. No. 74086 7409 7400 747 Video standard CCIR/PAL System Day&Night Sensor size /4” Imager CCD, Sony ExView HAD CCD, Sony Progressive Scan CCD, Sony ExView HAD CCD, Sony Super HAD Inter- Interline Transfer CCD... - Page 33 Model EDC-141E EDC-143E EDC-144E EDC-142E2 Art. No. 74086 7409 7400 747 Application range security Nominal format size /4” Aspherical technology Focal length 4,-73,8mm 3,6-8,8mm 3,5-9mm 3,9-85,8mm Horizontal angle of view 48-,7° 54-,5° 54,-,° 50-,46° Digital Zoom x ~ x x ~ 0x –...
- Page 34 Converter RS-3/RS-485, Repeater RS-485 74095 EDC-PBP Protocol Converter BiPhase to RS-4, RS-485 for EDC Dome Cameras, VDC 74124 FASTRAX_CONFIG Configuration Software for Eneo Fastrax, Minitrax Dome Cameras and VKC-46 70527 NE-132/AC24V Power Supply Unit 30VAC/4VAC (.0A) 70449 NE-128 Voltage supply unit 30V/4VAC-5A, IP66...
-
Page 35: Dimensional Drawings
8. Dimensional Drawings Dimensions: mm... - Page 36 eneo is a registered trademark of Videor Technical E. Hartig GmbH ® Exclusive distribution through specialised trade channels only. VIDEOR TECHNICAL E. Hartig GmbH Carl-Zeiss-Straße 8 · 633 Rödermark/Germany Tel. +49 (0) 6074 / 888-0 · Fax +49 (0) 6074 / 888-00 Technical changes reserved.
