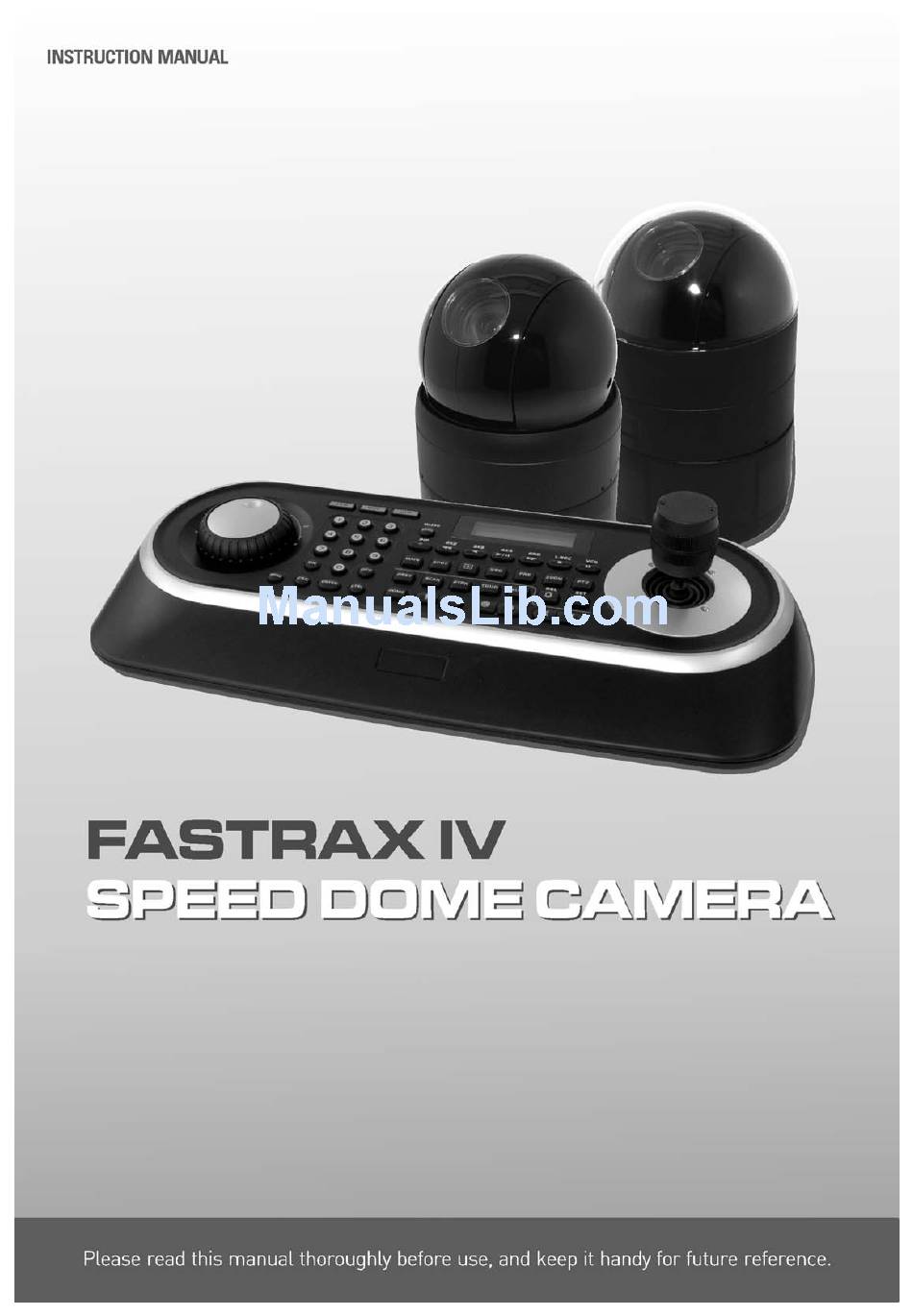

Fastrax IV Instruction Manual

Speed dome camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IV and is the answer not in the manual?

Questions and answers

Related Manuals for Fastrax IV

Summary of Contents for Fastrax IV

  • Page 2: Explanation Of Graphical Symbols

    WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECTS THROUGH THE VENTILATION GRILLS OR OTHER OPENINGS ON THE EQUIPMENT. CAUTION EXPLANATION OF GRAPHICAL SYMBOLS The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage"...

  • Page 3: Fcc Compliance Statement

    FCC COMPLIANCE STATEMENT FCC INFORMATION: THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A COMMERCIAL ENVIRONMENT.

  • Page 4: Important Safeguards

    IMPORTANT SAFEGUARDS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

  • Page 5: Table Of Contents

    1.1 Features..........................1 Chapter 2 — Installation and Configuration..............3 2.1 Package Contents......................3 2.2 Basic Configuration of Fastrax IV Dome Camera System ..........4 2.3 Setting Dome Camera Termination................. 5 2.4 Fail-safe Network ......................6 2.5 Setting Dome Camera Address (ID) ................7 2.6 Setting Dome Camera Protocol..................
  • Page 6 3.11 Event History......................... 32 3.12 Camera Menu Type 1....................33 3.12.1 Auto Focus ..........................33 3.12.2 WB (White Balance) Control....................33 3.12.3 Auto Exposure ........................34 3.12.4 DIS (Digital Image Stabilization)..................35 3.12.5 Camera Setup ........................36 3.13 Camera Menu Type 2....................37 3.13.1 Auto Focus ..........................

  • Page 7: Chapter 1 - Introduction

    Chapter 1 — Introduction 1.1 Features The Fastrax IV dome camera and the keyboard controller make up the building blocks for any surveillance/security system. Using multiple Keyboard Controllers and multiple dome cameras, no place is too large for monitoring. Extensible and flexible architecture facilitates remote control functions for a variety of external switching devices such as multiplexers and DVRs.
  • Page 8 Note : It is recommended to remove camera window for improving picture quality when you use bubble ring ass’y. CAUTION : When installing a Fastrax dome on a high pole outside, caution should be taken to avoid vibration and shaking of Fastrax dome due to windload or shock of passing heavy vehicles.

  • Page 9: Chapter 2 - Installation And Configuration

    2.1 Package Contents The package contains the following. Fastrax IV (Dome Camera) ………………………1 Bubble Ring ………………………1(Optional) Instruction Manual (This Document) ………………………1 Assembly Screws for Attaching Fastrax IV ………………………3 Plastic Anchor ………………………3 10Pin Connector ………………………1 12Pin Connector ………………………2 CAUTION : Be sure to have caution labels (E version only) on both the body and the base of the camera.

  • Page 10: Basic Configuration Of Fastrax Iv Dome Camera System

    2.2 Basic Configuration of Fastrax IV Dome Camera System Figure 4 – Basic installation diagram The dome camera must be installed by qualified service personnel in accordance with all local and federal electrical and building codes. The system should be installed according to...

  • Page 11: Setting Dome Camera Termination

    Figure 5 – Layout of Switches 2.3 Setting Dome Camera Termination The device which is connected at end of line, whether it be a dome camera or keyboard controller, must have the cable for communication terminated by setting the appropriate DIP switch.

  • Page 12: Fail-Safe Network

    2.4 Fail-safe Network When you control the dome by the other device not own keyboard, some error may be existed in the serial communication. The reason is caused by the other device without the fail-safe network. At this time, you solve the problem to set this DIP switch to ON of the nearest dome from the other device only.

  • Page 13: Setting Dome Camera Address (Id)

    2.5 Setting Dome Camera Address (ID) To prevent damage, each dome camera must have a unique address (ID). When installing multiple dome cameras using a multiplexer, it is suggested that the dome camera address match the multiplexer port number. If you want to set the address more than 999, you should contact the service provider. Example: Port 1 = Dome 1, Port 2 = Dome 2 …...

  • Page 14: Setting Dome Camera Protocol

    2.6 Setting Dome Camera Protocol If a dome camera is to be installed with a Fastrax keyboard controller, select the default protocol. Consult service personnel if a dome camera is installed with device other than a keyboard controller. UNCTION NTSC...

  • Page 15: Connections

    2.7 Connections • Connecting to the RS485/ 422 The dome camera can be controlled remotely by an external device or control system, such as a control keyboard, using RS485 half-duplex, RS422 full duplex or simplex serial communications signals. Connect Marked Tx+, Tx- to Tx+(Rx+) and Tx-(Rx-) of the RS485 control system.

  • Page 16: Getting Started

    2.8 Getting Started Once installed apply power to the dome camera. The dome camera will start a configuration sequence. TIME and DATE PRESET TITLE AREA TITLE 2010/01/22 AM 10:18:45 AF AE STATUS of STATUS of FUNCTION FOCUS and AE FOCUS and AE UNDER RUNNING CAMERA TITLE EMPTY DATA...

  • Page 17: Chapter 3 - Program And Operation

    Chapter 3 — Program and Operation 3.1 Dome Camera Selection Before you program or operate a dome camera, you must select the dome camera by pressing the dome camera No. + CAM Example: Pressing 1 , 0 and CAM key sequentially will select dome camera 10. The selected dome camera ID will be displayed on the LCD monitor of the keyboard controller.

  • Page 18: Auto Scan (Shortcut: Scan)

    3.4 Auto Scan (Shortcut: SCAN) The Auto scan supports up to 17 programmed angles at user-programmable speeds. NUMBER : 01 -08, 10-17, 09:AUTO PAN mode TITLE : up to 12 characters. MODE : NORMAL, VECTOR, RANDOM (AUTO PAN Mode: NORMAL, RANDOM only) NORMAL : Move from start point to end point in panning only.
  • Page 19 5. Select “MODE”. 6. Set “Scan Direction” to CCW or CW. 7. Select “SWAP” Set to ON, to exchange the start angle and the end angle. 8. Select “Start Angle” and Push the Joystick left or right. Hold down the CTRL key while selecting the start position using the Joystick.
  • Page 20 b. Save and exit from the menu. c. In normal mode, call a preset to be the end point of scan. Press 3 + PRST then press Scan key to enter the Auto Scan menu. Move the cursor position to END ANGLE. Just press CTRL key at the end angle position.

  • Page 21: Preset (Shortcut: Prst)

    3.5 Preset (Shortcut: PRST) If you need to view specific places routinely, you should program presets. A preset is a programmed video scene with automatic pan, tilt, zoom, focus, and AE settings. Once programmed, placing the number position and pressing a PRST button on your controller calls up that preset automatically.
  • Page 22 5. After selecting a preset position, press and hold CTRL, Use the Joystick to control the direction of the camera and lens. 6. After aiming the camera (view direction and lens control), release CTRL. 7. Select “Event Function” and pushing the Joystick left or right. Then the event function setup displays.
  • Page 23 8. Set the “Auto Exposure” Refer to the AE SETUP in the camera setup. 9. Repeat steps 2 through 8 for each additional preset position. 10. Select Save by pushing the Joystick to the right. Press Cancel to exit the Preset menu without saving.

  • Page 24: Event Function

    3.5.1 Event Function You can set a preferred function in specified preset position. All available functions are like below. Motion : You can detect a moving object in specified preset position. Tracking : You can make a camera follow the moving object automatically (In case of catching more than 1 moving objects at the same time, a bigger object will be tracked).

  • Page 25: Motion

    3.5.2 Motion You can detect moving objects in specified preset position. You can see the results by either “Bounding Box” or “Trace”. As a result of motion, screen will display the bounding box or trace. (“Bounding box” means you can see a virtual rectangle on moving object. In prior of this, you make sure that you set “On”...
  • Page 26 Exclusion Area: You can set inactive area of Motion detection on this Menu. To avoid false alarm, we recommend you to exclude areas like trees with swaying branches or street with walking people. Set Area : Locate the cursor on the “Set Area” and then twist Joystick and then move Green grid to the position.

  • Page 27: Tracking

    3.5.3 Tracking You can make a camera follow the moving object automatically (In case of catching more than 1 moving objects at the same time, a bigger object will be tracked) Zoom Enable : Set to enable or disable linked zoom capability during tracking. Return Time : Set the dwell time before move to previous position once tracking is inactive.

  • Page 28: Cross

    - Target movement that is very fast or very slow - When the moving objects are either large or small in comparison to the preconfigured object size - When the camera is unsteady due to improper installation 3.5.4 Cross You can detect a moving object crossing a specified virtual line (cross line) in a watch area. You can see current status of moving object by “Bounding Box”.

  • Page 29: Enter

    Use the Joystick to set the location of the start point(yellow mark). Move the cursor (green mark) by pushing the Joystick, up, down, right or left. Select the location of the end point. Draw a cross line to end point from start point. 5.

  • Page 30: Abandon

    Follow steps below to set the Enter: 1. Set the min size of the enter object and set the max size. 2. Select the enter base. 3. Select the “Set Point” for enter box. 4. Select the Exit (with saving) and push the Joystick to the right. Press ESC to exit the program without saving.

  • Page 31: Removal

    - Environments where there is strong direct/indirect light shining onto the object or Background - The abandoned object is not fixed. 3.5.7 Removal This can detect a object removed in a specified area. You can see current status of moving object by “Bounding Box”. Once moving object is fixed as “Removal”, color of “Bounding box”...

  • Page 32: Shortcut Of Preset Program

    3.6 Shortcut of Preset Program After selecting the desired scene, press No. (1 to 240), and press CTRL and PRST subsequently. The current view will be stored to the selected preset number if the preset number is empty. If selected preset number is not empty, “Do you want to overwrite preset?” message will be displayed on the monitor and select the “OK”...
  • Page 33 3. Select the “Scan Type” and if you have to choose vector type then you will apply the speed. 4. Select the “Tour List”, then display the tour list.. Dwell : Set the dwell time at the both end, 01 – 99 seconds 5.

  • Page 34: Pattern (Shortcut: Ptrn)

    7. Repeat Step 2 through 5 for each desired position. Each title will be displayed on top of the line. 8. To edit the title, follow the procedure of the auto scan above to edit titles 9. Select Save and Exit and push the Joystick to the right. Press ESC to exit the program without saving.

  • Page 35: Alarm

    Follow steps below to program the Pattern: 1. Press MENU to display the main menu on the monitor. Scroll to Pattern and push the Joystick to the right to enter the pattern menu. Or just press the PTRN key on the keyboard.
  • Page 36 : Alarm input number Priority : The lower number has higher priority. (1-8) Function : Stored function number to be called by alarm. : NO/NC - normally open /Closed OFF - ignore : OUT1~OUT4 - Relay out 1,2,3,4, OFF - No output. Hold : Alarm will be held for programmed time (03 to 99 seconds) Latch...

  • Page 37: Schedule

    There are 8 levels of priority. The function can be selected by Preset, Auto scan, Pattern or Tour and “0” is the highest priority. Lower priority alarms won’t be serviced until the higher priority alarm is completed. Equal priority alarms will be serviced repeatedly with the dwell time.

  • Page 38: Event History

    3.11 Event History You can see list of Event (Alarm1, Alarm2, Alarm3, Alarm4, Alarm5, Alarm6, Alarm7, Alarm8, Cross, Tracking, Abandon, Removal, Motion, Booting) on this menu. This device can memorize 256 events at maximum. (Over 256 events, the oldest event will be erased one by one) <<...

  • Page 39: Camera Menu Type 1

    3.12 Camera Menu Type 1 Note : The features will vary depending on the camera module installed in your dome camera. 3.12.1 Auto Focus MODE AUTO / MANUAL / ONE PUSH / CONSTANT MANUAL Use manual mode in normal use. AF SENSITIVITY NORMAL / LOW NORMAL: Use this option when shooting fast motion.

  • Page 40: Auto Exposure

    MANUAL Control of R and B gain AUTO Computes the white balance value output using color information from the entire screen automatically. (3000 to 7500 °K) INDOOR 3200 K base mode. OUTDOOR 5800 K base mode ONE PUSH One push white balance mode is a fixed WB mode that may be automatically readjusted at the stop after moving.

  • Page 41: Dis (Digital Image Stabilization)

    The NIGHT SHOT option removes the IR cutoff filter of the camera and makes the camera sensitive to near infrared. AUTO Camera goes in to B&W mode at low light. GLOBAL Controlled by the keyboard. The operator can enable NIGHT SHOT for all dome cameras at the same time. If the NIGHT SHOT mode is set to GLOBAL, “999”...

  • Page 42: Camera Setup

    3.12.5 Camera Setup SHARPNESS The higher the value, the more edges in the picture will be enhanced (0~15) Digital ZOOM OFF: Zoom range is limited to the optical. 2X: Zoom is extendable up to 2x of digital range. 4X: Zoom is extendable up to 4x of digital range. MAX: Zoom is extendable Max digital zoom range.

  • Page 43: Camera Menu Type 2

    3.13 Camera Menu Type 2 Note : The features will vary depending on the camera module installed in your dome camera. 3.13.1 Auto Focus MODE AUTO / MANUAL / ONE PUSH / CONSTANT MANUAL Use manual mode in normal use. FOCUS LIMIT 1.0M / 1.5M / 2.5M / 6.0M This distance is approximate value and the focus operate from the...

  • Page 44: Auto Exposure

    MANUAL Manual mode. You can change R and B Gain manually RGAIN 0 ~ 255 BGAIN 0 ~ 255 RGAIN / BGAIN modes are controllable only in MANUAL Mode 3.13.3 Auto Exposure MODE AE1 / AE2 / SHUTTER PRIO / MANUAL Auto exposure mode1.

  • Page 45: Dis (Digital Image Stabilization)

    START TIME Set time to change from “Color mode” to “B/W mode” END TIME Set time to change from “B/W” to “Color mode” Note : Selecting the Night Shot to Auto mode will change AE mode to “AUTO”. 3.13.4 DIS (Digital Image Stabilization) DIS USE ON / OFF Choose to enable or disable DIS...

  • Page 46: Camera Setup

    3.13.5 Camera Setup SHARPNESS The higher the value, the more edges in the picture will be enhanced (0~15) RESOLUTION Select high resolution mode. (LOW / MID / HIGH) DIGITAL ZOOM OFF: Zoom range is limited to the optical. 2X: Zoom is extendable up to 2X of digital range. 4X: Zoom is extendable up to 4X of digital range.

  • Page 47: Osd Setup

    3.14 OSD Setup Display ON / OFF All display or title will disappear when DOME OSD DISPLAY sets OFF Trace ON / OFF Choose to enable or disable Trace. (Only Detection Mode) Bounding Box ON / OFF Choose to enable or disable Bounding Box. Blending ON / OFF Choose to enable or disable Alpha Blending.
  • Page 48 NUMBER :01 - 16 TITLE :up to 12 characters. SWAP : Swap the start point for the end point. 1 . Select the” NUMBER” and set the desired number by pushing the Joystick left or right. 2. To edit the title, follow the procedure of the auto scan above to edit titles. 3.

  • Page 49: Privacy Zone

    3.15 Privacy Zone Hide up to 8 unwanted scenes in a camera. 1. Place the cursor at the set field. Twist the Joystick handle then privacy area menu displays. 2. Holding down the CTRL key displays the privacy area menu while selecting the position using the Joystick.

  • Page 50: Time & Date Setup

    3.16 Time & Date Setup Set the Time, Date, Time Type and Date Type on this menu Time : Use Joystick (Keyboard) to change the time. Date : Use Joystick (Keyboard) to change the Date. Time Type : Supports two formats. (12hours, 24hours) Date Type : Supports three formats.

  • Page 51: View Angle

    2. Select Function Number and push the Joystick to the up or to the down. The recorded function number will list. 3. Select WATING Time and push the Joystick to the up or to the down to select from 10 to 240 seconds.
  • Page 52 Enable : ON / OFF Swap : ON / OFF Auto Pan : ON / OFF Right Limit : Set 0.0 ~ 359.9 1. Place the dome camera under 90 degree vertically. 2. Set the right limit by pushing the Joystick to the right. 3.

  • Page 53: Origin Offset

    Note : When you use the panning range, we recommend using the flip mode to AUTO. When ° ° ° ° ° the flip mode is 90 , 100 , 110 or 120 and you moves over 90 vertically, the panning range operates in opposite side.

  • Page 54: Dome Reset

    3.20 Dome Reset This feature is used to re-calibrate the orientation of a selected dome camera. Origin offset value is not affected by this function. (Offset is still valid after origin set) 3.21 System Menu LANGUAGE : English / French / German / Italian / Polish / Portuguese / Spanish / Russian / Korean / Japanese / Chinese CALIBRATION : ON (Auto origin check) / OFF...
  • Page 55 MOTOR SETUP Motor Setup menu provides the pan and tilt speed of a camera. User can set the desired speed with twist the Joystick up or down. During operation, pressing 153 + ON will change the speed to the SLOW mode and pressing 153 + OFF will change the speed to the Normal mode.

  • Page 56: Function Run

    3.22 Function Run This Function Run menu allows you to execute the function when you use a keyboard or a DVR without the function keys (Preset, Pattern, Tour and scan). 1. Select the desired Function by pushing Joystick up or down. 2.

  • Page 57: Initialize Data

    3.23 Initialize Data FACTORY DEFAULT Select the Factory Default to initialize the Data. ERASE PROGRAMMED DATA Erase all stored data from the Flash-ROM of the selected dome camera. You will be asked to enter ON or OFF. If you desire to erase all data then select the Erase Run, otherwise press the ESC key to exit without erasing.

  • Page 58: System Information

    3.24 System Information The system information provides essential information about the dome camera if service is required. When you view this screen, you can determine the camera type, ROM version. The information on this screen cannot be modified...

  • Page 59: Appendix A - Specifications

    Appendix A — Specifications 22x/36x Optical Zoom Fastrax Dome System MODEL Camera Menu Type MODULE 1/4" Type EXview HAD CCD 1/4" Type EXview HAD CCD CCD Type Optical / Digital Zoom 22X / 16X 36X / 12X Resolution (NTSC/PAL) 580TVL...
  • Page 60 4 Normal relays 24VDC/1A Max. (selectable NC/NO) Alarm Input 8 Normal dry contact (selectable NC/NO) RS-485/422 baud rate: 2400~38.4k bps (default: 9600bps) Control Multi Coaxitron (Pelco, Fastrax) ID (Camera Address) 999 (3999 by software setting) Mechanical Dimension See Figure below Weight Approx 1.2 kg...

  • Page 61: Appendix B - Troubleshooting

    Appendix B — Troubleshooting If problems occur, verify the installation of the camera with the instructions in this manual and with other operating equipment. Isolate the problem to the specific piece of equipment in the system and refer to the equipment manual for further information. Problem Possible Solution Verify that power is connected to all pieces of...

  • Page 62: Appendix C - Glossary

    Appendix C — Glossary Alarm Actions The assigned responses for the dome camera when inputs change from normal to abnormal states. The dome may run a Preset, Pattern, or have no assigned action for each of the eight dome inputs. The dome may also send alarm states to the host controller for processing. See also Input Alarm and Normal Input State.

  • Page 63: Line Lock

    IR Mode A feature of the camera that permits manual or automatic switching between color and IR (black-and-white) operation. When IR mode is active, clearer images may be obtained under low-light conditions. Line Lock Allows you to phase lock the video with the AC power line. When line lock is enabled, it prevents vertical video rolling when switching multiple cameras to a single monitor.

  • Page 64: Privacy Zones

    Privacy Zones Masked areas of the dome camera's viewing area. These masks prevent operators of the surveillance system from viewing these designated zones. The Privacy Zones move in relation to the dome camera’s pan/tilt position. In addition, the apparent size of the Privacy Zone adjusts automatically as the lens zooms in or out.

  • Page 65: Appendix D - Short Cut Key

    Appendix D — Short Cut Key Short Cut Key Function PRST Pop up preset setup menu. TOUR Pop up Tour setup menu. PTRN Pop up Pattern setup menu. SCAN Pop up Auto Scan setup menu. NO.+ PGM + PRST Store the current view at the selected number. Short Cut Key Function Short Cut Key...
  • Page 66 Short Cut Key Function Short Cut Key Function Go to the slow speed Go to the normal speed 153 + ON 153 + OFF mode mode 154 + ON Display System Information 155 + ON Flip the camera in the 180° area horizontally. 250 + PRESET Set the dome ID up to 3999 888 + ENTER...

  • Page 67: Flush Mount Hardware

    INSTRUCTION MANUAL FLUSH MOUNT HARDWARE Please read this manual thoroughly before use, and keep it handy for future reference.

  • Page 68: Specifications

    1. INTRODUCTION This mounting device enables the dome camera to be mounted to the suspended ceiling. The mounting clamps, which are affixed to the ceiling tile, attach directly to the dome's mounting base for a quick and easy installation. 2. SPECIFICATIONS - Construction Steel and injection-molded plastic - Maximum Load...
  • Page 69 3. INSTALLATION If you want to install the optional bubble ring, you can change the cover ring of the dome camera to the bubble ring.
  • Page 70 NOTE: The ceiling tile cannot be thicker than 0.9inch (2.4cm). A. Remove the ceiling tile from the ceiling. Draw a circle whose diameter is 184mm on the tile (You can use the carton with a hole). Cut the circle out of the ceiling tile. B.

  • Page 71: Flush Mount Hardware

    INSTRUCTION MANUAL FLUSH MOUNT HARDWARE Please read this manual thoroughly before use, and keep it handy for future reference.
  • Page 72 1. INTRODUCTION This mounting device enables the dome camera to be mounted to the suspended ceiling. The mounting clamps, which are affixed to the ceiling tile, attach directly to the dome's mounting base for a quick and easy installation. This mounting device enable to view horizontally and tint bubble hide dome camera. 2.
  • Page 73 3. INSTALLATION...
  • Page 74 NOTE: The ceiling tile cannot be thicker than 0.9inch (2.4cm). STEP 1. Remove the ceiling tile from the ceiling. Draw a circle whose diameter is 184mm on the tile (You can use the carton with a hole). Cut the circle out of the ceiling tile. STEP 2.

  • Page 75: Dome Housing

    INSTRUCTION MANUAL DOME HOUSING Please read this manual thoroughly before use, and keep it handy for future reference.

  • Page 76: Warnings And Cautions

    1. GENERAL 1.1 IMPORTANT SAFEGUARDS Prior to install and use of this product, the following WARNINGS should be observed. 1. Installation and servicing should only be done by qualified service personnel and conform to all local codes. 2. Unless the unit is specifically marked as a IPXX, it is designed for indoor use only and it must not be installed where exposed to rain and moisture.
  • Page 77 2. DESCRIPTION The Indoor/Outdoor dome housing is used with dome camera. The housing is constructed of aluminum, steel and plastic. The housing is designed to be mounted on both the wall and the ceiling. The housing meets international IP66 standards for dust and moisture resistance. Sunshield model is available for application to avoid the direct rays of the sun.
  • Page 78 FUNCTION JUMP1 : Join JUNP 1 each other to operate the Fan continuously irrespective of temperature changes. Relay : Connect the Alarm OUT(Relay) of a Dome to this Relay to work the Heater irrespective of temperature changes. (ex. After connecting RC1 and NO1 of a Dome to this Relay, turn on the Alarm out 1 in the Dome.(Heater ON)) 4.
  • Page 79 6. PARTS LIST...

  • Page 80: Parts List

    6.1 PARTS LIST NAME STANDARD Q'ty Machine Screw PH M4 X L5 (SUS) SunShield Ass’y Safety Wire B DAPG-16 Screw Spacer B MBSB Body Rubber Gasket Silicon Ass’y Safety Wire A Tapping Screw FH2 M3 X L6 Machine Screw PH M3 X L8 Bubble Ring Tapping Screw NPH M3 X L5...
  • Page 81 7. SPECIFICATIONS ELECTRICAL Power source 24VAC, 50/60Hz Heater 45Watts ( 28VAC Max. 50Watts) Power consumption Blower 2.4watts MECHANICAL Construction Aluminum, Steel and Plastic (ABS) Finish Polyester Powder Coat Dome Bubble Plastic (PC) Dimension Refer to the Figure 5. Approx. 6.39lb(2.9kg) - with sunshield Weight Approx.

  • Page 82: Wall & Ceiling Mount Kit

    INSTRUCTION MANUAL Wall & Ceiling Mount Kit Please read this manual thoroughly before use, and keep it handy for future reference.
  • Page 83 1. INTRODUCTION The mount kit of the speed dome housing is easy and it is suitable in the installation quick. The mount kit is constructed of die-case aluminum and steel. 2. INSTALLATION The wall or ceiling mount must be attached to a structural object such as hard wood, concrete that will support the weight of the mount and AIO.
  • Page 86 Parts List for Wall Mount Kit Item Item Item PART NAME PART NAME PART NAME MATERIAL MATERIAL MATERIAL Q'ty Q'ty Q'ty Wall Mount Wall Mount Wall Mount Set Screw Set Screw Set Screw Locking Nut Locking Nut Locking Nut Locking Socket Locking Socket Locking Socket PT Plug...
  • Page 87 2.2 CEILING MOUNT KIT 1. Select a suitable mounting location and verify there is sufficient cable to connect with cables from the housing. 2. Mark and drill mounting holes in the surface using the ceiling mount flange. 3. Pull out cables required to connect to the dome camera from the ceiling.
  • Page 88 Parts List for Ceiling Mount Kit Item PART NAME MATERIAL Q'ty Ceiling Mount Set Screw Locking Nut Socket Safety Wire Screw Machine BH M4, L=8 Pipe Socket *Please refer to Figure 4. ACCESSORIES for Ceiling Mount Kit Item Item PART NAME PART NAME MATERIAL MATERIAL...
  • Page 89 -MEMO-...
  • Page 90 -MEMO-...
