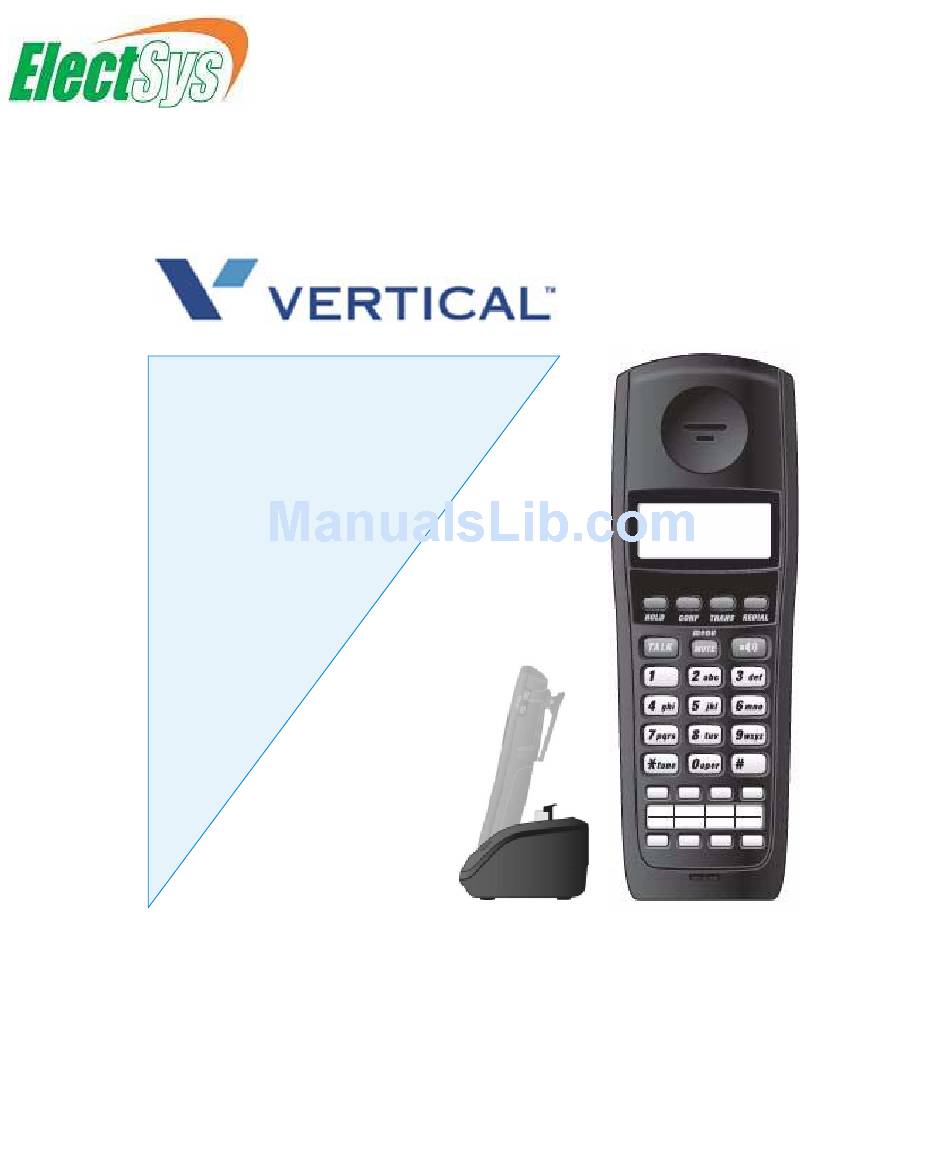

- Page 1 This manual is provided to you by ElectSys; a certified dealer that installs and supports the Vertical SBX IP 320 system. Call us at 717-665-2141 or visit www.electsys.biz DECT Cordless Telephone User Guide Release 2.0 October 2010...
-
Page 2: Revision History
Vertical Communications, Inc. reserves the right to revise this publication and to make changes in content without notice. © 2010 by Vertical Communications, Inc. All rights reserved. This publication contains proprietary and confidential information of Vertical Communications, Inc. The contents of this document may not be disclosed, copied or translated by third parties, in any form, or by any means known, or not now known or conceived, without prior explicit written permission from Vertical Communications, Inc. - Page 3 Release 2.0 October 2010...
-
Page 4: Important Safety Instructions
- i - IMPORTANT SAFETY INSTRUCTIONS NOTE -- The DECT Cordless Telephone is only intended for use with these Vertical systems: Wave IP 2500/500, MBX IP, SBX IP, XTS-IP, XTSc-IP & STSe. When using your telephone equipment, basic safety precautions should always be... -
Page 5: Warnings
This telephone is no exception. NOTE: Do not attempt to unplug any appliance during an electrical storm. The DECT Cordless Telephone is not waterproof. To reduce the NOTICE risk of fire, electrical shock, or damage to the unit, do not expose this unit to rain or moisture. - Page 6 If you cannot eliminate this type of interference, you need to change to a different channel. DECT Cordless Telephone User Guide Release 2.0 October 2010...
-
Page 7: Save These Instructions
The handsets are programmed to work with a specific base unit. You cannot switch to a Base Units and Handsets new handset or a new base unit without having it reprogrammed by Vertical Communications. BATTERY PACKS contain rechargeable, sealed Nickel-Metal-Hydride batteries. To reduce risk of fire or injury to persons by the battery, follow these instructions: Use only the appropriate type and size Battery Pack specified in this Operating Guide. -
Page 8: One Year Limited Warranty
WARRANTOR: Vertical Communications ELEMENTS OF WARRANTY: Vertical Communications warrants, for one year to the original retail owner, this Vertical Product to be free from defects in materials and craftsmanship with only the limitations or exclusions set out below. WARRANTY DURATION: This warranty to the original user shall terminate and be of no further effect 12 months after the date of original retail sale. -
Page 9: Table Of Contents
SAVE THESE INSTRUCTIONS ......iv ONE YEAR LIMITED WARRANTY ......v About Your DECT Cordless Telephone ........1 Features of the DECT Cordless Telephone ......2 Handset Controls & Functions ..........3 Base Unit Controls & Functions ..........4 Installing Your DECT Cordless Telephone ........5 Selecting the Installation Location........... - Page 10 Storing a One Touch Dial Number ........19 Dialing a One Touch Dial Number ........19 Troubleshooting................20 Specifications................21 Registration .................. 22 Registration ................22 Deregistration................ 23 Base Registration PIN ............24 DECT Cordless Telephone User Guide Release 2.0 October 2010...
- Page 11 THIS PAGE INTENTIONALLY LEFT BLANK Release 2.0 October 2010...
-
Page 12: About Your Dect Cordless Telephone
(Wave IP 500/2500, MBX IP, SBX IP, XTS-IP, XTSc-IP, or STSe). - To get the most from your DECT Cordless Telephone, read this User Guide thoroughly. - To become familiar with the features of your cordless telephone, refer to the... -
Page 13: Features Of The Dect Cordless Telephone
About Your DECT Cordless Telephone Features of the DECT Cordless Telephone Each DECT Cordless Telephone has the following features: 2-line, 16-digit LCD Display Easy Installation 4 Flexible Function Keys: Loop 1, Loop 2, Pickup & Voice Mail 4 One Touch Dial Keys Handset Volume Control Headset Jack (2.5mm) -
Page 14: Handset Controls & Functions
About Your DECT Cordless Telephone Handset Controls & Functions 1. LCD Display 10. Ringer on/off button 2. HOLD Key 11. Volume button 3. TRANS Key 12. REDIAL Key 4. TALK Key 13. CONF Key 5. Numeric Keypad 14. Speaker Key 6. -
Page 15: Base Unit Controls & Functions
About Your DECT Cordless Telephone Base Unit Controls & Functions 18. Power (On/Off) LED 19. DC Power Jack DECT Cordless Telephone User Guide Release 2.0 October 2010... -
Page 16: Installing Your Dect Cordless Telephone
Select a location for the DECT Cordless Telephone to avoid excessive heat or humidity. The Base Unit of your DECT Cordless Telephone can be placed on a desk or tabletop near a standard 120V AC outlet and telephone line jack. The Base Unit can also be mounted on a standard wall plate using the included Wall Mount Adapter. -
Page 17: Connecting Power To The Base And Charger Units
Installing Your DECT Cordless Telephone Connecting Power to the Base and Charger Units CHARGER UNIT NOTE -- A flashing LED on the charger indicates the handset is not seated properly, the battery is not hooked up, or the telephone is not in service. -
Page 18: Wall Mounting
Installing Your DECT Cordless Telephone Wall Mounting You can mount the DECT Cordless Telephone on a standard wall plate or directly on a wall. Standard Wall Plate Mounting Your DECT Cordless Telephone is designed to be mounted on a standard wall plate. - Page 19 Installing Your DECT Cordless Telephone Direct Wall Mounting If you do not have a standard wall plate, you can mount your telephone directly on a wall. Before mounting your telephone, consider the following: Select a location away from electrical cables, pipes, or other items behind the mounting location that could be hazardous when placing screws into the wall.
- Page 20 Installing Your DECT Cordless Telephone Charging Unit Wall Mounting The Charging Unit is also designed to be wall mounted. Before mounting your charging unit, consider the following: Select a location away from electrical cables, pipes, or other items behind the mounting location that could be hazardous when placing screws into the wall.
-
Page 21: Attaching The Belt Clip To The Handset
Installing Your DECT Cordless Telephone Attaching the Belt Clip to the Handset You can use the Belt Clip to attach the Handset to your belt or pocket for convenient portability. To attach the belt clip to the handset: 1. Snap the tab out of the Belt Clip notch on the top of the Handset. -
Page 22: Installing The Handset Battery Pack
Installing Your DECT Cordless Telephone Installing the Handset Battery Pack To install the battery pack: 1. Remove the battery cover by pressing the latch and sliding the cover down and off of the Handset. 2. Connect the battery pack connector, observing correct... -
Page 23: Charging The Handset Battery Pack
5 hours without interruption. Charging Spare Battery Packs The Charger Unit of your DECT Cordless Telephone is equipped to charge the Spare Battery Pack with or without the Handset in the front slot. 1. Slide the Spare Battery Pack into the second slot in the Charging Unit until the retaining clip snaps over the top of the pack. -
Page 24: Checking The Low Battery Indicator
Installing Your DECT Cordless Telephone Checking the Low Battery Indicator When the Battery Pack in the Handset is low and needs to be charged, the LOW message appears on the display. See the table below for what action to take when this occurs. -
Page 25: Using Your Dect Cordless Handset
The steps and procedures shown in this section assume you are using the factory default settings preprogrammed on your DECT Cordless Telephone. NOTE -- Operation of the DECT Cordless Telephone is performed using the Handset out of the Charging Unit. -
Page 26: Earpiece Volume
Action --> Move back in range within 20 Action --> Move back within range, or check seconds or check power to the base unit. the power to the base unit. DECT Cordless Telephone User Guide Release 2.0 October 2010... -
Page 27: Basic Telephone Features
5. When the last party answers, press CONF twice. To terminate a Conference, the conference initiator who is actively in the conference must press the TALK key to end the call. DECT Cordless Telephone User Guide Release 2.0 October 2010... -
Page 28: Forwarding A Call
Internal or External Page but you will be unable to receive a page. Placing a Call The DECT Cordless Telephone selects the last line used. If one line is busy, the telephone automatically selects an available line. To place a call: Press TALK and dial [9] for an outside line. -
Page 29: Retrieving Voice Messages
2. When the extension answers, announce transfer. 3. Press TALK to complete the transfer. Using the Redial Function The DECT Cordless Telephone stores the last telephone number you dialed. To redial the number: Press REDIAL key and the system will redial the last number called. -
Page 30: Programming Functions
4. Enter the desired telephone number. 5. Press the MUTE key to save the number. Dialing a One Touch Dial Number 1. Press the TALK key. 2. Press the desired One Touch button. DECT Cordless Telephone User Guide Release 2.0 October 2010... -
Page 31: Troubleshooting
Troubleshooting Troubleshooting If your DECT Cordless Telephone is not performing to your expectations, try these simple steps. If you are still unable to resolve the problems, contact your system administrator. NOTE: Do not attempt to service this unit yourself. All service must be done by qualified service personnel. -
Page 32: Specifications
: Capacity 800 mAH, 3.6 V Talk Time : 16 hours (typical) Standby Time : 7 days (typical) (The specifications shown above are typical and subject to change without notice.) Replacement Handset part number : V10000 DECT Cordless Telephone User Guide Release 2.0 October 2010... -
Page 33: Registration
When the LCD returns and shows the message below, enter the Base PIN you want to be registered. 5. The Handset will be registered to the Base Station after the LCD shows the message below and returns to standby mode. DECT Cordless Telephone User Guide Release 2.0 October 2010... -
Page 34: Deregistration
4. Select “Yes” by using the Down key and then press the MUTE key to save your entry. 5. Select “No” by using the Up/Down key and press the MUTE key to save your entry. DECT Cordless Telephone User Guide Release 2.0... -
Page 35: Base Registration Pin
3. Enter your 4-digit Base PIN and press the MUTE key again. 4. The Base PIN will be saved to the base station. The Handset emits a confirmation tone and goes to menu list mode. DECT Cordless Telephone User Guide Release 2.0 October 2010... - Page 36 Registration DECT Cordless Telephone User Guide Release 2.0 October 2010...
- Page 37 Release 2.0 October 2010...
- Page 38 Vertical Communications, Inc. Release 2.0 October 2010 Release 2.0 October 2010...
