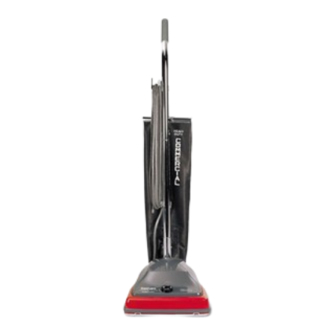

Sanitaire 600 SERIES Owner's Manual

Commercial upright vacuum cleaner
Hide thumbs Also See for 600 SERIES:
Table of Contents

Advertisement

Quick Links

For location of nearest
Eureka/Sanitaire Warranty Station
or service information call
1-800-282-2886.
COMMERCIAL UPRIGHT
VACUUM CLEANER
OWNER'S GUIDE
600 SERIES
Important Safeguards .................. 2
General Information ..................... 6
Assembly ..................................... 6
Use .............................................. 8
Dust Bag ................................... 10
Brush Roll .................................. 12
Brush Roll Belt .......................... 13
Headlight ................................... 14
Warranty .................................... 15
Index
www.www.eureka.com

Advertisement

Table of Contents
loading

Related Manuals for Sanitaire 600 SERIES

Summary of Contents for Sanitaire 600 SERIES

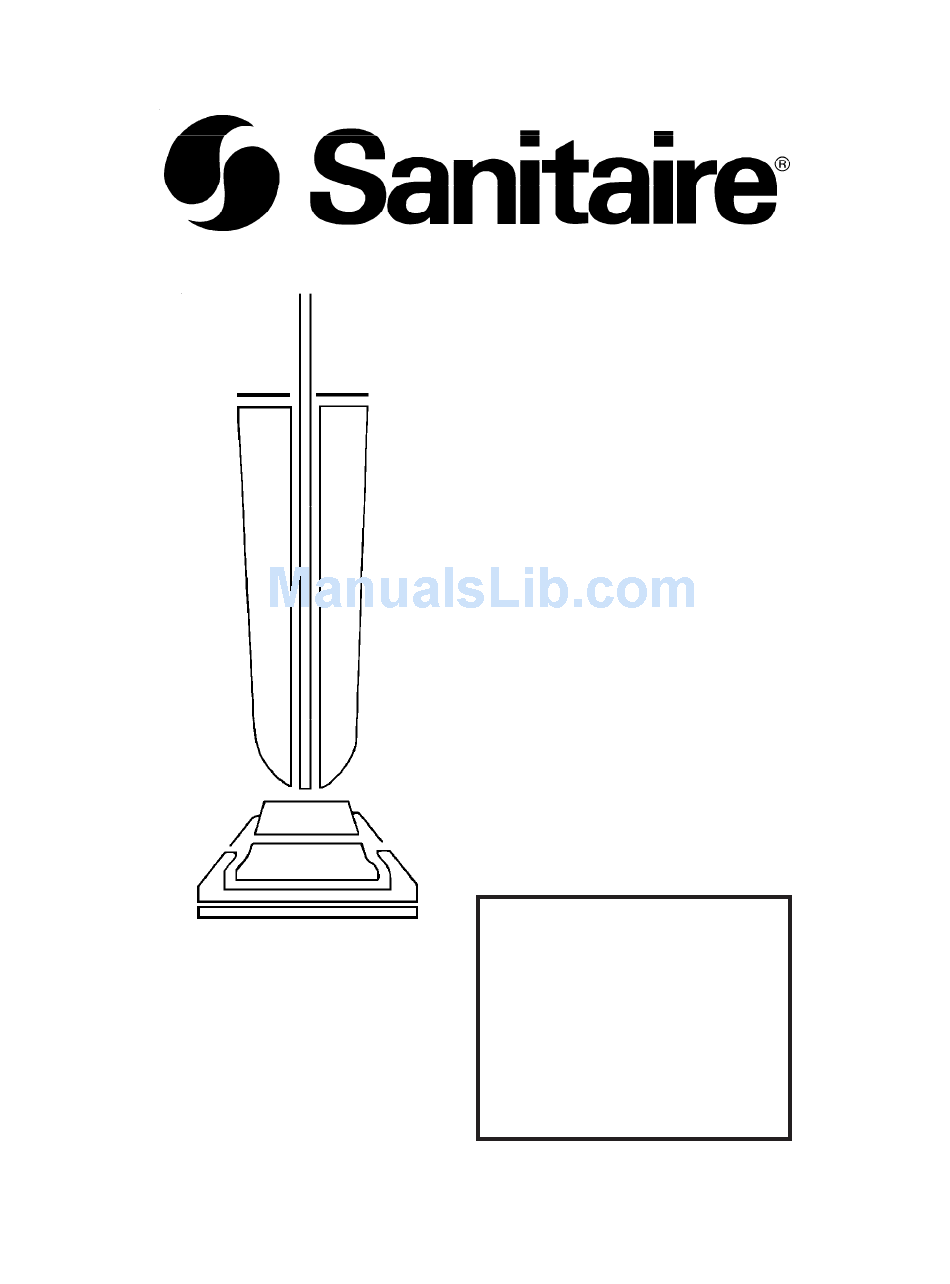

  • Page 1: Table Of Contents

    COMMERCIAL UPRIGHT VACUUM CLEANER OWNER’S GUIDE 600 SERIES Index Important Safeguards ....2 General Information ..... 6 Assembly ........6 Use ..........8 Dust Bag ........10 Brush Roll ........12 Brush Roll Belt ......13 Headlight ........14 For location of nearest Warranty ........

  • Page 2: Important Safeguards

    IMPORTANT SAFEGUARDS When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS VACUUM CLEANER. WARNING To reduce the risk of fire, electric shock, or injury: • Do not use outdoors or on wet surfaces. •...

  • Page 3: Grounding Instructions

    Grounding Instructions This appliance must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This appliance is equipped with a cord having an equipment-grounding conductor and grounding plug.
  • Page 4 CONSEILS DE SÉCURITÉ Lors de l’utilisation d’un appareil électrique, quelques précautions élémentaires doivent être observées, incluant les suivantes: LISEZ TOUTES LES INSTRUCTIONS AVANT D’UTILISER VOTRE ASPIRATEUR. AVERTISSEMENT Pour réduire le risque de feu, de choc électrique, ou de blessure: • Ne pas utiliser à...
  • Page 5 INSTRUCTIONS VISANT LA MISE À LA TERRE Cet appareil doit être mis à la terre. En cas défaillance ou de panne éventuelles, la mise à la terre fournit au courant un chemin de moindre résistance qui réduit le risque de choc électrique. Cet appareil est pourvu d’un cordon muni d’un conducteur de terre et d’une fiche avec broche de terre.

  • Page 6: General Information

    Service Information The instructions in this booklet serve as a guide to routine maintenance. For additional service information telephone our toll free number for the nearest Eureka/Sanitaire Authorized Warranty Station. Refer to The Sanitaire Commercial Warranty for complete service information. You should know the model, type and serial numbers when...
  • Page 7 Step 2 Attach Upper Cord Hook Pull the spring on the electrical cord upward toward the top of the handle. Make sure slots in handle are positioned properly, see Detail A. Insert the lower half of the spring into the upper cord hook (B), as shown.

  • Page 8: Use

    HOW TO USE The upright vacuum cleaner is designed to be used on multiple types of carpeting. Do not attempt to use the upright vacuum cleaner on bare floors, as damage to the floor covering may result. Above the floor cleaning tools are available (optional). Handle Adjustment 1.
  • Page 9 Cleaner Height Setting WARNING: Avoid injury. Keep loose clothing, hair, fingers, and all other parts of body away from any moving part (such as the revolving brush). Turn off the switch and unplug the cleaner before changing the cleaner height setting. Adjust the vacuum cleaner height setting to match the carpet pile height.

  • Page 10: Dust Bag

    HOW TO MAINTAIN The instructions given in this booklet serve as a guide to routine maintenance. To avoid unnecessary service calls, check the bag, belt, and brush roll often. Empty or change the bag if it is full; replace the belt if it is stretched or cracked, and clean the brush roll bristles if they are wrapped with thread and hair.
  • Page 11 How To Change Disposable Dust Bag–Style F & G 4. Unfold 1. Pull zipper down 2. Roll down coil spring 5. Place bag 3. Pull bag throat on throat off sleeve sleeve 6. Roll up coil spring 7. Place paper bag into outer bag NOTE: Be certain there are no folds at the top or bottom of the paper bag...

  • Page 12: Brush Roll

    Brush Roll As the brush roll rotates, it sweeps and combs the carpet nap. Remove hair and threads from the brush roll so it continues brushing the carpet nap. When the bristles of the brush roll no longer touch a straight edge held across the bottom plate, the brush roll is ineffective because the bristles no longer touch the carpet nap.

  • Page 13: Brush Roll Belt

    Brush Roll Belt The brush roll belt on the upright vacuum cleaner drives the brush to agitate, sweep, and comb the carpet nap. The belt should be checked regularly to be sure it is in good condition. Replace the belt if it is stretching, cracking, or slipping. Cut away any hair or thread wound around the brush roll or the belt pulley because the buildup could cause the belt to rotate unevenly.

  • Page 14: Headlight

    Headlight Bulb (Standard on some models) NOTE: Turn off the switch and unplug the electrical cord before replacing headlight bulb. Headlight style varies by model. Locate the notches that release the tabs at either (1) top, (2) side, or (3) bottom of the lens, as illustrated. Place a screwdriver into one notch;...

  • Page 15: Warranty

    COMMERCIAL LIMITED WARRANTY WHAT THIS WARRANTY COVERS Your Sanitaire commercial cleaner is warranted to be free from all defects in material and workmanship in normal use FOR A PERIOD OF ONE YEAR. The warranty is granted only to the original purchase of the cleaner. The warranty is subject to the following provisions.
  • Page 16 OBTAINING WARRANTY SERVICE To obtain warranty service you must return the defective cleaner or cleaner part along with proof of purchase to any Eureka/Sanitaire Authorized Warranty Station. You will find the nearest location in the Yellow Pages under “Vacuum Cleaners–Service and Repair’. Be certain that the Warranty Station is “Eureka/ Sanitaire Authorized”.
