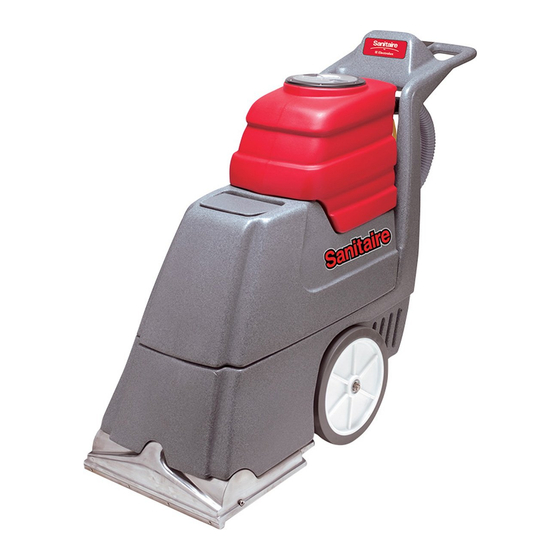

Sanitaire SC6090 - Upright Carpet Extractor Category: Floor Repair Parts List Manual
Self-contained upright carpet cleaner
Hide thumbs
Also See for SC6090 - Sanitaire Upright Carpet Extractor Category: Floor:
- Owner's manual (16 pages)
Subscribe to Our Youtube Channel
Related Manuals for Sanitaire SC6090 - Sanitaire Upright Carpet Extractor Category: Floor
Summary of Contents for Sanitaire SC6090 - Sanitaire Upright Carpet Extractor Category: Floor
- Page 1 EUREKA REPAIR PARTS LIST SC6090 SELF-CONTAINED UPRIGHT CARPET CLEANER Date: July 22, 2004...
- Page 3 SC6090 E516 3 POSITION ROCKER SWITCH H636 3-HOLE SWITCH PLATE B102 QUICK DISCONNECT, 1/4” FEMALE H212 WASHER, 9/16” ID H413 WASHER, NYLON B106 NIPPLE, 1/4” CLOSE B110 FITTING, 1/4 BARB x 1/4 FM SWIVEL B116 FERREL (FOR 1/4” HOSE) PH634 (SC6090) HOSE, 1/4”...
- Page 5 SC6090 PH627-22 HOSE, VACUUM, 1-1/2” x 22” LG. H298 90 DEG. PVC ELBOW, 1-1/2” S x 1-1/2” S C310 MOTOR, HI-PERF. 2 STAGE 115V G004 GASKET, VACUUM MOTOR H217 HOSE CLAMP P735 SINGLE MANIFOLD H500 2-STAGE VACUUM SUPPORT H330 PLATE, SINGLE MANIFOLD H201 BOLT, 1/4-20 x 1/2”...
- Page 7 SC6090 B110 FITTING, 1/4 BARB x 1/4 FM SWIVEL B116 FERREL (FOR 1/4” HOSE) PH634 (SC6090) HOSE, 1/4” KURITEK x 25” LG. B197 SOLENOID VALVE B109 FITTING, 1/4” BARB x 1/4” MPT PH634-17 HOSE, 1/4” KURITEK x 17” LG. B105 REDUCER, 3/8”...
- Page 9 SC6090 P755 ELBOW FOR FLOAT ASSEMBLY H235 FLOAT CAGE PH633-10 PIPE, PVC, 1-1/2” x 10” LG. H244 ADAPTER, PVC, 1-1/2” P804 TANK, VACUUM H229 INLET FITTING, PVC, GRAY, 1-1/2” H226 DRAIN SPOUT, 45 DEG. H225 DRAIN VALVE, 1-1/2” G001 GASKET, INLET, 1-1/2” H243 ELBOW, PVC, 90 DEG, 1-1/2”...
- Page 11 SC6090 G139 SIDE BELT GUARD H676 BELT C379 MOTOR, 1/4 hp H673 POWER HEAD ASSEMBLY B220 JET, QSVV11002, 1/8 (QUICK) H435 BEARING, DOUBLE SEALED, 6001ZZ H426 WASHER, NYLON H429 SCREW, 5/16-24 x 3/4” LG. SOCKET HD. CAP H427 WASHER, WAVE H714 PULLEY, BRUSH (SUPPLIED WITH POWER HEAD ASSEMBLY)
- Page 12 SC6090 -- Optional Items SC80 INCLUDES: WAND, 12” S/S SINGLE BEND (8350) AND 15’ VAC/SOL HOSE ASSEMBLY (8500) SC81 8’ ACCESSORY HOSE WITH 3” METAL NOZZLE...
