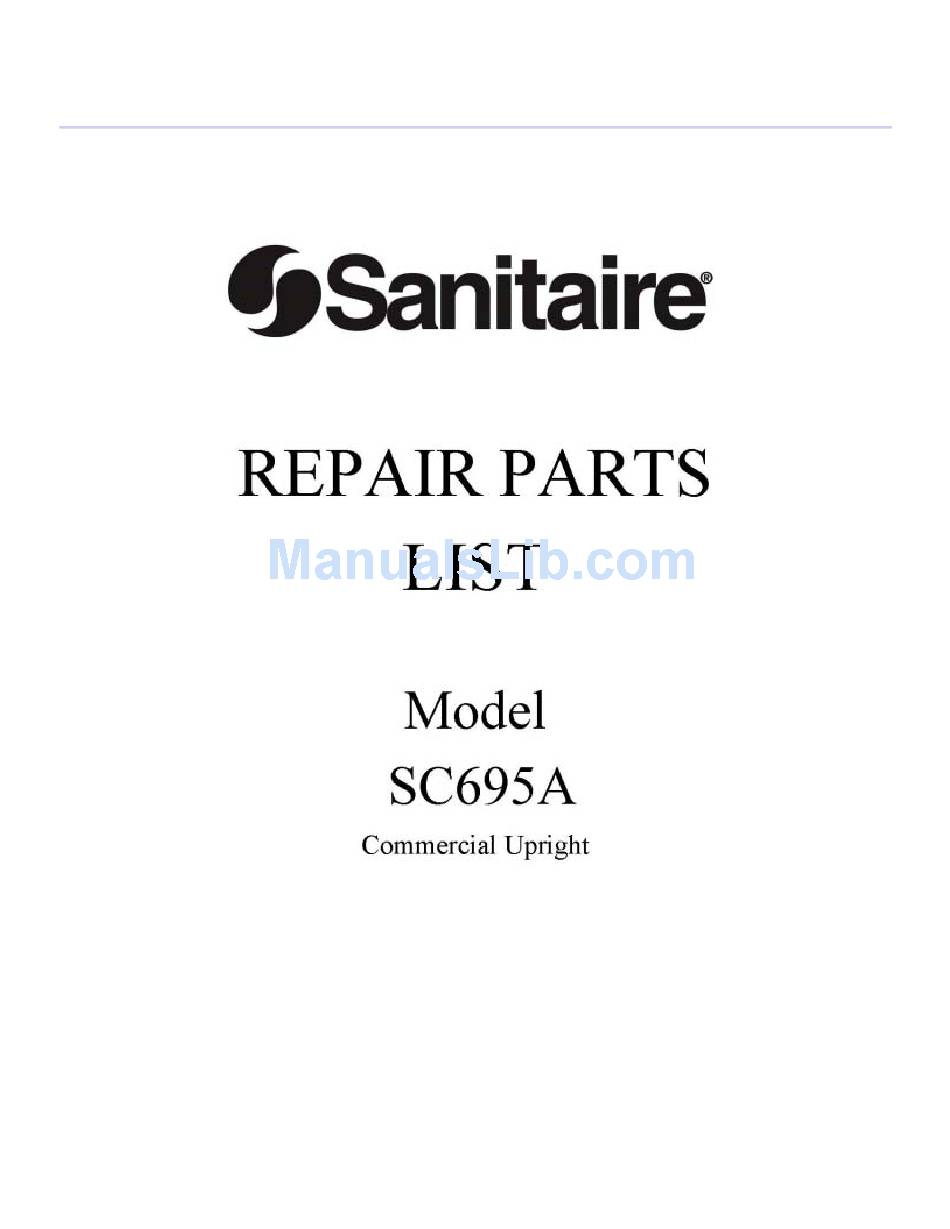

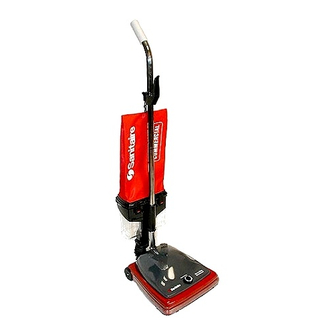

- Page 1 Print Preview Page 1 of 1 Cover - SC695A http://homecareparts.electroluxusa.com/print_assembly.asp?AssemblyID=6531& ModelID... 6/29/2007...
- Page 2 Print Preview Page 1 of 2 Base & Hood Assembly - SC695A http://homecareparts.electroluxusa.com/print_assembly.asp?AssemblyID=6527& ModelID... 6/29/2007...
- Page 3 Print Preview Page 2 of 2 Base & Hood Assembly - SC695A Ref # Part Description Comments 14660-1 BUTTON SWITCH 24834A-1 Discontinued, use 24834A-3 24964A CAM use 24964A-1 24965A CAM (L) use 24965A-1 30517 GASKET - MOTOR SEAL 36263 COVER - WHEEL 37034 SPRING-ADAPT RETAINER 37989...
- Page 4 Print Preview Page 1 of 2 Furniture Guard & Brushroll - SC695A http://homecareparts.electroluxusa.com/print_assembly.asp?AssemblyID=6528& ModelID... 6/29/2007...
- Page 5 Print Preview Page 2 of 2 Furniture Guard & Brushroll - SC695A Ref # Part Description Comments 13236-3 TUBE - DISTURBUL (13236 25922-1 BOTTOM PLATE ASSY 25937 SHAFT - DISTURBULATOR 26057A CAP - DISTURBULATOR 26059A CAP - COVER 26242-1 REAR WHEEL use 26242-119N 26296-9 Discontinued, use 27564-1 35859A-1...
- Page 6 Print Preview Page 1 of 2 Handle - SC695A http://homecareparts.electroluxusa.com/print_assembly.asp?AssemblyID=6530& ModelID... 6/29/2007...
- Page 7 Print Preview Page 2 of 2 Handle - SC695A Ref # Part Description Comments 12637-2 TUBE - HANDLE (LOWER) 25329-35SV HANDLE ASSY (UPPER) 35293-8 GRIP - HANDLE 38183-1 HANDLE SOCKET ASSY 38495 SPRING - STRAIN RELIEF PK 52370-12 CORD & TERM ASSY-FB-50 53145 BOLTS/PKG 10 (48870 53198-1...
- Page 8 Print Preview Page 1 of 2 Motor - SC695A http://homecareparts.electroluxusa.com/print_assembly.asp?AssemblyID=6529& ModelID... 6/29/2007...
- Page 9 Print Preview Page 2 of 2 Motor - SC695A Ref # Part Description Comments 12988 UPR MTR FAN-LEXAN 20217E RETAINER - UPPER BEARING 30474A FAN - MOTOR COOLING 30478 MOTOR BRUSH ASSY 37012-2 PULLEY - MOTOR DRIVE 42875 BEARING RETAINER ASSY-W/L 53088-1 BALL BEARING - PACKAGE 53138...
