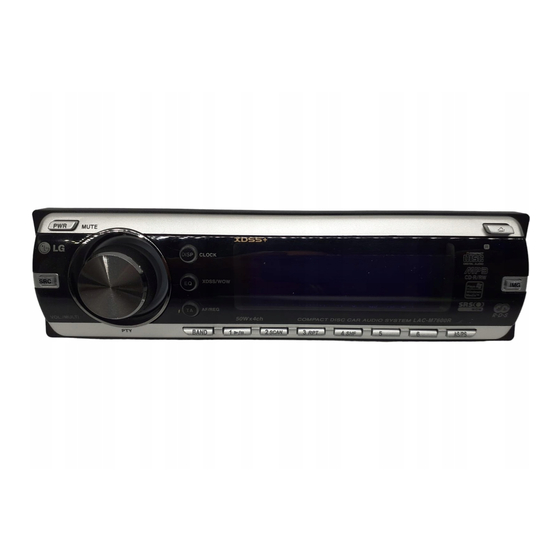

LG LAC-M7600R Owner's Manual

Car cd/mp3/wma receiver
Hide thumbs

Advertisement

ENGLISH
CAR CD/MP3/WMA Receiver
OWNER'S MANUAL
MODEL : LAC-M7600R
Please read this instruction booklet carefully and completely
before connecting, operating or adjusting this product.

Advertisement

Table of Contents
loading

  Also See for LG LAC-M7600R

  Related Manuals for LG LAC-M7600R

  Summary of Contents for LG LAC-M7600R

  • Page 1 ENGLISH CAR CD/MP3/WMA Receiver OWNER’S MANUAL MODEL : LAC-M7600R Please read this instruction booklet carefully and completely before connecting, operating or adjusting this product.
  • Page 2: Safety Notes

    Safety note CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT SPLIT COVER(OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user about the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
  • Page 3: Table Of Contents

    Safety note / Table of contents • A defective or soiled disc inserted into unit can cause sound to drop out during playback. • Handle the disc by holding its inner and outer edges. • Do not touch the surface of the unlabeled side of the disc. Do not stick paper or tape etc.
  • Page 4: Before Use

    Before use Detachable front panel The front panel of this unit can be detached to prevent theft. 1 Press the (RELEASE) to open the front panel. 2 Push the front panel to right. 3 Pull the front panel. 4 Place the front panel in the supplied protective case. Protective Case Front panel Attachable front panel...
  • Page 5: Front Panel

    Front Panel 3 4 5 MUTE DISP CLOCK XDSS/WOW AF/REG VOL./MULTI BAND AS/PS SCAN POWER [PWR / MUTE] RELEASE • VOLUME [VOL. / MULTI] REMOTE SENSOR • SELECT IMAGE [IMG] • MENU • AUTO STORE [AS] • SKIP / SEARCH •...
  • Page 6: Remote Control

    Remote control POWER [PWR] / MUTE SELECTION [SEL] SOURCE [SRC] PLAY / PAUSE B/X INTRO SCAN [SCAN] SHUFFLE [SHF] • MP3 TRACK +10 • FOLDER UP • CD SKIP / SEARCH ?m m • SEEK / TUNE ?m m [BAND] VOLUME UP / DOWN NUMBER [#]...
  • Page 7: Installation

    Installation Basic Installation Before installing, make sure that the ignition-switch is set to Bend the claws OFF and remove the terminal of the car battery to avoid according to the thickness short-circuiting. of the dashboard 1 Remove the existing receiver unit. 2 Make the necessary connections.
  • Page 8: Connection Diagram

    Connection diagram Before connecting, make sure that the ignition switch is set to OFF, and remove the battery # terminal to avoid short circuits. PHONE MUTE (ORANGE) GROUND(-) (BLACK) DIMMER (PINK) DIMMER SWITCH TO IGNITION (RED) IGNITION SWITCH TO BATTERY(+) (YELLOW) POWER ANTENNA (BLUE) AMPLLIFIER BATTERY...
  • Page 9: Connection

    Connection From antenna Speaker Connections To the wiring of the vehicle colors of leads. • BLACK : This lead is for the ground connection. • ORANGE : This lead is for the phone line connection. • PINK : This lead is for the dimmer line connection.
  • Page 10: Basic Operation

    Basic operation Turning the unit on Press the PWR/MUTE (POWER/MUTE on the remote control) or any other button. Note When you insert the CD in the CD slot, the unit turns on. Turning the unit off Press and hold the PWR/MUTE (POWER/MUTE on the remote control) for more than 1.2 seconds.
  • Page 11 Basic operation SRS focus Set the SRS focus quality. ( HIGH / LOW ) Set the beep sound every time a button is pressed. Beep ( 2ND / ALL ) • 2ND mode : The beep is only generated when a key is long pressed (1 sec) •...
  • Page 12: Vol./Multi

    Basic operation Adjusting the sound level 1 Press the VOL./MULTI (MENU/SEL on the remote control) repeatedly to select the mode you want to adjust from volume, equalizer, balance and fader. The indicator lights up in the following order. VOL t EQ t BAL t FAD 2 Rotate the VOL./MULTI (Press VOLUME on the remote control) to adjust the sound quality.
  • Page 13: Radio Operation

    Radio operation Listening to radio stations 1 Press the SRC to select the radio. 2 Press the BAND repeatedly to select a band. The indicator lights up in the following order. FM1 t FM2 t FM3 t MW(AM) 3 Seek tuning : Push the VOL./MULTI toward left or right. (Press the ?m m M M? the remote control.) The tuner will scan the frequencies until a broadcast with strong enough reception is found.
  • Page 14: Rds Operation

    RDS operation RDS Display options In normal RDS operation the display will indicate the station name. Pressing the DISP/CLOCK enables you to cycle through the various data types in the following sequence: (CT t FREQUENCY t PTY t RT t PS) •...
  • Page 15: Rds Operation

    RDS operation RDS REG function To switch on or off the TA (Traffic Announcement) function, press the TA/AF/REG repeatedly. • TA ON Traffic programs and announcements can be automatically received using TP/TA features. • TA OFF Traffic programs and announcements can not be received using TP/TA features. RDS AF function To switch on or off the AF function (Alternative Frequencies) or the REG (Regional Network Tracking) function, long press repeatedly the TA/AF/REG more than 2 seconds.
  • Page 16: Cd/Mp3/Wma Operation

    CD/MP3/WMA operation Playing an Audio CD and MP3/WMA Disc The unit can play MP3/WMA formatted recordings on CD-ROM, CD-R or CD-RW discs. Before playing MP3/WMA recordings, read the notes on MP3/WMA Recordings on page 19. If you change the source, CD play also stops (without ejecting the CD). Next time you select “CD”...
  • Page 17: Cd/Mp3/Wma Operation

    CD/MP3/WMA operation Random 1 Press the SHF during playback. The FOLDER SHF appears in the display window. (The current selected folder on the disc is played randomly.) The SHF ALL appears in the display window. (All of the music on the disc is played randomly.) Press and hold the SHF for about 1 seconds during playback.
  • Page 18: Troubleshooting

    Troubleshooting Symptom Cause Correction Leads and connectors are not Confirm once more that all Power doesn’t properly connected. connections are correct. turn on. The fuse is blown. Rectify the problem that caused The unit doesn’t the fuse to blow, and then replace operate.
  • Page 19: Specifications

    Specifications MP3/WMA Disc compatibility with this unit is limited as follows: 1. Sampling Frequency / 8 - 48kHz (MP3) 22.05 - 48kHz (WMA) 2. Bit rate / within 8 - 320kbps (include VBR) (MP3) 32 -320kbps (WMA) 3. CD-R/CD-RW file system should be “ISO 9660” 4.
  • Page 20 P/NO: MFL30126607...
