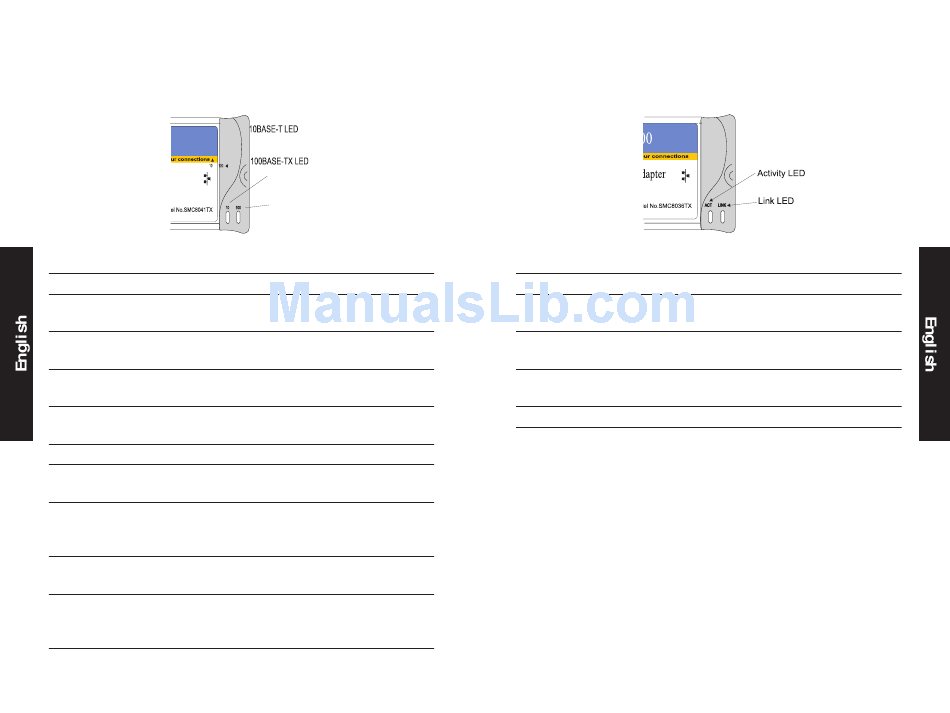

LED Indicators
The SMC8041TX V.2 includes two status LED indicators, as
described in the following table.
LED Status Description
10 Off No network connection
On Yellow Indicates a valid half-duplex 10 Mbps
network connection
Flashing Indicates that the card is receiving data at
Yellow 10 Mbps in half-duplex mode
Green Indicates a valid full-duplex 10 Mbps
network connection
Flashing Indicates that the card is receiving data at
Green 10 Mbps in full-duplex mode
100 Off No network connection
On Yellow Indicates a valid 100 Mbps half-duplex
network connection
Flashing Indicates that the card is transmitting and
Yellow receiving data at 100 Mbps in half-duplex
mode
Green Indicates a valid full-duplex 100 Mbps
network connection
Flashing Indicates that the card is transmitting and
Green receiving data at 100 Mbps in full-duplex
mode
3
LED Indicators
The SMC8036TX includes two status LED indicators, as described
in the following table.
LED Condition Status
ACT On Green Indicates a valid network connection
Flashing Indicates incoming and outgoing network
Green traffic
LINK On Green Indicates a valid 100 Mbps network
connection
On Amber Indicates a valid 10 Mbps network
connection
Off No network connection
