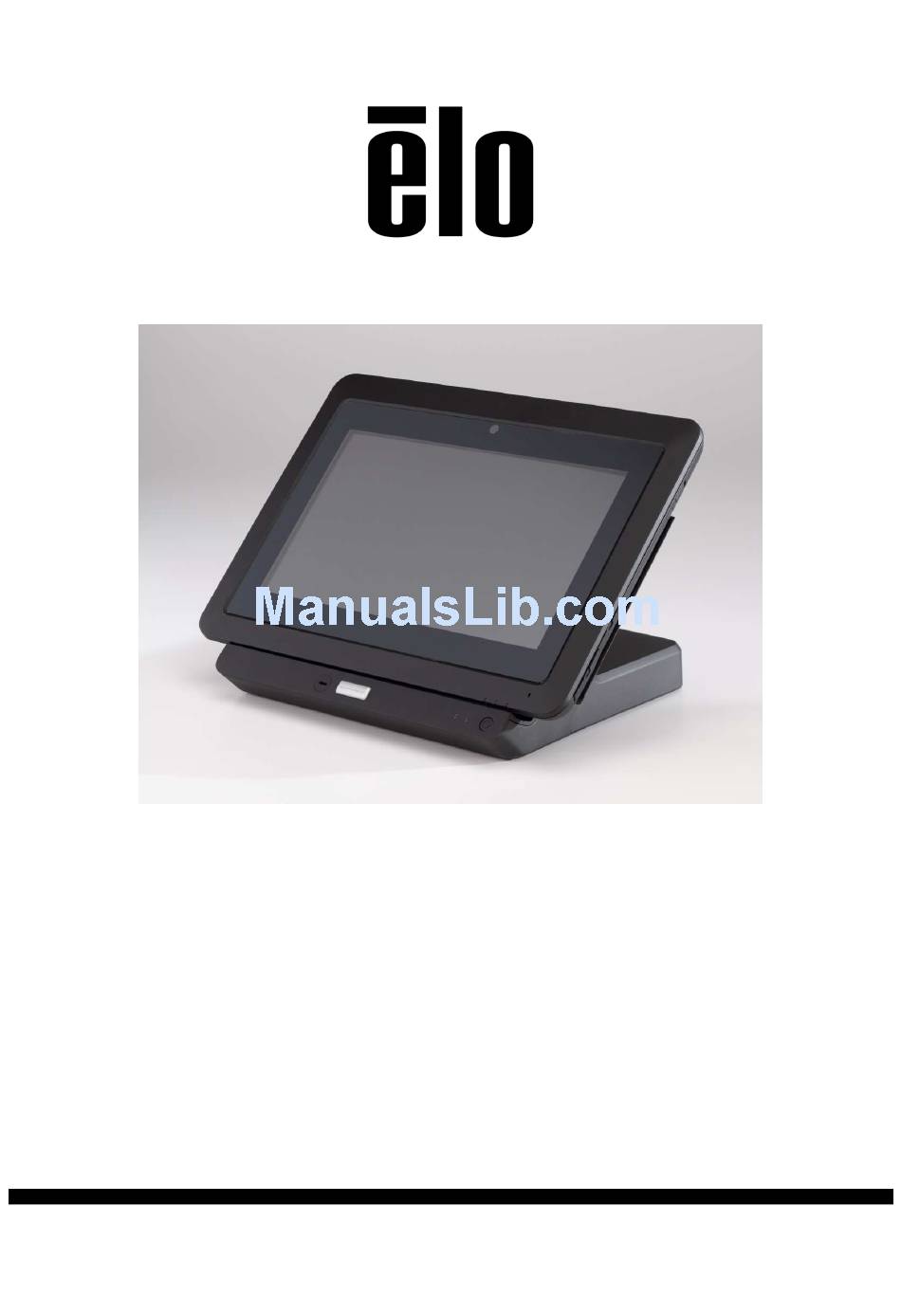

- Page 1 USER MANUAL Elo Touch Solutions ® Tablet SW602113 Rev A...
-
Page 2: Table Of Contents
Table of Contents Read this first ....................3 Chapter 1: Product Overview ............... 7 Product Description ................7 Precautions ..................7 Tablet Layout ..................8 Tablet Docking Station (optional accessory) Layout ......12 Accessories (optional) ..............15 Features ................... 16 Specifications ................... -
Page 3: Read This First
Warning: Using an incompatible battery may increase the risk of fire or explosion. Replace the battery only with a compatible battery purchased from Elo Touch Solutions that is designed to work with your Elo Tablet. Do not use a battery from other tablets. - Page 4 Do not disassemble the battery. Use approved charging methods only: Use only the AC/DC power adapter kit supplied by Elo Touch Solutions for the tablet. You can safely recharge the tablet battery using any of the following configurations: 1. AC/DC power adapter kit connected to tablet.
- Page 5 Always prioritize your safety and the safety of others. Follow the law. Local laws and regulations might govern how you can use mobile electronic devices, such as your tablet, while you drive a motor vehicle or ride a bicycle. Dispose according to local laws and regulations: When your tablet reaches the end of its useful life, do not crush, incinerate, immerse in water, or dispose of your tablet in any manner contrary to local laws and regulations.
- Page 6 hot. Polyvinyl Chloride (PVC) cable and cord notice: WARNING: Handling the cord on this product or cords associated with accessories sold with this product, will expose you to lead, a chemical known to the State of California to cause cancer, and birth defects or other reproductive harm. Wash hands after handling. ®...
-
Page 7: Chapter 1: Product Overview
Product Description Your new tablet combines Elo Touch Solutions reliable performance with the latest developments in touchscreen technology and display design. This combination creates a natural flow of information between a user and the tablet. -
Page 8: Tablet Layout
Tablet Layout Figure 1. Tablet front and side view Figure 2. Tablet back view ® User Manual: Elo Tablet SW602113 Rev A, Page 8 of 39... - Page 9 1 Power button 14 Battery indicator LED 2 Smart Card Reader (SCR) 15 Dock pin ports (bottom) Near Field Communication (NFC) 3 USB port reader 4 Audio port (green) 17 Ambient light sensor 5 Power port (yellow) 18 Tablet stylus string holes 6 Magnetic Stripe Reader (MSR) 19 Tablet stylus holder port cover 7 Front-facing camera...
-
Page 10: Front-Facing Camera
Dock-Tablet connector located on the docking station to establish connection between the two devices. Refer to Chapter 3 for more information on tablet integration to the docking station. The optional Elo Tablet Dock is available for purchase from Elo Touch Solutions. 13. Wireless indicator LED Flashes green when the tablet is connected to a Wi-Fi network and flashes blue when the tablet Bluetooth is on. -
Page 11: Ambient Light Sensor
15. Dock pin ports (bottom) When mounting the tablet onto the docking station, align the docking station docking pins with the tablet docking pins to ensure proper mounting. For more information on how to mount the tablet onto the docking station, refer to Chapter 3. 16. -
Page 12: Tablet Docking Station (Optional Accessory) Layout
24. Speaker (built-in) The integrated speaker provides audio output for video and music playback. 25. Battery The tablet battery is a Lithium-ion battery with a rating of 41.81 Wh. For more information regarding agency approval of the tablet battery, refer to Chapter 7. Tablet Docking Station (optional accessory) Layout Figure 3. -
Page 13: Power Button
Figure 4. Tablet docking station rear view 1 Power button 10 Dock battery compartment 2 Wireless indicator LED 11 Dock cable cover 3 Ethernet indicator LED 12 Dock cable cover lock* 4 Dock alignment pins (bottom) 13 Dock cable cover release buttons 5 Battery Screw 14 VGA port 6 Dock alignment pins (top) - Page 14 3. Ethernet indicator LED Flashes green when the mounted tablet is connected to a network via an Ethernet cable. 4. Dock alignment pins (bottom) These pins support tablet mounting onto the docking station. Align and slide these pins into the docking pin ports located on the tablet to mount the tablet to the docking station.
-
Page 15: Accessories (Optional)
docking station. 12. Dock cable cover lock When the dock cable cover is properly installed to the docking station, turn this accordingly to lock/unlock the cable cover onto the docking station. Note: You cannot install the cable cover onto the docking station when it’s in the ‘locked’ position. For more information on how to install/uninstall the cable cover to the docking station, refer to Chapter 3. -
Page 16: Features
the Elo Tablet docking station. • Replacement Power Supply (E452058): Replacement AC/DC power adapter kit for powering and charging the tablet. • Stylus (E761200): Elo Tablet stylus with holder. • Docking Station (E518363): Elo Tablet docking station with battery charging location, Ethernet port, 3 USB ports, and VGA connector. - Page 17 • 2 GB DDR3 – 1066 MHz (not expandable beyond 2GB) Storage • 32 GB SSD Bios • Phoenix Video • Intel 3600 Chipset • Intel NM10 Display • Screen Size : 257 mm (10.1 inches) • Active Display Area: 222.8 mm x 125.8 mm •...
-
Page 18: Specifications
• Near Field Communication Other features • Built-in speaker • Built-in microphone Languages • English (default) • French • German • Italy • Spain Specifications Maximum Dimensions (W x H x D) • Tablet : 11.52 ‘’ x 0.79’’ x 8.17’’ •... -
Page 19: Chapter 2: Getting Started
Chapter 2: Getting Started Unpacking the Tablet To unpack the tablet: 1. Open the box. 2. Check that the following items are present and in good condition: Tablet Quick Install Guide AC/DC Power adapter kit o AC/DC power adapter w/ DC power cable o Charger plug adapter for North America, Europe/Korea, and U.K. - Page 20 Power adapter head until you hear a click. Figure 6. The charger plug adapter (A) is detachable from the AC/DC Power adapter head by pushing the release button (B) and sliding out the charger plug adapter. Plug the AC/DC adapter head (left) into a standard AC power outlet and plug the DC power cable (C) to the yellow tablet power port (5, Figure 1) or yellow docking station power port (17, Figure 4) to charge.
-
Page 21: Installing The Hand Strap Onto Your Tablet
Installing the Hand Strap onto your Tablet The hand strap is designed for easy user installation/uninstallation to/from the tablet. As shown in Figure 7, the hand strap can be installed onto the tablet in two different orientations for right hand use or for left hand use. If you plan to hold the tablet with your left hand, use the hand strap screw ports on the top left and bottom right (as you face the back of the tablet) on the back of the tablet. -
Page 22: Using The Multi-Touch Screen
Using the Multi-touch Screen This section provides instructions on how to use the multi-touch screen. Some of the touch features listed below may not always work, as it depends on whether the gesture or action is supported by the application software you have loaded on your tablet. Touch Tap gently on the screen with your fingertip to select an item, open a menu, or type text using the onscreen keyboard. -
Page 23: Using The Onscreen Keyboard
Using the Onscreen Keyboard Typing text, numbers, symbols, and other characters When you need to type text, touch the text field to bring up the onscreen keyboard and then touch keys on the keyboard to type. Using the Elo Tablet Stylus To use the Elo tablet stylus, hold the stylus and gently touch the screen with the tip to accomplish actions such as touch, touch and hold, drag, and slide. -
Page 24: Screen Lock Mode
Figure 9. To install the stylus holder onto the tablet: Step 1 - Loosen and remove the screw (A) and remove the stylus holder port cover (B). Step 2 - Insert stylus holder (C) to the port and fasten it by tightening the screw (A) back to the tablet. Step 3 - Store the stylus (D) in the stylus holder when not in use. -
Page 25: Smart Card Reader (Scr)
Magnetic Swipe Reader (MSR) A magnetic stripe card is a type of card capable of storing data on a band of magnetic material on the card. The magnetic stripe, sometimes called swipe card or magstripe, is read by swiping past a magnetic reading head. The tablet is capable of reading three tracks - these are known as tracks 1, 2, and 3. -
Page 26: Chapter 3: Docking Station
Chapter 3: Docking Station General Mounting Information The optional Elo Tablet docking station is available for purchase (P/N E518363). The docking station provides additional connectors and interfaces to support peripherals such as keyboards, cash drawers, printers, etc. The Elo Tablet and docking station is also designed to allow the tablet and/or a spare battery to charge via the dock. - Page 27 Figure 10. Mounting the tablet onto the docking station. (A) Align top dock alignment pins with top dock pin ports. (B) Align bottom dock alignment pins with bottom dock pin ports ® User Manual: Elo Tablet SW602113 Rev A, Page 27 of 39...
-
Page 28: Connecting Docked Tablet To External Peripherals
Connecting Docked Tablet to External Peripherals When the tablet is properly placed into the docking station, the tablet connects and can utilize the connections and interfaces available on the docking station. To access these connections and interfaces: 1. Remove the dock cable cover by pressing the dock cable cover release buttons while the dock cable cover lock is in the ‘unlocked’... -
Page 29: Chapter 4: Operation
Chapter 4: Operation Power To turn the tablet on and off, press the tablet power button once. When the tablet is installed onto the docking station, then the tablet can also be turned on and off using the power button on the docking station. -
Page 30: Charging Battery
Charging Battery Use only the AC/DC power adapter kit supplied by Elo Touch Solutions to charge the tablet and its battery. The tablet battery has a ‘charging threshold’, and will only charge once it falls below this threshold level. The threshold level of the tablet battery has been set to 90% by default. -
Page 31: Chapter 5: Technical Support
Chapter 5: Technical Support If you are experiencing trouble with your tablet, refer to the following suggestions. If the problem persists, please contact your local dealer or contact Elo Touch Solutions Customer Service. Solutions to Common Problems Problem Suggested Troubleshooting... -
Page 32: Chapter 6: Safety & Maintenance
The Elo Tablet and docking station is equipped with an AC/DC power adapter kit. Do not use a damaged AC/DC power adapter kit. Use only the AC/DC power adapter kit supplied by Elo Touch Solutions for the tablet and tablet docking station. Use of an unauthorized AC/DC power adapter kit may invalidate your warranty. -
Page 33: Tablet Care And Handling
Tablet Care and Handling The following tips will help maintain optimal performance of your Elo Tablet: Disconnect the power cable before cleaning. To clean the display, use a soft cotton or microfiber cloth lightly dampened with a mild detergent. It is important that your unit remains dry. Do not get liquids on or inside the unit. In the event that liquid does get inside, have a qualified service technician inspect the unit before you power it on again. -
Page 34: Battery Disposal
Battery Disposal The tablet battery is a rechargeable Lithium-ion battery. Discard battery at the end of its useful life according to local laws and regulation. ® User Manual: Elo Tablet SW602113 Rev A, Page 34 of 39... -
Page 35: Chapter 7: Regulatory Information
Chapter 7: Regulatory Information I. Electrical Safety Information Compliance is required with respect to the voltage, frequency, and current requirements indicated on the manufacturer label. Connection to a different power source than those specified herein will likely result in improper operation, damage to the equipment or pose a fire hazard if the limitations are not followed. - Page 36 This equipment complies with the Class B limits for radio noise emissions from digital apparatus as established by the Radio Interference Regulations of Industrial Canada. Notice to Users in the European Union: Use only the provided power cords and interconnecting cabling provided with the equipment. Substitution of provided cords and cabling may compromise electrical safety or CE Mark Certification for emissions or immunity as required by the following standards: This Information Technology Equipment (ITE) is required to have a CE Mark on the...
- Page 37 television technician. III. Agency Certifications The following certifications and marks have been issued or declared for the tablet and the docking station: Europe Union CE United States FCC Canada IC United States and Canada UL The following certifications and marks have been issued or declared for tablet battery: United States and Canada UL European Union CE mark UN Manual of tests and criteria, Part III, subsection 38.3 (Lithium ion battery transportation...
-
Page 38: Chapter 8: Warranty Information
Chapter 8: Warranty Information For warranty information, go to http://www.elotouch.com/Support/warranty.asp ® User Manual: Elo Tablet SW602113 Rev A, Page 38 of 39... -
Page 39: Product Information
Disclaimer The information in this document is subject to change without notice. Elo Touch Solutions, Inc. and its affiliates (collectively "Elo") makes no representations or warranties with respect to the contents herein, and specifically disclaims any implied warranties of merchantability or fitness for a particular purpose.
