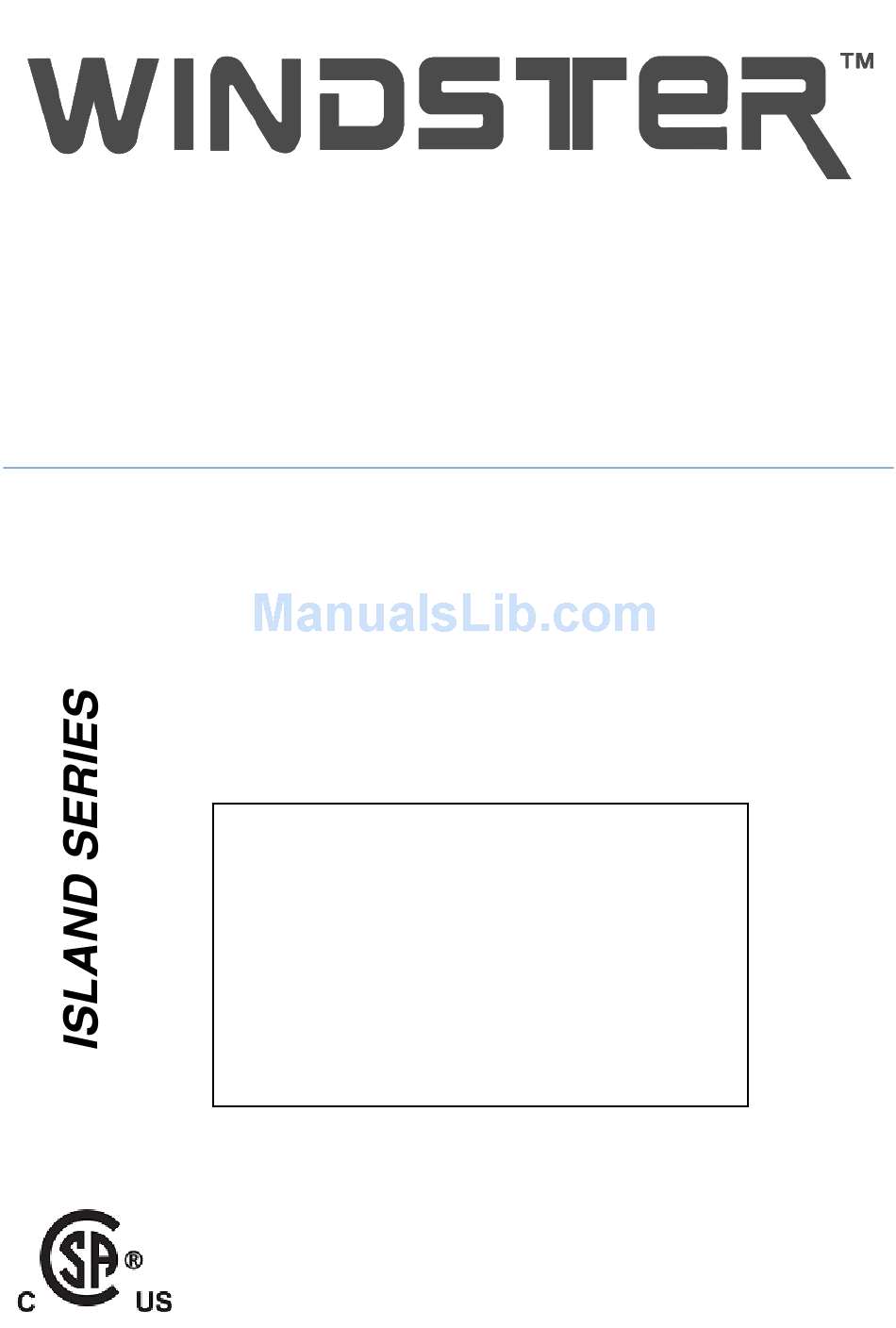

User's Manual
NOTE: This unit was designed for
indoor residential use only.
DO NOT USE OVER A WOOD
GRILL OR MOUNT IN OUTDOOR
ENVIRONMENT.
Please read this operation manual thoroughly before
using your range hood. Store it in a safe location for
when you need to reference it in the future.
HI30SS
HI36SS
HI42SS
www.windsterhood.com
-

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ISLAND HI30SS and is the answer not in the manual?

Questions and answers

Summary of Contents for Windster ISLAND HI30SS

  • Page 1 User's Manual HI30SS HI36SS HI42SS NOTE: This unit was designed for indoor residential use only. DO NOT USE OVER A WOOD GRILL OR MOUNT IN OUTDOOR ENVIRONMENT. Please read this operation manual thoroughly before using your range hood. Store it in a safe location for...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS Table of Contents Safety Information .............. 2 – 3 Content Checklist ..............4 Measurements ................5 Preparation ................6 Installation ................7 – 8 Installation Diagram ..............9 Operation & Features ............. 10 Cleaning & Maintenance ............11 Troubleshooting ..............
  • Page 3: Safety Information

    SAFETY INFORMATION SAFETY INFORMATION TO REDUCE THE RISK OF A FIRE, ELECTRICAL SHOCK, AND/OR INJURY OBSERVE THE FOLLOWING:  Unit is intended for indoor residential use only. If you should have questions, contact the manufacturer at the address or telephone number listed in the warranty.
  • Page 4: Safety Information

    SAFETY INFORMATION TO REDUCE THE RISK OF FIRE, OR ELECTRIC SHOCK, DO NOT USE THIS FAN WITH ANY SOLID-STATE SPEED CONTROL DEVICE.  Regardless of heat level, never leave any surface materials unattended while operating an open flame.  Always turn hood ON when cooking at high heat or when flambéing food (i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambé).
  • Page 5: Content Checklist

    CONTENT CHECKLIST CONTENT CHECKLIST CONTENTS INCLUDED (1) HI series(30‖, 36‖ or 42‖)hood assembly (1) Lower duct cover (16-1/2‖) (1) upper duct cover (22-3/4‖) (1) User’s manual (1) 7‖ transition collar (2) Oil cup filters (1) Screw packet CONTENTS NOT INCLUDED HILDC (Long duct cover) HISDC (Special duct cover) HIBF (Baffle filter)
  • Page 6: Measurements

    MEASUREMENTS...
  • Page 7: Preparation

    PREPARATION PREPARATION BEFORE YOU START **BE SURE YOUR UNIT WILL FIT YOUR CEILING HEIGHT** Be sure you have all the content of your purchase and required tools for this installation. Installation may take at least 2 to 3 hours from start to finish. Plan to use as few elbows or turns as possible for more efficient air flow.
  • Page 8: Installation

    INSTALLATION INSTALLATION 1. STANDARD INSTALLATION Make sure all preparation steps are completed. Determine your ceiling height to see if you need an extension. i. Hood unit (with glass) height = 3-1/4”(30‖ model only) ii. Hood unit (with glass) height = 4-1/4” (36‖ model only) iii.
  • Page 9: Installation

    INSTALLATION 2. EXTENSION INSTALLATION (OPTIONAL) AFTER COMPLETING STEP A– D OF STANDARD INSTALLATION, replace the standard support frame and duct cover with either the extension set or the short duct cover set. REPEAT “STEP F – M” from STANDARD INSTALLATION. 3.
  • Page 10: Installation Diagram

    INSTALLATION DIAGRAM INSTALLATION DIAGRAM...
  • Page 11: Operation & Features

    OPERATION & FEATURES OPERATION & FEATURES EASY ACCESS CONTROL SWITCH (from left to right) Button 1 – ON / OFF Button 2 – Low Speed Button 3 –Medium Speed Button 4 – High Speed Button 5 – Light ALUMINUM FILTERS (1) Aluminum filter (30‖...
  • Page 12: Cleaning & Maintenance

    CLEANING & MAINTENANCE CLEANING & MAINTENANCE WARNING!!! To prevent the possibility of a fire and explosion, do not use flammable liquids or solvents to clean the unit or any of its parts. Check to make sure all power sources are disconnected before servicing or taking unit apart for cleaning.
  • Page 13: Troubleshooting

    TROUBLESHOOTING TROUBLESHOOTING WARNING!!! Check to make sure all power sources are disconnected before starting any troubleshooting. Safety gloves and glasses should be worn when working on the unit. Serious injury or death may occur if safety precautions are not followed. HI Series 1.
  • Page 14: Part List / Replacement

    PART LIST / REPLACEMENT PART LIST / REPLACEMENT Description Description Chimney Supporting Frames Capacitor Duct cover Transition collar Hood body assembly Squirrel cage motor LED lights Aluminum filter Control switch Transformer...
  • Page 15: Warranty / Contact Us

    For a period of one (1) year from the date of purchase, if the product is determined to be defective, Windster will attempt to repair the product, at its option, at no charge. After the warranty period, customer must pay for all labor charges. During the "labor"...
  • Page 16: Warranty / Contact Us

    CONTACT US Windster Hoods, Inc. 5101 Commerce Dr. Baldwin Park, CA 91706 TEL: (626) 962 – 8600 FAX: (626) 962 – 8669 Toll Free: (877) 350 – 5215 E-mail: Support@windsterhood.com © Windster Hoods, Inc. Information subject to change without notice...
